Check the headlamp alignment and adjust if necessary.

2.

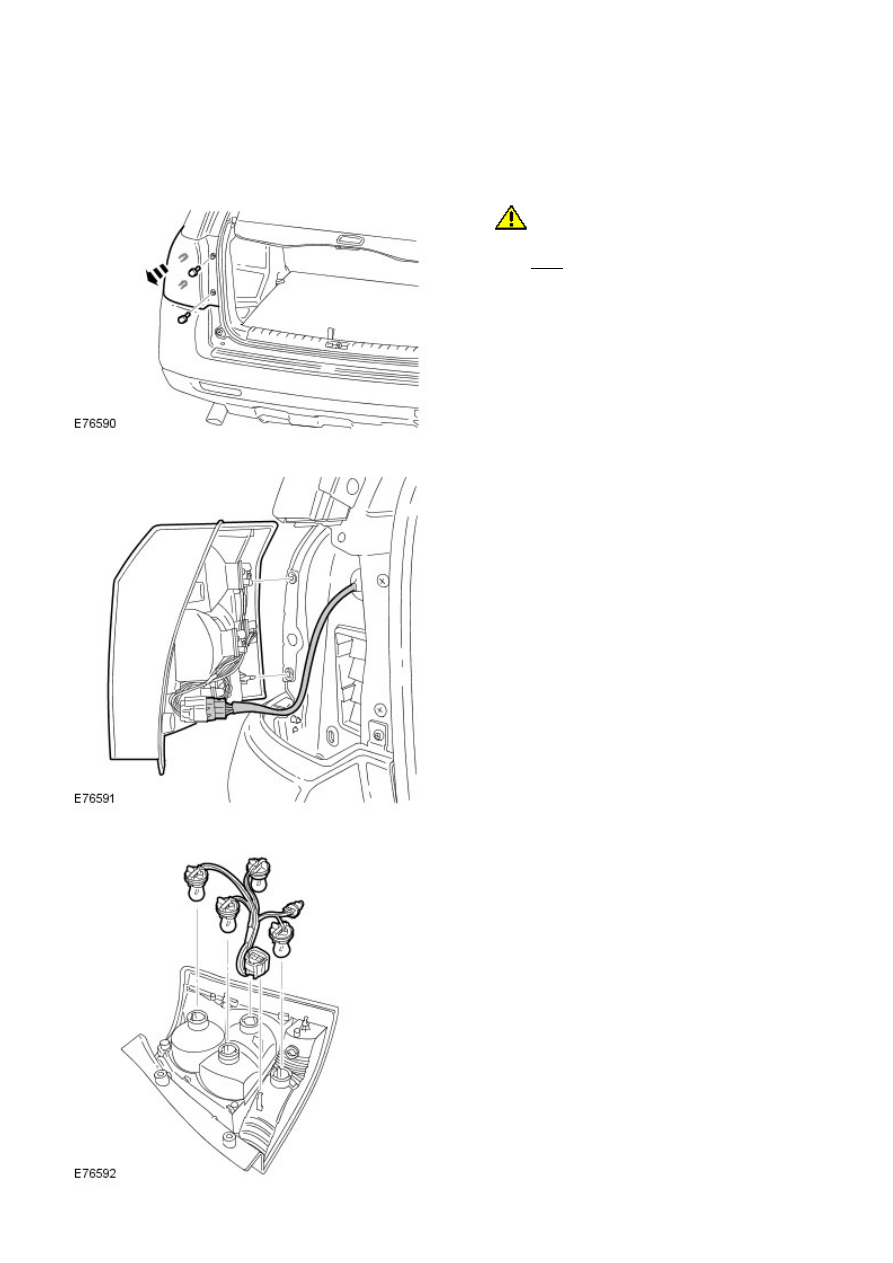

Exterior Lighting - Rear Lamp Assembly

Removal and Installation

Removal

• NOTE: Removal steps in this procedure may contain installation details.

1.

CAUTION: Take extra care not to damage the

edges of the component.

Torque: 2 Nm

1.

2.

3. NOTE: Do not disassemble further if the component
is removed for access only.

3.

Installation

To install, reverse the removal procedure.

1.

Exterior Lighting - High Mounted Stoplamp

Removal and Installation

Removal

Remove the liftgate upper trim panel.

Refer to:

Liftgate Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

1.

2.

3. NOTE: Do not disassemble further if the component
is removed for access only.

3.

Installation

To install, reverse the removal procedure.

1.
