Frelander 2. Manual - part 470
Depending on the audio system fitted there are 3 different speaker configurations, these are:
Base audio
2 Front door mounted mid/low range speakers
2 Front door mounted high range speakers
2 Rear door mounted mid/low range speakers
2 Rear door mounted high range speakers
Mid range audio system
2 Front door mounted mid/low range speakers
2 Front door mounted high range speakers
2 Rear door mounted mid/low range speakers
2 Rear door mounted high range speakers
Rear loadspace mounted sub-woofer enclosure
High line audio system
2 Front door mounted low range speakers
2 Front door mounted high range speakers
2 Rear door mounted mid/low range speakers
2 Rear door mounted high range speakers
Rear loadspace mounted sub-woofer enclosure
2 Mid range speakers mounted on the instrument panel
1 center fill speaker centrally located in the instrument panel
2 rear surround speakers mounted in the rear C pillars

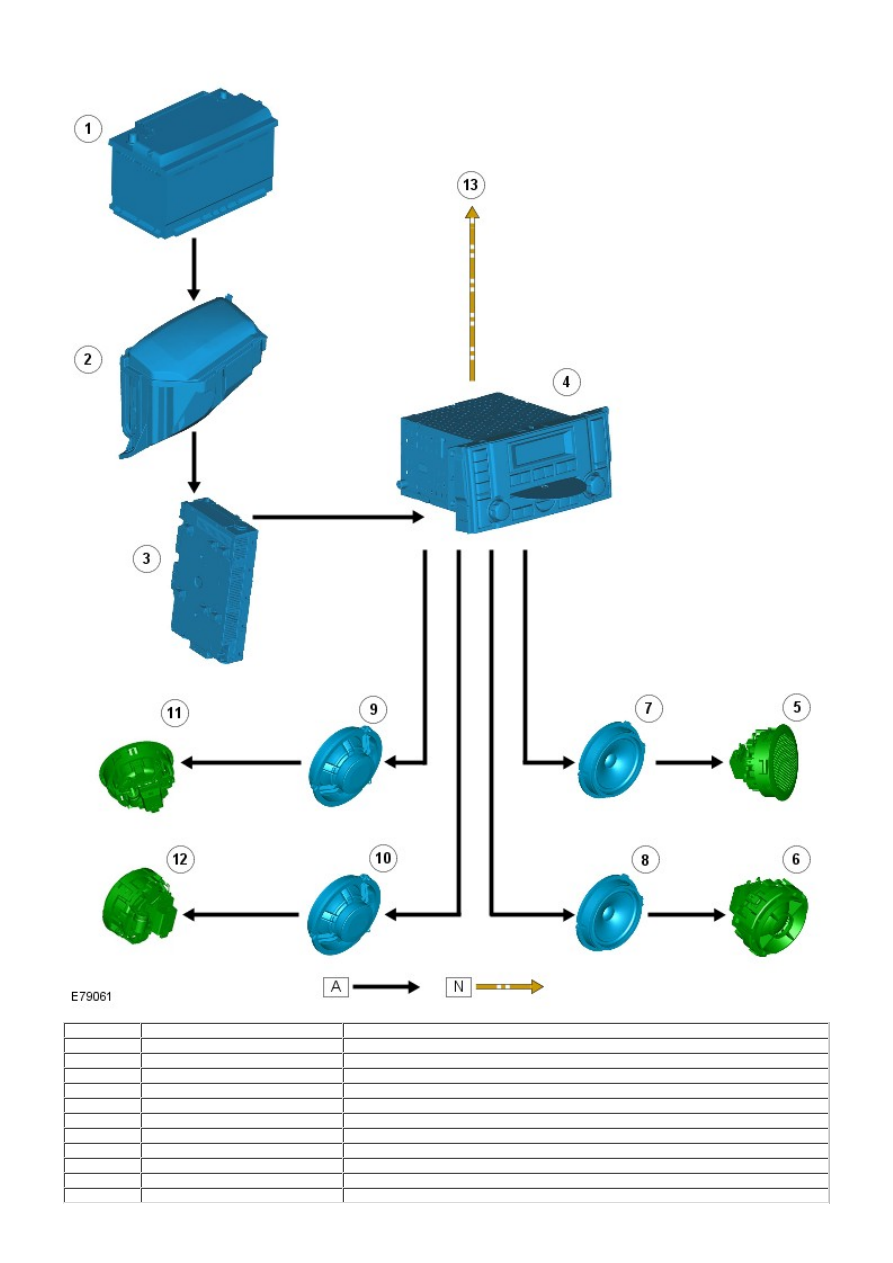

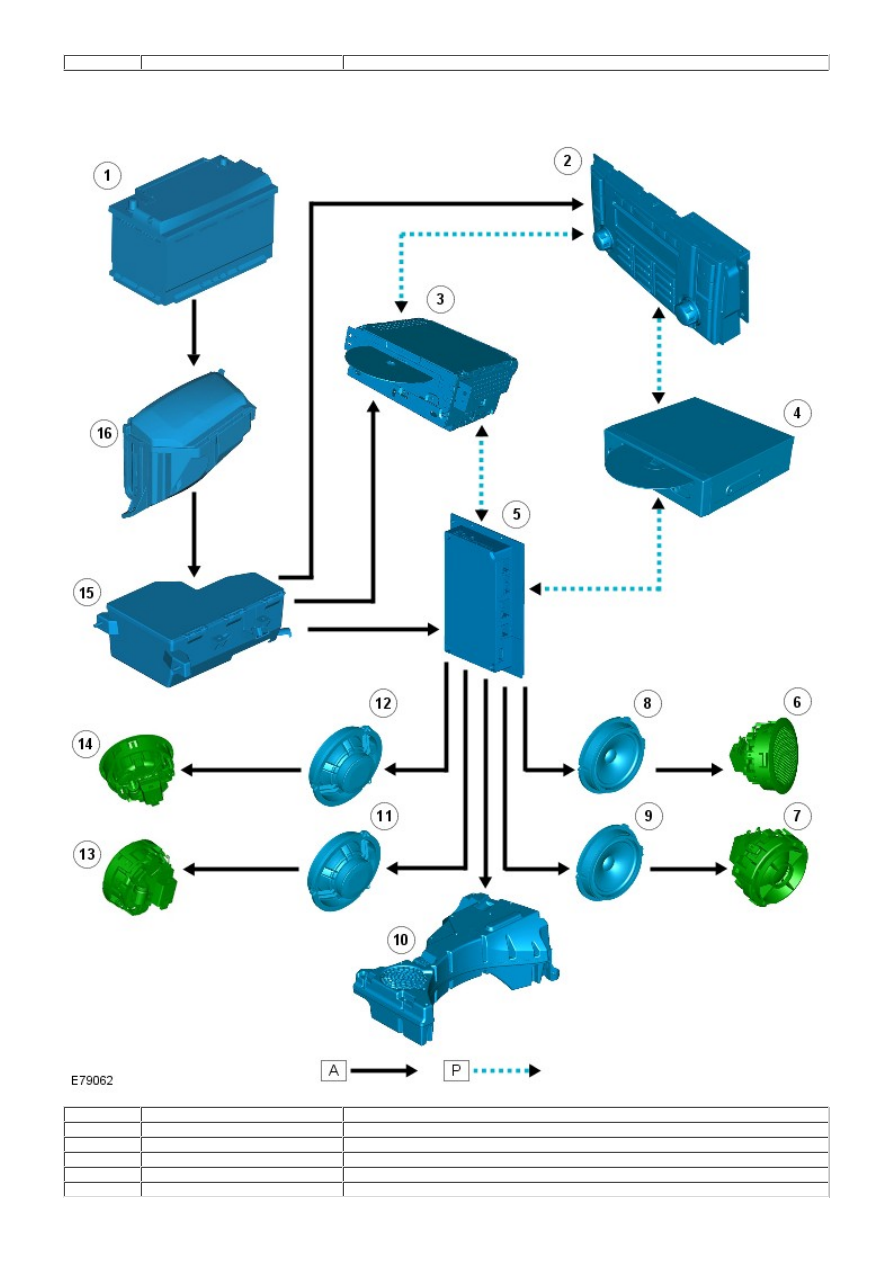

CONTROL DIAGRAM SHEET 1 of 3
• NOTE: A = Hardwired; N = Medium speed CAN bus
