Refer to:

Battery Tray

 (414-01 Battery, Mounting and Cables,

Removal and Installation).

Recharge the A/C system.

Refer to:

Air Conditioning (A/C) System Recovery, Evacuation and

Charging

 (412-00 Climate Control System - General Information,

General Procedures).

8.

Install the engine cover.

Refer to:

Engine Cover - I6 3.2L Petrol

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

9.

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

10.

Climate Control - Air Conditioning (A/C) CompressorTD4 2.2L Diesel

Removal and Installation

Removal

CAUTION: Make sure that the specified amount of refrigerant oil is added.

• NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Recover the A/C refrigerant.

Refer to:

Air Conditioning (A/C) System Recovery, Evacuation and

Charging

 (412-00 Climate Control System - General Information,

General Procedures).

2.

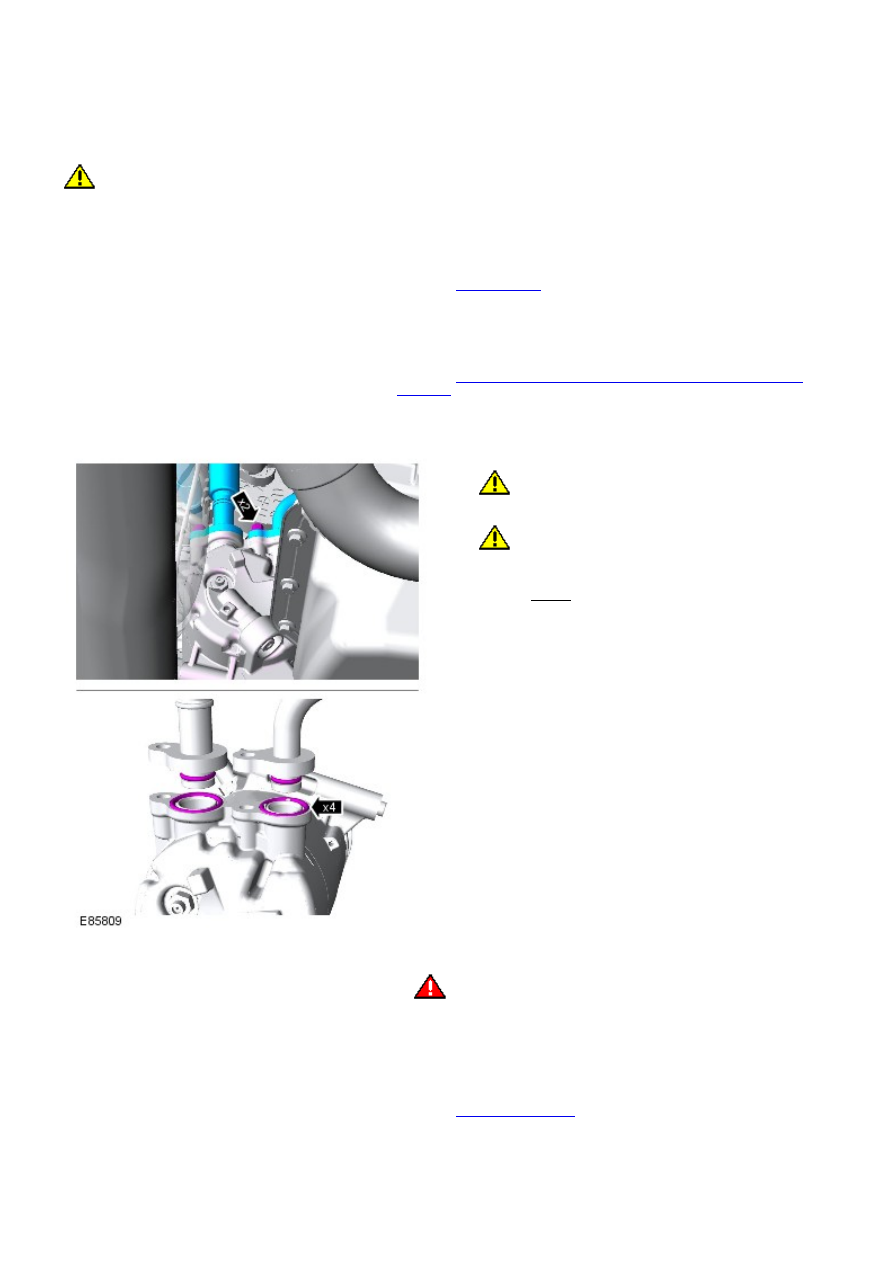

3. CAUTIONS:

 Make sure that all openings are sealed. Use new

blanking caps.

 Lubricate the new seals with clean refrigerant oil.

• NOTE: Install new O-ring seals.

Torque: 24 Nm

3.

4.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

4.

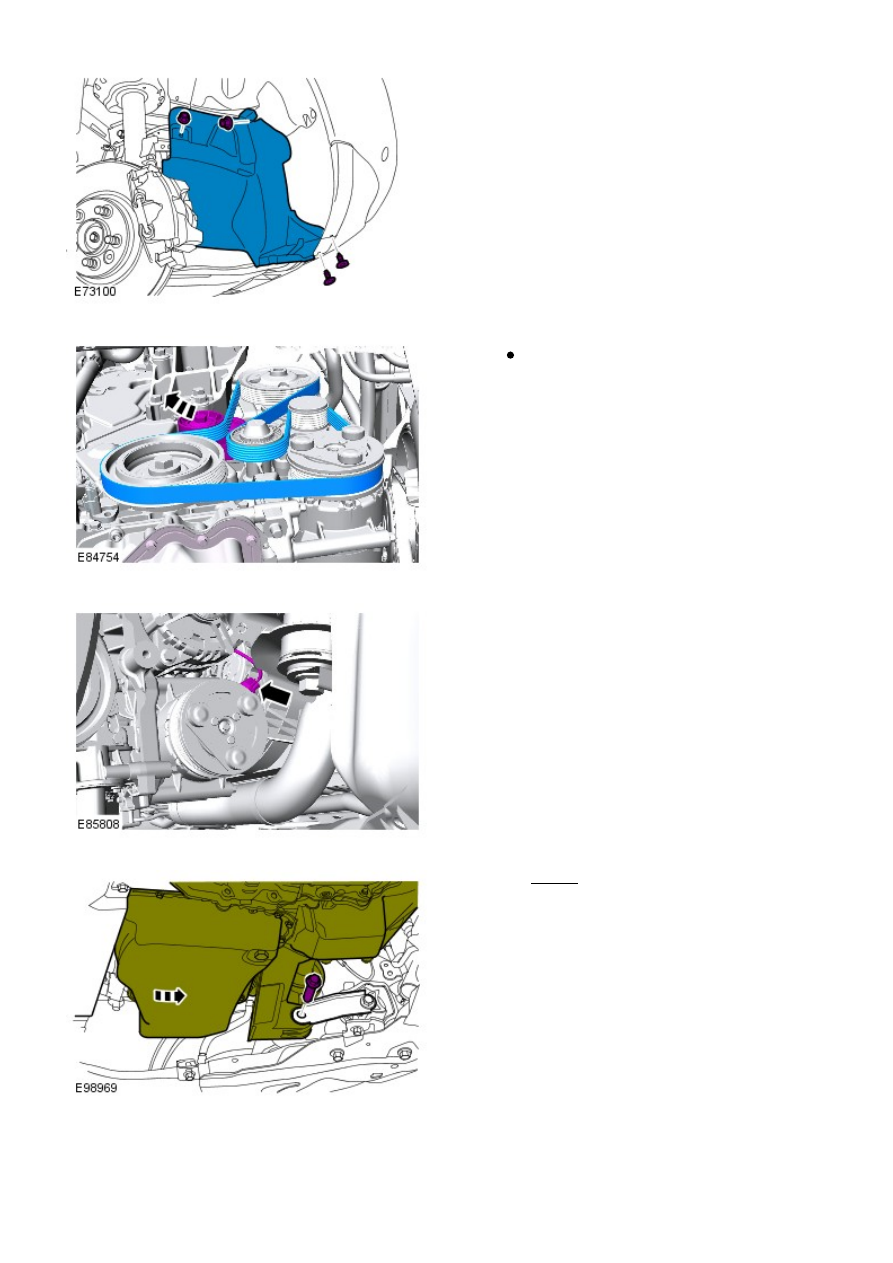

Remove the engine undershield.

Refer to:

Engine Undershield

 (501-02 Front End Body Panels,

Removal and Installation).

5.

6.



Release the accessory drive belt from the A/C
compressor pulley.

7.

8.

Torque: 110 Nm

9.

Torque: 25 Nm

10.

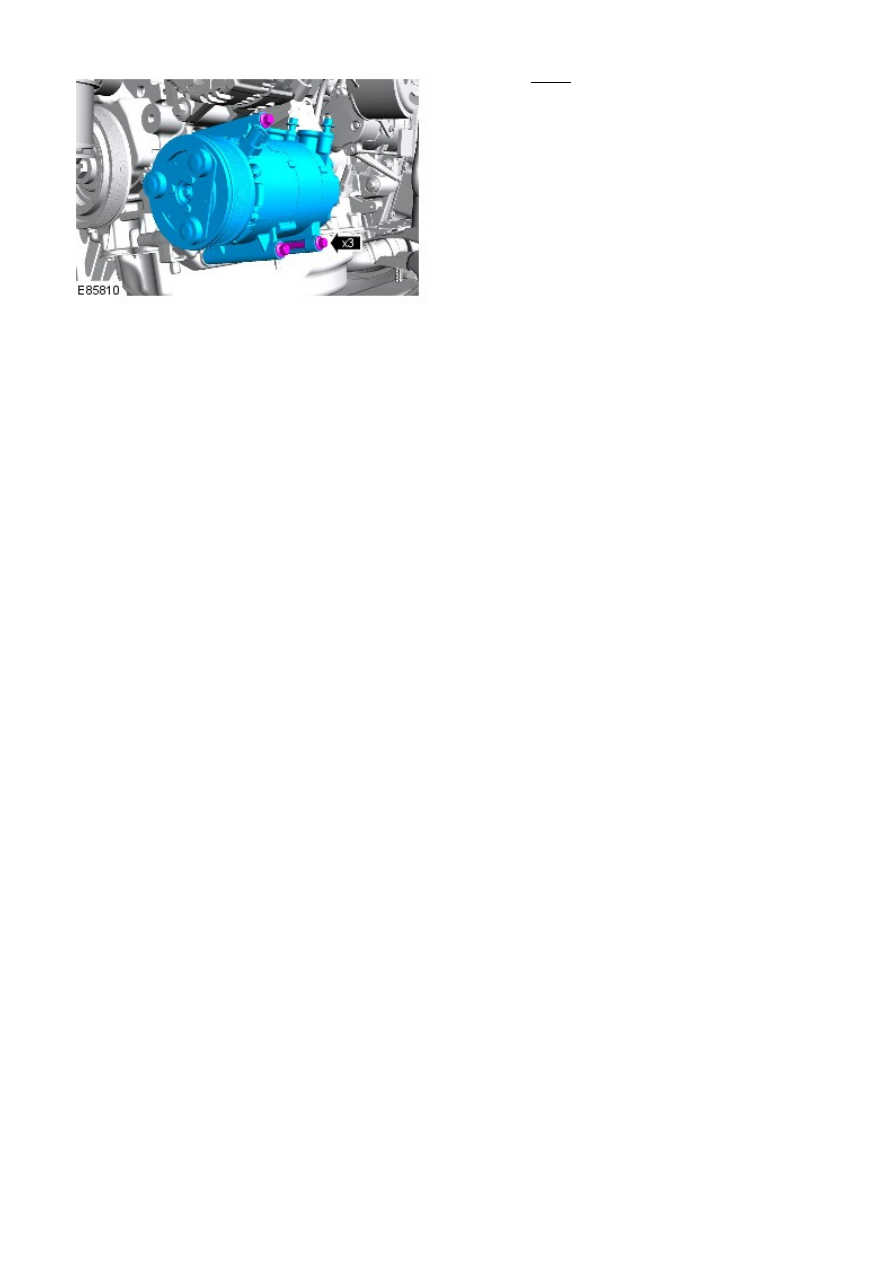

Installation

To install, reverse the removal procedure.
