Climate Control - Heater Core and Evaporator Core Housing

Removal and Installation

Removal

Make the SRS system safe.

1.

Remove the instrument panel.

Refer to:

Instrument Panel - TD4 2.2L Diesel

 (501-12 Instrument

Panel and Console, Removal and Installation).
Refer to:

Instrument Panel - I6 3.2L Petrol

 (501-12 Instrument Panel

and Console, Removal and Installation).

2.

Remove the clockspring.

Refer to:

Clockspring

 (501-20B Supplemental Restraint System,

Removal and Installation).

3.

Remove the instrument cluster.

Refer to:

Instrument Cluster

 (413-01 Instrument Cluster, Removal

and Installation).

4.

5.

Disconnect the keyless start module electrical
connector.

6.

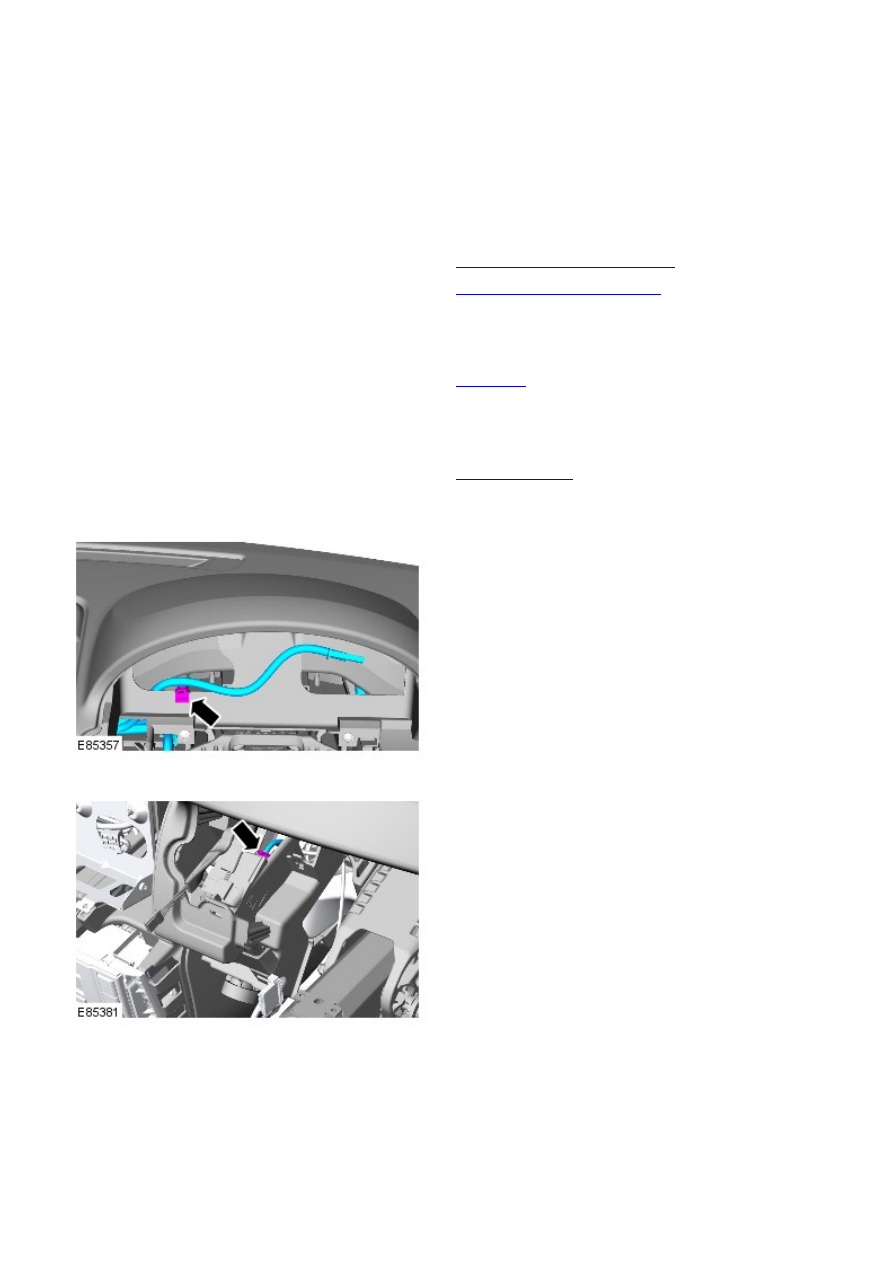

Disconnect the in-vehicle temperature sensor.

7.

Remove both upper trim panels.

8.

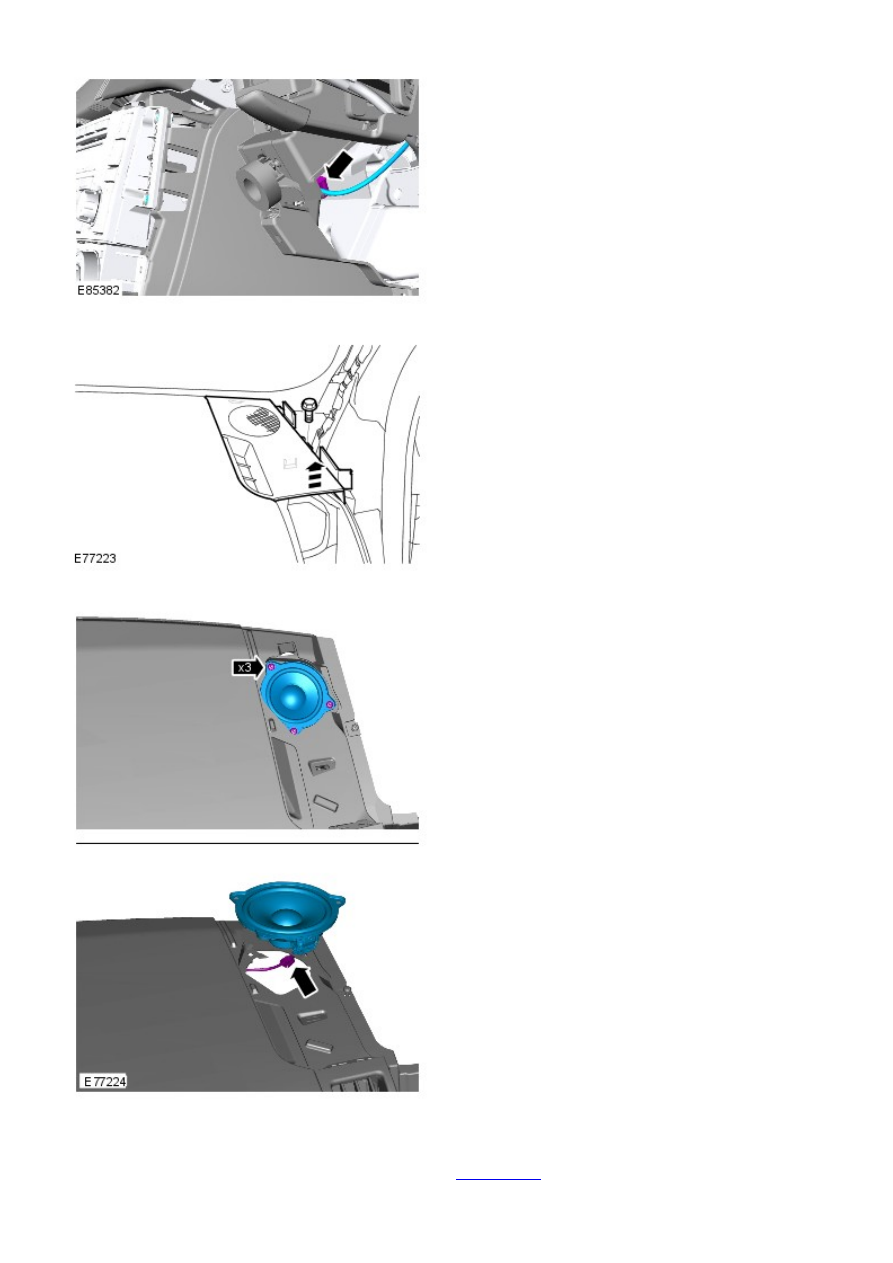

Remove both instrument panel speakers.

9.

Remove the video display.

Refer to:

Video Display

 (415-01 Information and Entertainment

System, Removal and Installation).

10.

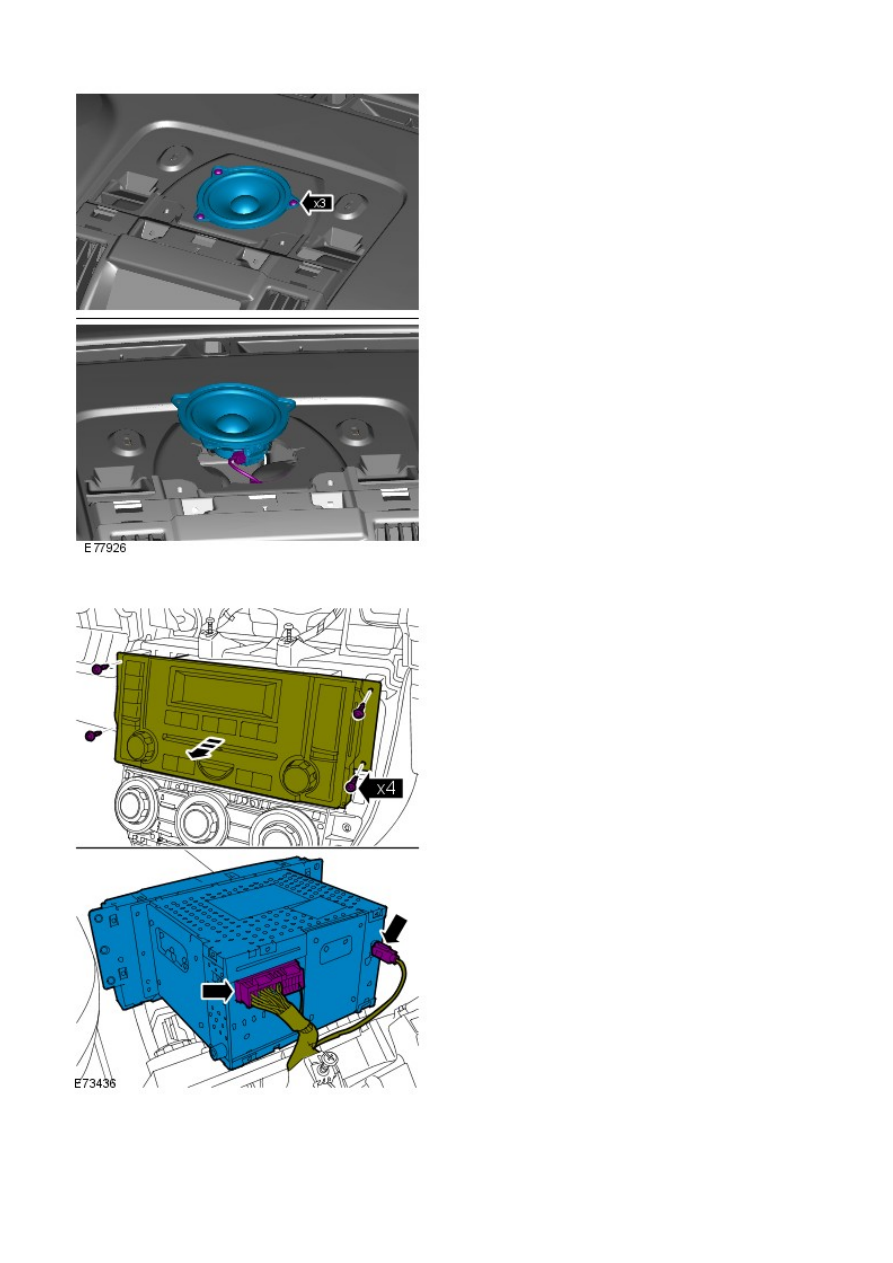

Remove the center speaker.

11.

Remove the audio unit.

12.

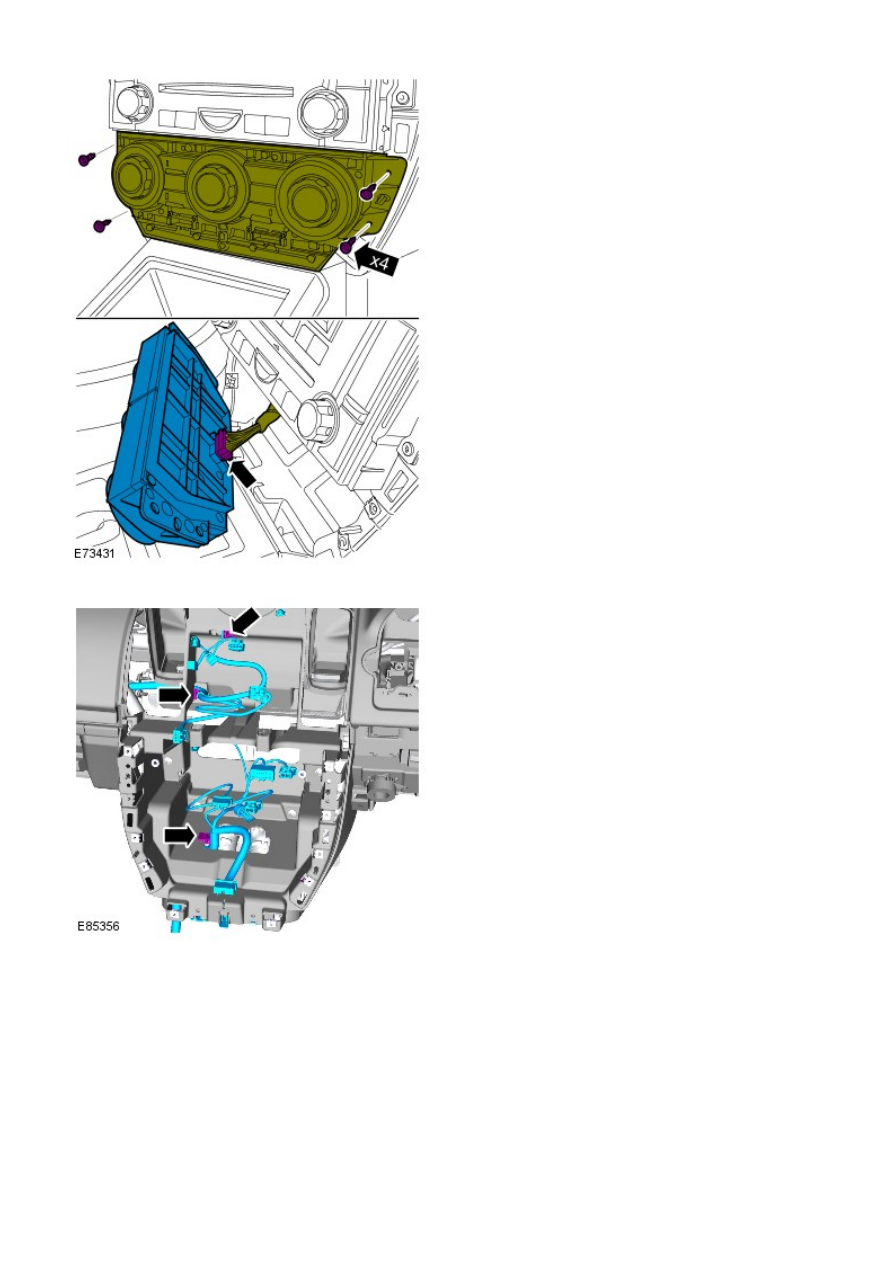

Remove the climate control assembly.

13.

14.
