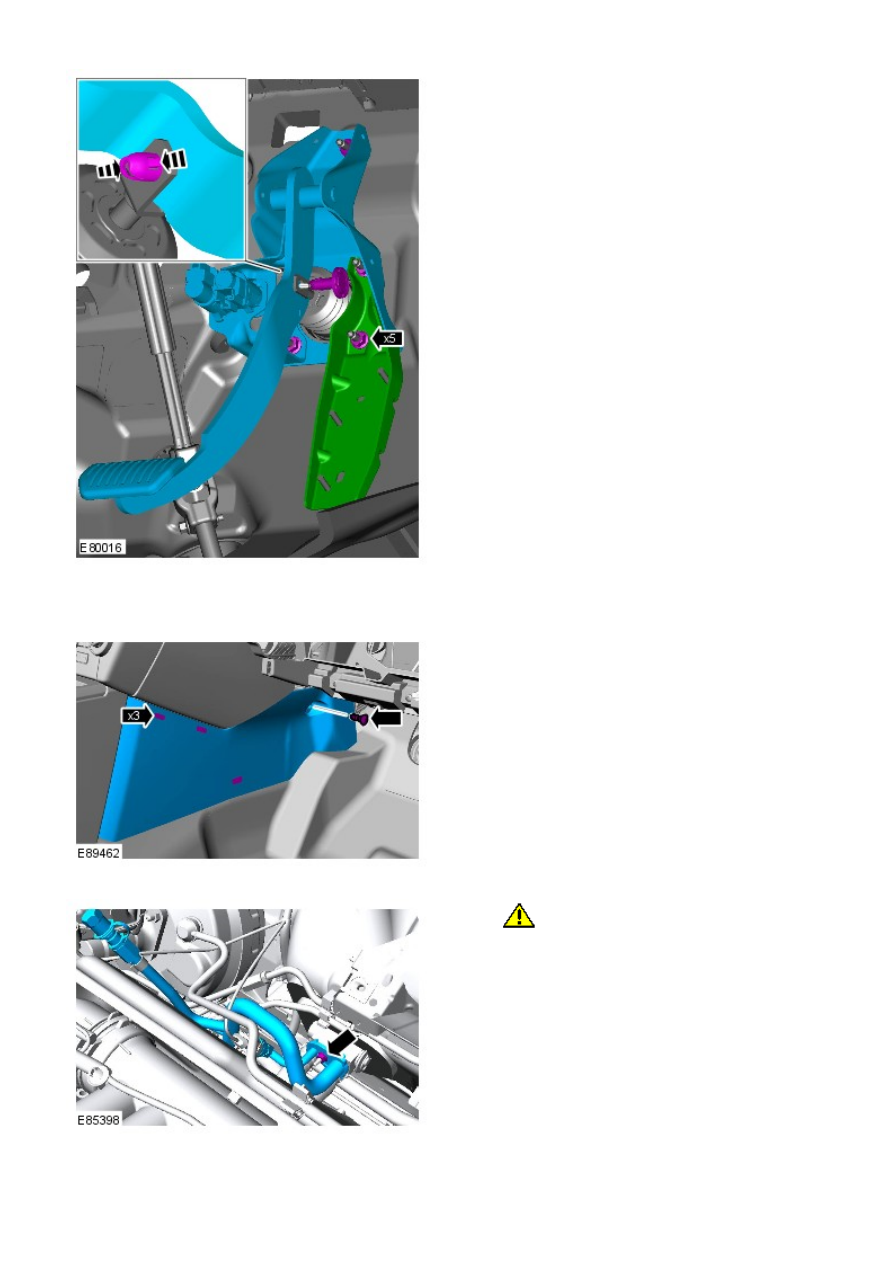

Remove the brake pedal assembly.

11.

All vehicles

Remove the RH floor console extension.

12.

13.

CAUTION: Make sure that all openings are

sealed. Use new blanking caps.

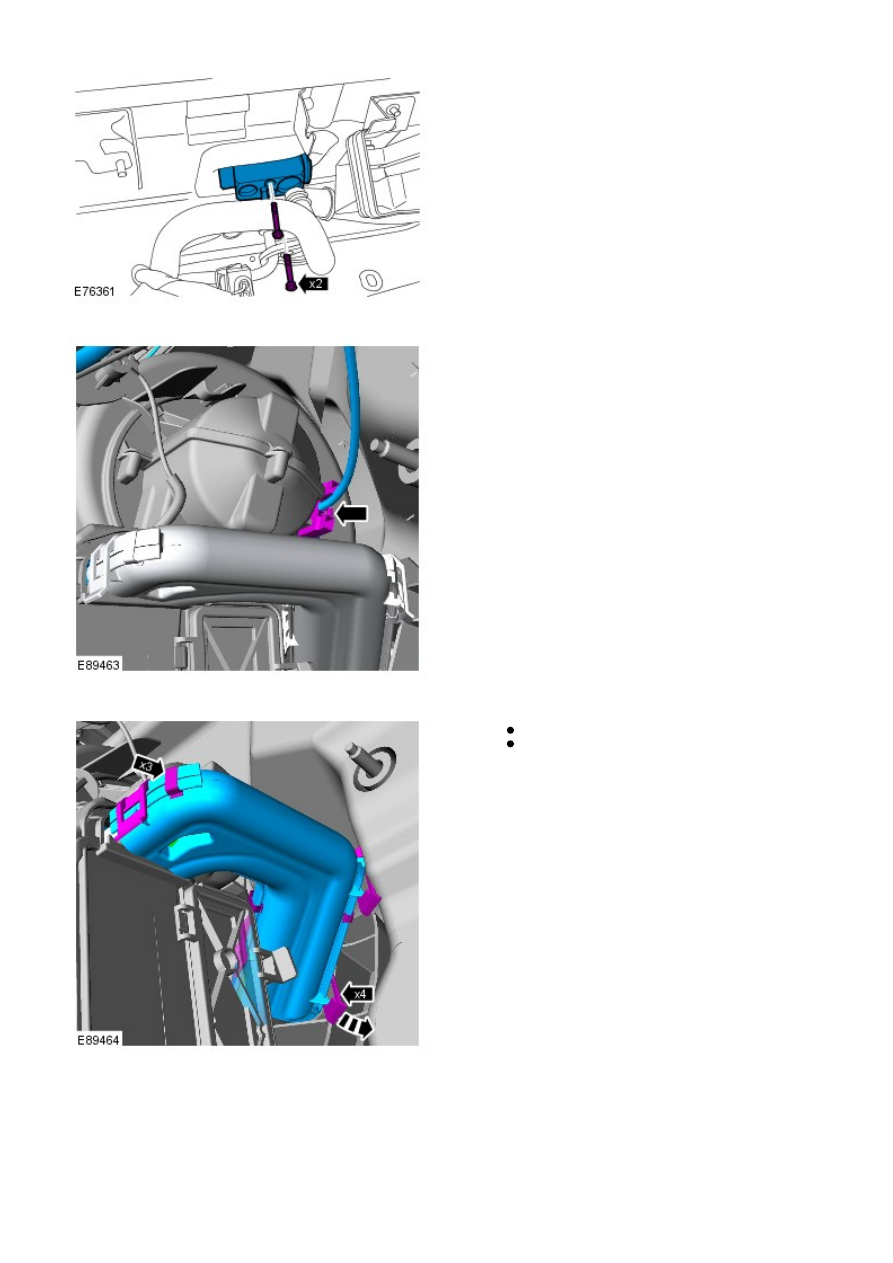

Disconnect the A/C pipes from the TXV.

13.

14.

Disconnect the blower motor electrical connector.

15.



Remove the 3 spring clips.
Release the 4 plastic clips.

16.

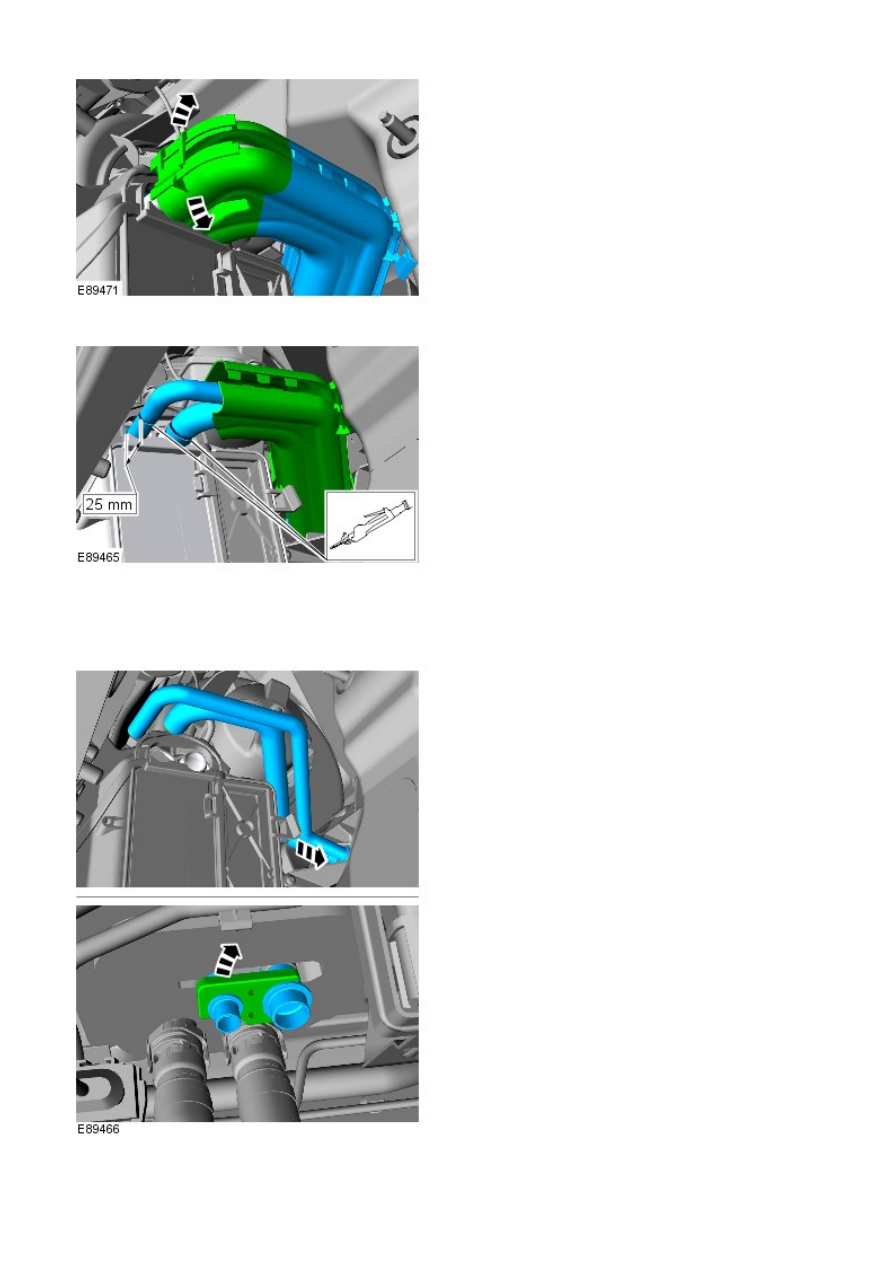

Carefully ease apart and break the plastic pipe covers.

17.

Cut the A/C pipes at the marked position.

18.

Remove the remainder of the plastic pipe covers.

19.

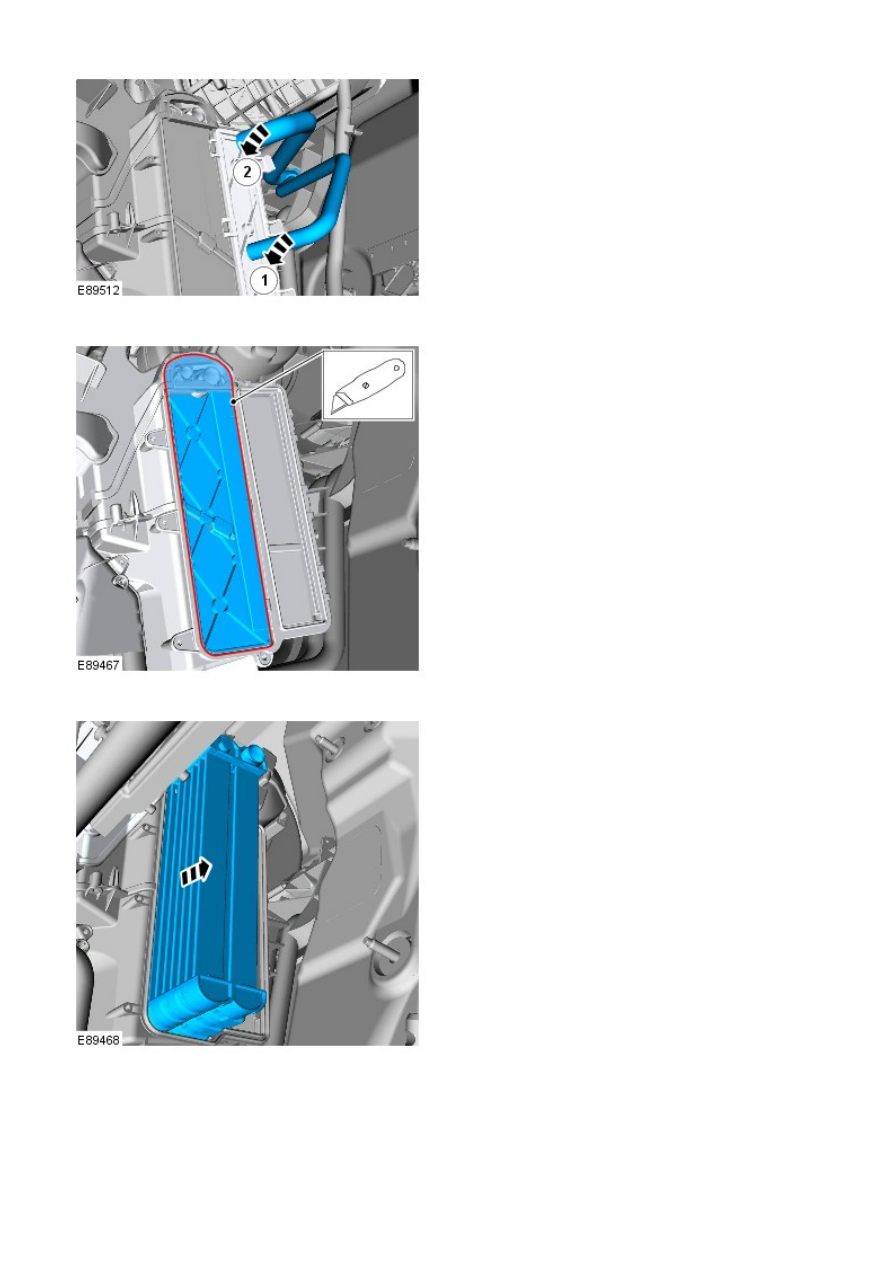

Guide the cut evaporator pipes through the bulkhead so
that approximately 20mm is visible in the engine
compartment.

20.

Remove the evaporator pipes.

21.

22.

Remove the evaporator core.

23.

Remove any debris from the heater core and evaporator core
housing.

24.

Installation

All vehicles
