Install the accessory drive pulley.

Refer to:

Accessory Drive Pulley

 (303-05A Accessory Drive - I6 3.2L

Petrol, Removal and Installation).

27.

Install the starter motor.

Refer to:

Starter Motor

 (303-06A Starting System - I6 3.2L Petrol,

Removal and Installation).

28.

Connect the battery ground cable and install the cover.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

29.

Fill and bleed the cooling system.

Refer to:

Cooling System Draining, Filling and Bleeding

 (303-03A

Engine Cooling - I6 3.2L Petrol, General Procedures).

30.

Refill the transmission with fluid.

Refer to:

Transmission Fluid Drain and Refill - I6 3.2L Petrol

 (307-01

Automatic Transmission/Transaxle, General Procedures).

31.

If a new component is to be installed, configure using Land Rover
approved diagnostic equipment.

32.

33. NOTE: For NAS vehicles only.

If fitting new or exchange components, carry out long drive cycle.

Refer to: Powertrain Control Module (PCM) Long Drive Cycle Self-Test
(303-14A, General Procedures).

33.

Automatic Transmission/Transaxle - TransmissionTD4 2.2L Diesel

Installation

General Equipment

Powertrain Jack

• NOTE: If the transmission is to be removed for access, there is no need to drain the transmission fluid as long as the
fluid cooler is not disconnected from the transmission assembly.

• NOTE: If the transmission is to be removed for access, there is no need to drain the transmission fluid as long as the
fluid cooler is not disconnected from the transmission assembly.

1.

CAUTION: Make sure that the dowels are still located on the

engine and not the transmission.

Remove the torque converter retainer.

1.

2. CAUTIONS:

 Make sure that the torque converter remains in the

transmission.

 Make sure that the component is correctly located on the

locating dowels.

 Make sure that the mating faces are clean and free of

corrosion and foreign material.

 Make sure that the dowels are still located on the engine and

not the transmission.

• NOTE: This step requires the aid of another technician.

Install the transmission and converter.

Torque: 47 Nm

2.

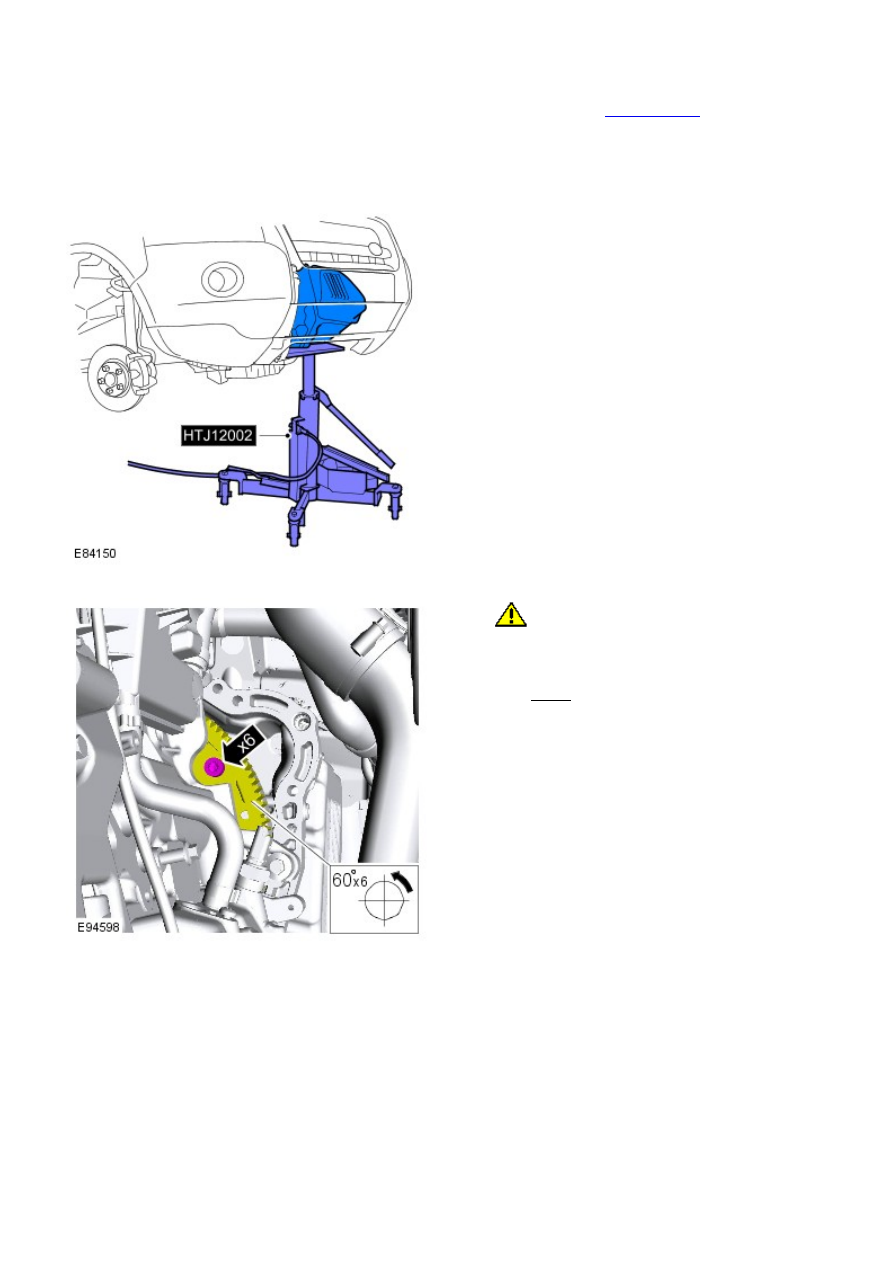

Remove the transmission support.

General Equipment:

Powertrain Jack

3.

4.

CAUTION: Make sure that new bolts are

installed.

Secure the torque convertor to the flexplate.

Torque: 60 Nm

4.

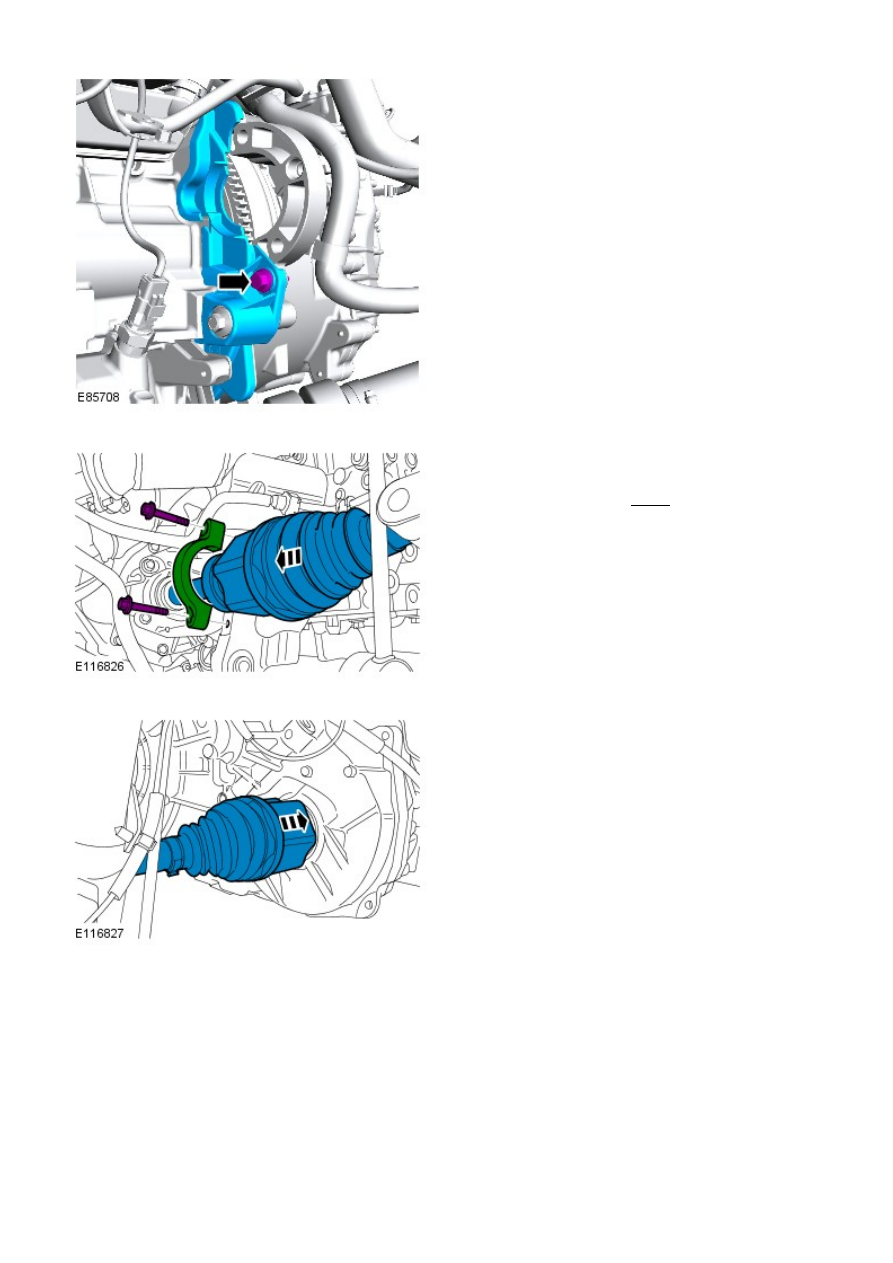

Install the access cover.

5.

Install the RH halfshaft.

Torque:

Drive shaft support 25 Nm

6.

Install the LH halfshaft.

7.
