16. NOTE: RH illustration shown, LH is similar.

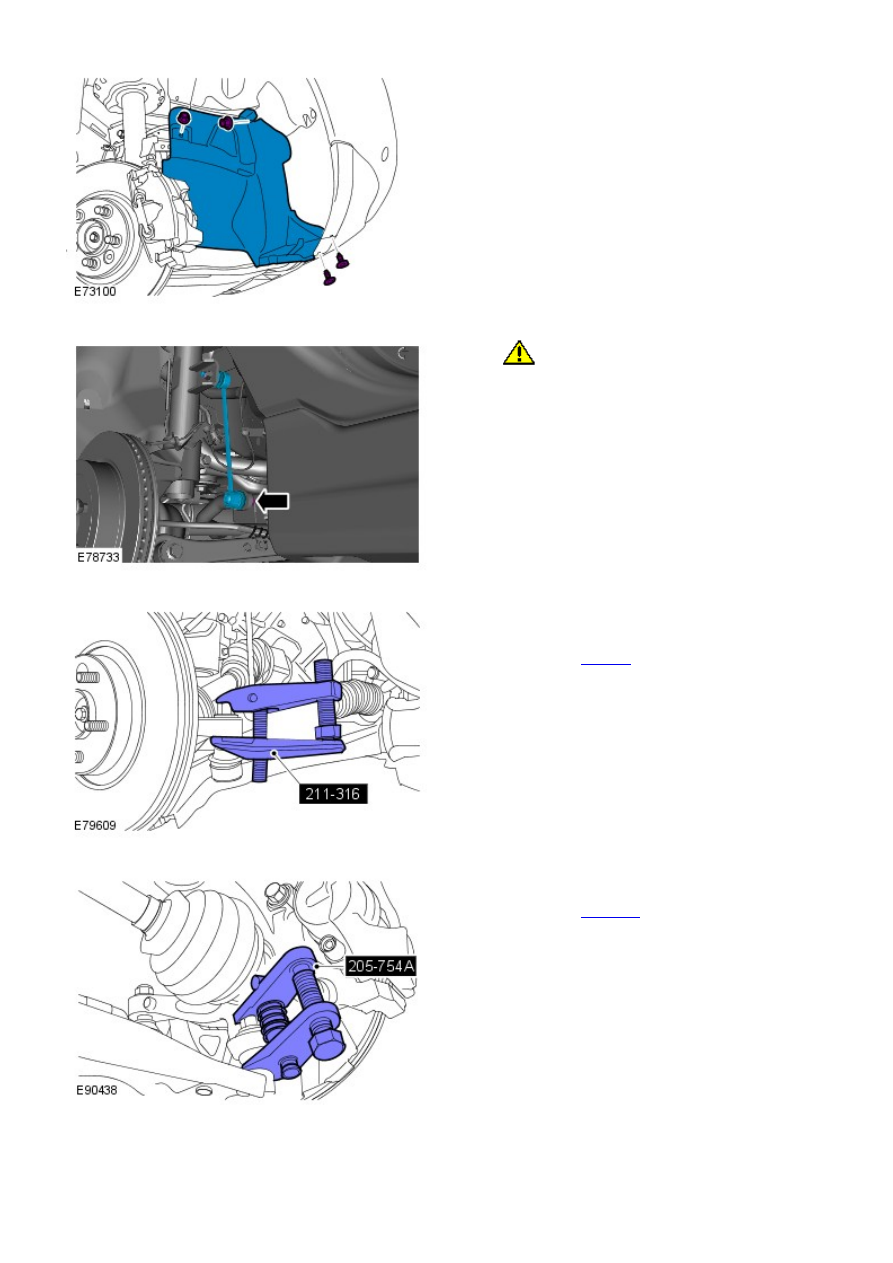

Remove both the fender splash shield extension
panels.

16.

17.

CAUTION: Make sure that the ball joint ball

does not rotate.

• NOTE: Discard the 2 nuts.

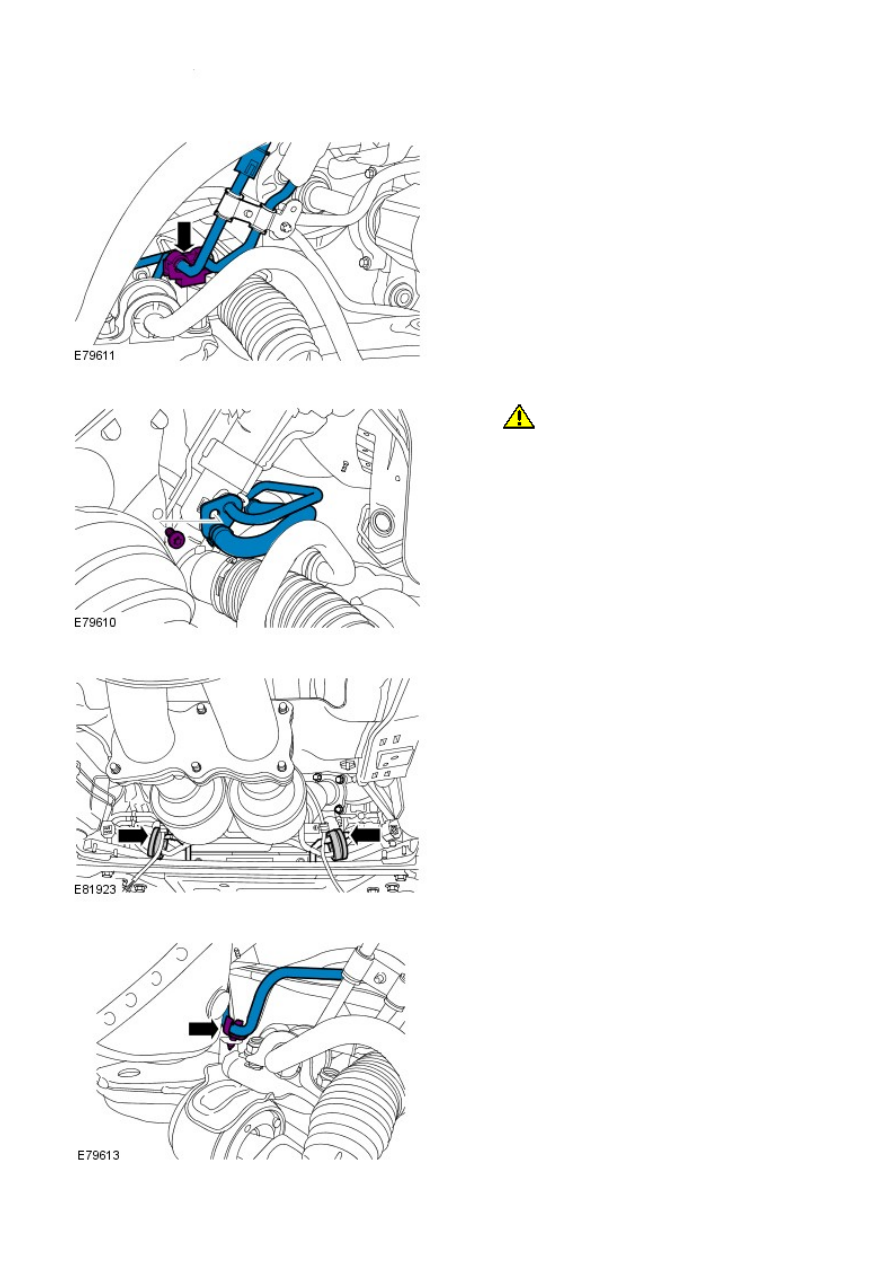

Disconnect both front stabilizer bar links from the
stabilizer bar.

17.

Using the special tool, release the LH and RH tie-rod
end ball joints.

Special Tool(s):

211-316

18.

Using the special tool, remove the lower arm ball joint.

Special Tool(s):

205-754A

19.

Release the PAS lines.

20.

21.

CAUTION: Be prepared to collect escaping

fluids.

• NOTE: Make sure that all openings are sealed.

Disconnect the pressure lines from the power steering
gear.

21.

Release the downpipe catalytic converter.

22.

Release the fuel line.

23.

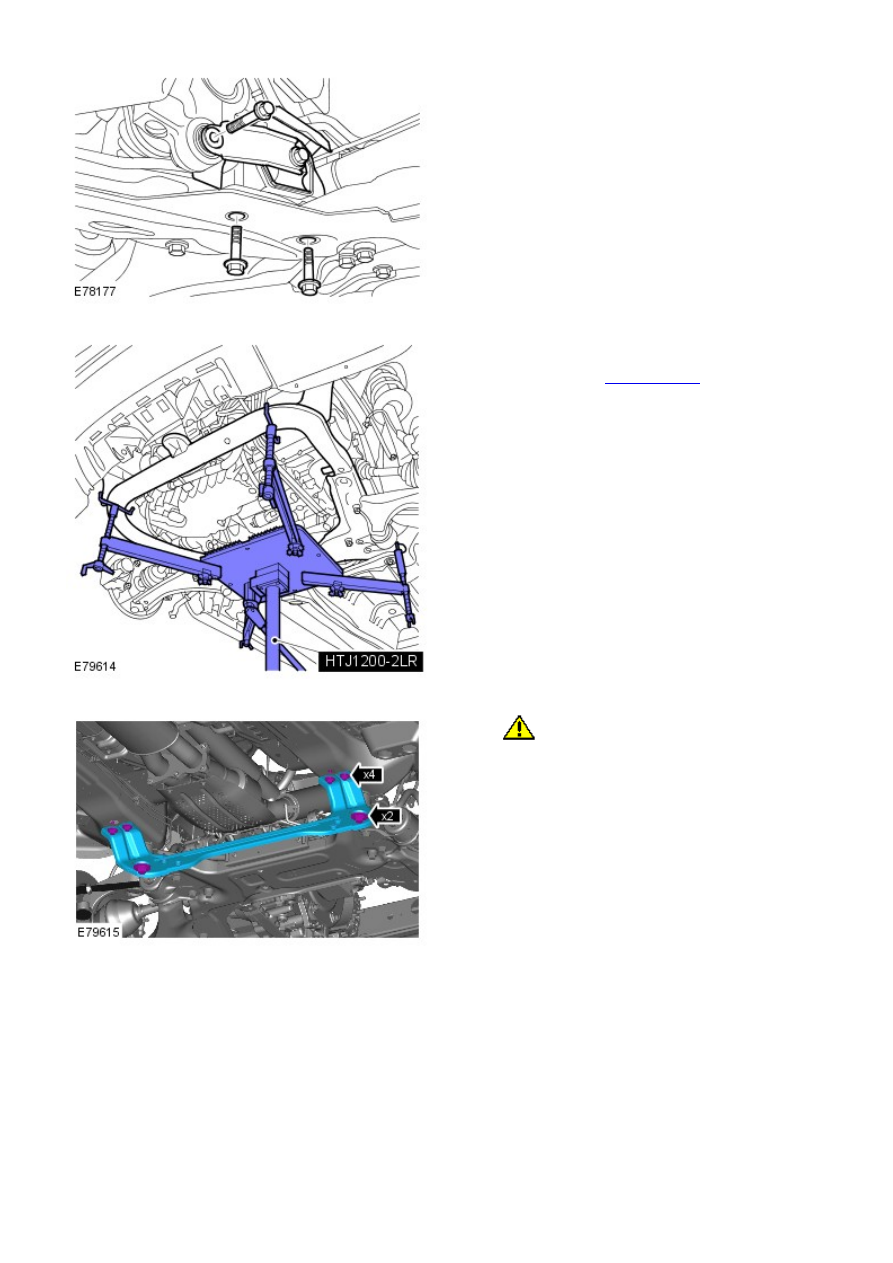

Remove the lower support insulator.

24.

Support the subframe.

General Equipment:

Powertrain Jack

25.

26.

CAUTION: Make sure that new subframe bolts

are installed.

Remove the front subframe cross-brace.

26.

27. CAUTIONS:

 Mark the components to aid installation.

 Make sure that new subframe bolts are installed.

Lower the front subframe assembly.

27.

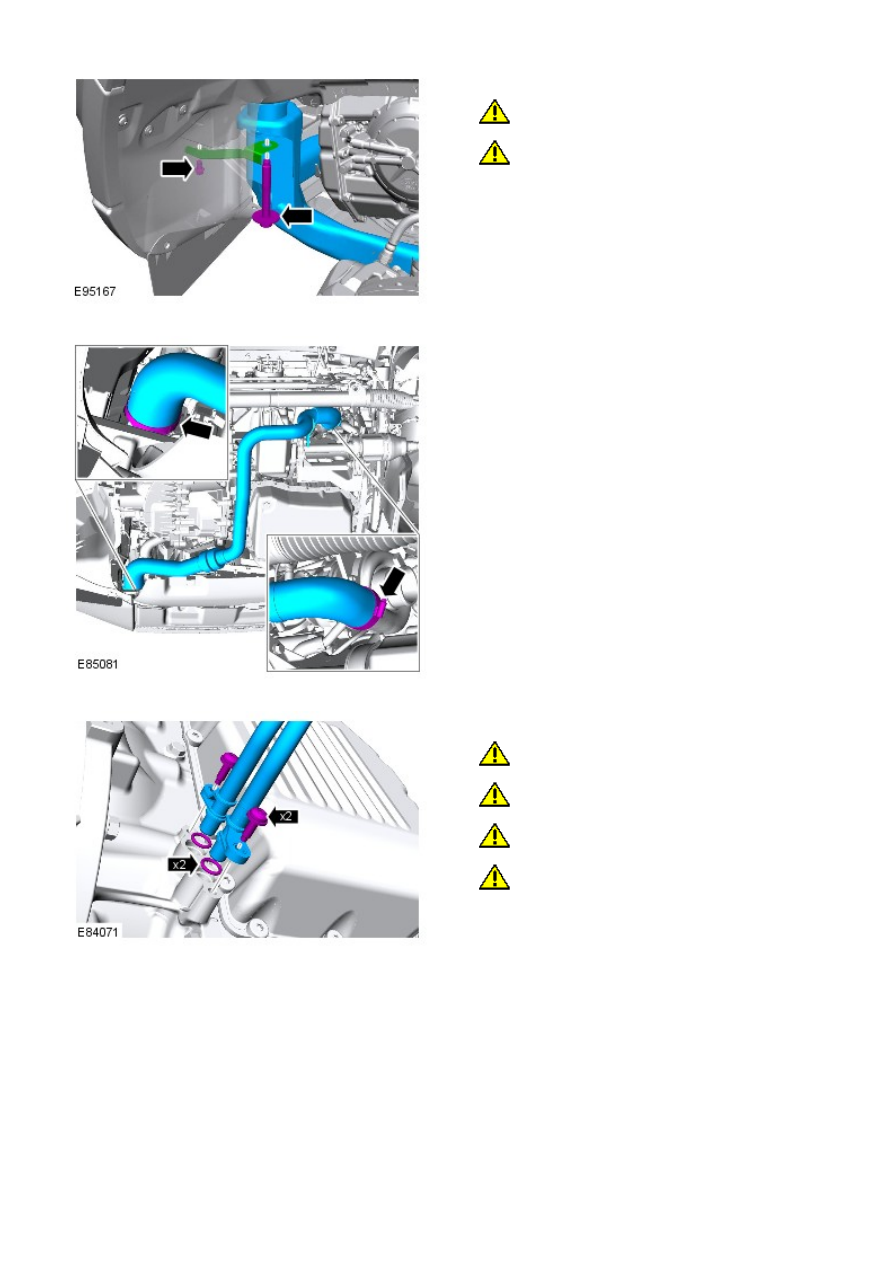

Remove the turbocharger outlet pipe.

28.

29. CAUTIONS:

 Be prepared to collect escaping fluids.

 Make sure that all openings are sealed.

 Discard the seals.

 Make sure that the area around the component is

clean and free of foreign material.

Disconnect the 2 transmission cooler lines.

29.
