OVERVIEW

The Engine Control Module (ECM) controls the following:

Engine fueling
Ignition timing
Closed loop fueling
Knock control
Idle speed control
Emission control
On Board Diagnostics
Speed control.

The ECM controls engine fueling by providing sequential fuel injection to all cylinders. Ignition is controlled by a direct
ignition system, provided by 6 plug top coils. The ECM is able to detect and correct for ignition knock on each cylinder and
adjust the ignition timing for each cylinder to achieve optimum performance.

The ECM uses a torque-based strategy to generate the torque required by the driver and other vehicle control modules.
The ECM uses various sensors to determine the torque required from the engine. The ECM also interfaces with other
vehicle electronic control modules via the high speed Controller Area Network (CAN) bus, to obtain additional information
(for example road speed from the Anti-lock Brake System (ABS) module). The ECM processes these signals and decides
how much torque to generate. Torque is then generated by using various actuators to supply air, fuel and spark to the
engine.

The ECM also uses an electronic throttle system which comprises the electric throttle assembly and an Accelerator Pedal
Position (APP) sensor.

The ECM also interfaces with the immobilization system to help prevent the vehicle being started without proper
authorization.
For additional information, refer to: Anti-Theft - Active (419-01, Description and Operation).

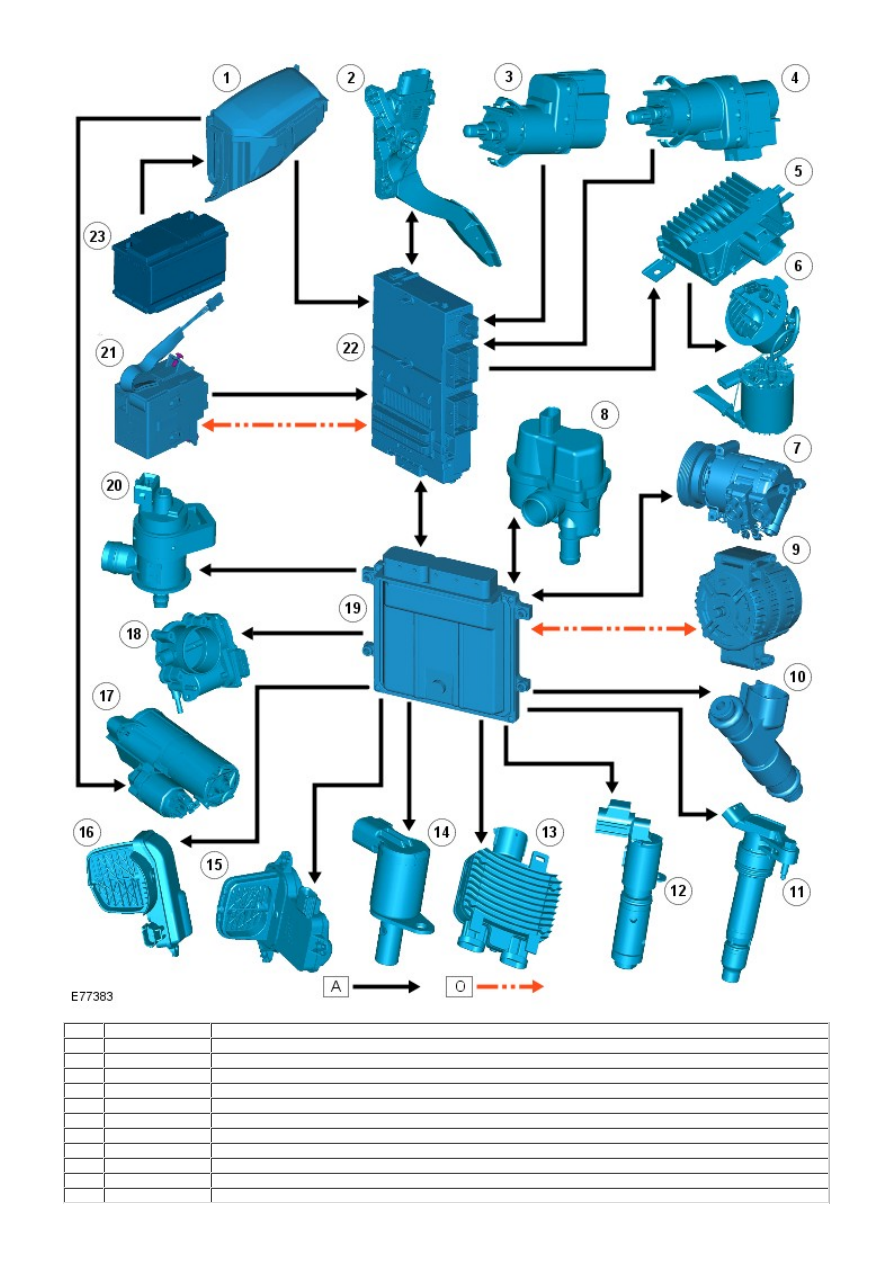

CONTROL DIAGRAM SHEET 1 OF 2

• NOTE: A = Hardwired; N = Medium speed CAN bus; O = Local Interconnect Network (LIN) bus

Item

Part Number

Description

1

-

BJB

2

-

APP sensor

3

-

Speed control inhibit switch

4

-

Stop lamp switch

5

-

FPDM

6

-

Fuel pump

7

-

Air Conditioning (A/C) compressor

8

-

Fuel tank leakage monitoring module (North American Specification (NAS) only)

9

-

Generator

10

-

Injectors (6 off)

11

-

Ignition coils (6 off)

12

-

VCT solenoid

13

-

Electric fan control module

14

-

CPS solenoids- front/rear

15

-

Intake tract variable intake manifold valve

16

-

Plenum variable intake manifold valve

17

-

Starter motor

18

-

Electric throttle

19

-

ECM

20

-

Purge valve

21

-

Start/stop switch

22

-

Central Junction Box (CJB)

23

-

Battery

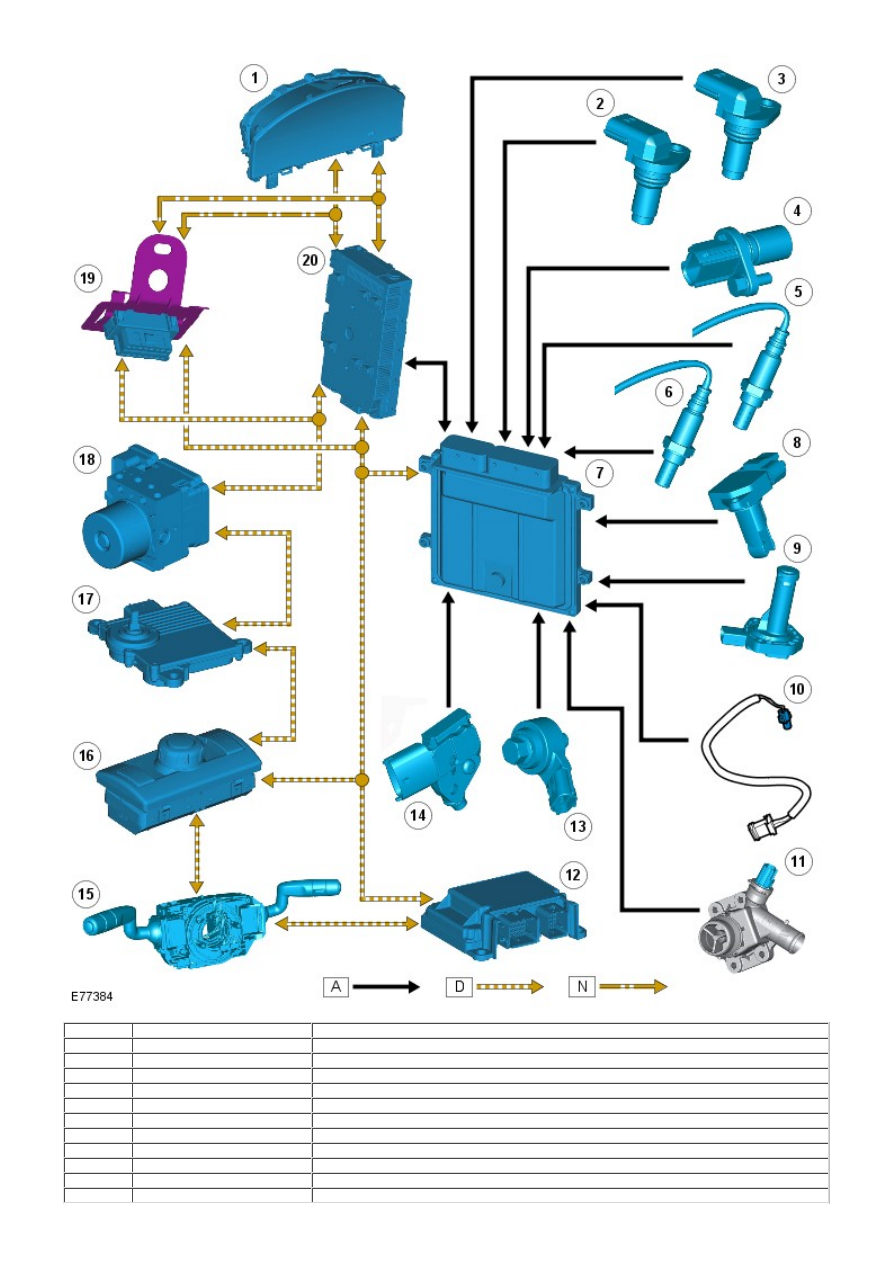

CONTROL DIAGRAM SHEET 2 OF 2

• NOTE: A = Hardwired; D = High speed CAN bus; N = Medium speed CAN bus

Item

Part Number

Description

1

-

Instrument cluster

2

-

Intake CMP sensor

3

-

Exhaust CMP sensor

4

-

CKP sensor

5

-

Pre-catalyst HO2S

6

-

Post catalyst HO2S

7

-

ECM

8

-

MAF/IAT

9

-

Engine oil level/temperature sensor

10

-

Ambient Air Temperature (AAT) sensor

11

-

ECT sensor
