Frelander 2. Manual - part 99





Stage 1:
Stage 2:

Secure the parking brake cable.

8.

Support the weight of the vehicle using a jack under the rear hub.

9.

10. CAUTIONS:

 Nuts and bolts must be tightened with the weight of the

vehicle on the suspension.

 Do not use air tools to install the nut. Failure to follow this

instruction may result in damage to the component.

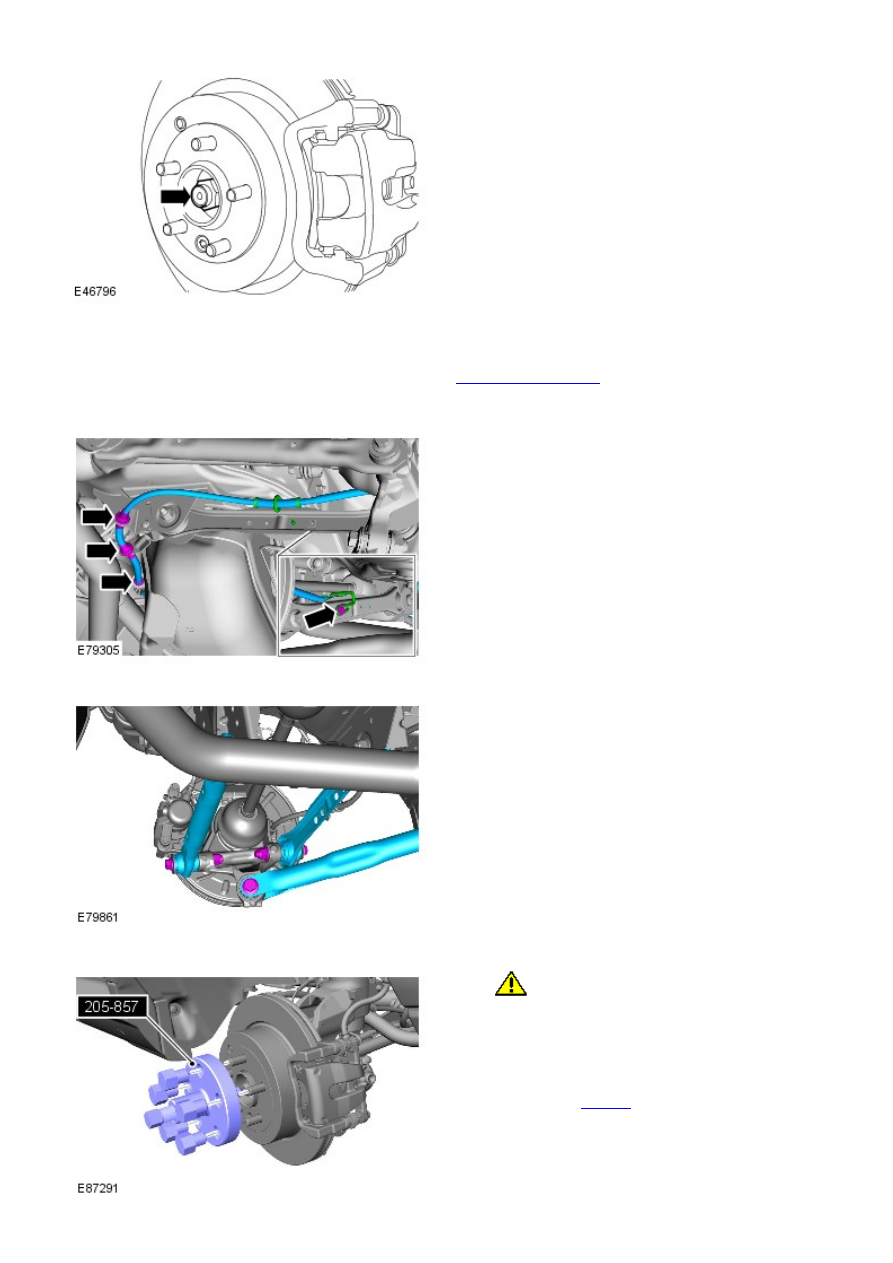

Tighten both lower arm nuts and bolts.

Torque: 175 Nm
Tighten the trailing arm nut and bolt.

Torque: 270 Nm
Tighten the rear halfshaft nut.

Torque:

330 Nm
30°

Stake the hub nut.

10.

Install the stabilizer bar link.

Refer to:

Rear Stabilizer Bar Link

 (204-02 Rear Suspension, Removal

and Installation).

11.

Install the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

12.

13.

CAUTION: Do not fill the differential with lubricant up to

the filler plug. The filler plug is only used to fill the differential with
lubricant, and not to act as a level indicator.

Fill the differential with the correct amount of lubricant.

Refer to:

Differential Draining and Filling

 (205-02 Rear Drive

Axle/Differential, General Procedures).

13.

Rear Drive Halfshafts - Rear Halfshaft RH

Removal and Installation

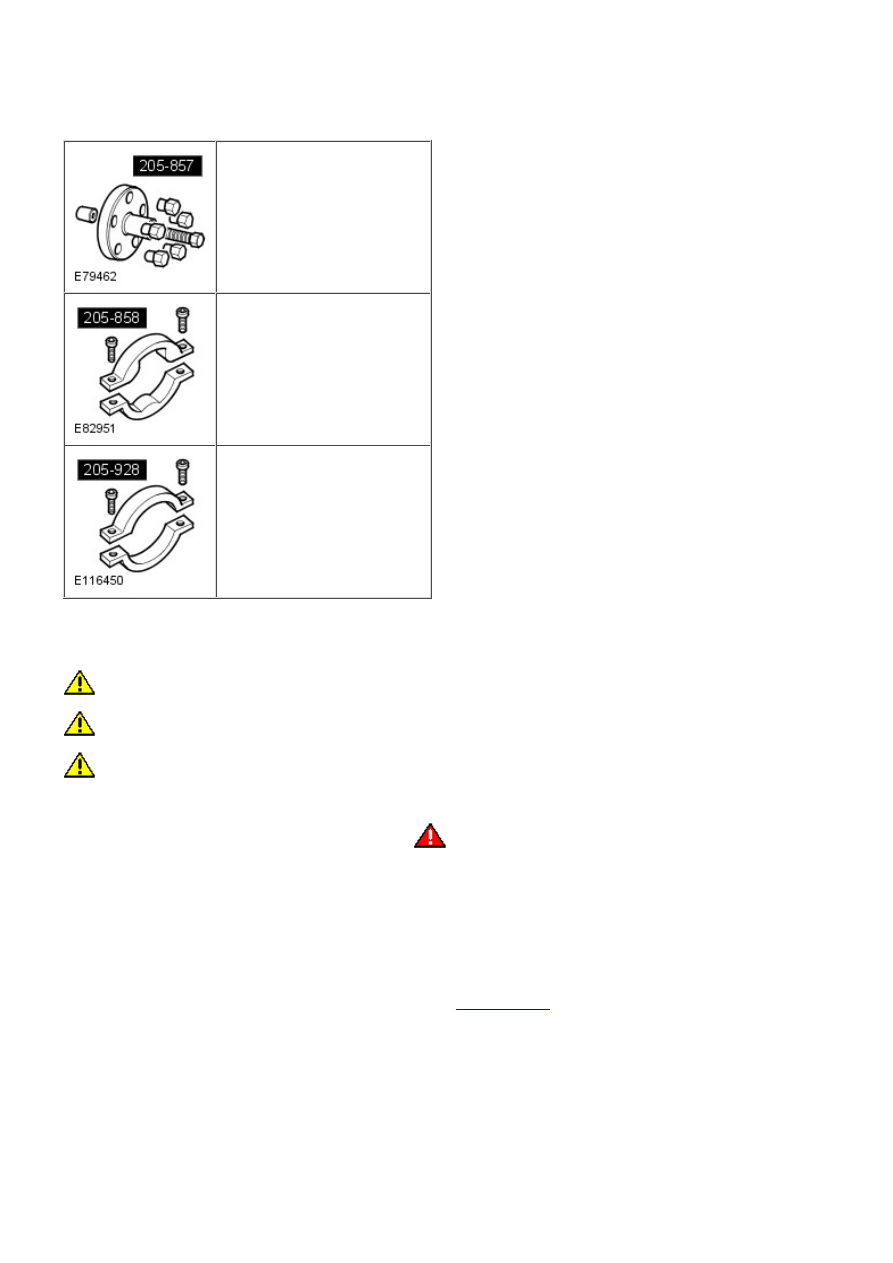

Special Tool(s)

205-857
Remover, Halfshaft

205-858
Remover, Halfshaft Inboard Joint

205-928
Remover, Half Shaft Inboard Joint

Removal

• CAUTIONS:

 Do not allow halfshafts to hang unsupported at one end or joint damage will occur.

 Do not store or install halfshafts with joints at maximum articulation or damage may occur to the joint.

 Angularly Adjusted Roller (AAR) joints, used at the inboard end of some halfshafts have no internal retaining

mechanism and can separate.

1.

WARNING: Make sure to support the vehicle with axle

stands.

Raise and support the vehicle.

1.

Drain the differential lubricant.

2.

Remove the wheel and tire.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

3.

4. NOTE: LH illustration shown, RH is similar.

Loosen the rear halfshaft nut.

4.

Remove the stabilizer bar link.

Refer to:

Rear Stabilizer Bar Link

 (204-02 Rear Suspension, Removal

and Installation).

5.

6.

7. NOTE: LH illustration shown, RH is similar.

7.

Remove and discard the rear halfshaft nut.

8.

9.

CAUTION: Do not use a hammer to detach the

halfshaft from the hub assembly, failure to follow this
instruction may result in damage to the halfshaft.

• NOTE: LH illustration shown, RH is similar.

Release the rear halfshaft.

Special Tool(s):

205-857

9.

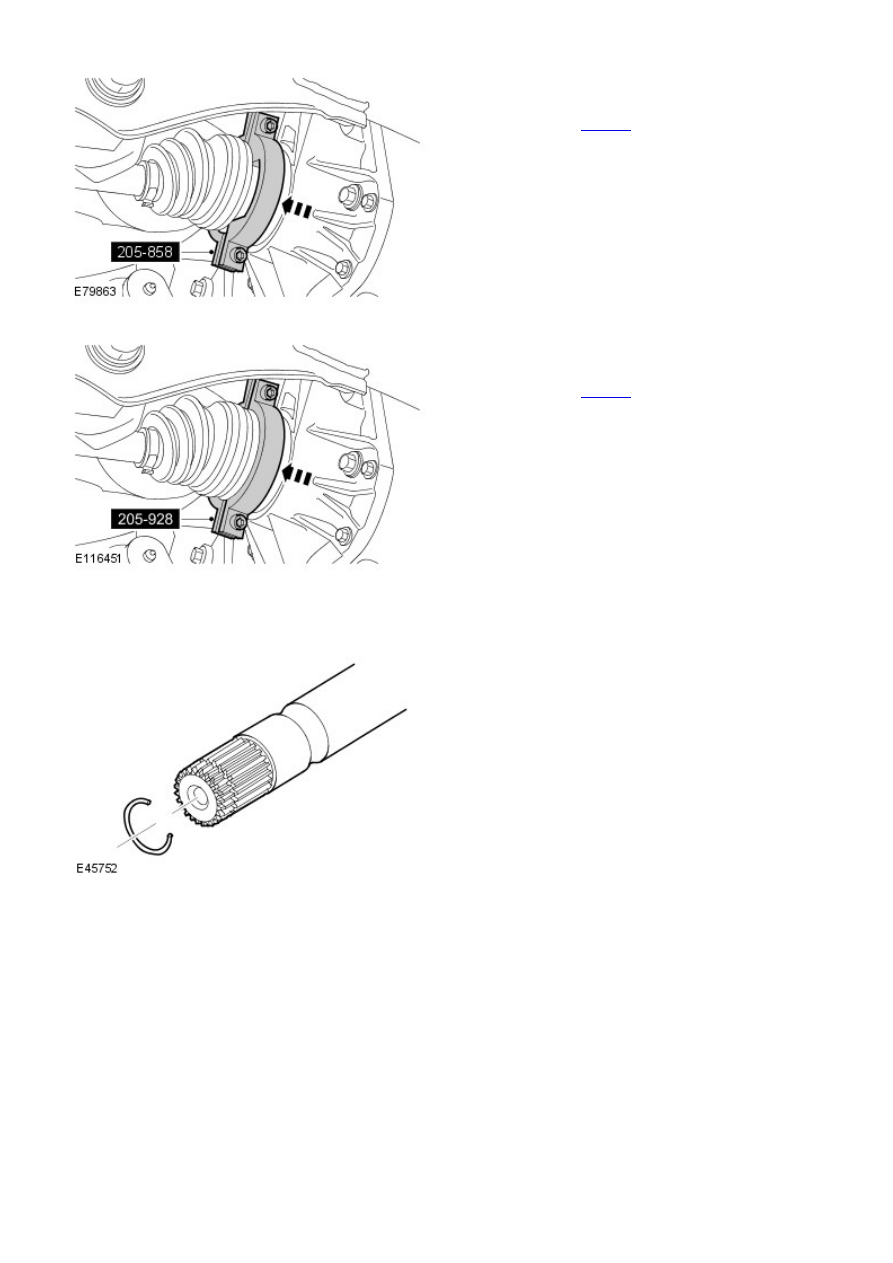

Install the special tool, to the rear halfshaft inboard
joint casing.

Special Tool(s):

205-858

10.

Install the special tool, to the rear halfshaft inboard
joint casing.

Special Tool(s):

205-928

11.

Position a container to collect the oil spillage.

12.

W ith assistance, remove the rear halfshaft.

13.

Installation

Clean the components.

1.
