Frelander 2. Manual - part 97





Rear Drive Halfshafts -

General Specification

Item

Specification

Type

Fully floating, solid shafts with inner and outer constant velocity joints

Recommended Lubricant

Item

Specification

Inboard joint

Use grease supplied with replacement boot kit

Outboard joint

Use grease supplied with replacement boot kit

Torque Specifications

Description

Nm

lb-ft

Halfshaft nut*+

395

291

* New nuts/bolts must be fitted

+ Stake nut on completion

Rear Drive Halfshafts - Rear Drive Halfshafts

Description and Operation

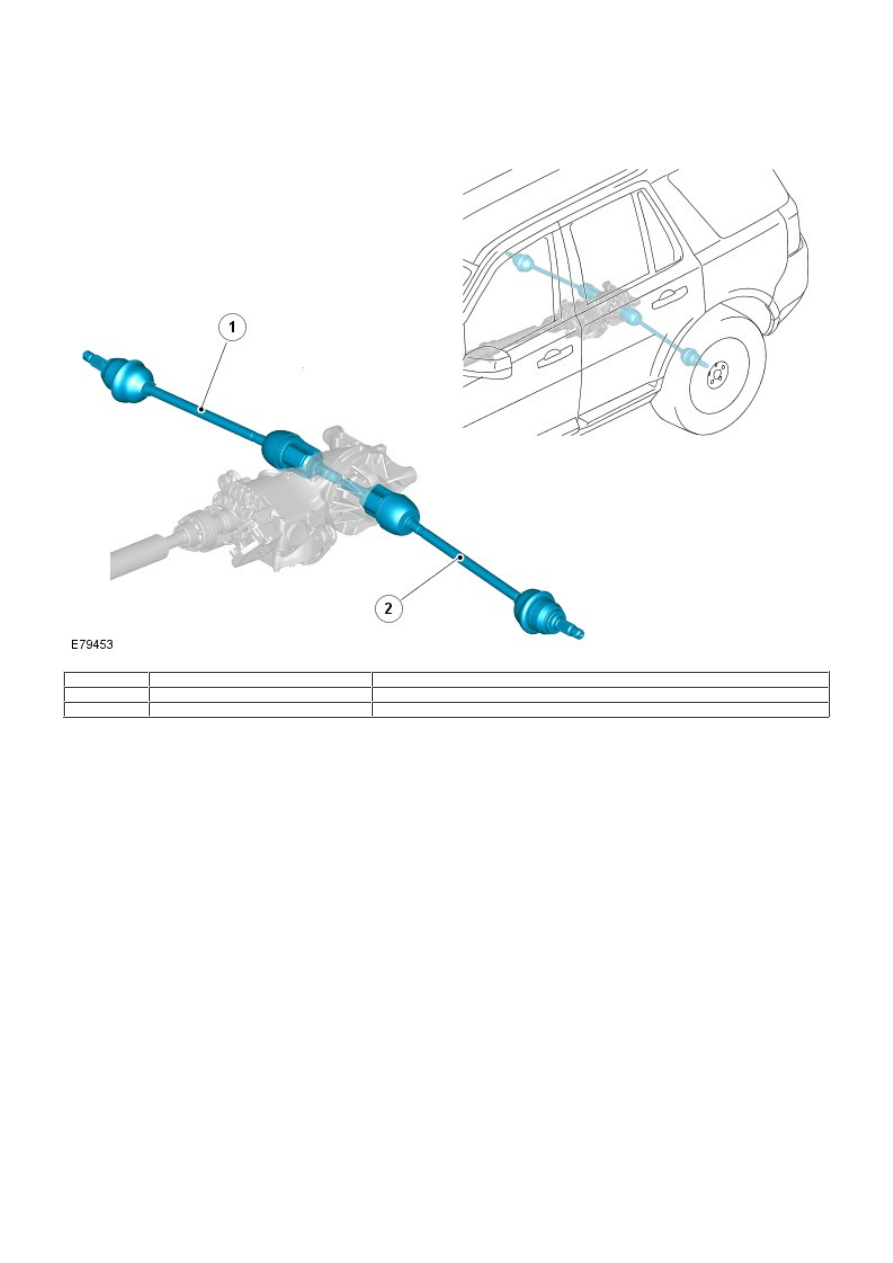

COMPONENT LOCATION

Item

Part Number

Description

1

-

Halfshaft - RH (right-hand)

2

-

Halfshaft - LH (left-hand)

OVERVIEW

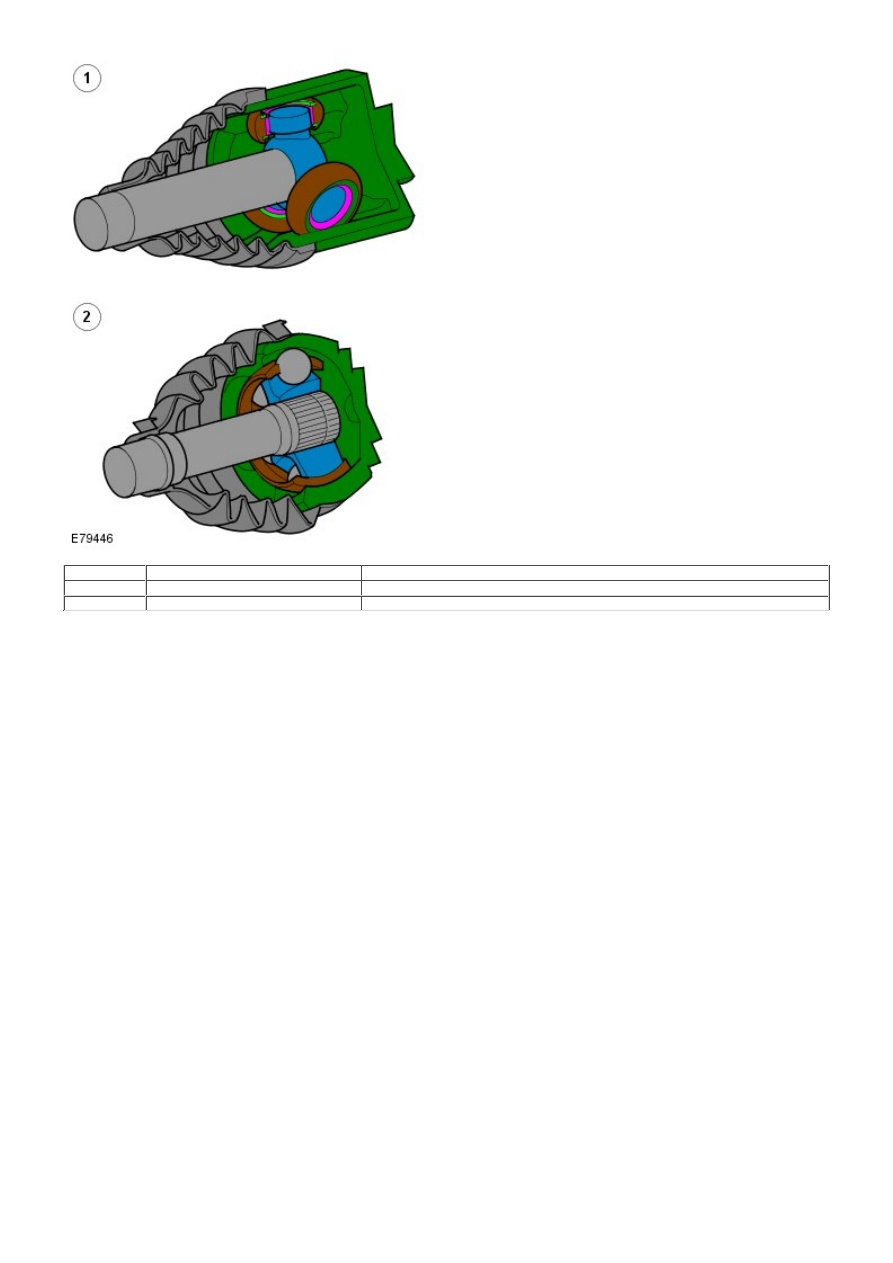

Constant Velocity Joints

Item

Part Number

Description

A

-

Inner constant velocity joint

B

-

Outer constant velocity joint

Each halfshaft comprises a solid steel shaft with inner and outer constant velocity joints.

The inner joint is the 'tripode' type with spherical bushing to reduce sliding resistance; the shaft and inner joint are one
assembly.

The outer joint is the 'ball and socket' type, with a splined connection between the joint and the shaft. The joints are
packed with grease and protected by gaiters.

The halfshafts are of equal length to eliminate stiffness-related torque-steer.

Rear Drive Halfshafts - Rear Drive Halfshafts

Diagnosis and Testing

For additional information.
REFER to:

Driveline System

 (205-00 Driveline System - General Information, Diagnosis and Testing).
