General Information - Standard Workshop Practices

Description and Operation

Vehicle in Workshop

When working on a vehicle in the workshop always make sure that:

Where practicable, the parking brake is applied and the wheels are securely chocked to prevent the vehicle moving
forwards or backwards.
Whenever possible, the ignition key is removed before any work is carried out on the vehicle.
If the engine is to be run, there is adequate ventilation, or an extraction hose is used to remove exhaust fumes.
There is adequate room to raise the vehicle and remove the wheels, if necessary.
Fender covers are always installed if any work is to be carried out in the engine compartment.
Where practicable, the battery is disconnected if working on the engine, underneath the vehicle, or if the vehicle is
raised.

• CAUTIONS:

 Prior to disconnecting the battery, refer to the Electrical Section of this manual - Battery disconnection/connection.

For additional information, refer to:

Specifications

 (414-01 Battery, Mounting and Cables, Specifications).

 W hen electric arc welding on a vehicle, always disconnect the generator wiring to prevent the possibility of a surge

of current causing damage to the internal components of the generator.

If using welding equipment on the vehicle, a suitable fire extinguisher is readily available.

Battery - General

• CAUTIONS:

 Prior to carrying out any procedures which involve disconnecting/ or connecting the battery, refer to the Electrical

Section of this manual - Battery disconnection/connection.
For additional information, refer to:

Specifications

 (414-01 Battery, Mounting and Cables, Specifications).

 A discharged battery condition may have been caused by an electrical short circuit. If this condition exists there will

be an apparently live circuit on the vehicle even when all normal circuits are switched off. This can cause arcing when the
jumper cables are connected.

 W hile it is not recommended that the vehicle is jump started, it is recognized that this may occasionally be the only

practical way to mobilize a vehicle. Prior to attempting a jump start, reference must be made to the Electrical Section of
this manual - Jump Starting.

Following jump starting of a disabled vehicle, the discharged battery must be checked for serviceability and recharged off
the vehicle as soon as possible to avoid permanent damage.

Do not rely on the generator to restore a discharged battery. For a generator to recharge a battery, it would take in excess
of eight hours continuous driving with no additional loads placed on the battery.

Always make sure that the jumper cables are adequate for the task.
Always make sure that the slave battery is of the same voltage as the vehicle battery. The batteries must be
connected in parallel.
Always make sure that switchable electric circuits are switched off before connecting jumper cables. This reduces
the risk of arcing occurring when the final connection is made.

Towing the Vehicle

WARNING: When towing is necessary, reference must be made to the Jacking, Lifting and Towing Section of this

Manual.

When the vehicle is being towed dock the remote control and switch on the ignition. (steering lock released and warning
lights illuminated). Only then will the steering, turn signal lamps, horn and stop lamps be operational. Failure to follow
these instructions may result in personal injury. It must be noted that with the engine not running, the power steering and
brake booster will be inoperative therefore, greater effort will be needed to steer the vehicle and apply the brakes.

General Installation Instructions

Component removal

Whenever possible, clean components and the surrounding area before removal.

Blank off openings exposed by component removal.
Following disconnection, seal fuel, oil or hydraulic lines immediately using suitable blanking plugs or caps.
Seal open ends of exposed oilways using suitable tapered hardwood plugs or conspicuous plastic plugs.
Immediately a component is removed, place it in a suitable container; use a separate container for each component
and its associated parts.

Clean bench and provide marking materials, labels and containers before disassembling components.

Disassembling

Observe scrupulous cleanliness when disassembling components, particularly when brake, fuel, air suspension or hydraulic
system parts are disassembled. A particle of dirt or cloth fragment could cause a serious malfunction if trapped in these
systems.

Blow out all tapped holes, crevices, oilways and fluid passages with dry, compressed air.

WARNING: Suitable eye protection must be worn.

Use suitable marker ink to identify mating parts, do not use a scriber or centre punch as they could initiate cracks
or distortion.
Wire or tape mating parts together where necessary to prevent accidental interchange.
Suitably identify parts which are to be renewed and to those parts requiring further inspection. Keep these parts
separate.
To make sure that the correct replacement part has been obtained, do not discard a part due for renewal until after
comparing it with the new part.

Cleaning Components

Always use cleaning agents which are suitable for the work being undertaken and the components being cleaned. NEVER
use gasoline (petrol) as a cleaning agent (degreaser). Always make sure that the component being cleaned is compatible
with the cleaning agent.

Always follow the manufacturer's instructions regarding the use of cleaning agents and make sure that the environment in
which the work is being undertaken is suitable. See Health and Safety Precautions for further information regarding
cleaning.

General Inspection of Components

All components should be inspected for wear or damage before reassembling.

Always make sure that component to be inspected is clean and free from oil or grease.
When a component is to be checked dimensionally against design specified values, use the appropriate measuring
equipment i.e. micrometers, verniers, surface plates, dial test indicators (DTI).
Always make sure that all measuring equipment is correctly calibrated before use.
Reject a component which is not within specified values/limits or if it appears to be damaged.
A component may be reinstalled if dimensions obtained during checking are at the maximum tolerance limit and it
is in an undamaged condition.
Bearing journal clearances should be checked where necessary using Plastigauge.

Joints and Joint Faces

All gaskets should be installed dry unless stated otherwise. Always apply the specified lubricant to O-rings and install
O-rings using the fingers only.

Use gasket removal spray and/or plastic scrapers to remove traces of old gasket.

CAUTION: DO NOT use metal scrapers or emery cloth as these may damage the sealing surfaces.

Many joints use sealants instead of gaskets as the sealing medium. Where this is the case, the sealant together with its
part number will be found listed in the relevant repair operation and also in the sealants table.

CAUTION: Always remove all traces of the old sealant prior to reassembly. Use plastic scrapers, specified solvents

where available or dry, lint free cloth. DO NOT use metal scrapers or emery cloth as these may damage the sealing
surfaces. Make sure that sealing surfaces are free from oil or grease as sealants will not adhere properly to contaminated
surfaces.

Do not allow sealant to enter tapped holes or oilways.

Locking Devices

Always replace locking devices with one of the same design and of the correct size.

Tab washers

Always release locking tabs before loosening fixings, do not reuse tab washers.

Locknuts

Always use a backing spanner when loosening and tightening locknuts, brake and fuel pipe unions.

Roll pins

Always install new roll pins of the correct size.

Circlips

Always install new circlips ensuring that they are of the correct size for the groove.

Woodruff keys

Woodruff keys may be reused provided there is no indication of wear or distortion.

Remove any burrs from edges of keyways using a fine file.

Split pins

Never attempt to straighten and reuse a split pin, always make sure that replacement pins are of the correct size for the
hole in which they are to be installed.

Screw Threads

Damaged nuts, bolts and screws must always be discarded. Attempting to recut or repair damaged threads with a
tap or die impairs the strength and fit of the threads and is not recommended.

• NOTE: During certain repair operations, it may be necessary to remove traces of thread locking agents using a tap.
Where this is necessary, the instruction to do so will appear in the relevant operation and it is essential that a tap of the
correct size and thread is used.

Some bolts are coated with a thread locking agent and unless stated otherwise, they must not be reused. New
bolts having the same part number as the original must always be installed. W hen nuts or bolts are to be
discarded, the repair operation and relevant torque chart will include an instruction to that effect. Do not use
proprietary thread locking agents as they may not meet the specification required. See also Encapsulated
('Patched') Bolts and Screws.
Always make sure that replacement nuts and bolts are at least equal in strength to those that they are replacing.
Castellated nuts must not be loosened to accept a split pin except in recommended cases when this forms part of
an adjustment.
Do not allow oil or grease to enter blind holes, the hydraulic action resulting from tightening the bolt or stud can
split the housing and also give a false torque reading.
Always tighten a nut, bolt or screw to the specified torque figure, damaged or corroded threads can give a false
torque reading.
Nut and bolt loosening and tightening sequences, where given, must ALWAYS be followed. Distortion of
components or faulty sealing of joints will result if the sequences are not followed. Where an instruction is given to
tighten in stages, these stages must be adhered to; do not attempt to combine stages particularly where certain
stages involve tightening by degrees.
To check or re-tighten a fixing to a specified torque, first loosen a quarter of a turn, then retighten to the specified
torque figure.
Unless instructed otherwise, do not lubricate bolt or nut threads prior to installing.

Where it is stated that bolts and screws may be reused, the following procedures must be carried out:

Check that threads are undamaged.
Remove all traces of locking agent from the threads.

CAUTION: DO NOT use a wire brush; take care that threads are not damaged.

Make sure that threads are clean and free from oil or grease.
Apply the specified locking agent to the bolt threads.

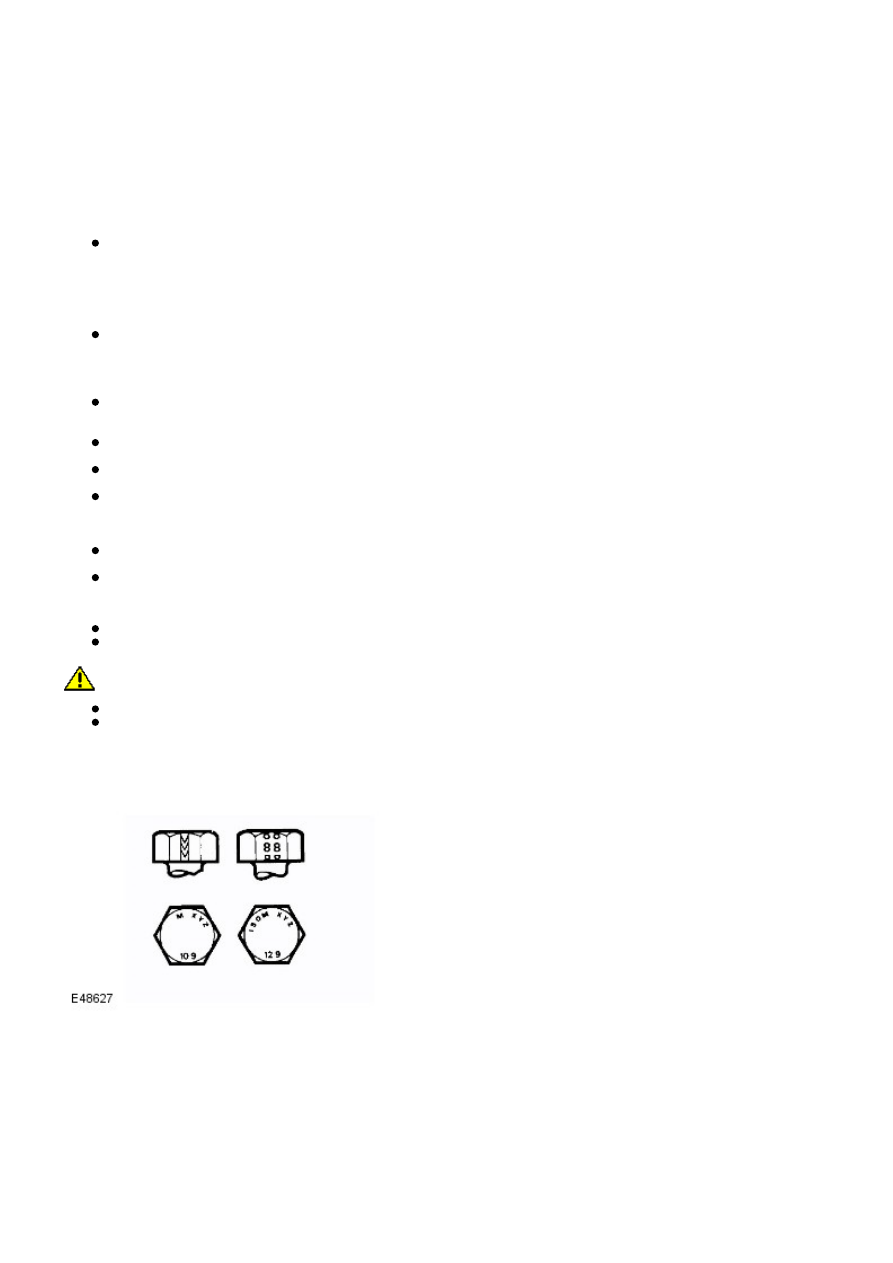

Bolt and Nut Identification

An ISO metric bolt or screw made of steel and larger than 6 mm in diameter can be identified by either of the symbols ISO
M or M embossed or indented on top of the bolt head.

In addition to marks identifying the manufacturer, the top of the bolt head is also marked with symbols indicating the
strength grade e.g. 8.8, 10.9, 12.9, 14.9. Alternatively, some bolts and screws have the M and strength grade symbol
stamped on the flats of the hexagon.

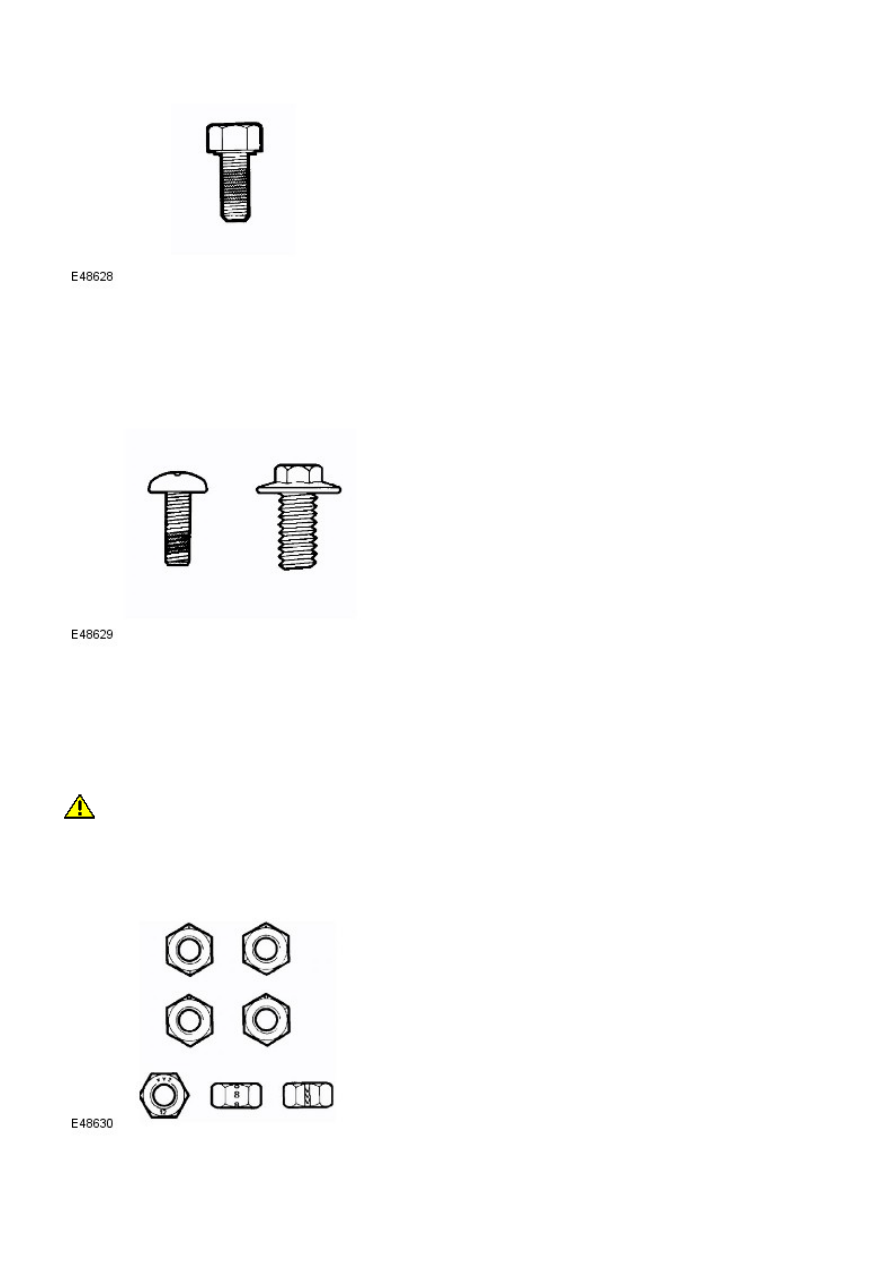

Encapsulated ('Patched') bolts and screws

Encapsulated ('patched') bolts and screws have a thread locking agent applied to the threads during manufacture. Most
thread locking agents are colored, the band of color extending for 360 degrees around the thread. Some locking agents
however, are neutral in color and may not be so easily identified apart from a slightly darker area of thread where the
locking agent has been applied. The locking agent is released and activated by the tightening process and is then
chemically cured to provide the locking action.

Self-locking bolts and screws

Unless stated in a specific repair procedure, self-locking bolts and screws i.e. nylon patched or trilobular thread can be
reused provided that resistance is felt when the locking portion enters the female thread.

Nylon patched bolts and screws have a locking agent either applied to, or inserted in the threaded portion. They are
identified by the presence of a colored section of thread extending approximately 180 degrees around the thread or by a
colored plug inserted into the bolt.

Trilobular bolts have a special thread form which creates a slight interference with the thread of the hole or nut into which
it is screwed.

CAUTION: Do Not reuse self-locking fasteners in critical locations e.g. drive plates/flywheel or engine bearings. Do

not install non self-locking fasteners where a self-locking fastener is specified.

Trilobular bolts should not be used as a substitute for patched bolts.

Nut identification

A nut with an ISO metric thread is marked on one face or one of the hexagonal flats with the strength grade symbol 8, 12,
14. Some nuts with the strength grade 4, 5 or 6 are also marked and some have the metric symbol M on the hexagonal flat
opposite the strength grade marking.
