Frelander 2. Manual - part 2





Pointer symbols are used to draw the attention to components and give special instructions such as a required sequence or
number of components. The number of components is reflected by the value inside the luty arrow. A sequence number is
located inside the circle. Numbers inside circles are also used to allocate special information such as tightening torques or
chemicals to a particular component.

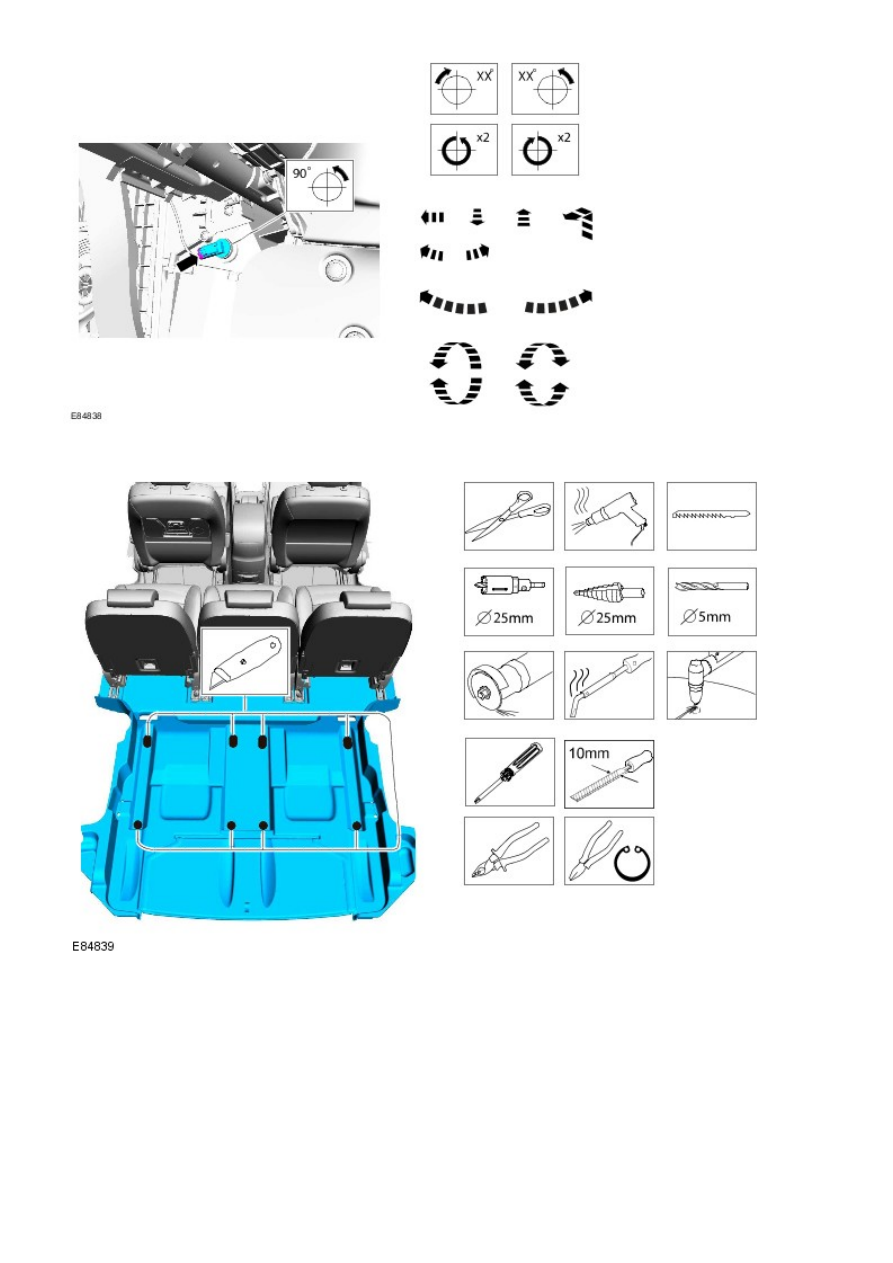

Movement arrows are used to show three dimensional or rotational movements. These movements can include specific
values inside the symbol if required.

Standard tool symbols recommend the use of certain standard tools. These tools can include dimension values if required.

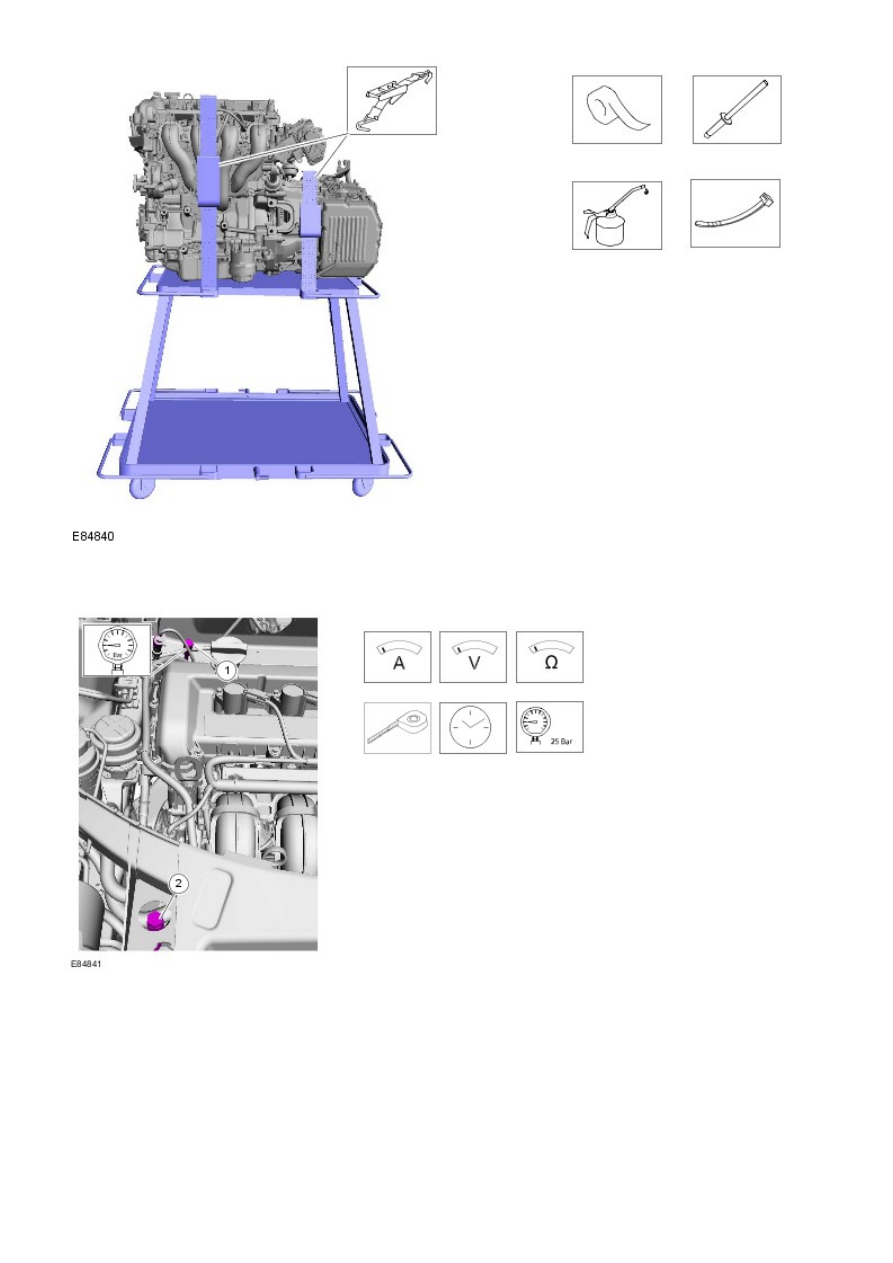

The following graphic illustrates a set of symbols that are used to provide detailed information on where to apply a
material.

Measurement symbols provide detailed information on where to carry out a specific measurement. These symbols can
include specific values if required.

Special Tools and Torque Figure(s)

Special tools will be shown with the tool number in the illustration. The special tool number(s), general equipment,
material(s) and torque figure(s) used for the procedure step will be shown in the text column.

General Information - Important Safety Instructions

Description and Operation

Safety Notice

Appropriate service methods and correct repair procedures are essential for the safe, reliable operation of all motor
vehicles, as well as the safety of the person doing the work. This manual provides general directions for accomplishing
service and repair work with tested effective techniques. Following them will help assure reliability.

There are numerous variations in procedures, techniques, tools, and parts for servicing vehicles, as well as in the skill of
the person doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to
each. Accordingly, anyone who departs from the instructions provided in the manual must first establish that neither
personal safety or vehicle integrity is compromised from choices of methods, tools or parts.
