BODY

SEATS AND SEAT BELTS

3

CUSHION AND SQUAB - REAR SEAT - 3 DOOR

Service repair no - 78.10.57/99

Remove

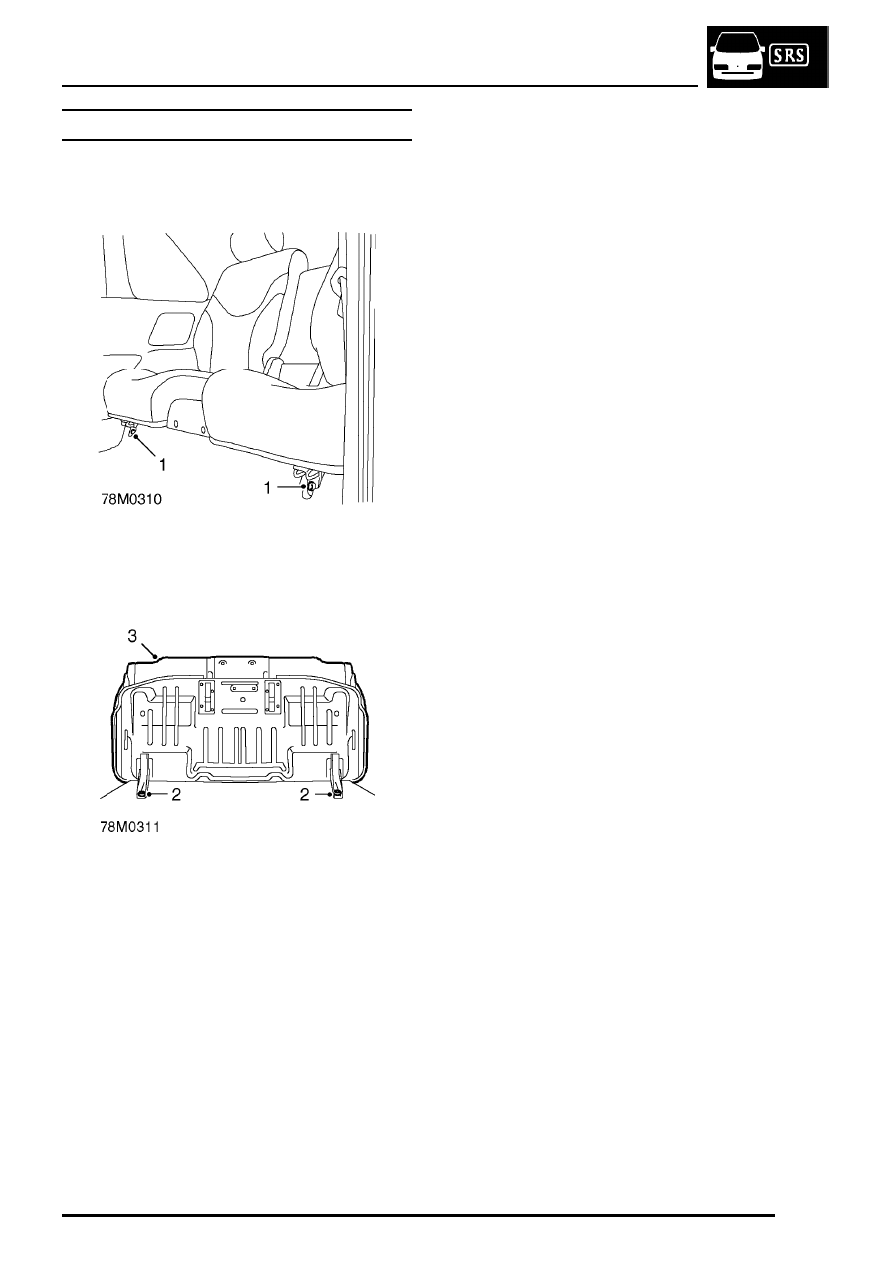

1. Remove 2 Torx bolts securing seat to heel

board.

2. Fold seat forward and remove 2 Torx bolts

from seat hinges.

3. With assistance, remove seat.

Refit

1. With assistance, position seat in vehicle and

align hinges.

2. Fit Torx bolts and lower seat. Tighten Torx

bolts to 25 Nm..

3. Fit Torx bolts to heel board. Tighten Torx bolts

to 25 Nm..

BODY

4

SEATS AND SEAT BELTS

CUSHION COVER - FRONT SEAT

Service repair no - 78.30.01

Remove

1. Remove front seat.

See this section.

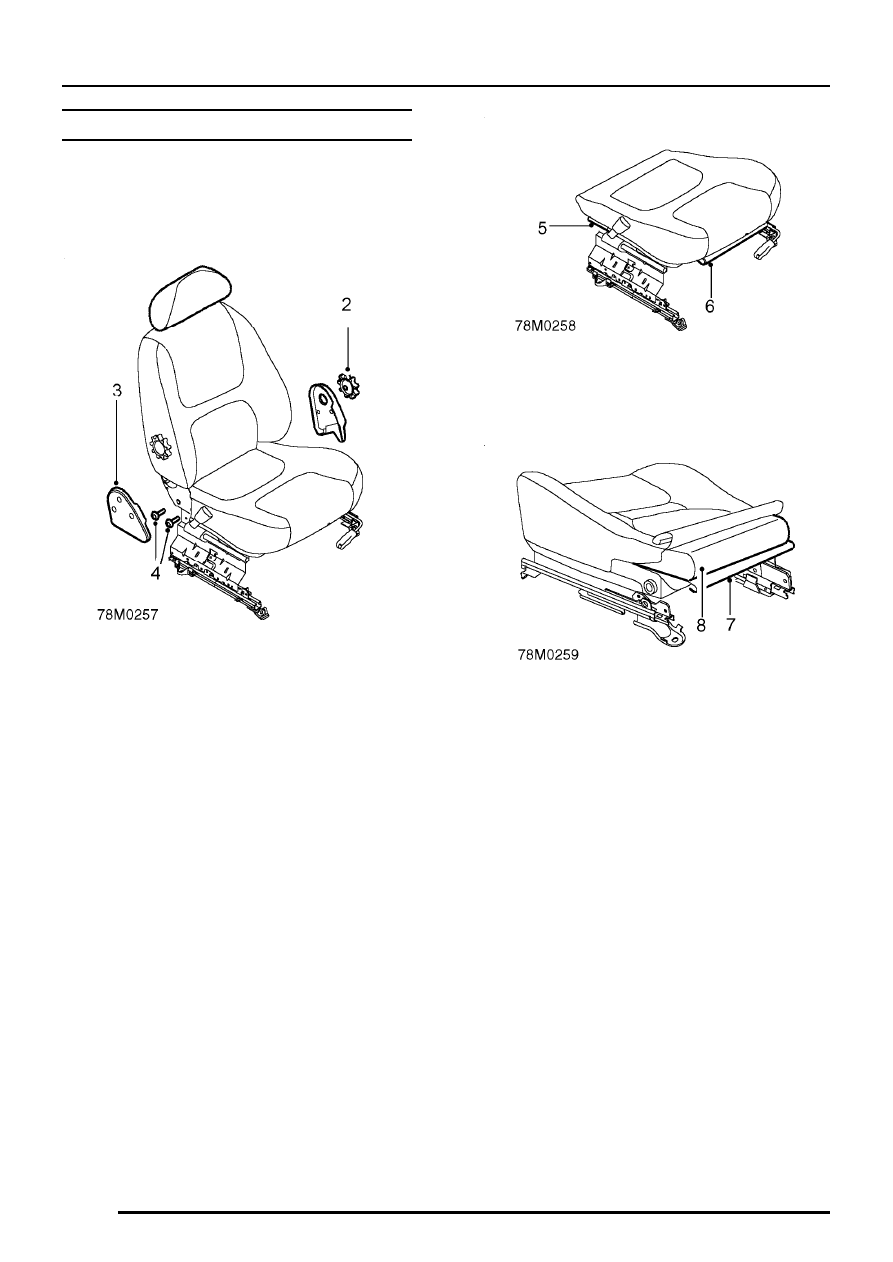

2. Remove recline control knob.
3. Release retaining studs from side covers and

remove covers.

4. Remove 4 Torx bolts from squab frame and

remove squab frame from cushion frame.

5. Release sides of cushion cover from frame.
6. Release front of cushion cover from frame.

7. Release rear of cushion cover from frame.
8. Release rear of cushion pad from frame.
9. Remove cushion cover and pad.

BODY

SEATS AND SEAT BELTS

5

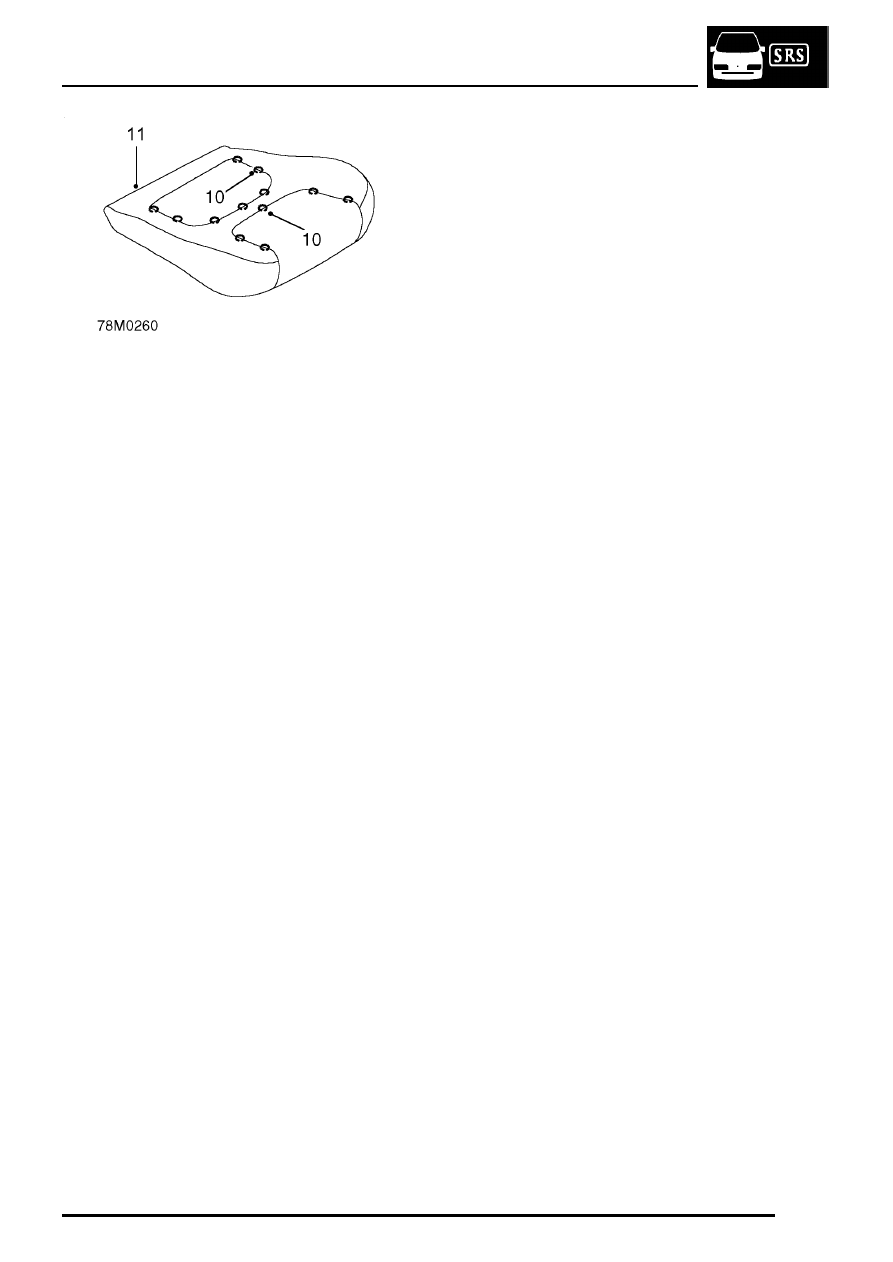

10. Remove and discard 12 hog rings holding

cushion cover to cushion pad.

11. Remove cushion cover.

Refit

1. Position cushion cover to pad.
2. Pull cover into position and secure with NEW

hog rings.

3. Position cushion cover and pad and secure to

frame.

4. Fit squab frame to cushion frame and tighten

Torx bolts to 45etorq>.

5. Fit side covers and secure retaining studs.
6. Fit recline control knob.
7. Fit front seat.

See this section.

BODY

6

SEATS AND SEAT BELTS

CUSHION COVER - RH REAR SEAT - 5 DOOR

Service repair no - 78.40.04

Remove

1. Remove RH rear seat.

See this section.

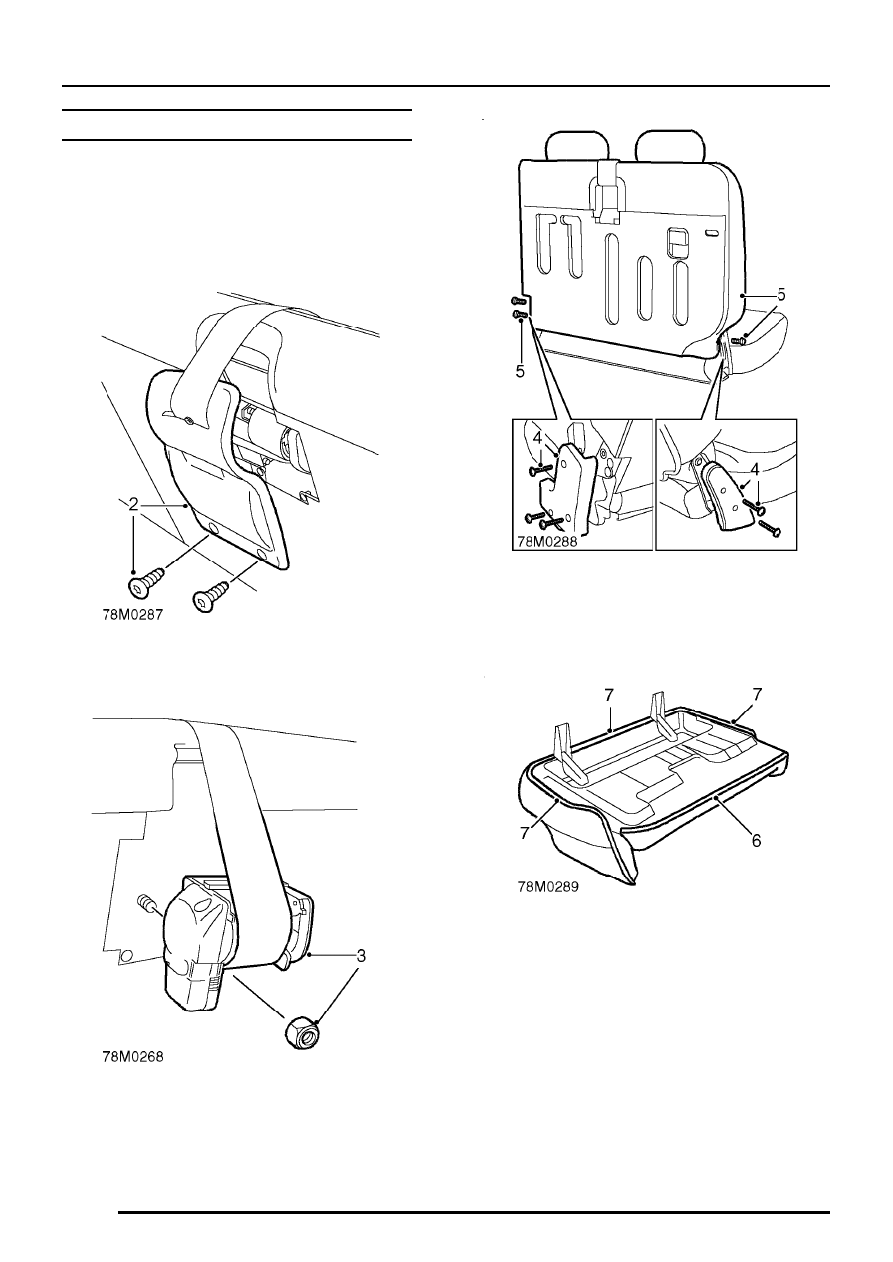

2. Remove 2 screws and remove seat belt reel

cover.

3. Remove nut and release seat belt belt reel.

4. Remove 5 screws and remove both end

covers.

5. Remove 3 Torx bolts and remove squab from

cushion.

6. Release rear of cushion cover from frame.
7. Release sides and front of cushion cover from

frame.

8. Release cover and pad from frame.
