RESTRAINT SYSTEMS

REPAIRS

3

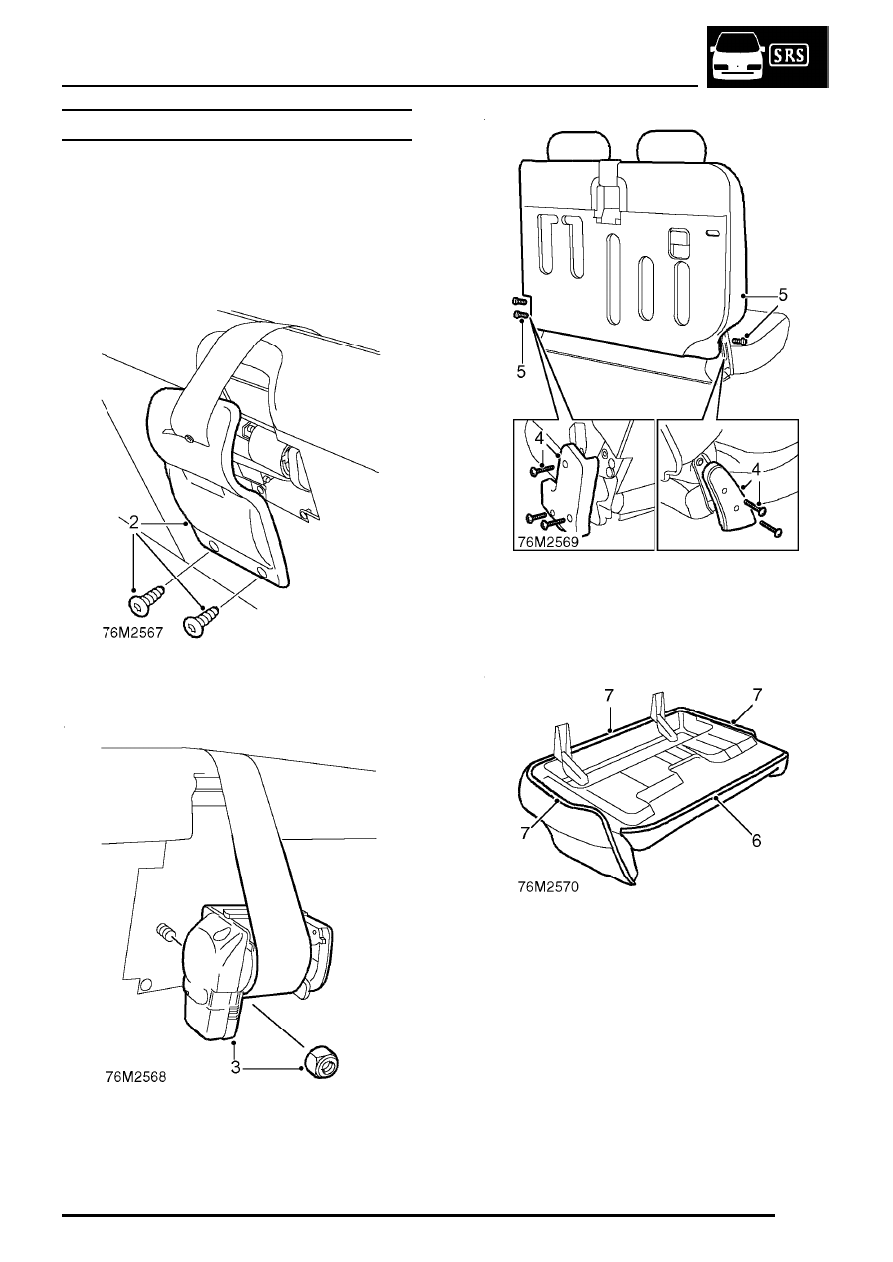

SEAT BELT - CENTRE - REAR - 5 DOOR

Service repair no - 76.73.20

Remove

1. Remove RH rear seat.

See BODY, Seats and

seat belts.

2. Remove 2 screws and remove seat belt reel

cover.

3. Remove nut and release seat belt reel.

4. Remove 5 screws and remove both end covers

from seat hinges.

5. Remove 3 Torx bolts and remove squab from

cushion.

6. Release rear of cushion cover from seat frame.
7. Release sides and front of cushion cover from

seat frame.

RESTRAINT SYSTEMS

4

REPAIRS

8. Release cover and pad from seat frame.
9. Remove Torx bolt from centre seat belt

anchor/right seat belt buckle.

10. Remove seat belt and right seat belt buckle.

Refit

1. Position centre seat belt anchor and right seat

belt buckle to seat and tighten Torx bolt to 40
Nm.

2. Fit cover and pad to seat frame.
3. Fit front and sides of cushion cover to seat

frame.

4. Fit rear of cushion cover to seat frame.
5. Fit cushion to squab and tighten Torx bolts.
6. Fit end covers and tighten screws.
7. Position seat belt reel and tighten nut to 32

Nm.

8. Fit seat belt reel cover and tighten screws.
9. Fit rear seat.

See BODY, Seats and seat

belts.

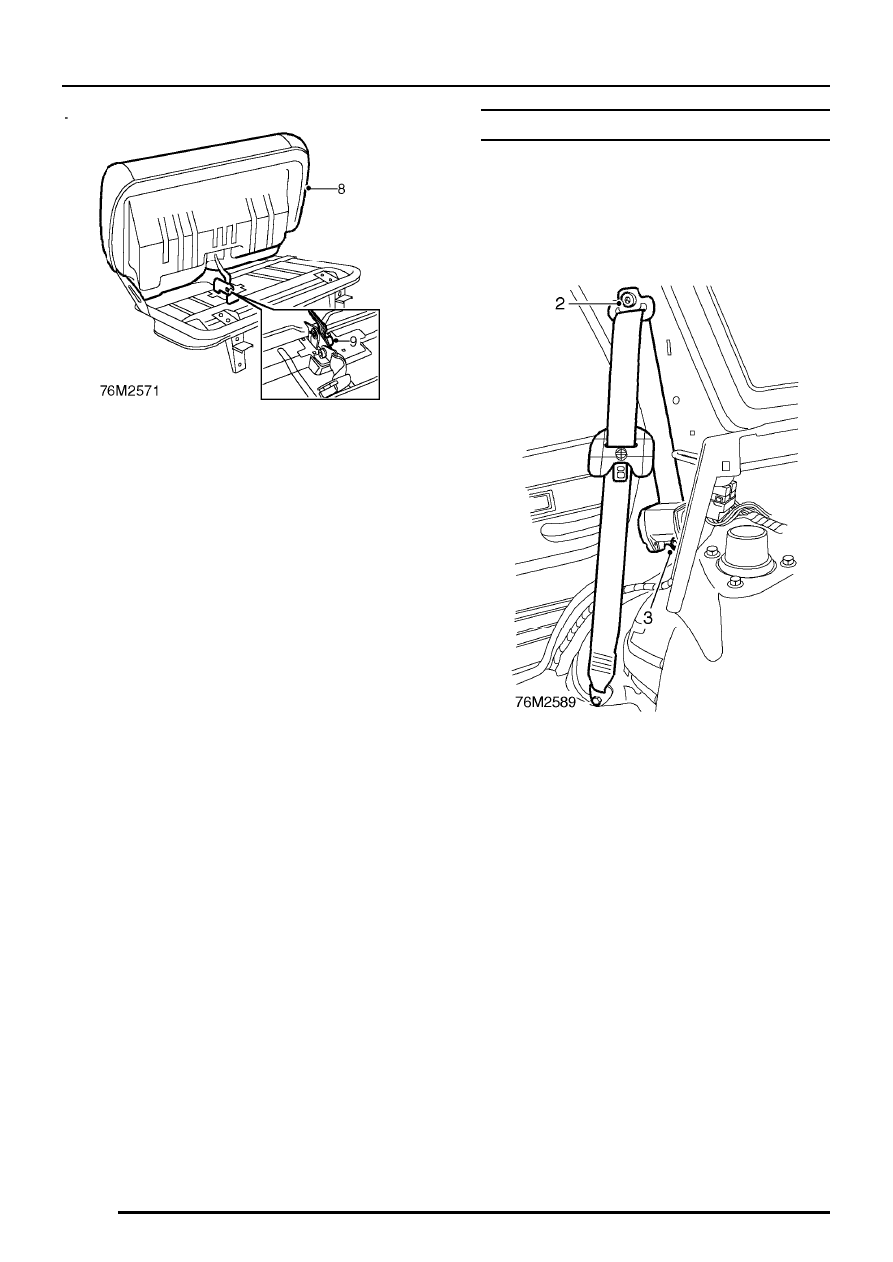

SEAT BELT - SIDE - REAR - 5 DOOR

Service repair no - 76.73.23

Remove

1. Remove rear quarter upper trim casing.

See

BODY, Interior trim components.

2. Remove Torx bolt from seat belt upper

mounting.

3. Remove Torx bolt from seat belt reel and

remove reel.

Refit

1. Position reel and tighten Torx bolt to 50 Nm.
2. Extend belt, position top mounting and tighten

Torx bolt to 32 Nm.

3. Fit rear quarter upper trim casing.

See BODY,

Interior trim components.

RESTRAINT SYSTEMS

REPAIRS

5

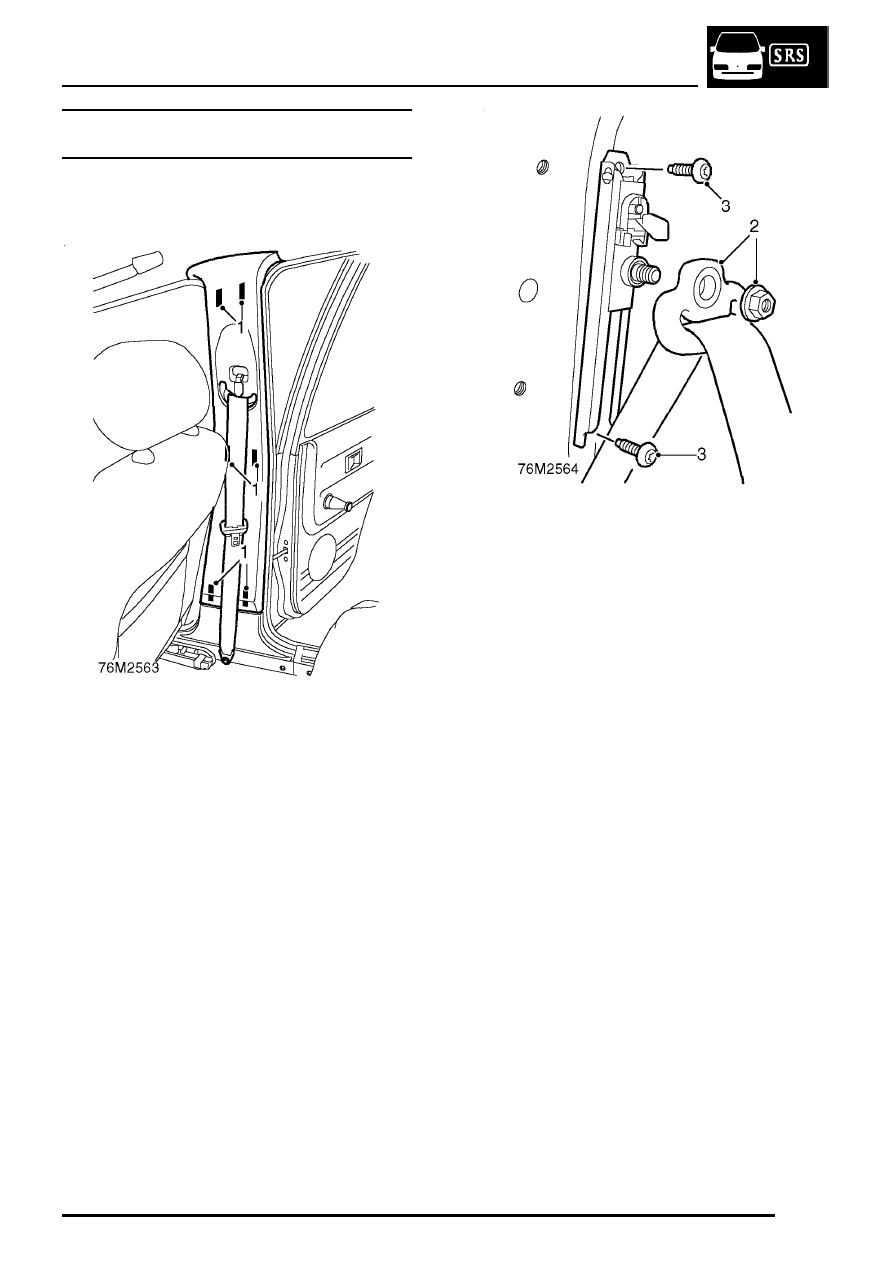

ADJUSTABLE MOUNTING - SEAT BELT - ’B/C’
POST

Service repair no - 76.73.26

Remove

1. Release ’B/C’ post upper finisher from 6 clips

and position aside.

2. Remove nut from seat belt upper mounting and

remove belt bracket.

3. Remove 2 Torx screws from mounting and

remove mounting.

Refit

1. Position mounting and tighten Torx screws to

26 Nm.

2. Fit upper belt bracket and tighten nut to 31 Nm.
3. Position ’B/C’ post upper finisher and secure

with clips.

RESTRAINT SYSTEMS

6

REPAIRS

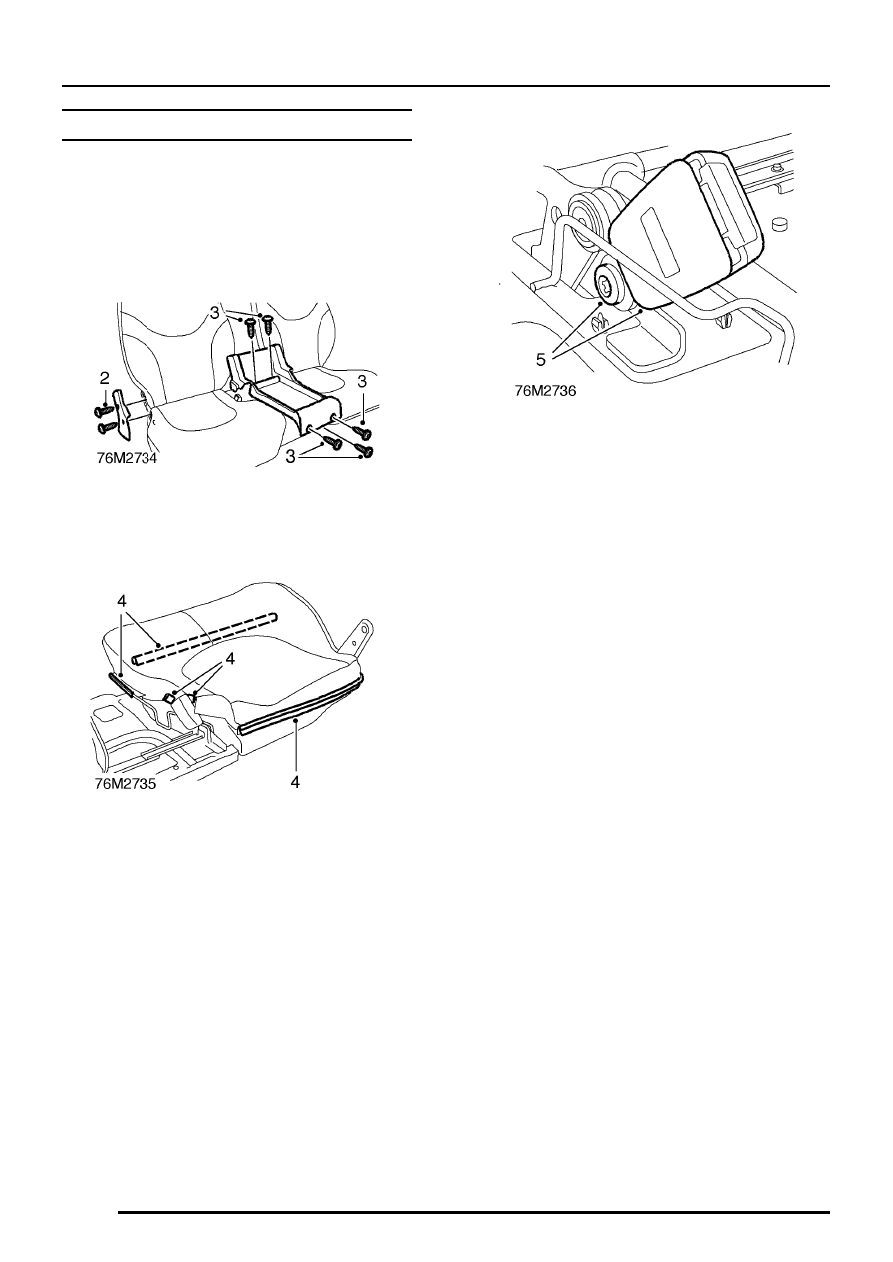

SEAT BELT BUCKLE - REAR - 3 DOOR

Service repair no - 76.73.32

Remove

1. Remove rear seat.

See BODY, Seats and

seat belts.

2. Remove 2 screws from hinge cover and

remove cover from seat hinge.

3. Remove 4 screws and remove rear seat centre

console.

4. Release rear seat cushion cover retainers and

position cushion aside.

5. Remove Torx bolt and remove seat belt buckle.

Refit

1. Fit buckle to seat frame and tighten Torx bolt to

40 Nm.

2. Position seat cushion and secure cover

retainers.

3. Fit centre console and tighten screws.
4. Fit hinge cover and tighten screws.
5. Fit rear seat.

See BODY, Seats and seat

belts.
