SECURITY

REPAIRS

86-4-1

SECURITY

REPAIRS

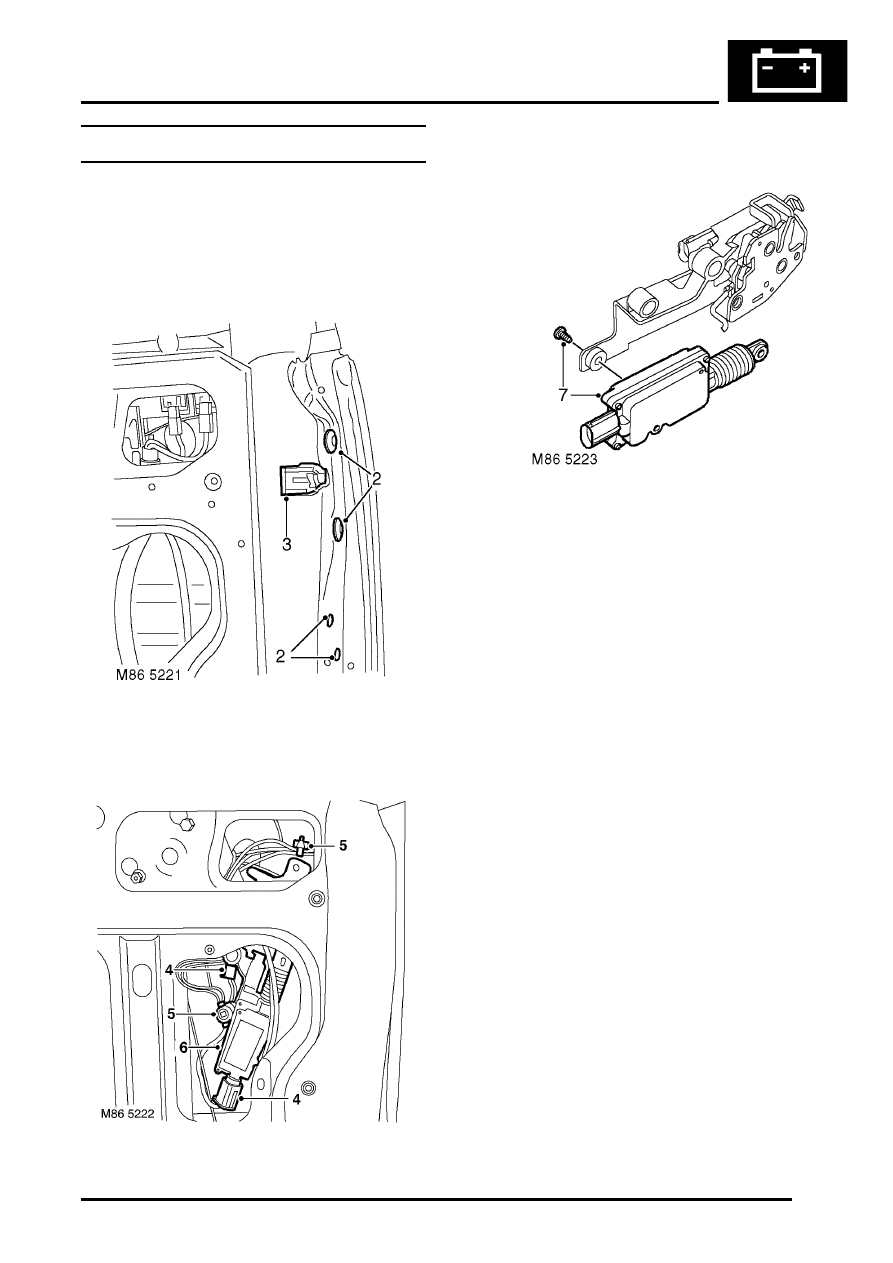

Solenoid/motor - taildoor

$% 86.26.02

Remove

1. Remove tail door plastic sheet.



 +

 DOORS, REPAIRS, Plastic sheet -

tail door.

2. Remove 4 screws securing door latch.
3. Release door latch to access harness clips and

multiplugs.

4. Disconnect 2 multiplugs from door latch.

5. Release 2 door harness clips from latch.
6. Remove door latch.

7. Remove screw from solenoid motor and

remove motor from latch.

Refit

1. Position solenoid motor to latch, fit and tighten

screw.

2. Position door latch, connect multiplugs and

harness clips.

3. Locate door latch in position, fit and tighten

screws.

4. Fit tail door plastic sheet.



 +

 DOORS, REPAIRS, Plastic sheet -

tail door.

SECURITY

86-4-2

REPAIRS

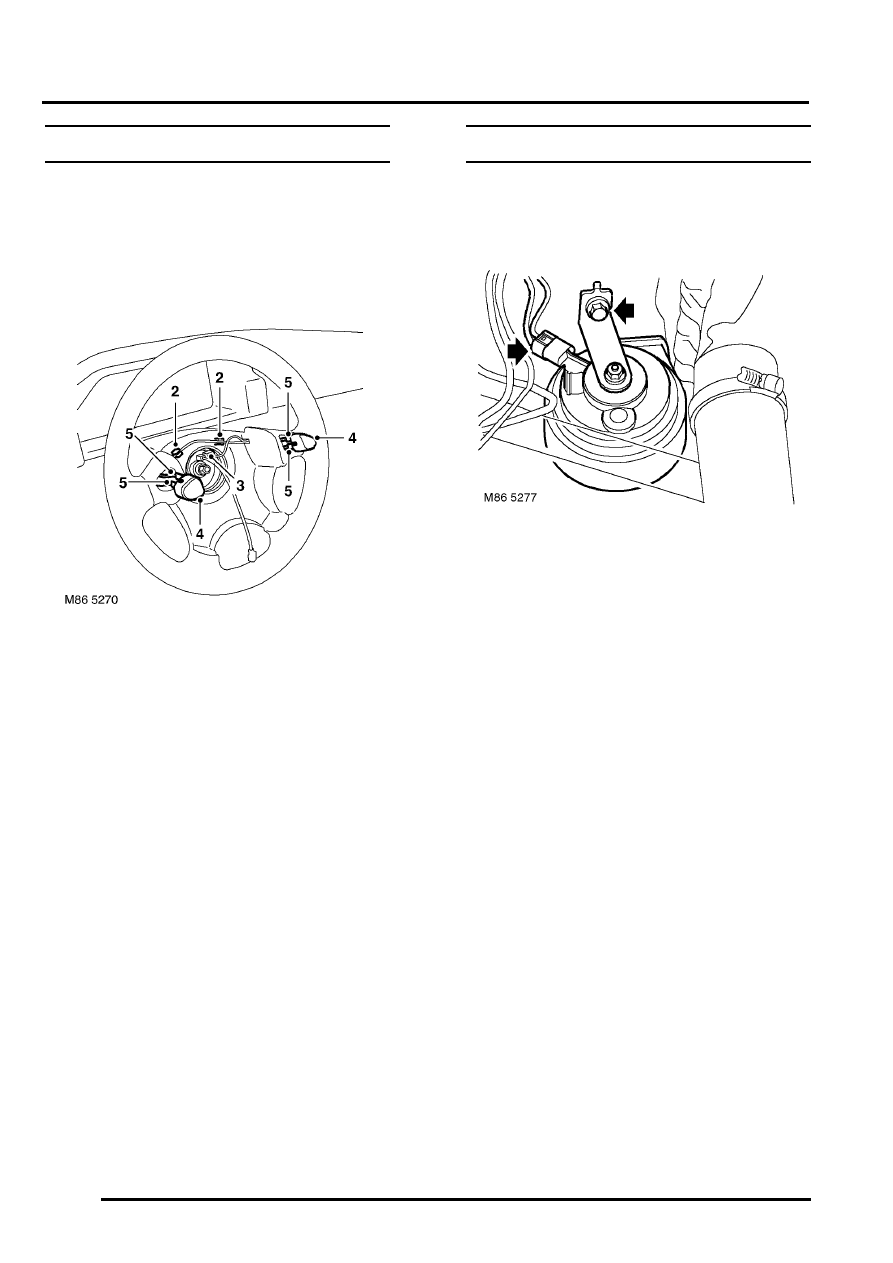

Switch/push - horn

$% 86.30.01

Remove

1. Remove airbag module from steering wheel.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

2. Release horn switch multiplugs and leads from

steering wheel base.

3. Disconnect multiplug from rotary coupler.
4. Using a broad round edged tool, carefully prise

horn switch from steering wheel.

5. Noting fitted position disconnect 2 Lucars and

remove horn switch.

Refit

1. Position horn switch and connect Lucars.
2. Carefully fit horn switch to steering wheel.
3. Connect multiplug to rotary coupler.
4. Secure leads and multiplug to base of steering

wheel.

5. Fit airbag to steering wheel.



 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

Horn

$% 86.30.10

Remove

1. Remove bolt securing horn to body.
2. Disconnect multiplug from horn and remove

horn.

NOTE: Do not carry out further dismantling if
component is removed for access only.

3. Remove nut securing bracket to horn and

remove bracket.

Refit

1. Fit bracket to horn and secure with nut.
2. Connect multiplug to horn.
3. Fit horn to body and secure with bolt.

SECURITY

REPAIRS

86-4-3

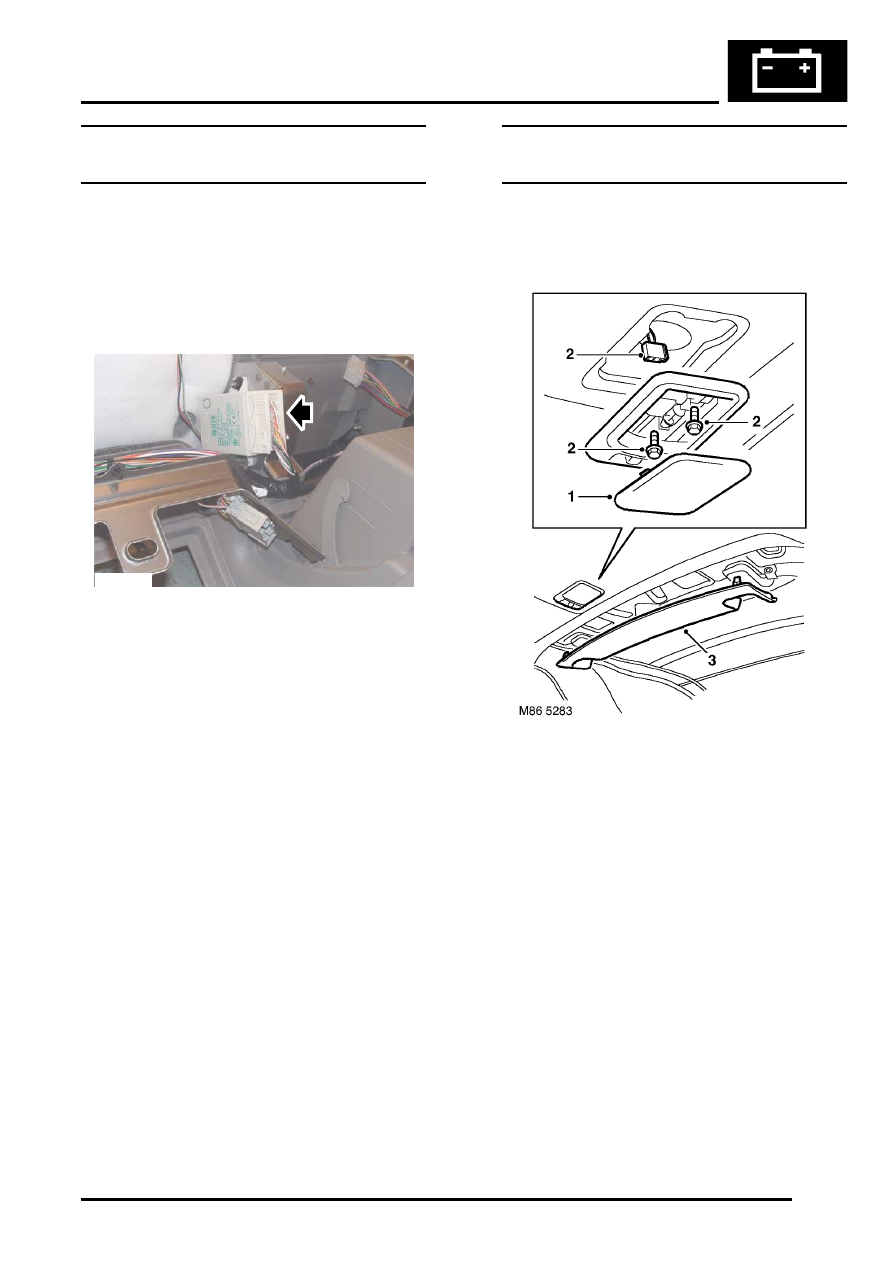

Immobilisation - electronic control unit
(ECU) -

$% 86.77.07

Remove

1. Disconnect battery earth lead.
2. Remove fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

3. Remove 2 plastic nuts securing immobilisation

ECU and disconnect multiplug.

Refit

1. Connect ECU multiplug.
2. Position ECU, fit and tighten 2 plastic nuts.
3. Fit fascia.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Fascia.

4. Connect battery earth lead.
5. Initiate using TestBook.

Sensor - volumetric - alarm system - 3
door

$% 86.77.29

Remove

1. Remove roof lamp lens.
2. Remove 2 screws, release roof lamp and

disconnect multiplug.

3. Release headlining rear finisher from roof panel

and remove finisher.

M86 5633

SECURITY

86-4-4

REPAIRS

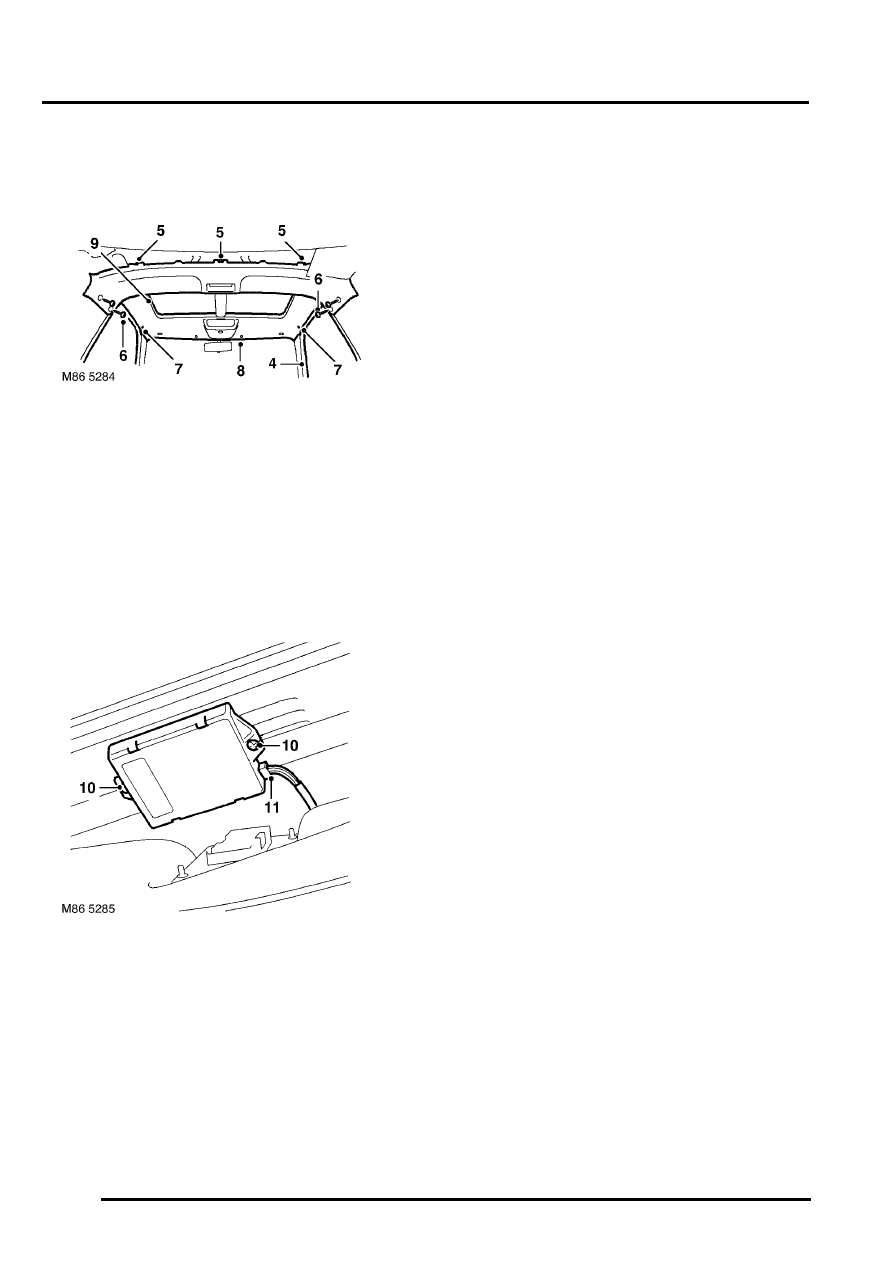

4. Release door aperture seals to release

headlining.

5. Release 3 studs securing rear edge of

headlining to roof panel.

6. Remove 4 screws securing headlining to 'B'

posts.

7. Release 2 studs securing sides of headlining to

body.

8. Lower front edge of headlining.
9. Release sun roof seal.

10. Remove 2 screws from volumetric sensor.
11. Disconnect multiplug from volumetric sensor

and remove.

Refit

1. Position volumetric sensor and connect

multiplug.

2. Fit sensor and secure with screws.
3. Fit headlining to 'B' posts and secure with

screws.

4. Secure headlining behind rear vent rubbers.
5. Fit headlining rear finisher.
6. Fit door aperture seals.
7. Fit headlining to sun roof seal.
8. Position roof lamp and connect multiplug.
9. Fit roof lamp and secure with screws.

10. Fit lens to roof lamp.
