Freelander 1. Manual - part 259

CORROSION PREVENTION AND SEALING

SEALING 77-4-21

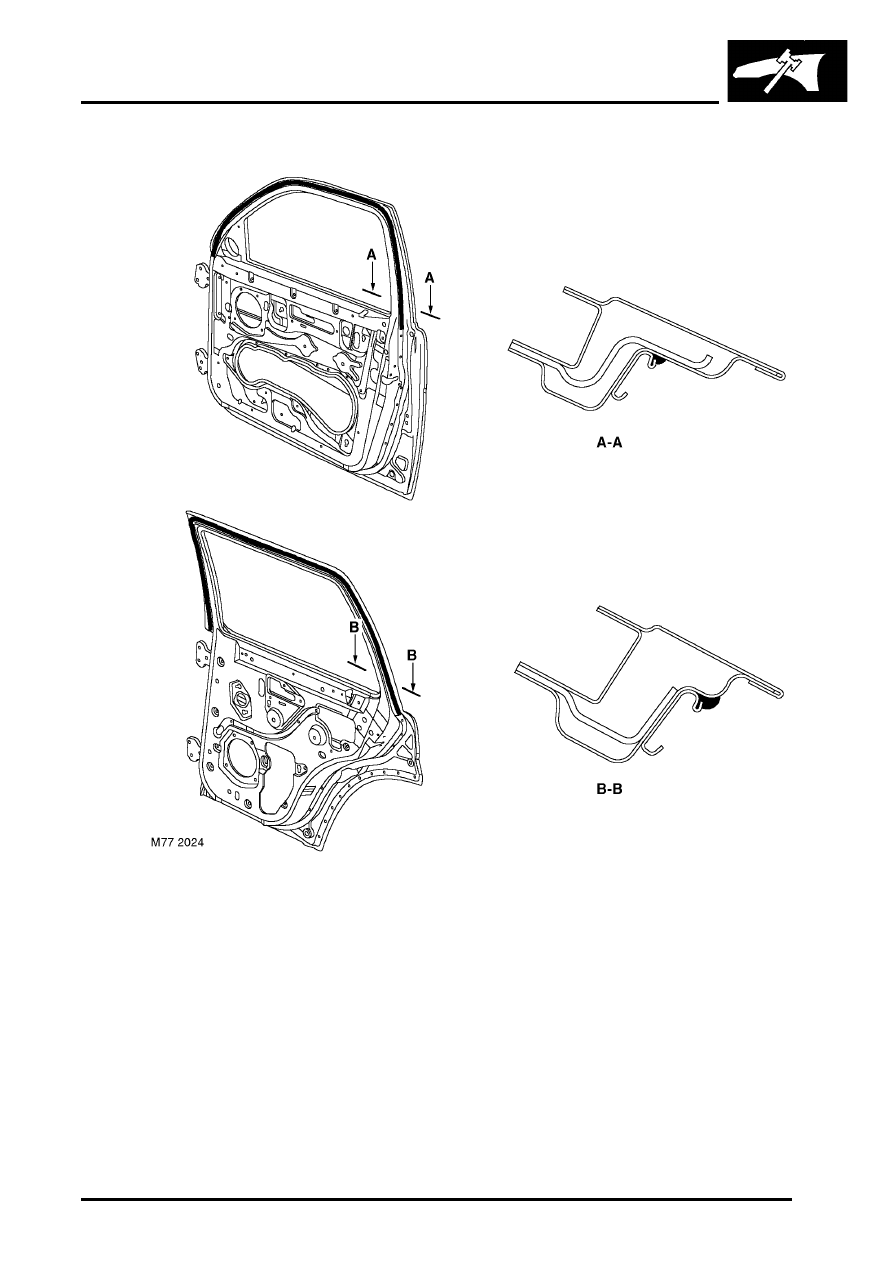

Seam sealer on door seal retainers

Seams symmetrically opposite to those shown are also treated.

CORROSION PREVENTION AND SEALING

77-4-22 SEALING

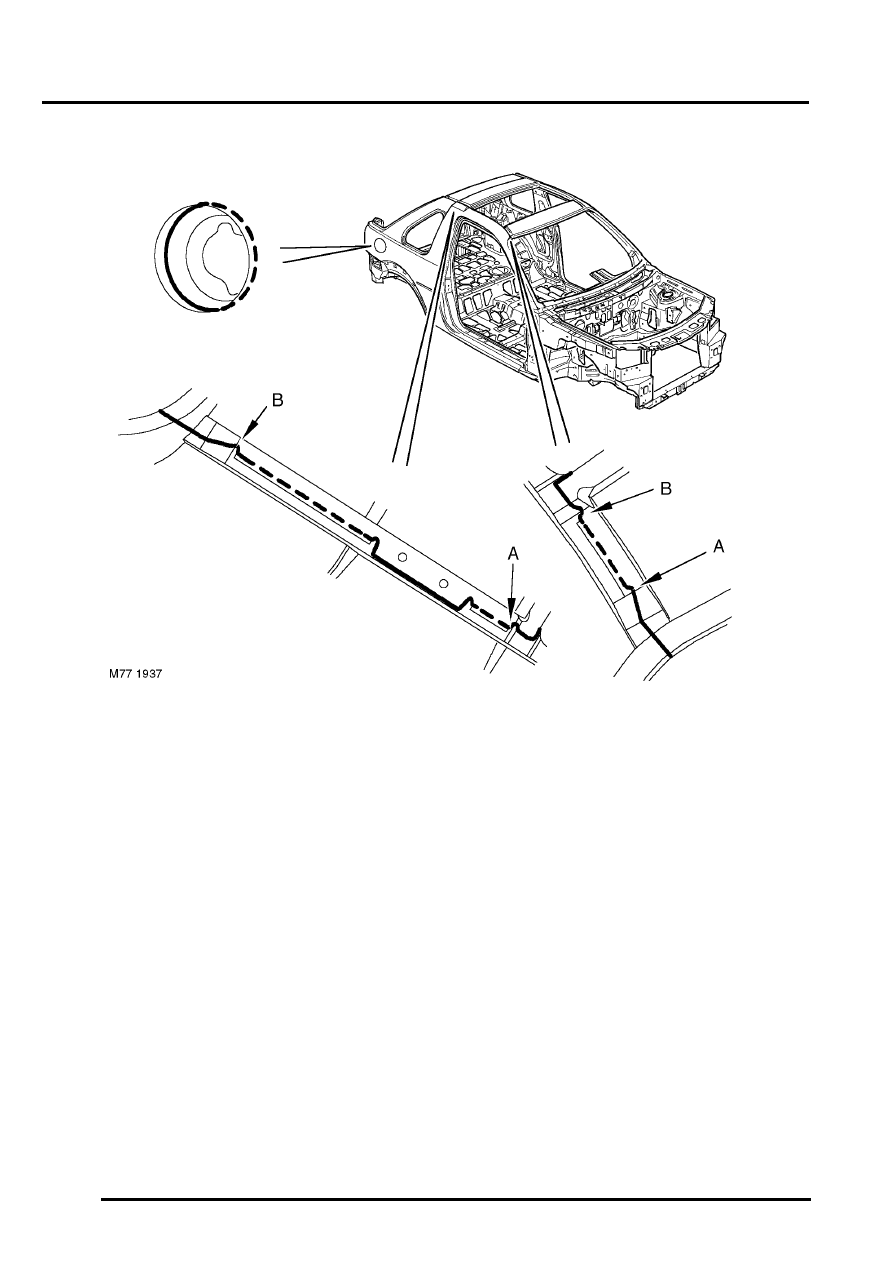

Seam sealer on fuel filler and roof - 3 door

Seams symmetrically opposite to those shown are also treated. On roof seams, sealant to be finished flush to surface
forward of points 'A' and rearward of points 'B'.

CORROSION PREVENTION AND SEALING

SEALING 77-4-23

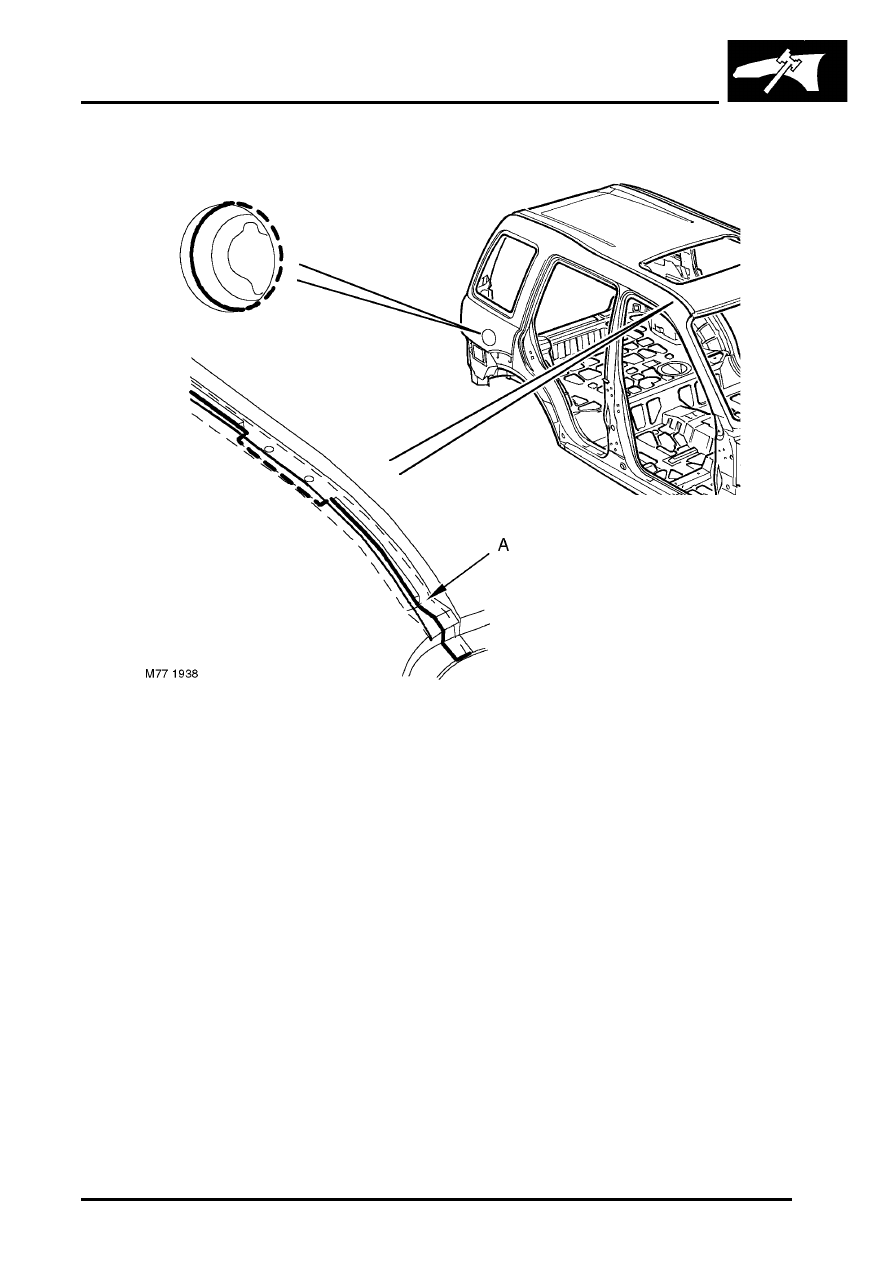

Seam sealer on fuel filler and roof - 5 door

Seams symmetrically opposite to those shown are also treated. On roof seam, sealant to be finished flush to surface
forward of point 'A'.

CORROSION PREVENTION AND SEALING

77-4-24 SEALING

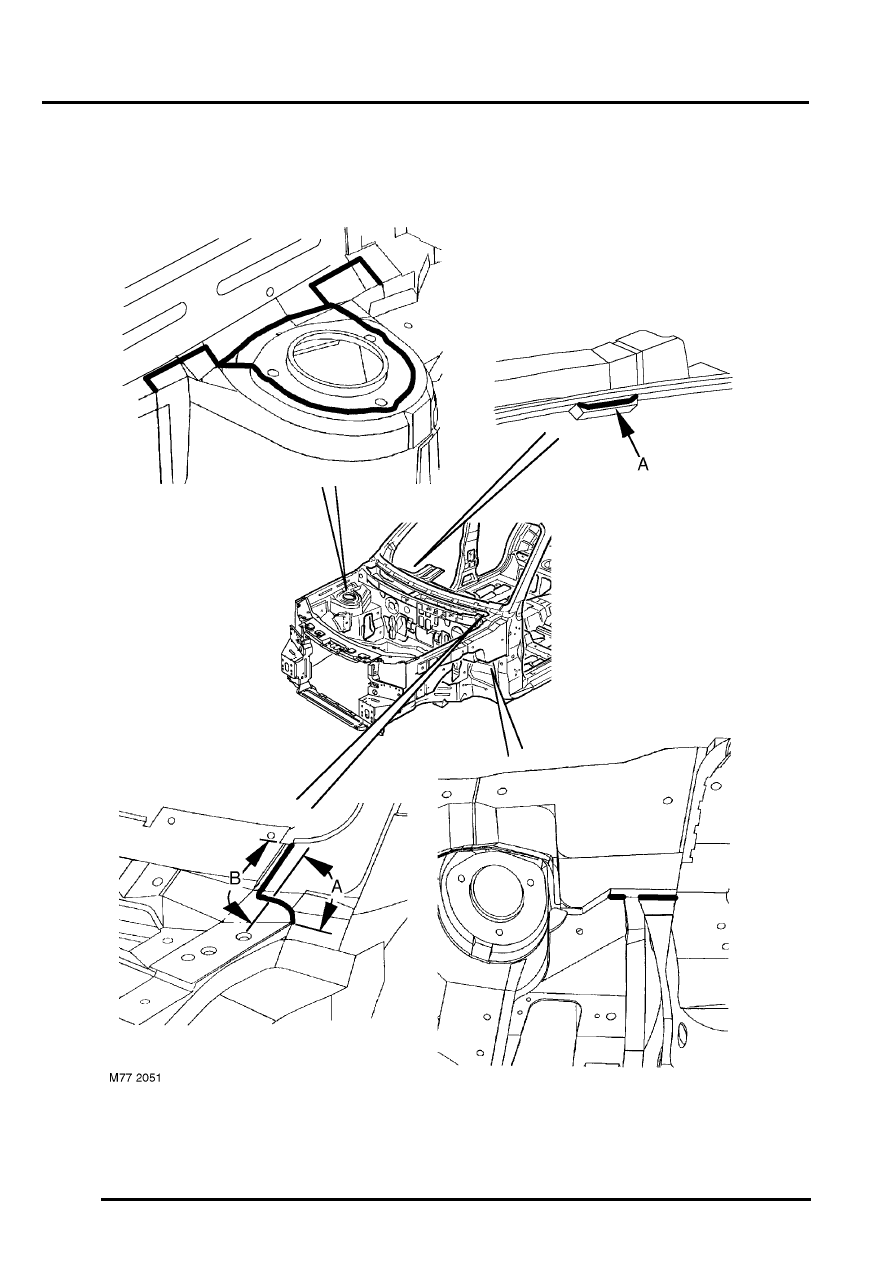

Sealed seams in front wheelarch, engine compartment and screen rail

Seams symmetrically opposite to those shown are also treated. Use putty on seams marked 'A'. On windscreen rail,
sealant to be finished flush to adjacent surfaces over length 'B'. On front suspension turrets, ensure damper mounting
holes are kept free of sealant.
