CORROSION PREVENTION AND SEALING

SEALING 77-4-25

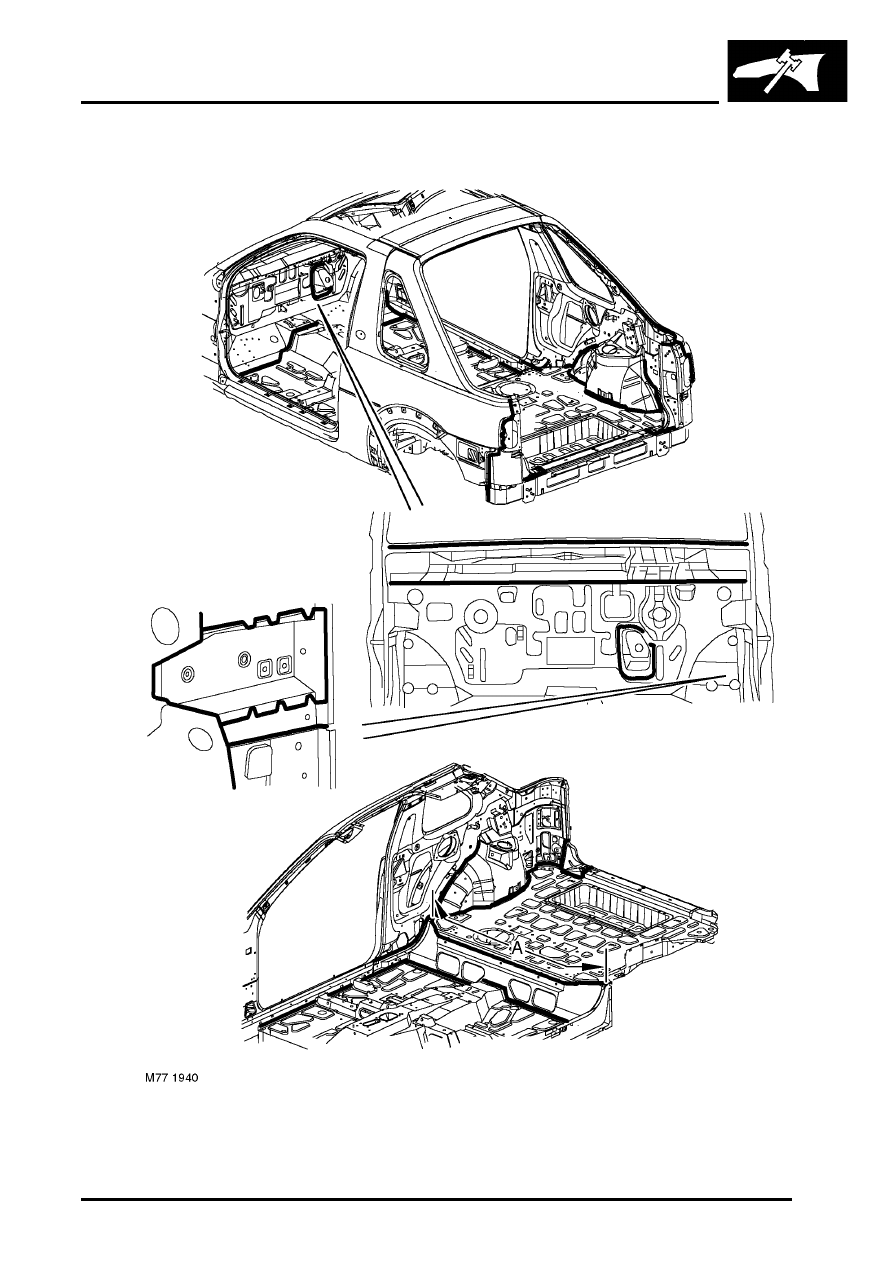

Seam sealer on vehicle interior and rear quarter - 3 door

Seams symmetrically opposite to those shown are also treated. Sealant to be wiped to a smooth finish over length 'A'
(rear load floor to rear heelboard underframe).

CORROSION PREVENTION AND SEALING

77-4-26 SEALING

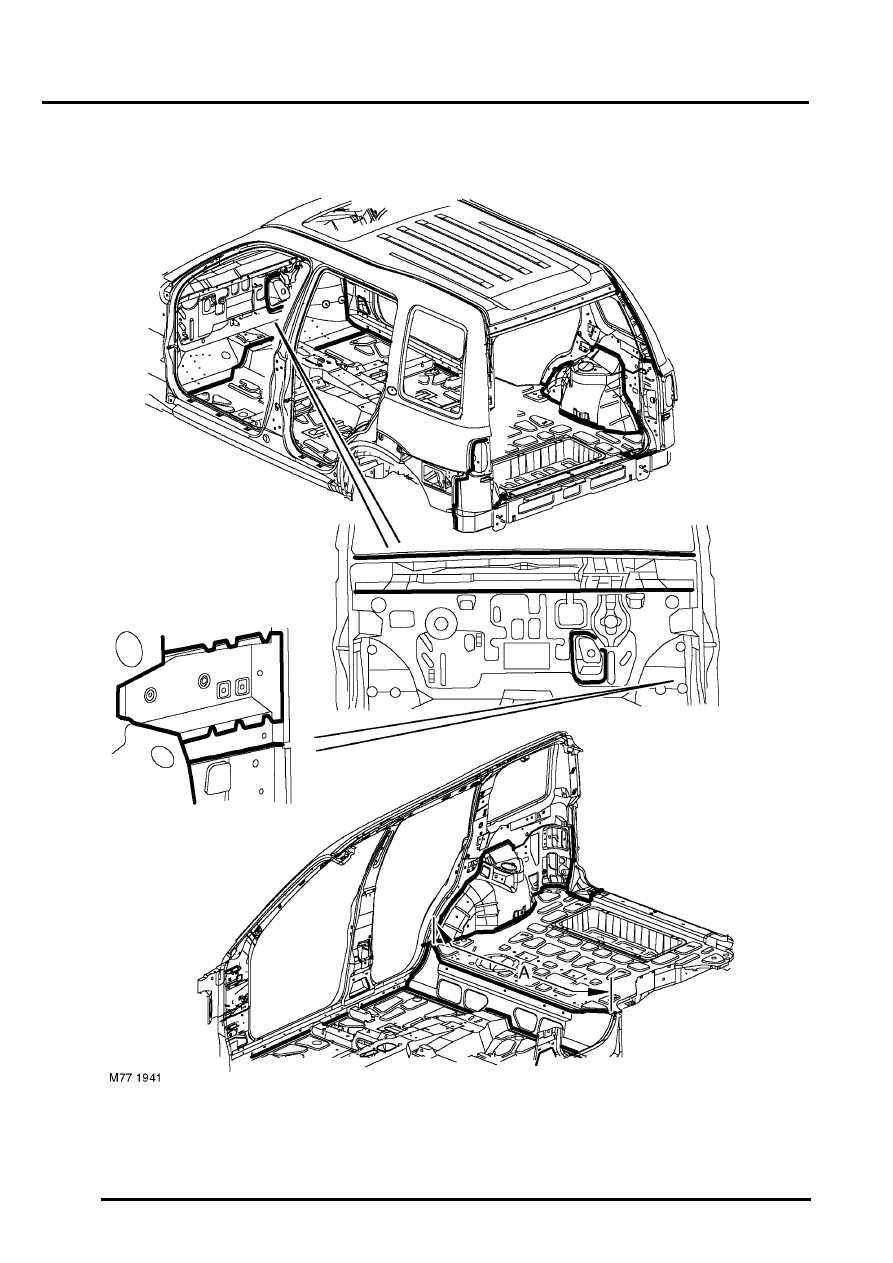

Seam sealer on vehicle interior and rear quarter - 5 door

Seams symmetrically opposite to those shown are also treated. Sealant to be wiped to a smooth finish over length 'A'
(rear load floor to rear heelboard underframe).

CORROSION PREVENTION AND SEALING

INTERNAL SEALING 77-4-27

INTERNAL SEALING

Expanding foam acoustic seals

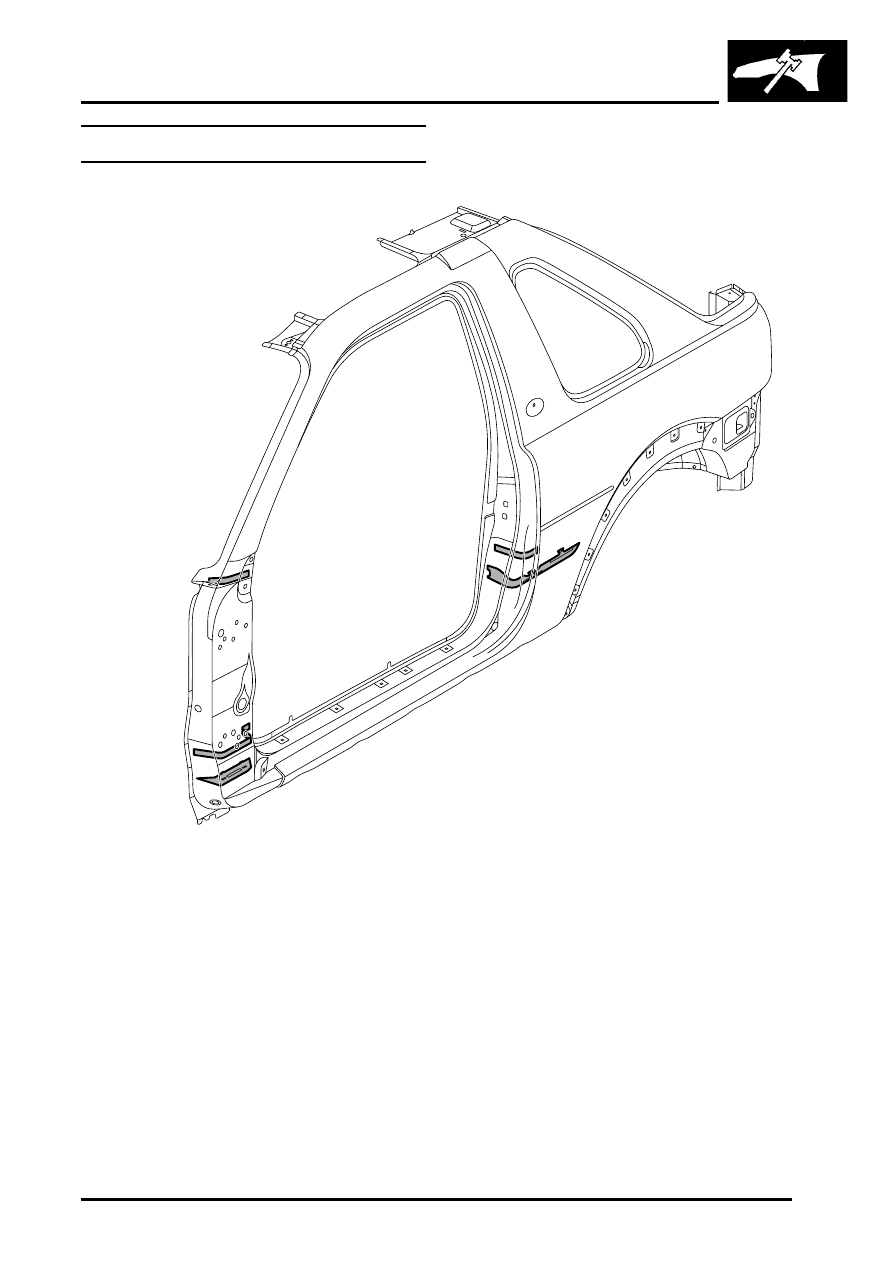

3 Door shown

M77 2056

CORROSION PREVENTION AND SEALING

77-4-28 INTERNAL SEALING

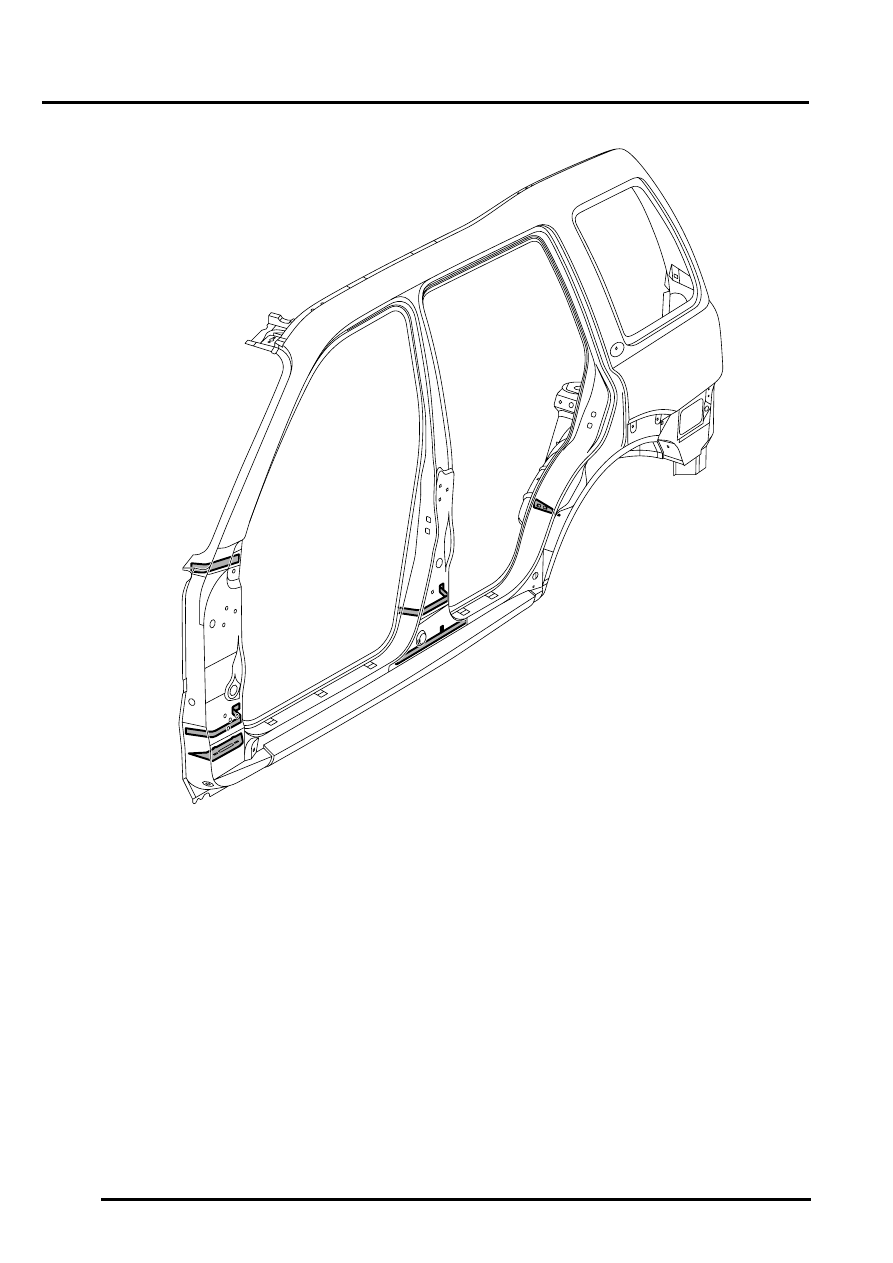

5 Door shown

Expanding foam acoustic seals
Expanding foam acoustic seals are used in various closed sections of the body to improve vehicle refinement. The
seals expand during the factory paint process, thus locking them into position. The seals are used in various locations
throughout the vehicle.

The main function of the seals is to insulate the cabin from noise and vibrations, particularly road noise. They are
located such that they prevent noise accentuation along a section and also reflect air borne noise away from the cabin.

A secondary function of the seals is that the internal sections are sealed from the infiltration of water, air, dust and
gases.

Another advantage of the seals is that they marginally increase the overall stiffness of the body and its structural
performance in case of a crash.

The seals are manufactured from an expandable synthetic rubber, `Betacore 4300`.

All the seals are fitted in the body-in-white areas, and after going through the paint baking process expand up to eight
times original size.
