SUNROOF

REPAIRS

76-6-1

SUNROOF

REPAIRS

Sun/sliding roof - complete - front - 3
door

$% 76.83.01

Remove

1. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

WARNING: Wear protective gloves when
handling glass, solvents and primers.

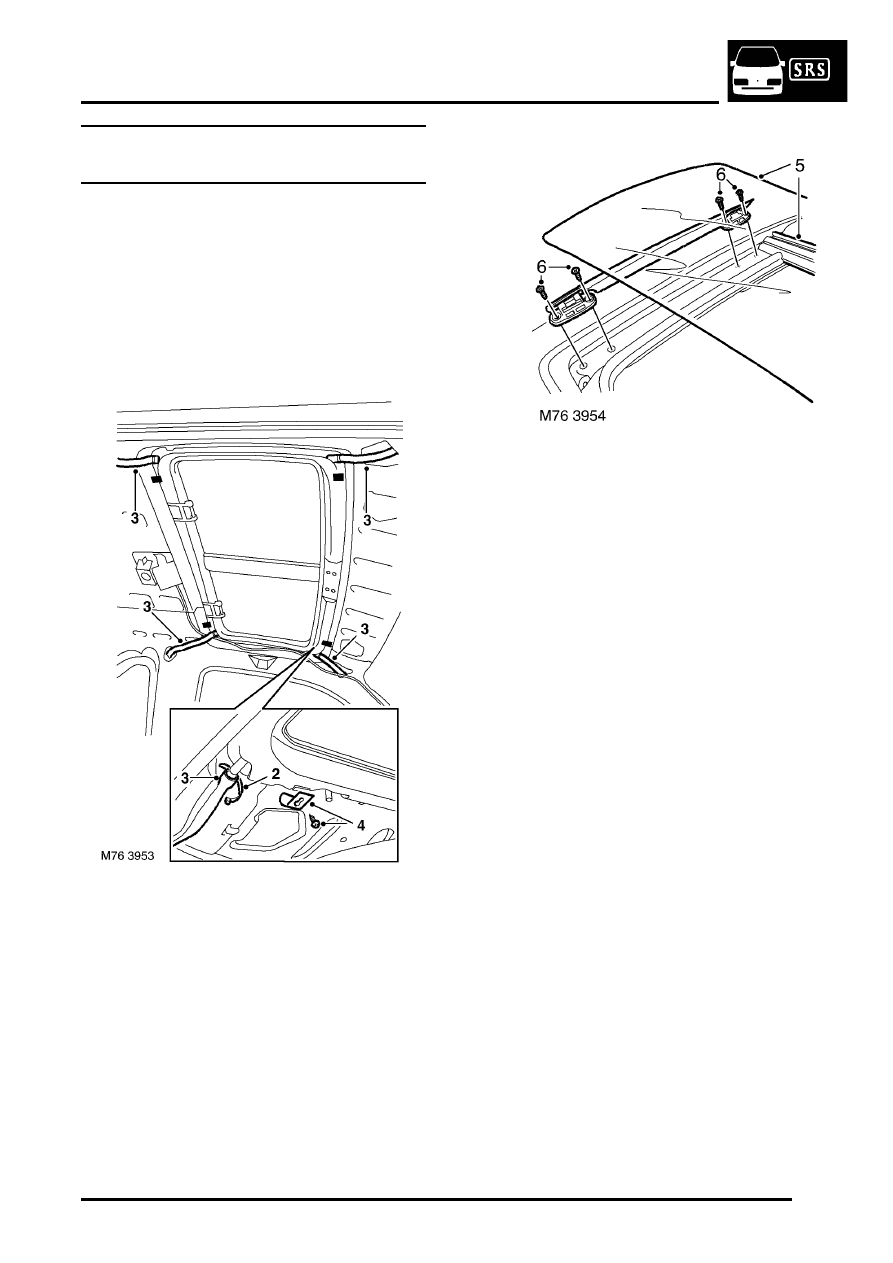

2. Remove and discard cable ties from drain

tubes.

3. Disconnect drain tubes from sun roof.
4. Remove 4 Torx screws securing clamping

plates and remove plates.

5. Remove glass panels and 'T' bar.
6. Remove 8 screws securing wind deflectors and

remove wind deflectors.

7. Remove sun roof tray seal.



 +

 SUNROOF, REPAIRS, Seal - tray -

sun /sliding roof - front.

SUNROOF

76-6-2

REPAIRS

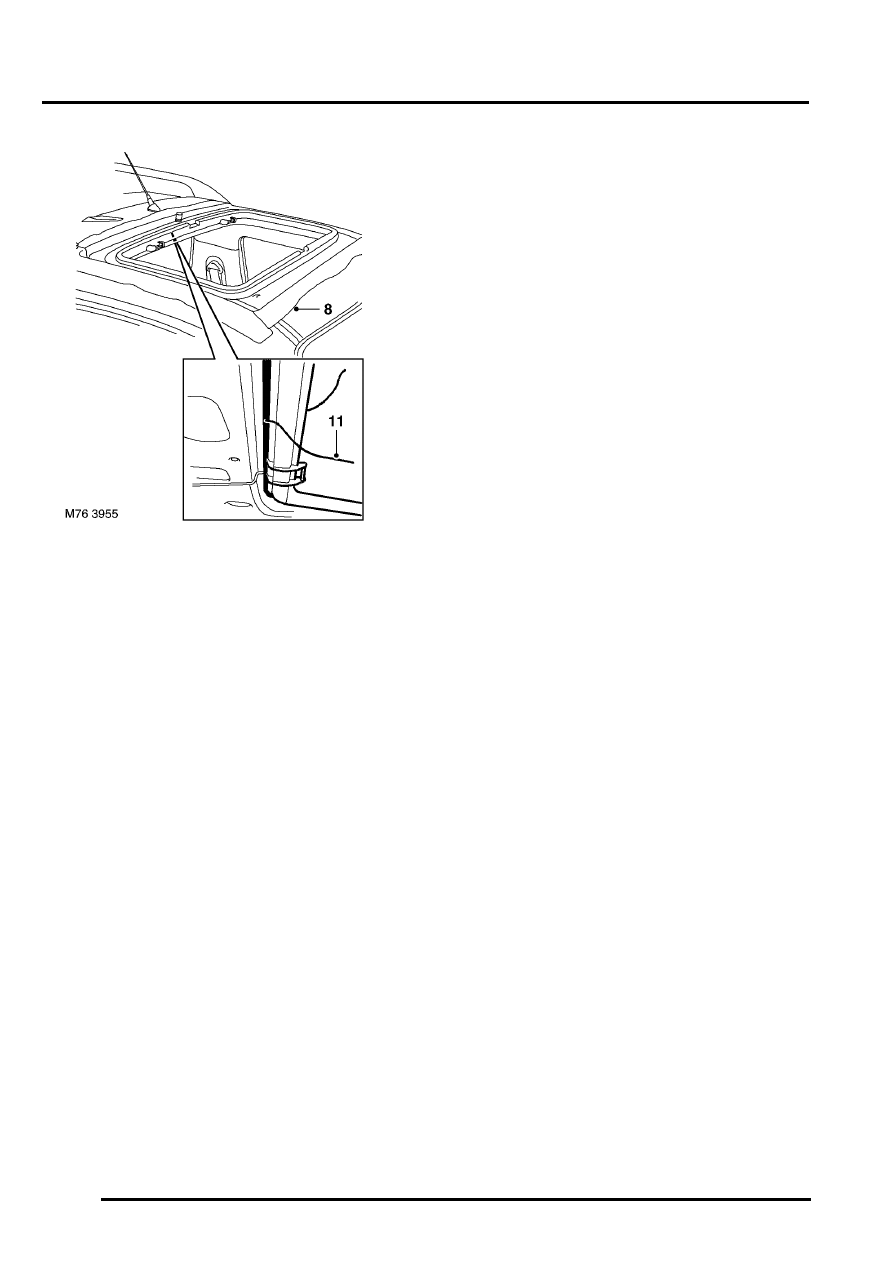

8. Mask up roof and sun roof aperture.
9. Cover interior of vehicle with protective sheet.

10. Make a cut through the sealer at the back of the

sun roof, a 90

°

 bend in the cutting tool will help.

WARNING: Wear suitable eye protection
when removing and refitting glass.

11. Using suitable cutting wire, cut through PU

sealer securing sun roof to roof.

NOTE: If multi-strand cutting wire is used, a
sawing action can be used to cut through heavy
sealant deposits around corners.

12. Remove sun roof.

Refit

1. Clean surrounding area with solvent.

WARNING: Wear protective gloves when
handling glass, solvents and primers.

2. Use a vacuum cleaner to clear away any waste.
3. Cut sealer on roof flange down to a smooth

even finish.

4. Etch prime and paint any damaged areas.
5. Apply primer over etch primer on flange.
6. Apply activator over old sealer on flange.
7. Allow activator to cure.
8. Fit pre-cut nozzle to sealer cartridge, remove

lid, shake out crystals and fit cartridge to
applicator gun. If necessary modify the nozzle
to achieve required bead section.

9. Apply a continuous bead of sealer around roof

flange. Make bead slightly thicker at the
corners.

10. Check for breaks and air bubbles in sealer.
11. With assistance position sunroof and align to

roof aperture.

12. Fit sunroof tray seal.



 +

 SUNROOF, REPAIRS, Seal - tray -

sun /sliding roof - front.

13. Position sunroof clamping plates, fit and tighten

screws.

14. Connect drain tubes and secure with new cable

ties.

15. Remove body and trim protection.
16. Position wind deflectors, fit and tighten screws.
17. Fit 'T' bar and glass panels.
18. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 3 door.

SUNROOF

REPAIRS

76-6-3

Wind deflector - sun/sliding roof - 3 door

$% 76.83.28

Remove

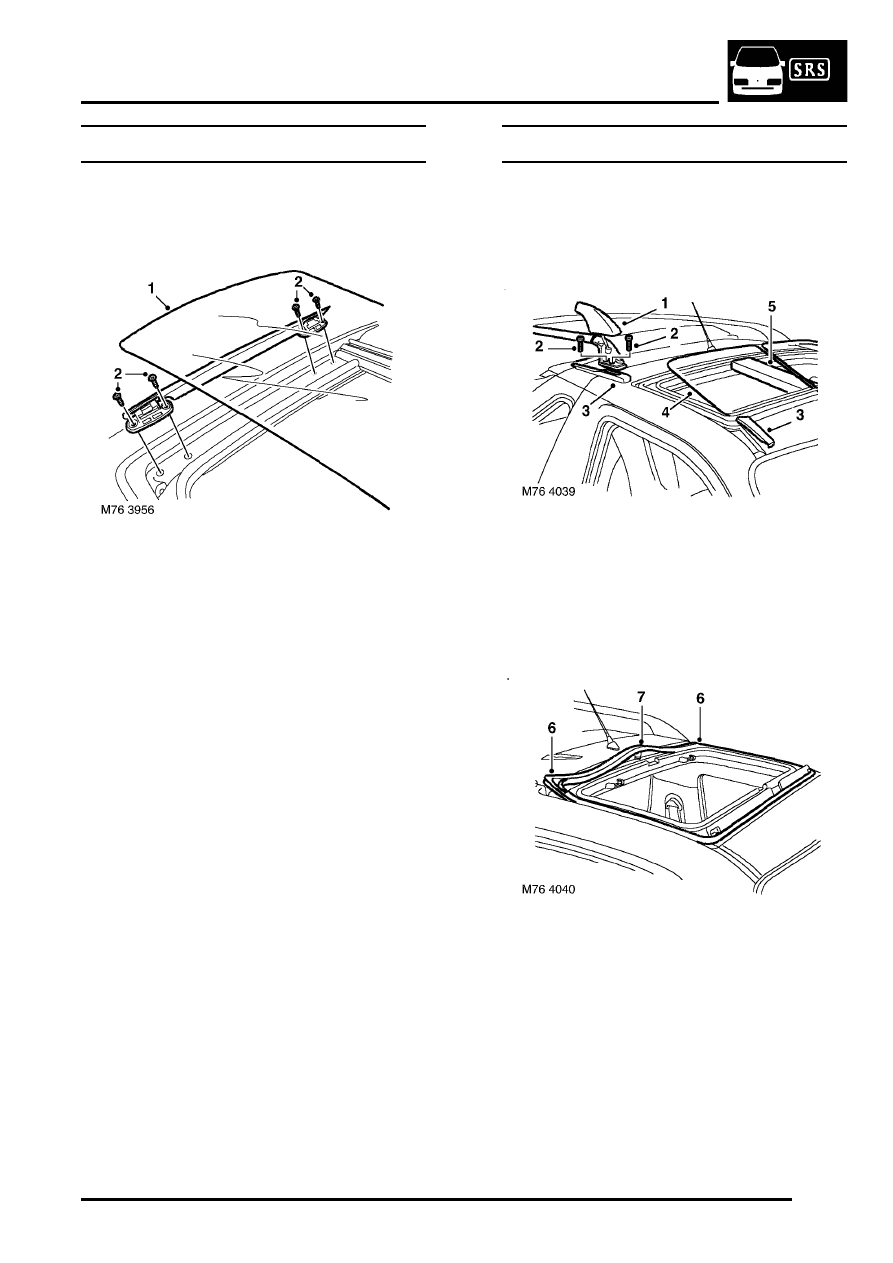

1. Release and remove sun roof glass panel.
2. Remove 4 screws securing hinges, remove

wind deflector and collect hinges.

Refit

1. Locate hinges to wind deflector, position wind

deflector, fit and tighten screws.

2. Position glass panel and secure catch.

Seal - tray - sun /sliding roof - front

$% 76.83.61

Remove

1. Remove side rail front end covers.
2. Remove 4 Torx bolts securing front of side rails.
3. Remove front and rear roof finishers.
4. Remove glass panels and 'T' bar.
5. Remove seal from inner part of tray.

6. Release seal from corners of tray and ease

from between roof and tray.

7. Remove tray seal.

SUNROOF

76-6-4

REPAIRS

Refit

1. Position seal to roof.
2. Locate seal to corners of tray and fit between

roof and tray.

3. Fit seal to inner part of tray.
4. Fit 'T' bar and roof glass.
5. Fit roof finishers.
6. Ensure gaskets and in position on side rails. Fit

rails and secure Torx bolts to 22 Nm (16 lbf.ft).

7. Fit side rail end covers.

Sun/sliding roof - complete - front - 5
door

$% 76.84.01

Remove

1. Remove headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.

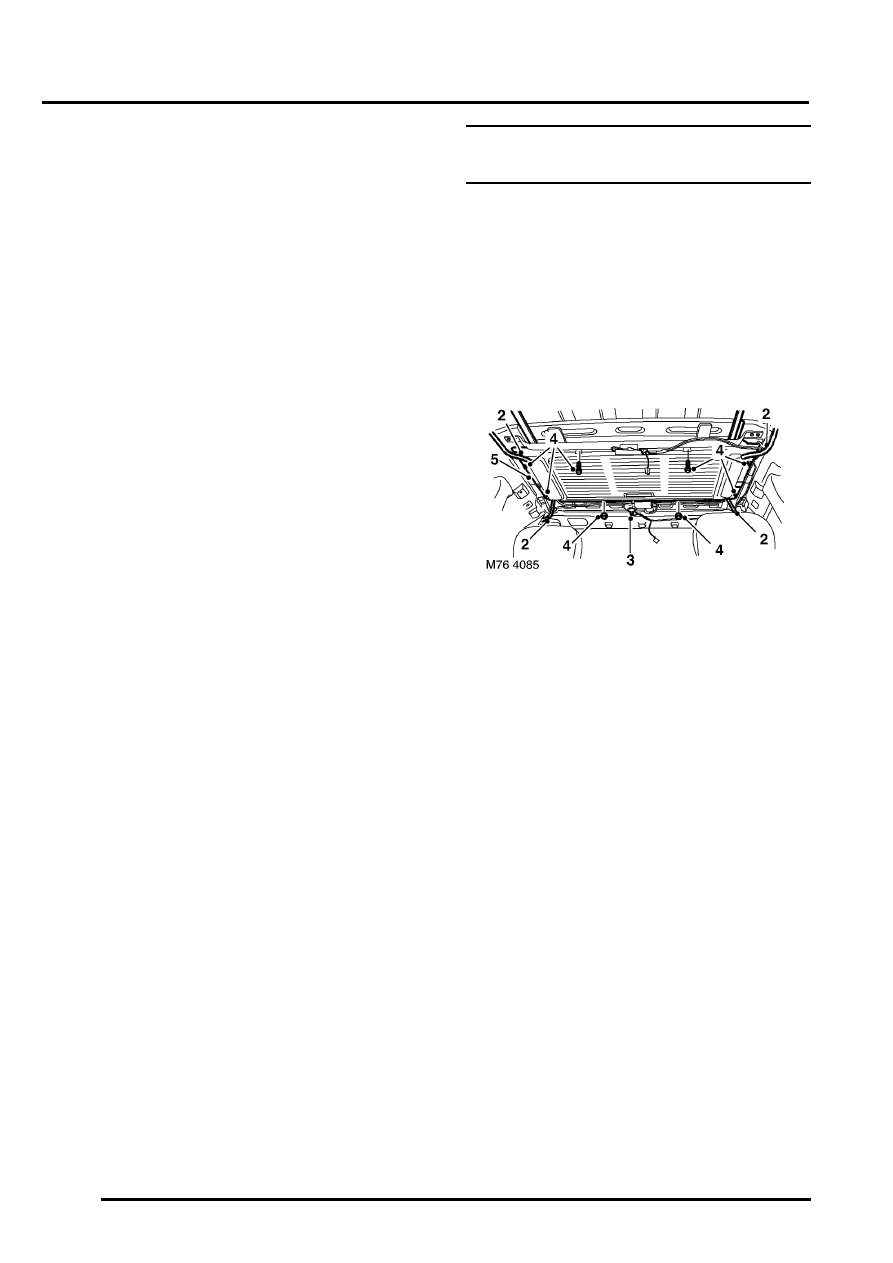

2. Disconnect drain tubes from sun roof.
3. Disconnect multiplug from sun roof motor.
4. With assistance, remove 6 nuts and 2 bolts

securing sun roof.

5. Remove sun roof.

Refit

1. Ensure plastic washer and tray seal are in

position.

2. With assistance position sun roof assembly, fit

and tighten nuts and bolts.

3. Connect multiplug to sun roof.
4. Connect drain tubes to sun roof and secure

with cable ties.

5. Fit headlining.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Headlining - 5 door.
