Freelander 1. Manual - part 165





AUTOMATIC GEARBOX - JATCO

REPAIRS

44-21

14. Mark drive plate to torque converter, for refit

purposes.

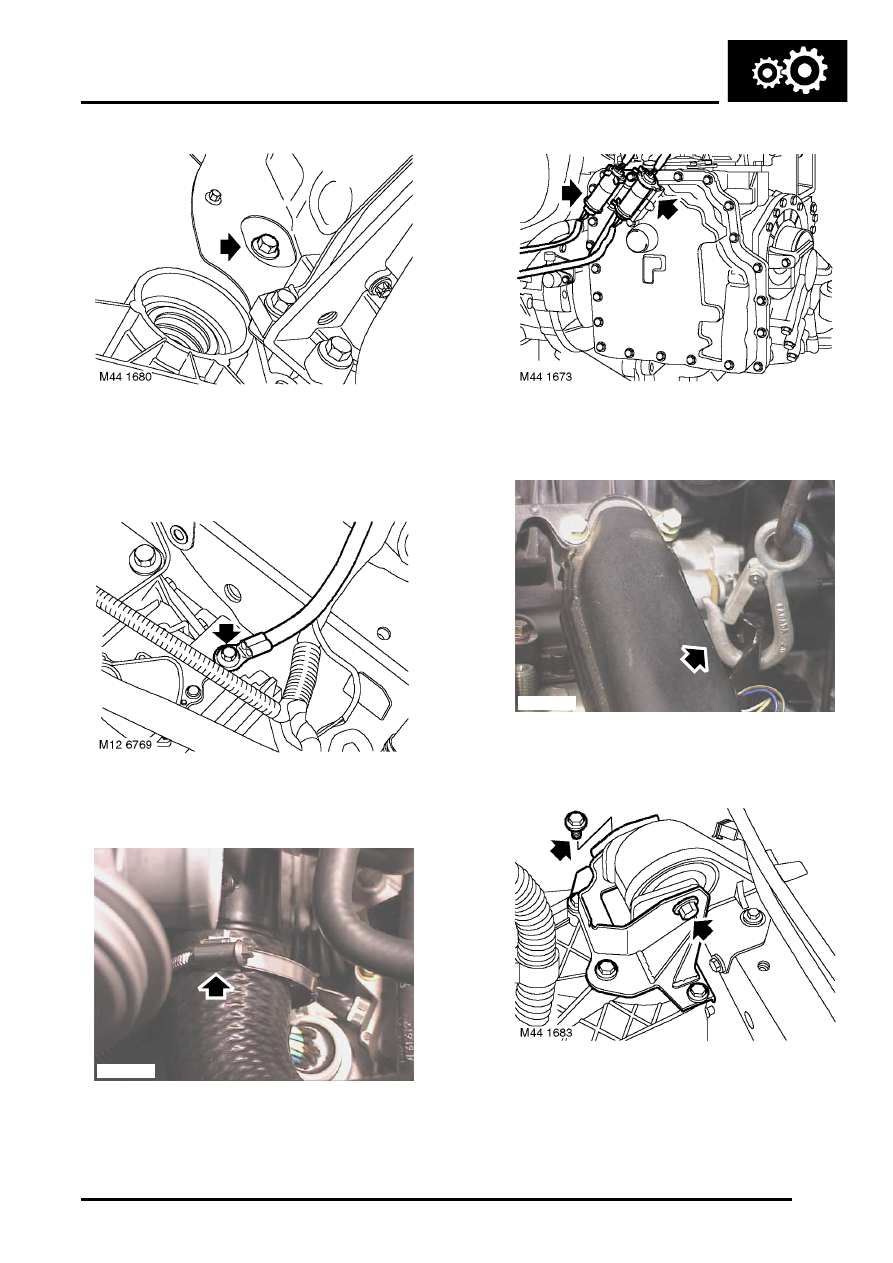

15. Rotate crankshaft for access and remove 4

bolts securing drive plate to torque converter.

16. Remove bolt and release earth lead from

gearbox.

17. Loosen clip and disconnect hose from

turbocharger outlet pipe.

18. Release 2 gearbox multiplugs from clips and

disconnect from main harness.

19. Fit lifting chains to lifting eye and take weight of

engine.

20. Remove through bolt, gearbox bracket to LH

mounting.

21. Lower gearbox to clear mounting.

M44 1681

M44 1682

AUTOMATIC GEARBOX - JATCO

44-22

REPAIRS

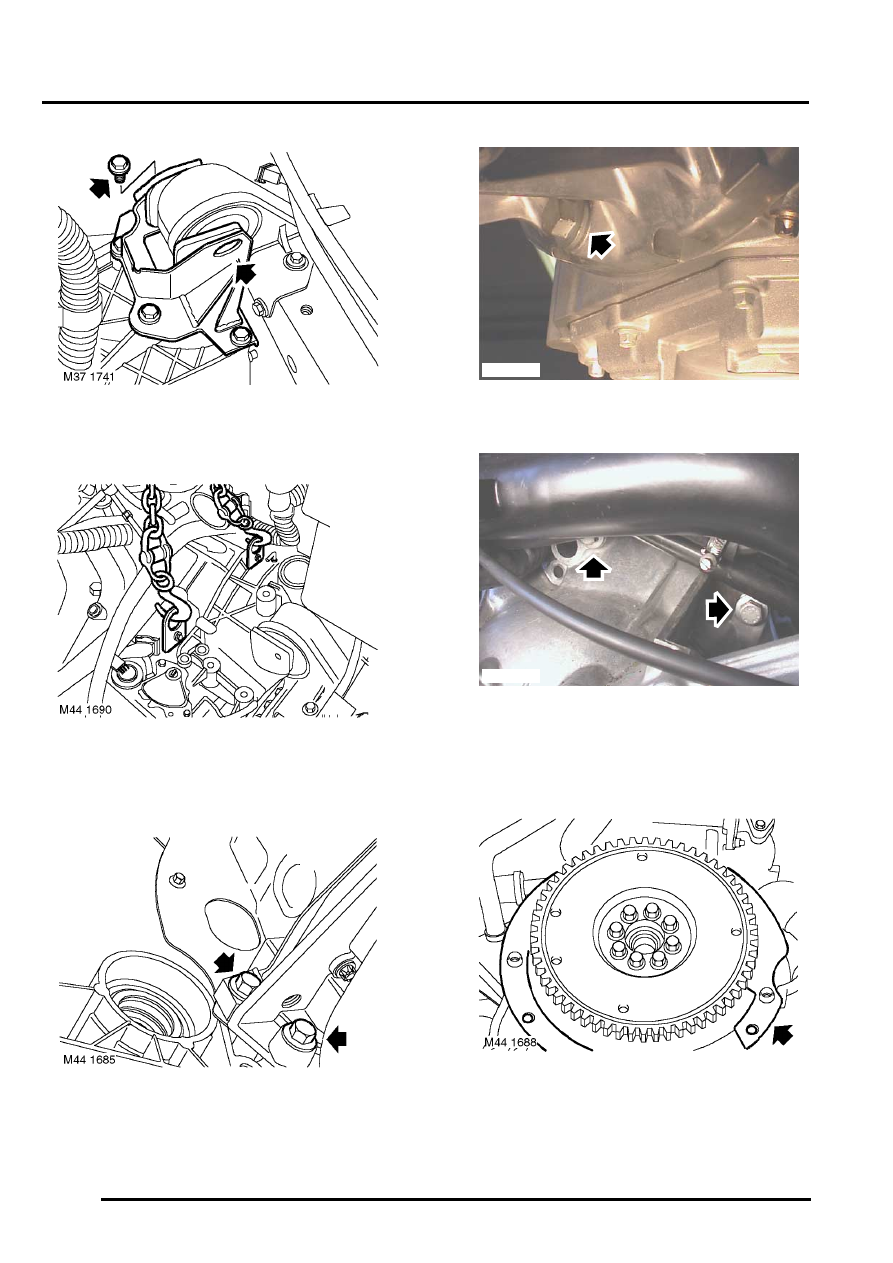

22. Remove 4 bolts securing LH mounting bracket

to gearbox and remove bracket.

23. Fit lifting eyes to gearbox and secure with bolts.
24. Fit lifting chains to eye and take weight of

gearbox.

25. Remove 2 bolts securing gearbox to engine.

26. Remove lower bolt securing gearbox.

27. Remove 2 upper bolts securing gearbox to

engine.

28. Release gearbox from 2 dowels.
29. Manoeuvre and lower gearbox to floor.

30. If necessary remove displaced gearbox closing

panel.

M44 1687

M44 1686

AUTOMATIC GEARBOX - JATCO

REPAIRS

44-23

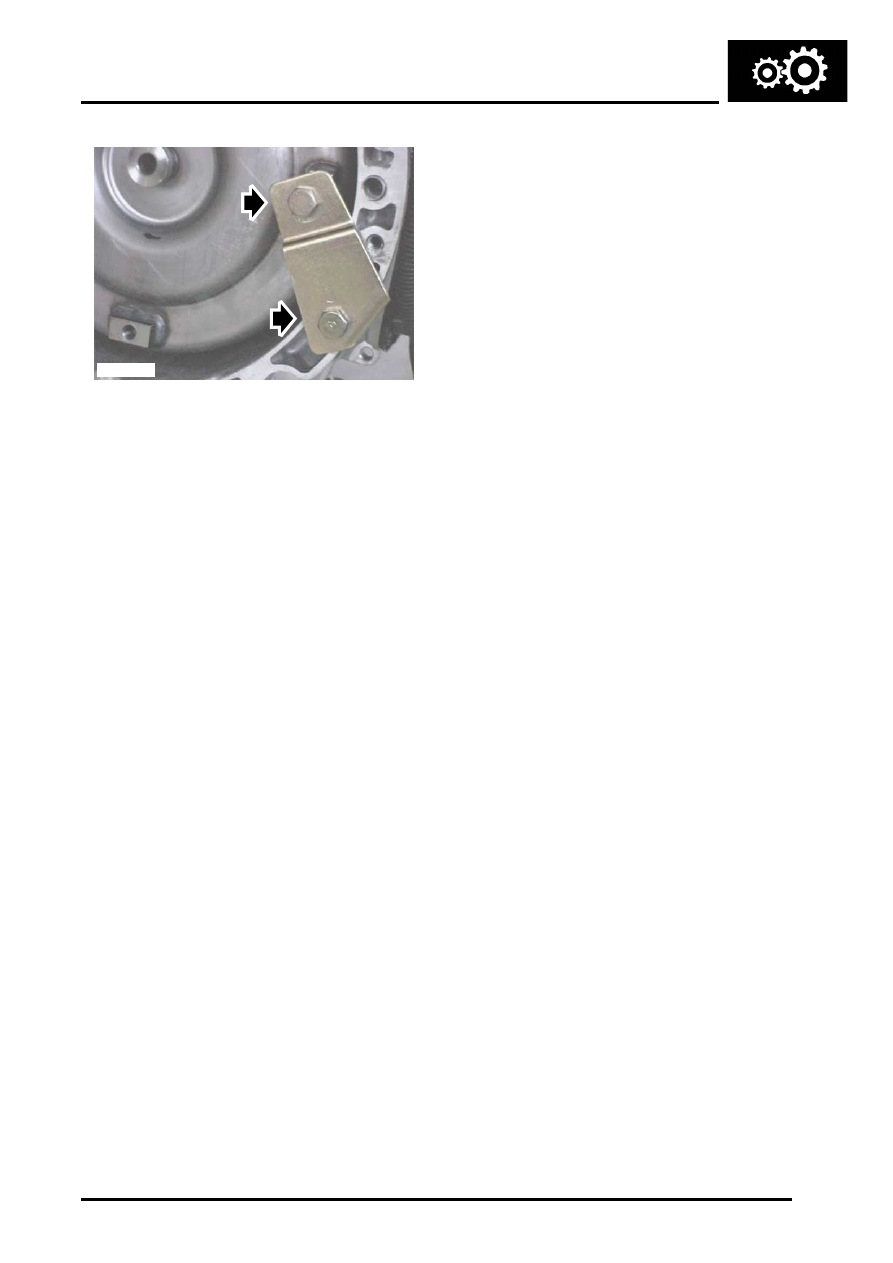

31. Fit converter retaining plate and secure with

bolts.

Refit

1. Clean gearbox closing panel.
2. Ensure closing plate is in position on engine

and located on dowels.

3. Clean drive plate and ensure free from cracks

and distortion.

4. Clean gearbox to engine mating faces, dowels

and dowel holes.

5. Remove torque converter retaining plate.
6. Ensure torque converter is fully located in oil

pump drive by checking depth 'A' as illustrated.
Depth A = 27 mm.

7. Fit lifting chains to eyes and take weight of

gearbox.

8. Raise gearbox and engage with dowels. Fit

bolts securing gearbox to engine and tighten to
85 Nm (63 lbf.ft).

9. Fit bolt securing closing plate to gearbox and

tighten to 10 Nm (7.5 lbf.ft).

10. Remove lifting chains from gearbox.
11. Fit mounting bracket to gearbox and tighten

bolts to 85 Nm (63 lbf.ft).

12. Raise engine, align bracket to mounting and

tighten through bolt to 100 Nm (74 lbf.ft).

13. Remove engine support chains.
14. Align torque converter to drive plate and tighten

bolts to 45 Nm (33 lbf.ft).

15. Fit grommet to access plate.
16. Fit trunnion to selector lever, fit inner cable to

trunnion and secure outer cable to abutment
bracket.

17. Adjust selector cable.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Selector cable - adjust.

18. Connect gearbox harness multiplugs and fit to

clips.

19. Position earth lead to gearbox and tighten bolt

to 25 Nm (18 lbf.ft).

20. Connect intercooler hose and tighten clip.

21. Fit new circlip to LH drive shaft.
22. With assistance, fit LH drive shaft to gearbox,

keep shaft square to prevent damage to oil seal
in gearbox.

23. Fit IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - Td4.

24. Fit starter motor.



 +

 CHARGING AND STARTING,

REPAIRS, Starter motor - Td4.

25. Fit fluid cooler.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Fluid cooler - Td4.

26. Fit intake ducting assembly.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Ducting - intake assembly.

27. Connect battery earth lead.
28. Untie and close bonnet.

M44 1689

AUTOMATIC GEARBOX - JATCO

44-24

REPAIRS

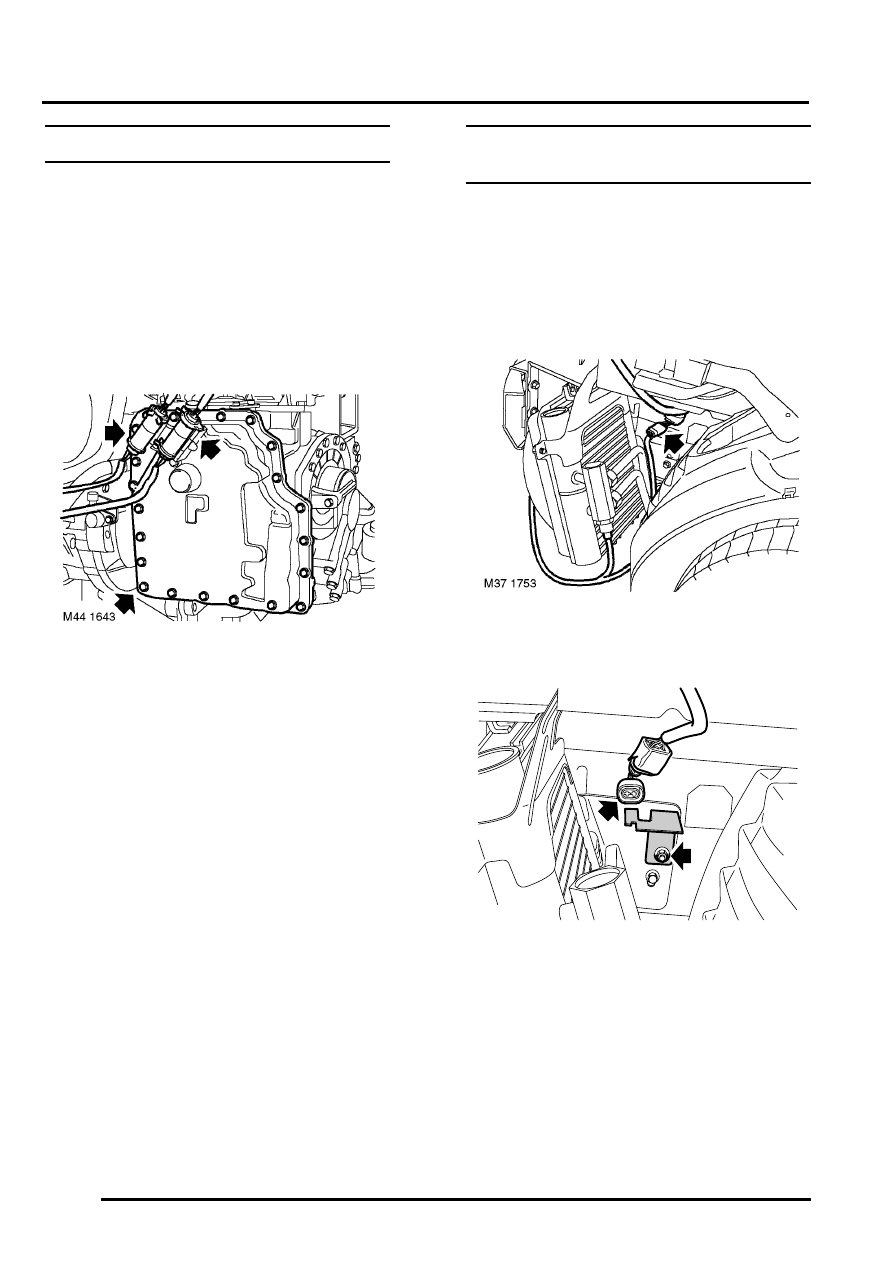

Fluid pan - reseal

$% 44.24.05

Remove

1. Drain gearbox fluid.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Gearbox fluid - drain &
refill.

2. Remove fluid cooler.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Fluid cooler - KV6.

3. Release multiplugs from clips attached to fluid

pan.

4. Remove 21 bolts securing fluid pan to gearbox.
5. Remove fluid pan.

Refit

1. Clean fluid pan and mating face on gearbox.
2. Apply liquid gasketto contact faces of fluid pan

and gearbox.

3. Position fluid pan, fit bolts and tighten

progressively to 7 Nm (5 lbf.ft).

4. Secure multiplugs to clips.
5. Fit fluid cooler.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Fluid cooler - KV6.

6. Fill gearbox with fluid.



 +

 AUTOMATIC GEARBOX - JATCO,

ADJUSTMENTS, Gearbox fluid - drain &
refill.

Fluid cooler - air blast - Td4 (hot
climates)

$% 44.24.09

Remove

1. Disconnect battery earth lead.
2. Remove front bumper.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

3. Remove combined fan and thermostat

multiplug from harness.

4. Remove harness multiplug from mounting

bracket.

5. Remove nut securing multiplug mounting

bracket, move bracket aside.

6. Position container beneath gearbox cooler

hoses to contain fluid spillage.

M37 1754
