Freelander 1. Manual - part 145





CLUTCH

REPAIRS

33-1

CLUTCH

REPAIRS

Clutch assembly/drive plate & release
bearing - Td4

$% 33.10.07

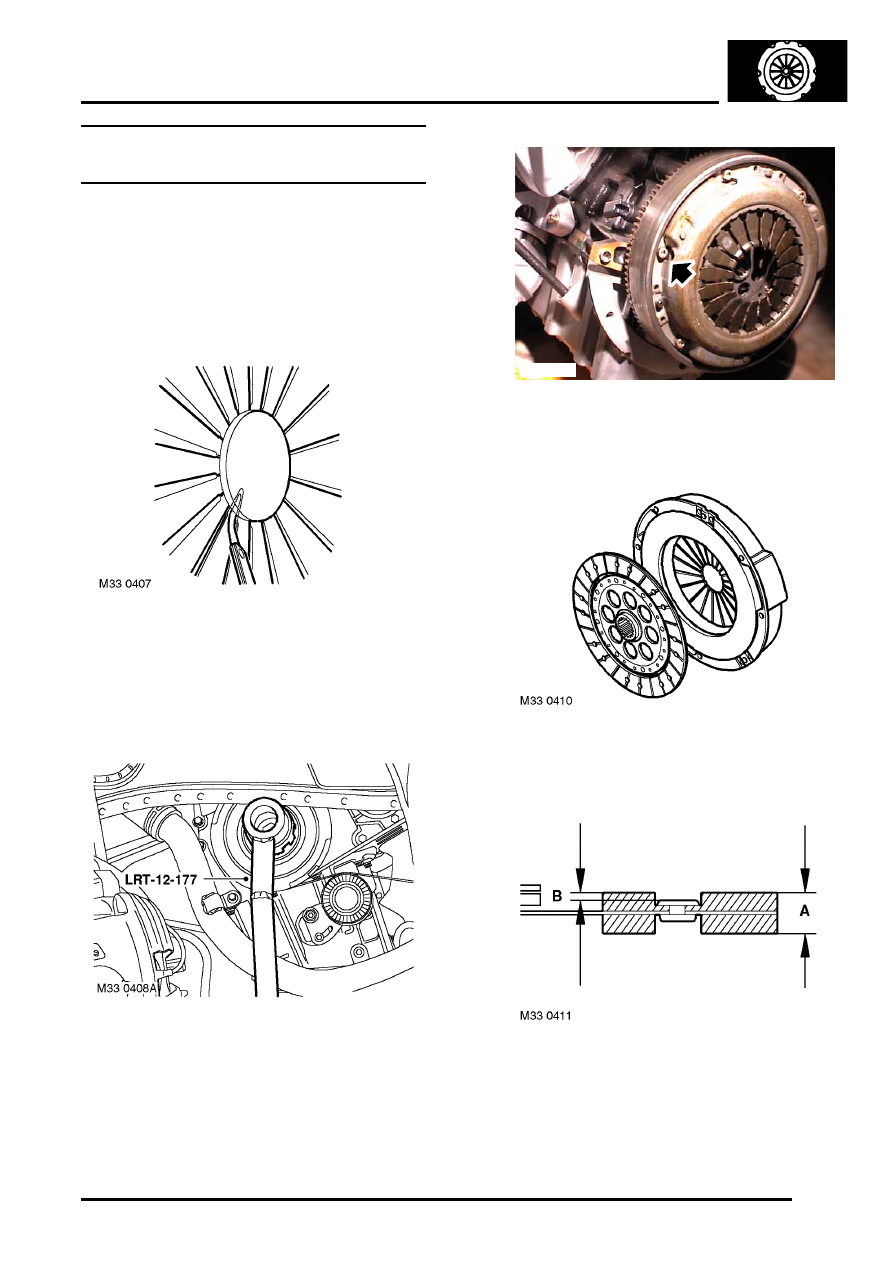

Remove

1. Disconnect battery earth lead.
2. Remove gearbox assembly.



 +

 MANUAL GEARBOX - GETRAG,

REPAIRS, Gearbox.

3. Place a circular piece of flat plate across

diaphragm fingers and insert feeler gauges
between plate and fingers to measure finger
clearance. A single finger exceeding the limit
should be ignored. Diaphragm finger
clearance:
 Service limit 1.0 mm.

4. Use LRT-12-177  to restrain crankshaft.

5. Progressively loosen and remove 6 Allen

screws securing clutch cover.

6. Remove clutch cover and drive plate.

7. Measure clutch plate thickness, renew drive

plate if less than service limit. Drive Plate
thickness (compressed) A:
 New drive plate =
7.5 mm.  Service limit = 5.9 mm.

M33 0409

CLUTCH

33-2

REPAIRS

8. Measure rivet depth, renew plate if less than

service limit. Rivet depth B: New drive plate =
1.2 mm.  Service limit = 0.2 mm.

9. Check pressure plate for signs of wear or

damage. Check for signs of overheating on
drive straps (deep yellow to blue colour), renew
pressure plate if necessary.

NOTE: Renew a clutch pressure plate which
has been accidentally dropped.

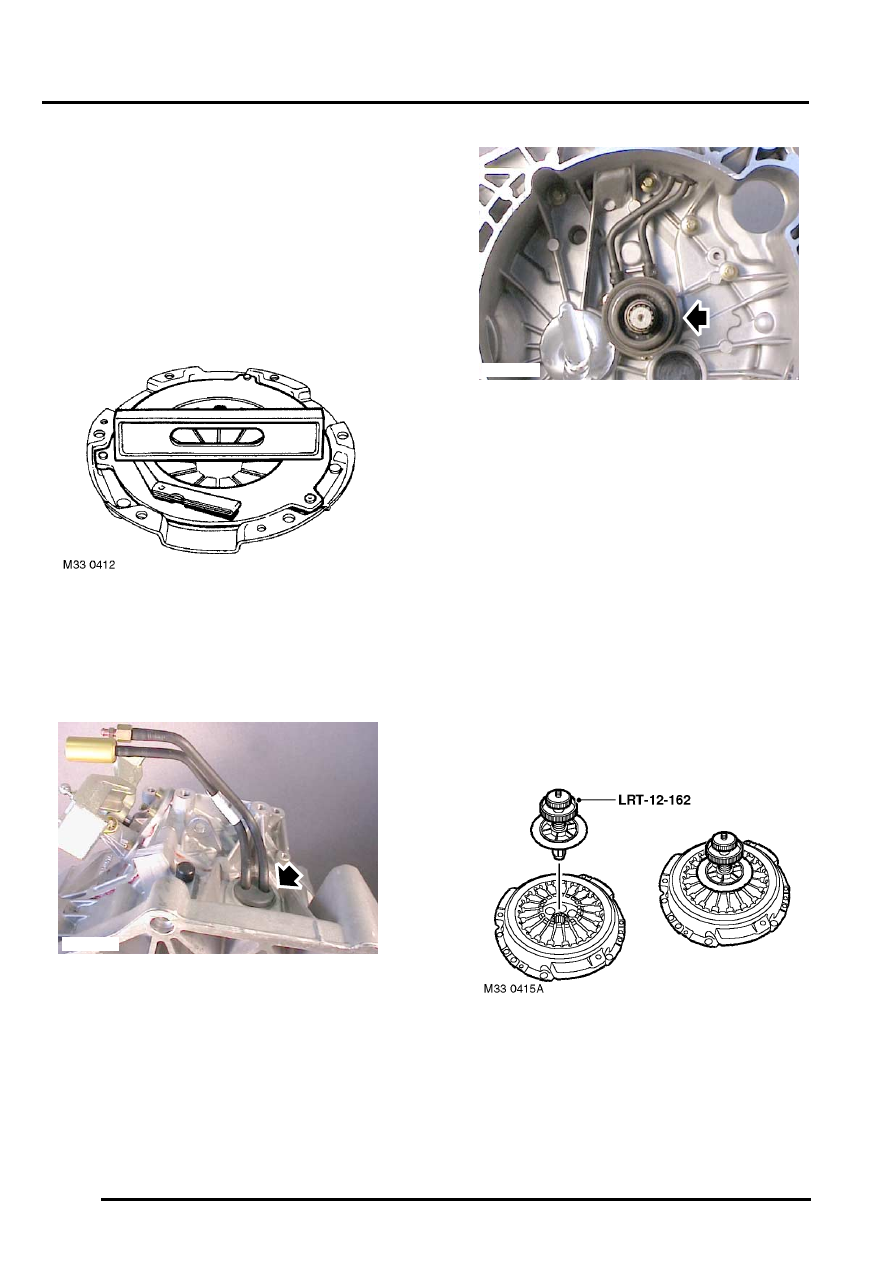

10. Using a straight edge and feeler gauges check

the surface of the pressure plate for flatness at
4 separate points. Renew pressure plate if
warping exceeds service limit. Pressure plate
warping:
  Service limit = 0.15 mm.

11. Release grommet securing clutch pipes.

12. Remove release bearing.
13. Examine release bearing for signs of wear or

damage, renew if necessary.

Refit

1. Clean release bearing guide sleeve.
2. Lubricate release bearing guide sleeve with

molybdenum disulphide grease.

3. Fit release bearing and secure clutch pipe

grommet.

4. Clean pressure plate and flywheel, dowels and

dowel holes.

5. Inspect flywheel for signs of scoring or other

damage. Renew if worn or damaged.

6. Smear clutch drive plate splines with

molybdenum disulphide grease.

7. Position drive plate to pressure plate with

'GEARBOX SIDE' marking towards gearbox.

8. Use LRT-12-162 to align drive plate and

pressure plate.

M33 0413

M33 0414

CLUTCH

REPAIRS

33-3

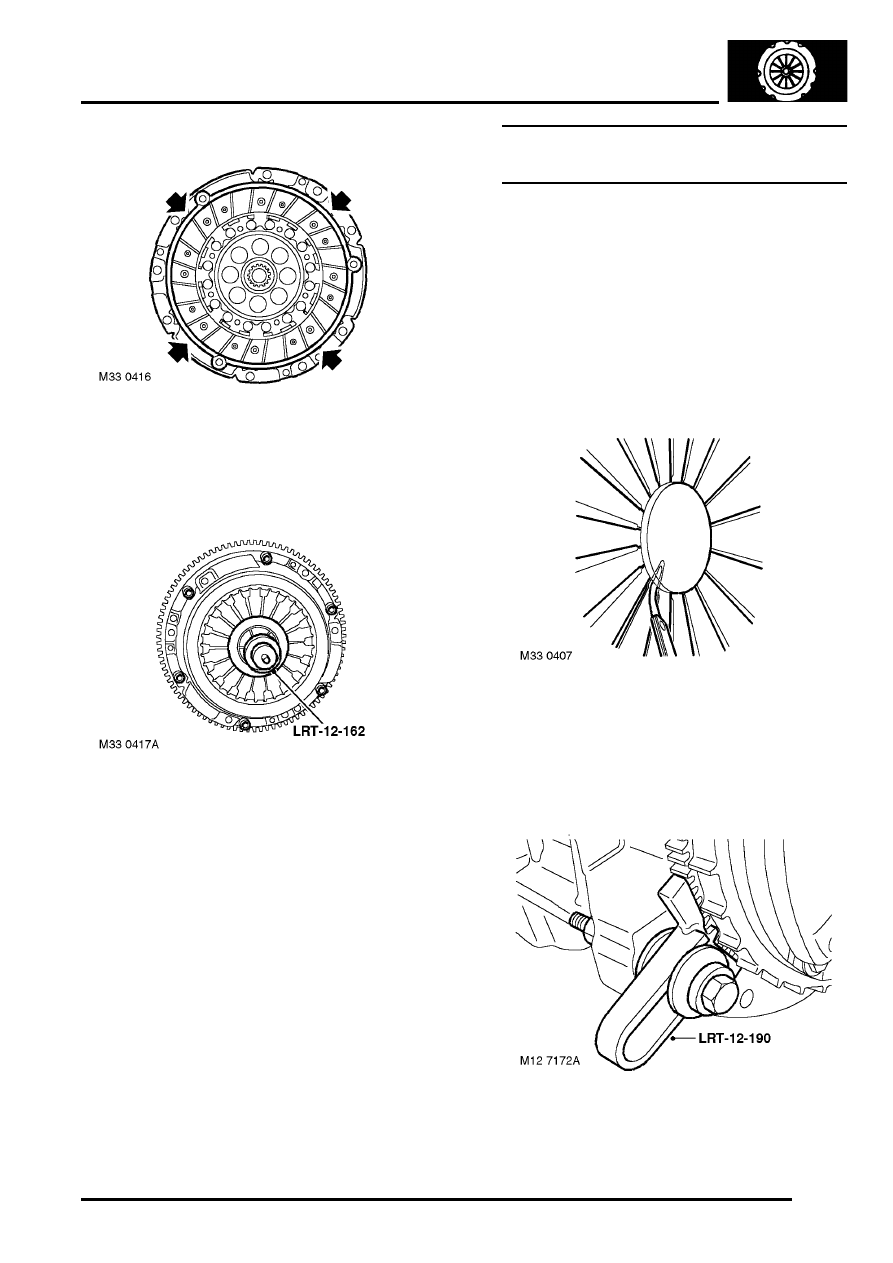

9. Ensure drive plate is aligned to centre of

pressure plate.

10. Fit clutch assembly to flywheel and locate on

dowels.

11. Fit  Allen screws and working in diagonal

sequence, tighten progressively to 25 Nm (18
lbf.ft).

12. Remove drive plate alignment tool LRT-12-

162.

13. Fit gearbox assembly.



 +

 MANUAL GEARBOX - GETRAG,

REPAIRS, Gearbox.

14. Connect battery earth lead.

Clutch assembly/drive plate and  release
bearing - K1.8

$% 33.10.07

Remove

1. Disconnect battery earth lead.
2. Remove gearbox assembly.



 +

 MANUAL GEARBOX - PG1,

REPAIRS, Gearbox.

3. Remove clutch release bearing from guide

sleeve and release fork.

4. Examine release bearing for signs of wear or

damage, renew if necessary.

5. Place a circular piece of flat plate across

diaphragm fingers, insert feeler gauges
between plate and each diaphragm finger,
measure finger clearance which has a service
limit of 1.0 mm. A single finger exceeding the
service limit should be ignored.

6. Position flywheel locking tool, LRT-12-190 to

engine and secure with bolt.

CLUTCH

33-4

REPAIRS

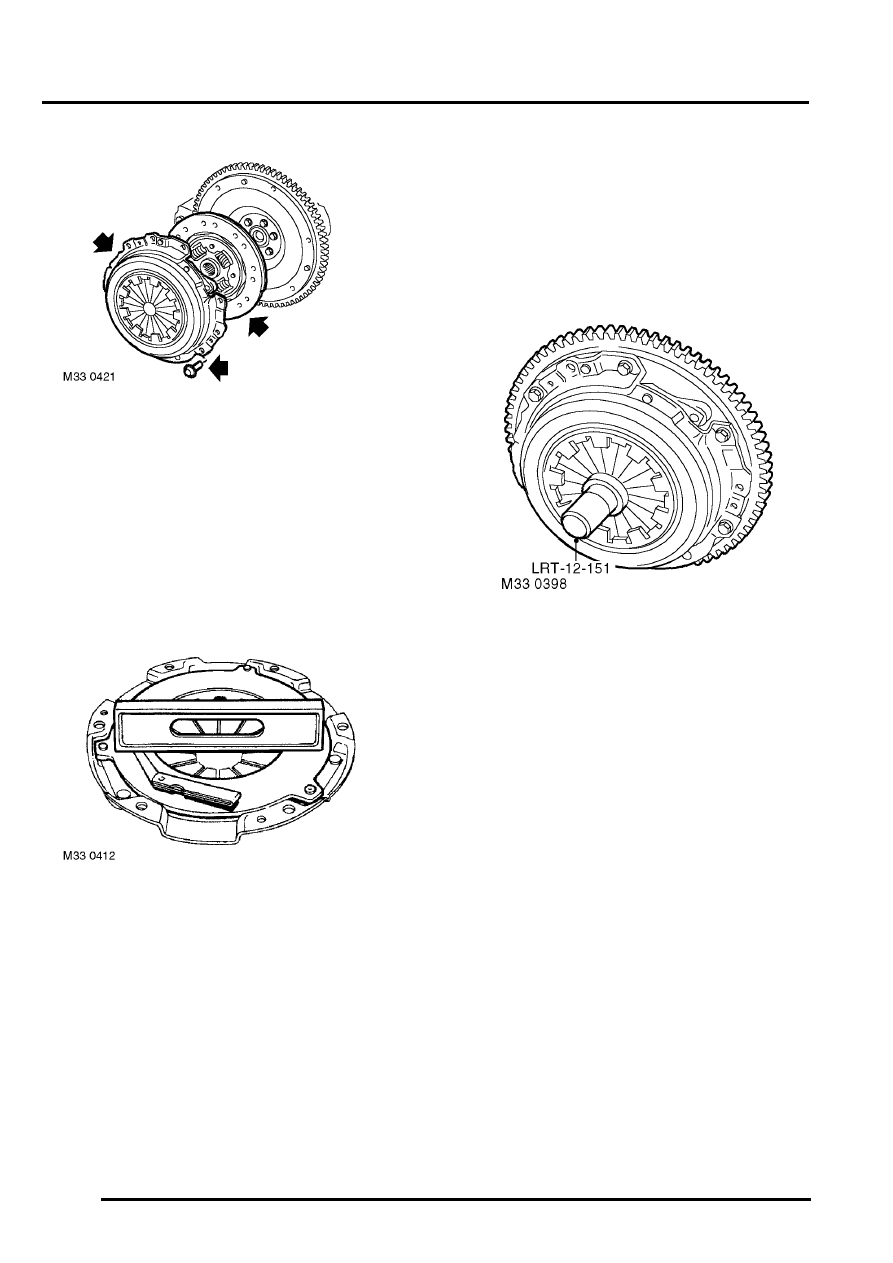

7. Progressively loosen and then remove 6 bolts

securing clutch cover assembly to flywheel.

8. Remove clutch cover and drive plate.
9. Inspect clutch drive plate for signs of wear or oil

contamination. Renew drive plate if necessary.

10. Measure clutch plate thickness, renew clutch

plate if thickness is less than the service limit of
5.60 mm.

11. Measure rivet depth, renew clutch plate if rivet

depth is less than the service limit of 0.20 mm.

12. Using a straight edge and feeler gauges, check

the surface of the pressure plate for flatness at
4 separate points. Renew pressure plate if
warping exceeds the service limit of 0.18 mm.

Refit

1. Clean pressure plate and flywheel, dowels and

dowel holes.

2. Inspect flywheel for signs of scoring or other

damage. Renew if worn or damaged.

3. Smear clutch drive plate splines with

molybdenum disulphide grease.

4. Position drive plate to flywheel with

'FLYWHEEL SIDE' marking towards flywheel.

5. Fit pressure plate to flywheel and position

clutch alignment tool, LRT-12-151.

6. Fit 6 bolts securing pressure plate to flywheel,

tighten bolts sufficiently until drive plate is held
in its central position. Remove LRT-12-151
from pressure plate.

7. Working in a diagonal sequence, progressively

tighten pressure plate bolts to 25 Nm (18 lbf.ft).

8. Remove flywheel locking tool LRT-12-190.
9.
Clean clutch release fork and release bearing

guide sleeve.

10. Apply smear of Molybdenum disulphide grease

to release bearing sleeve.

11. Fit release bearing to release fork and slide

onto guide sleeve.

12. Operate clutch release lever to ensure that

release bearing is correctly located on release
fork and slides smoothly on guide sleeve.

13. Fit gearbox assembly.



 +

 MANUAL GEARBOX - PG1,

REPAIRS, Gearbox.

14. Connect battery earth lead.
