Freelander 1. Manual - part 144





MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS 30-3-17

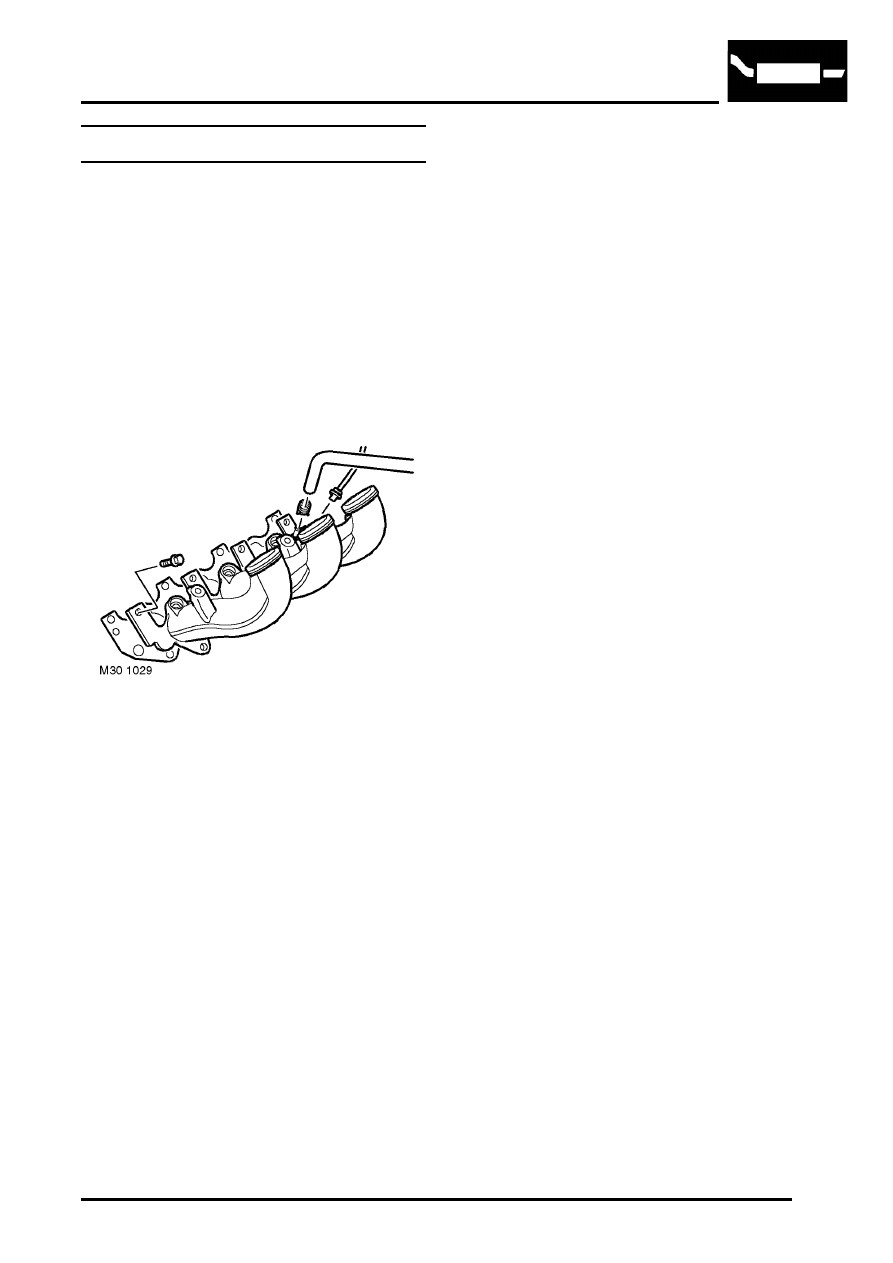

Gasket - inlet manifold - RH

$% 30.15.43

Remove

1. Disconnect battery earth lead.
2. Drain cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

3. Remove fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

4. Release clip and disconnect coolant hose from

RH inlet manifold.

5. Depress locking collar and release breather

hose from RH inlet manifold.

6. Progressively loosen and remove 7 bolts

securing RH inlet manifold to cylinder head.

7. Remove inlet manifold and gasket.
8. Remove bolt securing coolant breather hose

mounting bracket to inlet manifold and remove
bracket.

Refit

1. Clean inlet manifold and cylinder head face.
2. Position coolant/breather hose bracket to inlet

manifold, fit and tighten bolt to 9 Nm (7 lbf.ft).

3. Fit new inlet manifold gasket to cylinder head,

position inlet manifold, fit and tighten bolts to 25
Nm (18 lbf.ft).

4. Connect coolant hose to inlet manifold and

secure clip.

5. Connect breather hose to manifold and secure

into collar.

6. Fit fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

7. Fill cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

8. Connect battery earth lead.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-18 REPAIRS

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

OVERHAUL 30-3-19

OVERHAUL

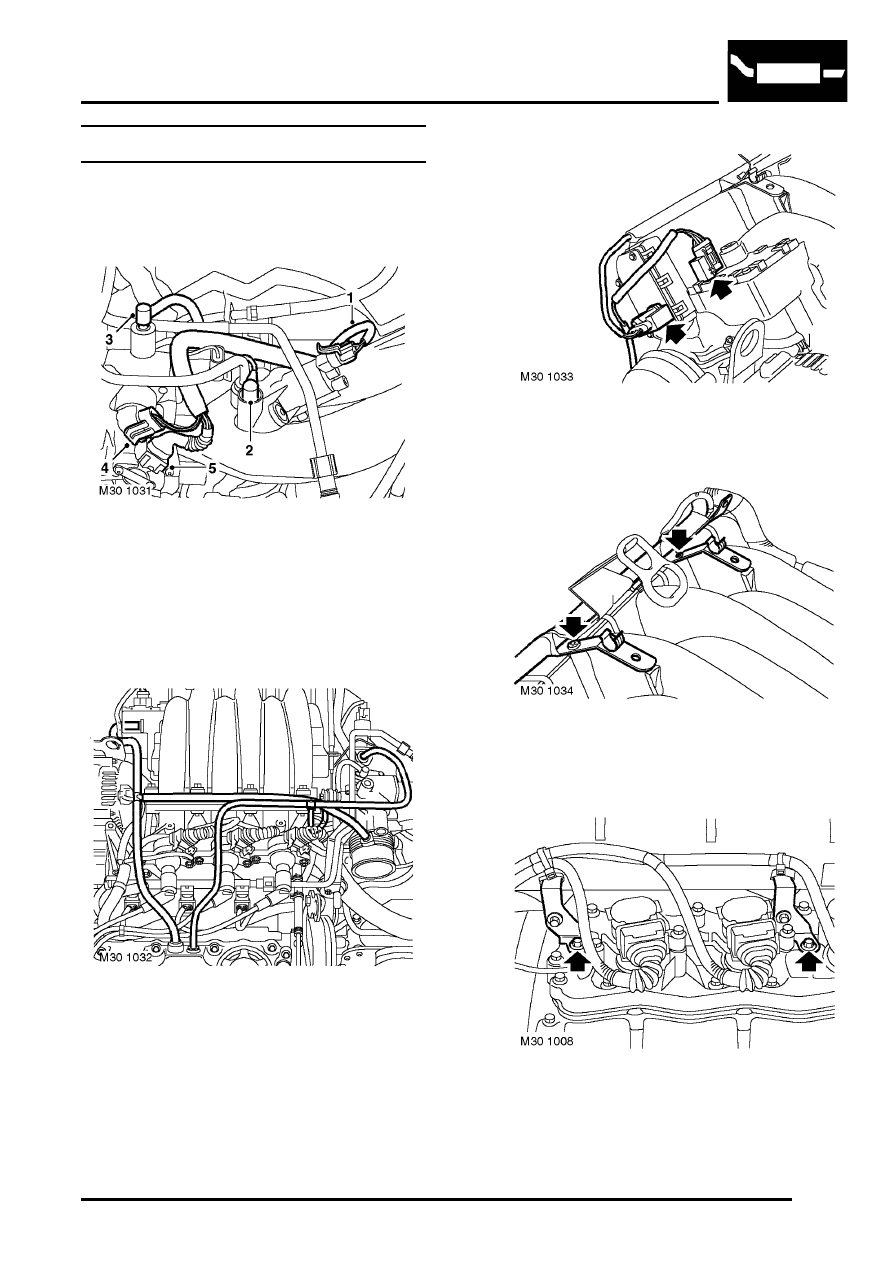

 Gasket(s) - manifold chamber

$% 30.15.37.01

Remove

1. Disconnect multiplug from purge control valve.
2. Disconnect small vacuum hose from purge

control valve.

3. Depress locking collar and release vacuum

hose from IACV housing .

4. Disconnect multiplug from IACV.
5. Disconnect multiplug from TP sensor.

6. Depress locking collars and release vacuum/

breather hose from purge control valve and LH
camshaft cover. Release clip securing hose to
'T' piece and remove hose.

7. Depress locking collars and release vacuum/

breather hoses from throttle body, LH and RH
camshaft cover and remove hose.

8. Disconnect multiplugs from VIS motors.

9. Remove 2 screws securing engine harness

brackets to inlet manifold chamber and position
harness aside.

10. Remove 2 bolts securing inlet manifold

chamber rear support brackets to RH camshaft
cover.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-20 OVERHAUL

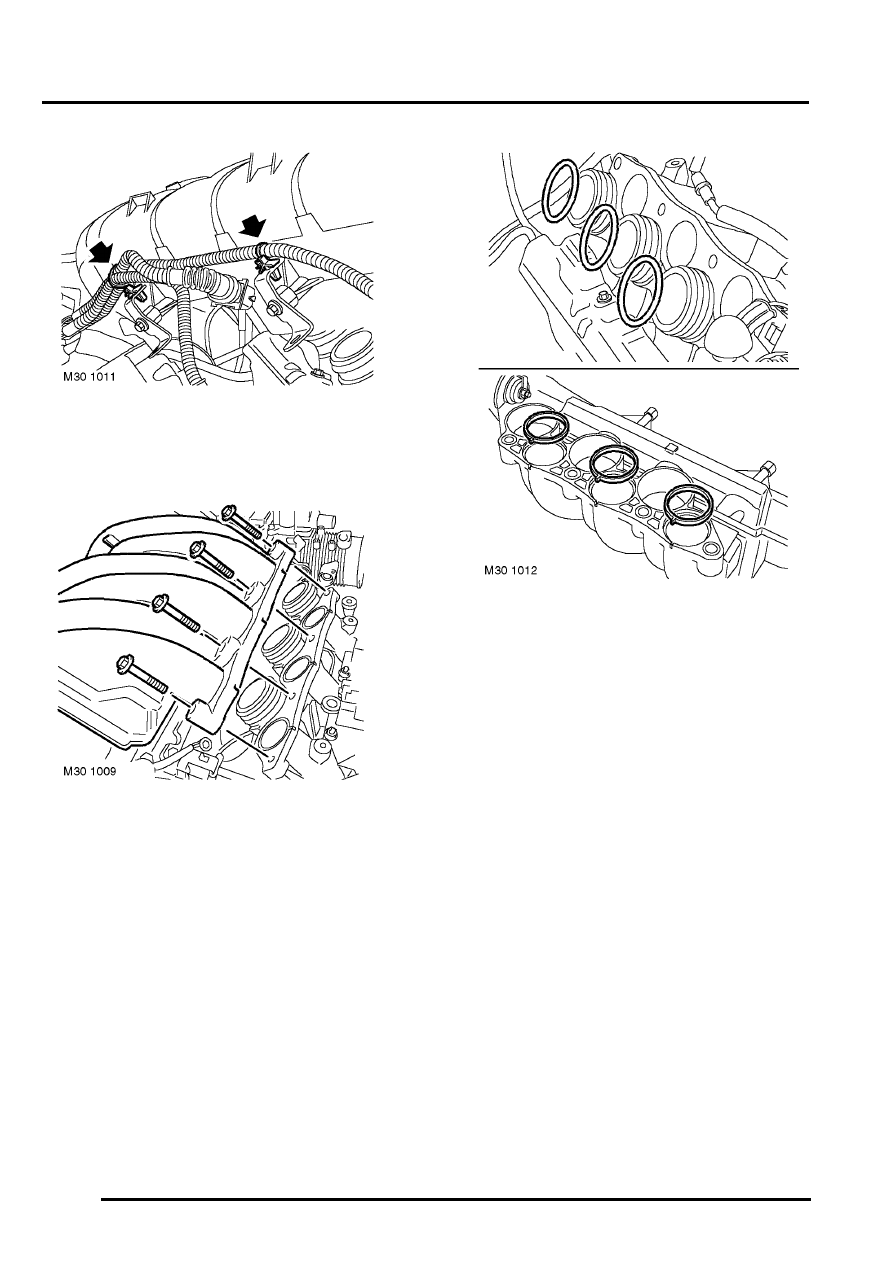

11. Release 2 clips securing RH plug top coil

harness to inlet manifold camber rear support
brackets.

12. Remove 4 bolts securing inlet manifold

chamber to LH inlet manifold.

13. Release and raise inlet manifold chamber from

inlet manifolds.

14. Remove inlet manifold chamber.

15. Remove and discard seals from inlet manifold

chamber and 'O' rings from RH inlet manifold.

Refit

1. Clean seal faces on inlet manifold chamber and

inlet manifolds.

2. Fit new 'O' rings to RH inlet manifold and new

seals to manifold chamber.

3. Position inlet manifold chamber, secure RH coil

harness clips in inlet manifold chamber support
brackets.

4. Align inlet manifold chamber to inlet manifolds,

fit and tighten bolts to 18 Nm (13 lbf.ft).

5. Align inlet manifold chamber support brackets

to RH camshaft cover, fit and tighten bolts to 10
Nm (7.5 lbf.ft).

6. Position engine harness brackets to inlet

manifold chamber, fit and tighten screws.

7. Connect multiplugs to VIS motors.
8. Connect vacuum/breather hoses to LH and RH

camshaft covers and to throttle body.

9. Connect vacuum hose to IACV housing.

10. Connect multiplugs to TP and IACV sensors.
11. Connect vacuum/breather hoses to LH

camshaft cover, 'T' piece and purge control
valve.

12. Connect small vacuum hose to purge control

valve.

13. Connect multiplug to purge control valve .
