MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

30-3-1

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

Front pipe - Non NAS

$% 30.10.09

Remove

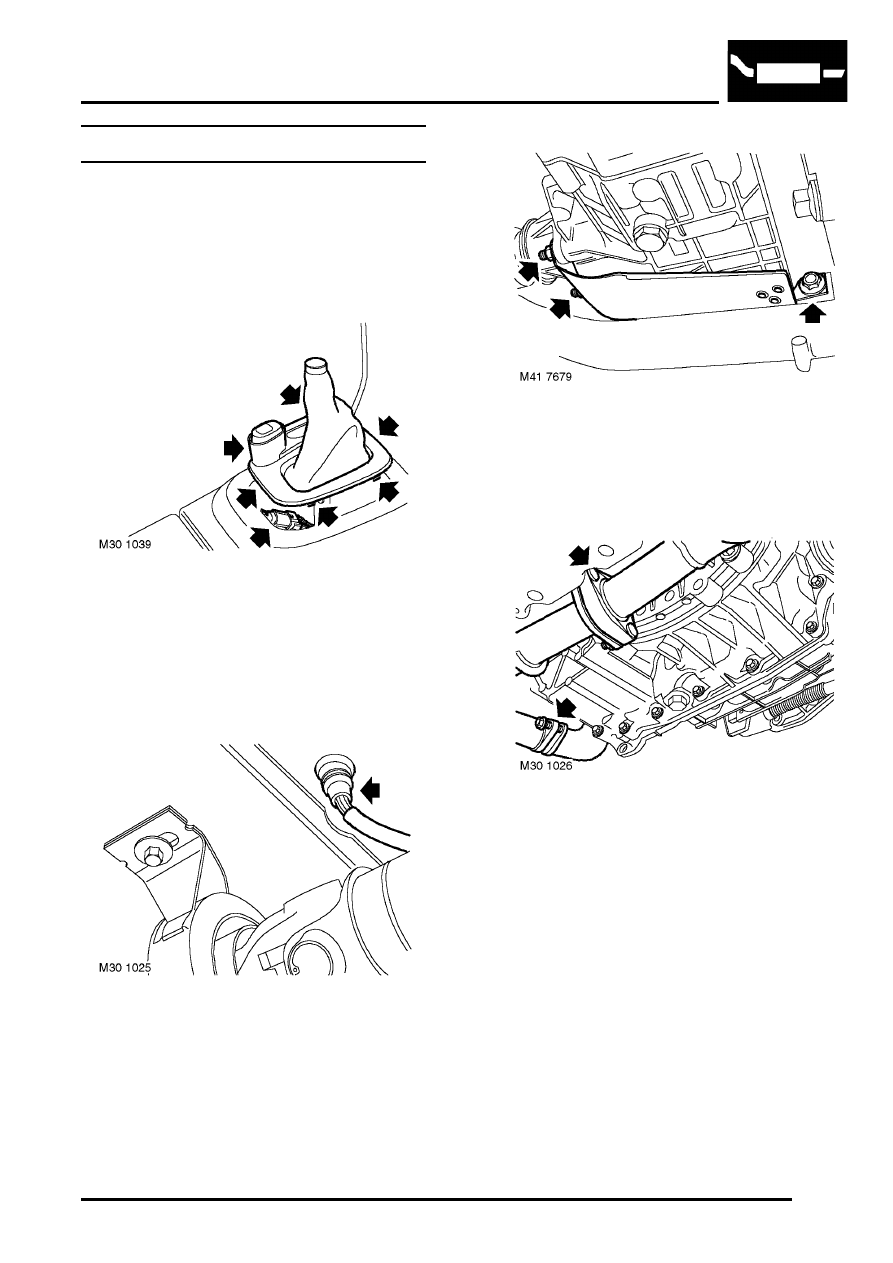

1. Remove gear selector knob.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gear knob.

2. Release clips securing selector lever trim panel

to centre console and move trim panel aside.

3. Release and disconnect post catalyst HO2S

multiplug.

4. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

5. Release grommet and withdraw HO2S harness

multiplug through grommet aperture.

6. Remove nut securing exhaust heat shield to

mounting bracket.

7. Remove 2 nuts securing heat shield to IRD

pinion housing.

8. Remove heat shield.

9. Remove 4 nuts securing front pipe flanges to

exhaust manifolds.

10. Release manifold flanges.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-2

REPAIRS

11. Remove 3 nuts securing front pipe to

intermediate pipe.

12. Release intermediate pipe from front pipe.
13. Remove gasket.
14. Remove exhaust front pipe.
15. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. If refitting existing HO2S, apply anti-seize

compound to HO2S threads.

3. Fit HO2S and tighten to 55 Nm (41 lbf.ft)using

tool LRT-19-014.

4. Clean exhaust pipe and manifold flanges.
5. Fit exhaust front pipe.
6. Using new gasket, connect intermediate pipe to

front pipe, fit nuts and tighten to 50 Nm (37
lbf.ft).

7. Position LH exhaust manifold flange to front

pipe, fit and tighten nuts to 50 Nm (37 lbf.ft).

8. Position RH exhaust manifold flange to front

pipe, fit and tighten nuts to 50 Nm (37 lbf.ft).

9. Fit exhaust heatshield and fit nuts finger tight.

10. Tighten nut securing exhaust heatshield to

exhaust mounting bracket to 45 Nm (33 lbf.ft).

11. Tighten nuts securing exhaust heatshield to

pinion housing to 25 Nm (18 lbf.ft).

12. Feed HO2S harness through grommet aperture

and secure grommet.

13. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

14. Connect HO2S multiplug.
15. Fit trim panel and gaiter to centre console and

secure clips.

16. Fit gear selector knob.



 +

 AUTOMATIC GEARBOX - JATCO,

REPAIRS, Gear knob.

Front pipe - NAS

$% 30.10.09

Remove

1. Disconnect battery earth lead.
2. Remove intermediate pipe and silencer.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.

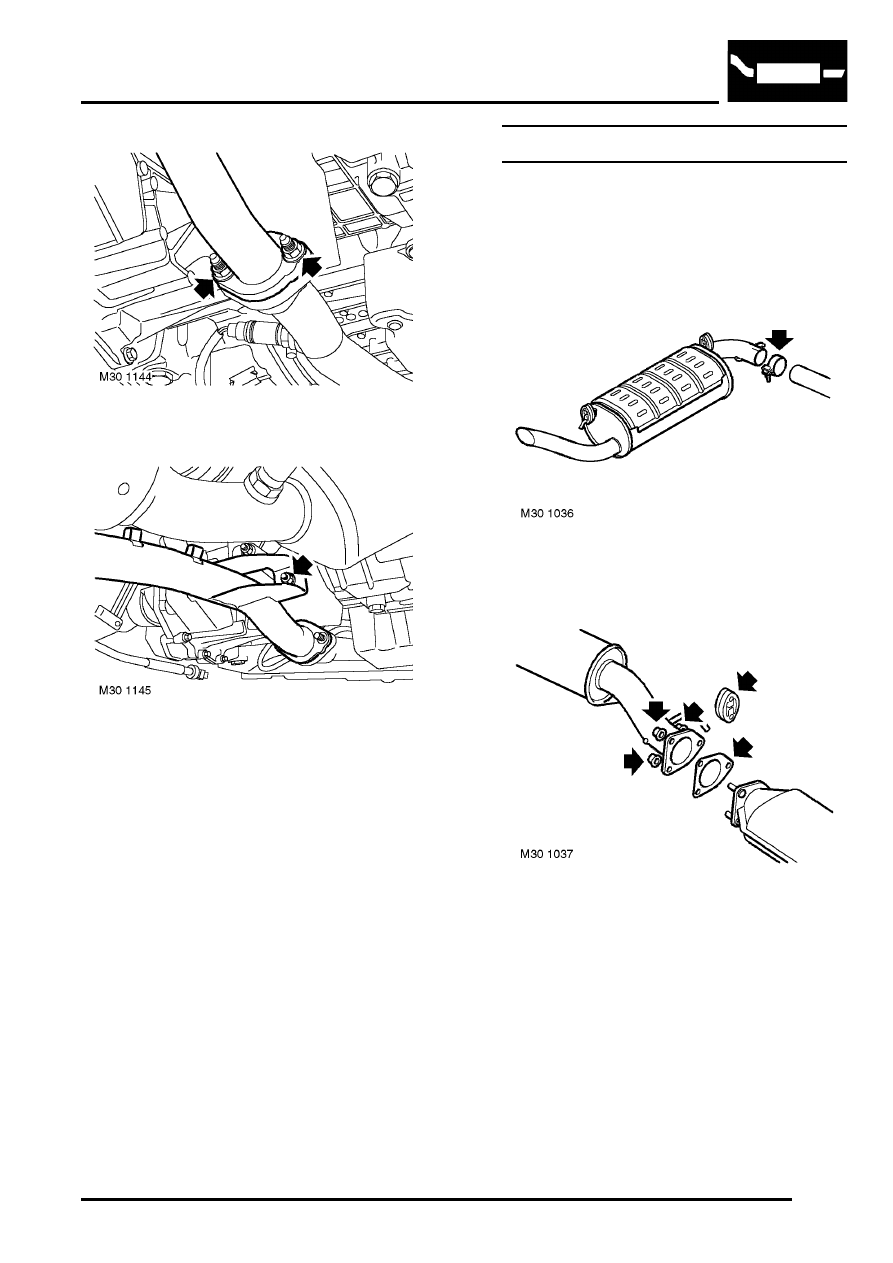

3. Remove 3 bolts securing heat shield and

remove heat shield from front pipe.

4. Remove 2 bolts securing pipe clamp and

remove lower half of clamp.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

30-3-3

5. Remove 2 nuts securing front pipe to manifold.

6. Remove bolt securing front pipe to bracket and

remove front pipe. Discard gasket.

Refit

1. Clean front pipe and manifold mating faces.
2. Using a new gasket, fit front pipe and fit but do

not tighten nuts.

3. Fit bolt securing front pipe to bracket but do not

tighten.

4. Fit lower half of pipe clamp, fit bolts but do not

tighten.

5. Fit intermediate pipe and silencer.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.

6. Tighten nuts securing front pipe to manifold to

50 Nm (37 lbf.ft).

7. Tighten bolts securing clamp to 10 Nm (7 lbf.ft).
8. Tighten bolt securing front pipe to bracket to 25

Nm (18 lbf.ft).

9. Connect battery earth lead.

Intermediate pipe - Non NAS

$% 30.10.11

Remove

1. Raise vehicle on 4 post ramp.

2. Loosen tail pipe clamp nut and release tail pipe

from intermediate pipe.

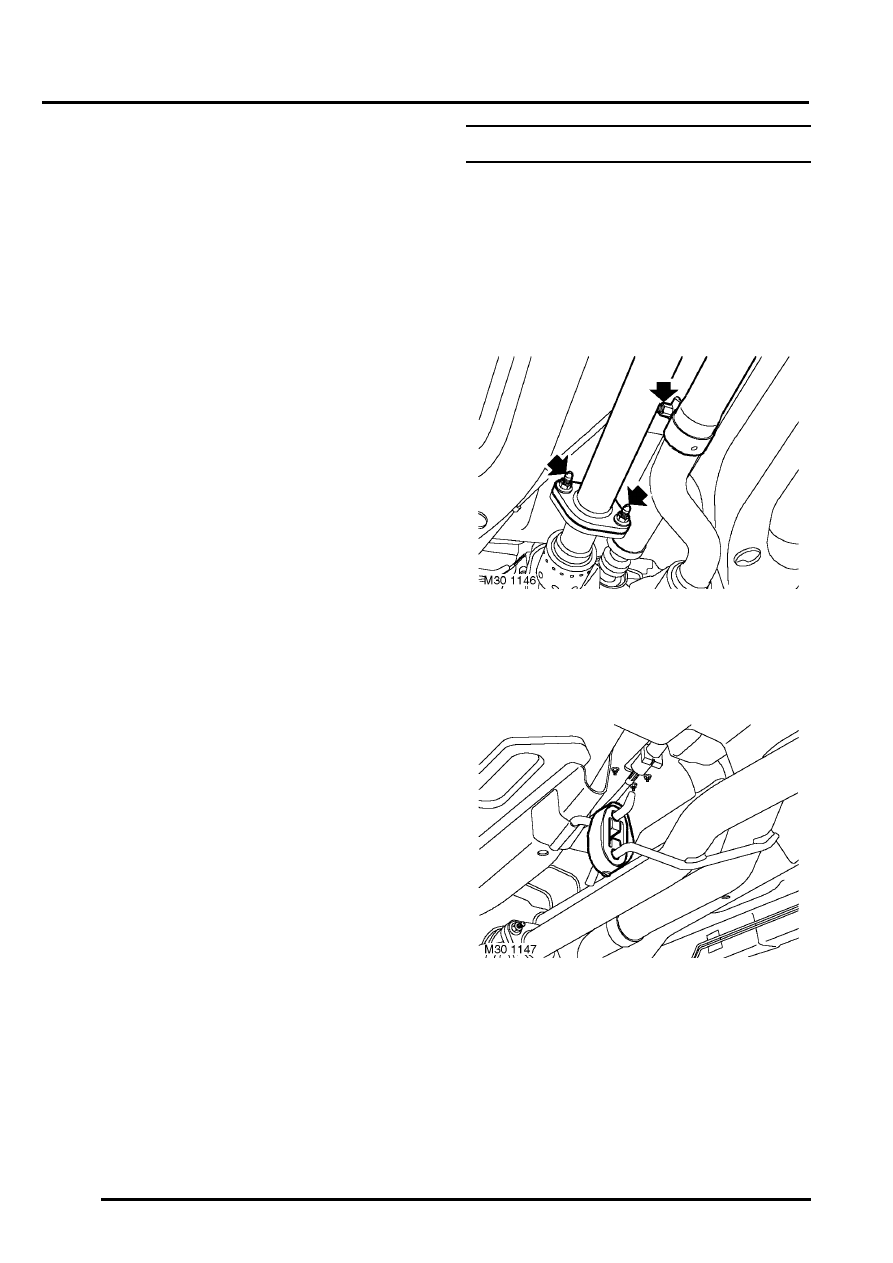

3. Remove 3 nuts securing front pipe to

intermediate pipe.

4. Release intermediate pipe from front pipe.
5. Remove and discard gasket.
6. Release rubber mounting from intermediate

pipe.

7. With assistance release and remove

intermediate pipe.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-4

REPAIRS

Refit

1. Clean intermediate pipe/silencer, front pipe and

tail pipe mating faces.

2. Fit new gasket to front pipe flange.
3. With assistance fit intermediate pipe to tail pipe

and front pipe.

4. Fit nuts to intermediate pipe flange and tighten

to 60 Nm (44 lbf.ft).

5. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
6. Fit intermediate pipe to rubber mounting.
7. Lower vehicle.

Intermediate pipe - NAS

$% 30.10.11

Remove

1. Raise vehicle on 4 post ramp.
2. Remove tail pipe and silencer.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Tail pipe &
silencer.

3. Remove 2 nuts securing intermediate pipe to

front pipe.

4. Loosen nut securing intermediate pipe clamp to

catalyst.

5. Release intermediate pipe from mounting.
6. Release and remove intermediate pipe.
7. Remove and discard gasket.
