MANIFOLDS & EXHAUST SYSTEMS - K SERIES 1.8

REPAIRS

30-2-3

Refit

1. Clean intermediate pipe/silencer, front pipe and

tail pipe mating faces.

2. Fit new gasket to front pipe flange.
3. With assistance fit intermediate pipe to tail pipe

and front pipe.

4. Fit nuts to intermediate pipe flange and tighten

to 60 Nm (44 lbf.ft).

5. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
6. Lower vehicle.

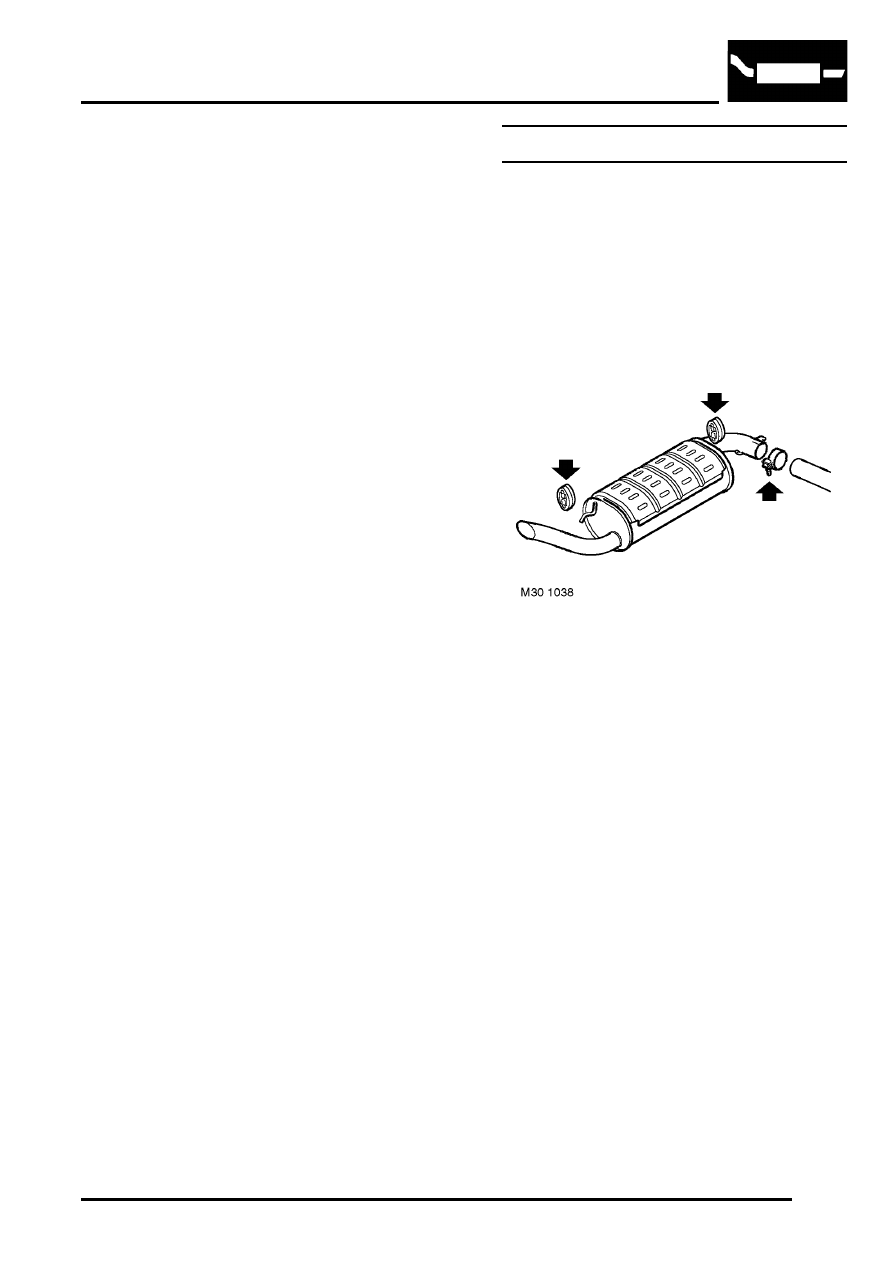

Exhaust pipe - tail

$% 30.10.22

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Loosen tail pipe clamp nut.
3. Release 2 rubber mountings from tail pipe.
4. Remove tail pipe.

Refit

1. Clean mating faces of tail pipe and intermediate

pipe.

2. Fit tail pipe and connect rubber mountings.
3. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
4. Remove stands and lower vehicle.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES 1.8

30-2-4

REPAIRS

Gasket(s) - induction manifold - LH/each
- renew

$% 30.15.08

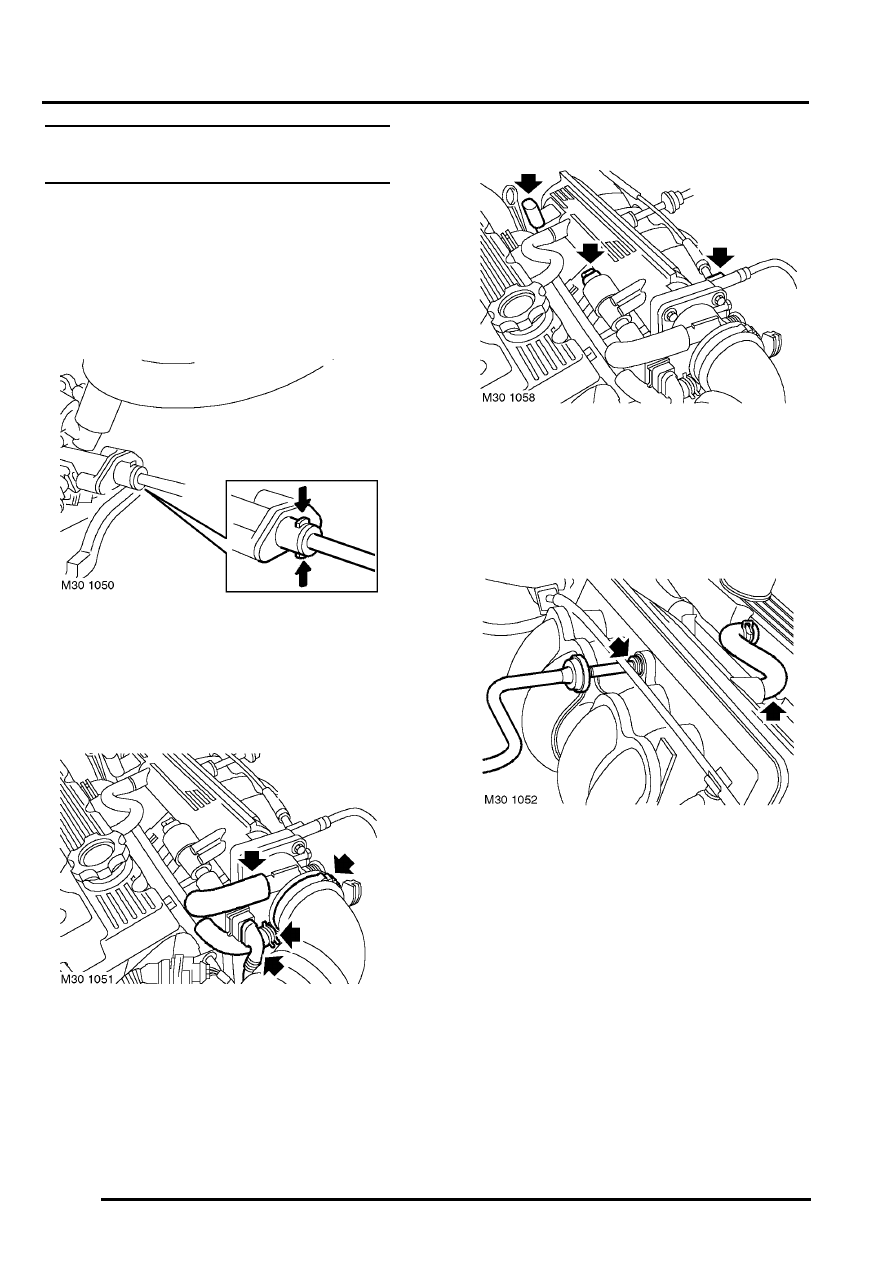

Remove

1. Disconnect battery earth lead.
2. Drain cooling system



 +

 COOLING SYSTEM - K SERIES 1.8,

ADJUSTMENTS, Coolant - drain & refill.

3. Position absorbent cloth to collect fuel spillage.
4. Release fuel feed pipe from fuel rail.

CAUTION: Always fit plugs to open
connections to prevent contamination.

5. Release clip and disconnect air intake hose

from throttle housing.

6. Release clip and disconnect purge hose from

inlet manifold.

7. Release clip and disconnect breather hose

from throttle housing.

8. Release and remove IACV hose from throttle

housing.

9. Disconnect multiplug from TP sensor.

10. Disconnect multiplug from IACV and release

harness clip.

11. Remove cover and disconnect MAP sensor

multiplug.

12. Release throttle cable from abutment bracket

and throttle cam.

13. Disconnect breather hose from inlet manifold.
14. Depress locking collar and disconnect brake

servo hose from inlet manifold chamber.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES 1.8

REPAIRS

30-2-5

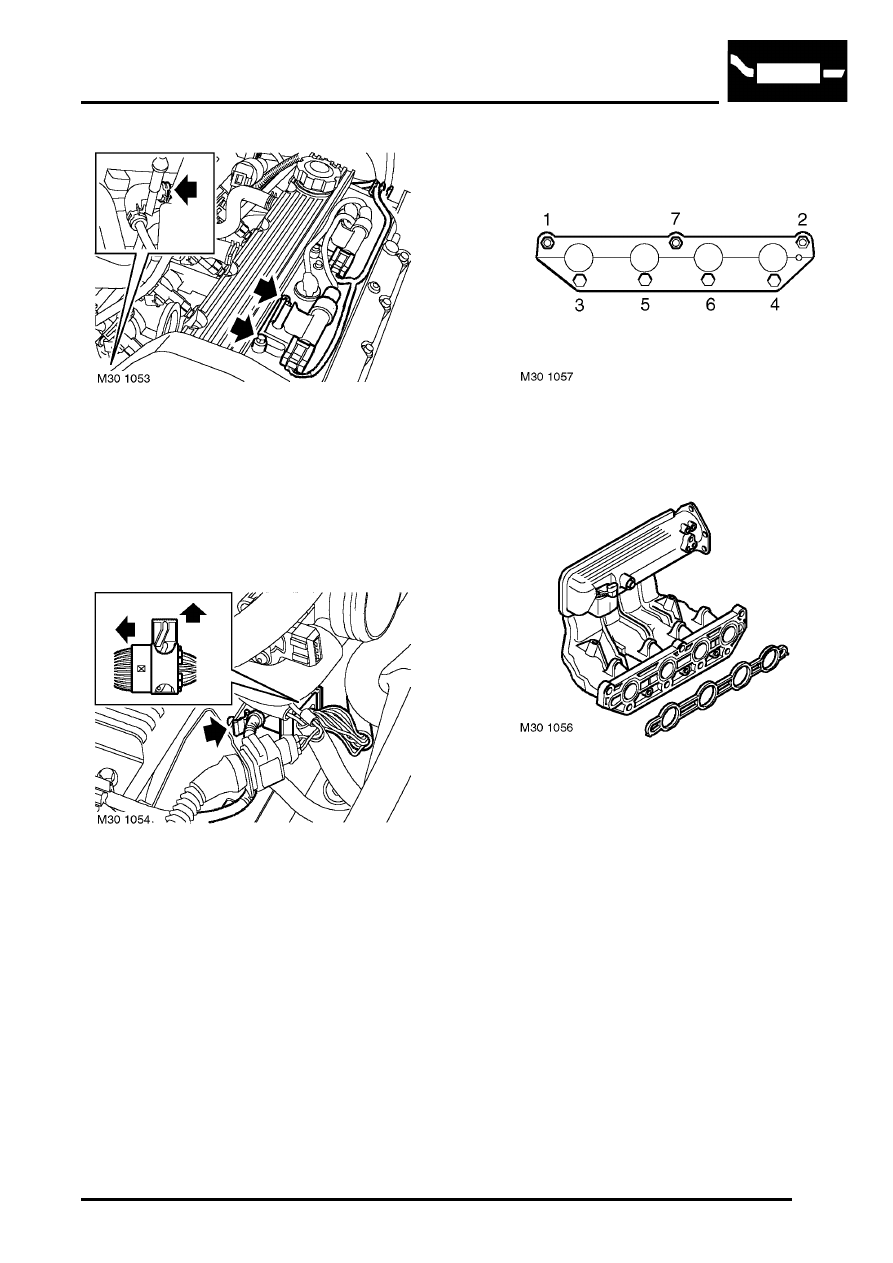

15. Release clip and disconnect coolant hose from

inlet manifold.

16. Remove 3 screws securing coil cover and

remove cover.

17. Remove 2 bolts securing RH coil and release

coil.

18. Disconnect coil multiplugs and release coil

harness from retaining clips.

19. Release injector harness multiplug from

bracket and disconnect multiplug.

20. Working in the sequence shown, progressively

loosen then remove 7 nuts securing inlet
manifold to cylinder head.

21. Remove inlet manifold and discard gasket.

Refit

1. Ensure mating surfaces are clean and metal

inserts are fitted in inlet manifold stud and bolt
holes.

2. Fit new gasket to inlet manifold.

CAUTION: Gaskets must be fitted dry.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES 1.8

30-2-6

REPAIRS

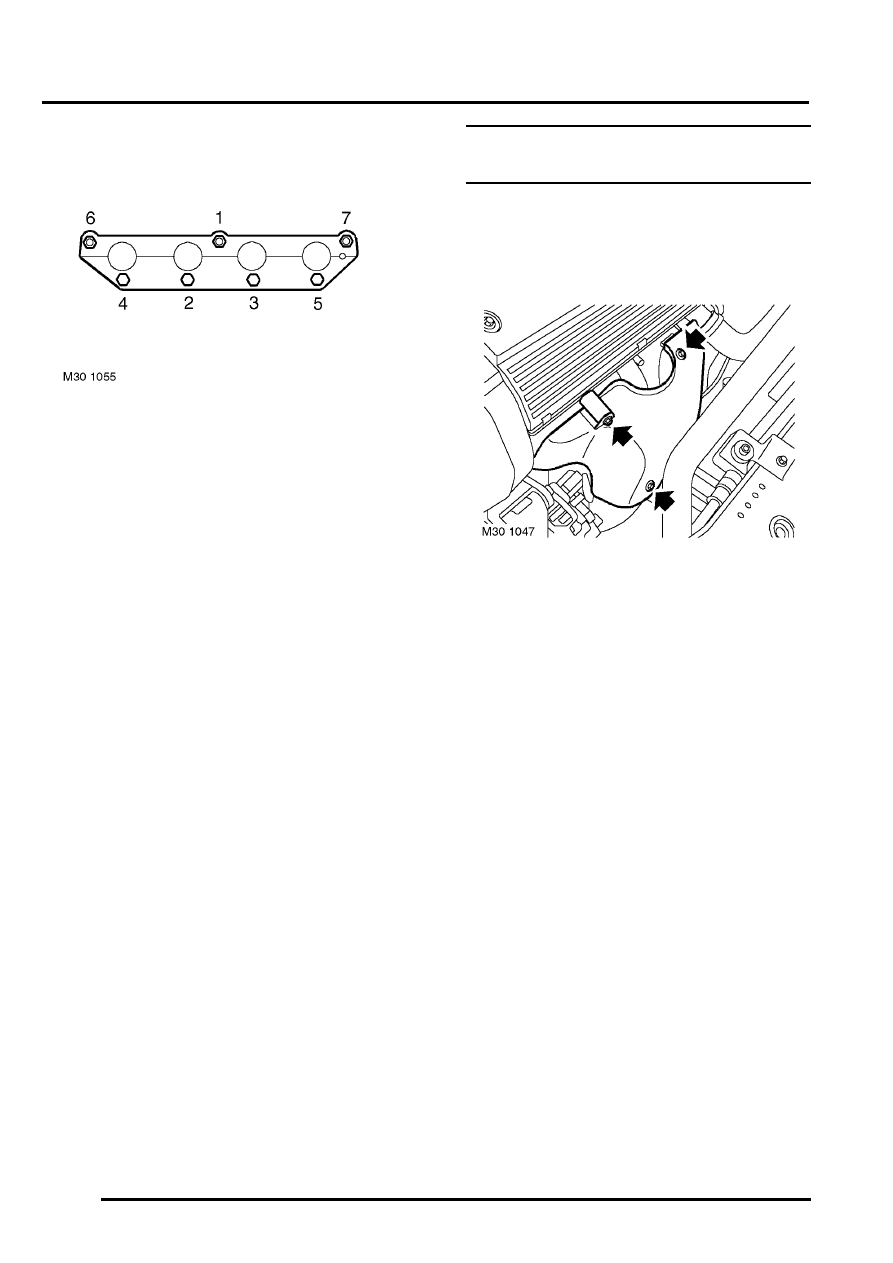

3. Fit manifold to cylinder head,  fit nuts and

tighten in the sequence shown to 17 Nm (12.5
lbf.ft).

4. Connect coolant hose to manifold and secure

with clip.

5. Connect multiplug to injector harness and

secure multiplug to bracket.

6. Connect coil multiplugs, fit bolts securing RH

coil and tighten to 10 Nm (7.5 lbf.ft).

7. Secure coil harness in clips.
8. Position coil cover, fit bolts and tighten to 10

Nm (7.5 lbf.ft).

9. Connect brake servo hose to inlet manifold.

10. Connect breather hose to manifold and secure

into collar.

11. Connect throttle inner cable to throttle cam and

secure outer cable in abutment bracket.

12. Connect  multiplug to MAP sensor and fit cover.
13. Connect multiplug to IACV and secure harness

clip.

14. Connect IACV hose to throttle housing.
15. Connect multiplug to TP sensor.
16. Connect breather hose to throttle housing and

secure with clip.

17. Connect purge hose to throttle housing and

secure with clip.

18. Connect air intake hose to throttle housing and

secure with clip.

19. Connect fuel feed hose to fuel rail.
20. Connect battery earth lead.
21. Fill cooling system.
22. Adjust throttle cable.

Heat shield - exhaust manifold - without
A/C

$% 30.15.09

Remove

1. Disconnect battery earth lead.

2. Remove nut and 2 bolts securing heat shield.
3. Remove heat shield.
4. Remove spacer from stud.

Refit

1. Fit spacer to stud.
2. Fit heat shield.
3. Fit bolts securing manifold heat shield and

tighten to 10 Nm (7.5 lbf.ft).

4. Fit nut securing manifold heat shield and

tighten to 25 Nm (18 lbf.ft).

5. Connect battery earth lead.
