Freelander 1. Manual - part 141





MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

30-3-5

Refit

1. Clean intermediate pipe and mating faces.
2. Fit new gasket to front pipe flange.
3. Fit intermediate pipe and connect mounting.
4. Tighten intermediate pipe flange nuts to 60 Nm

(44 lbf.ft).

5. Tighten clamp nut to 55 Nm (40 lbf.ft).
6. Fit tail pipe and silencer



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Tail pipe &
silencer.

7. Lower vehicle.

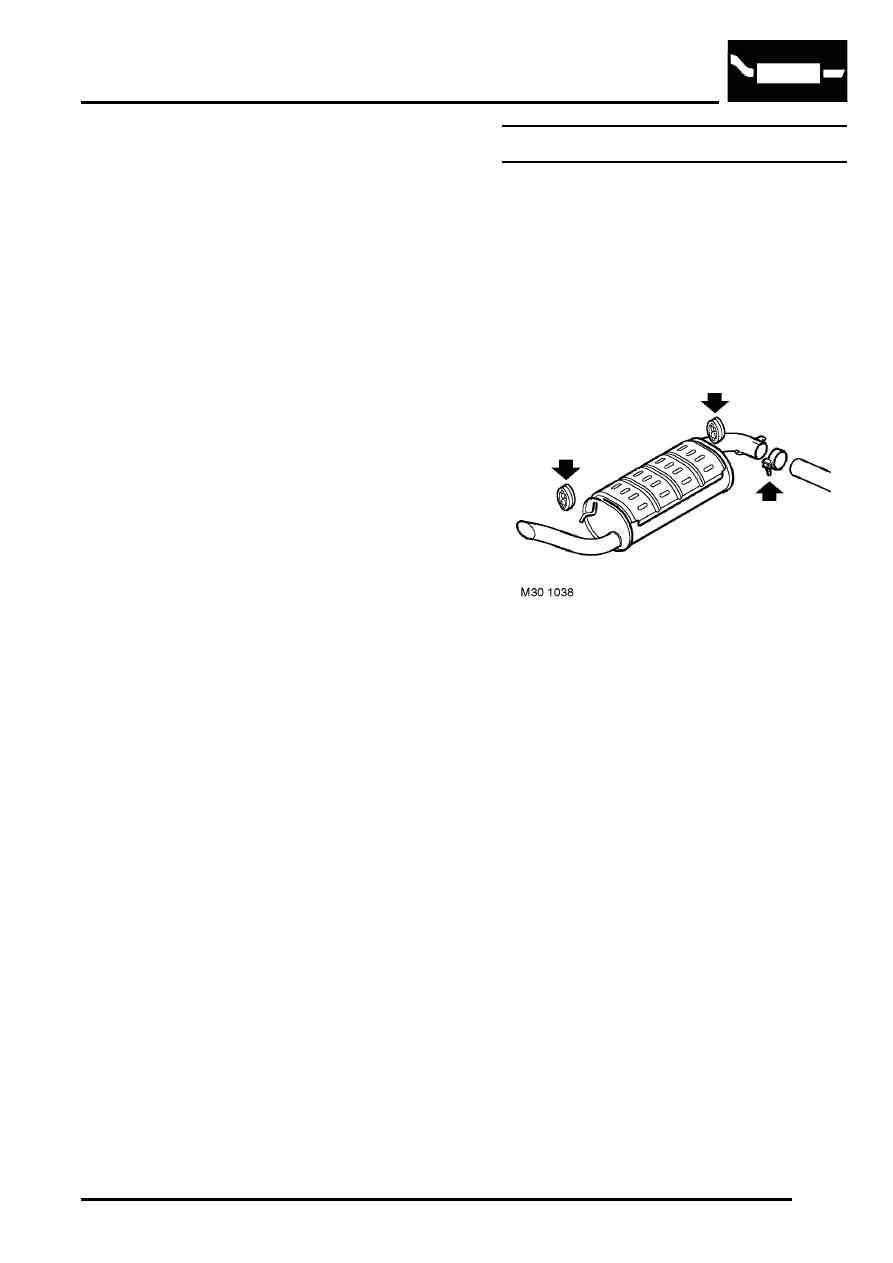

Tail pipe & silencer

$% 30.10.22

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Loosen tail pipe clamp nut.
3. Release 2 rubber mountings from tail pipe.
4. Remove tail pipe.

Refit

1. Clean mating faces of tail pipe and intermediate

pipe.

2. Fit tail pipe and connect rubber mountings.
3. Tighten tail pipe clamp nut to 55 Nm (41 lbf.ft).
4. Remove stands and lower vehicle.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-6

REPAIRS

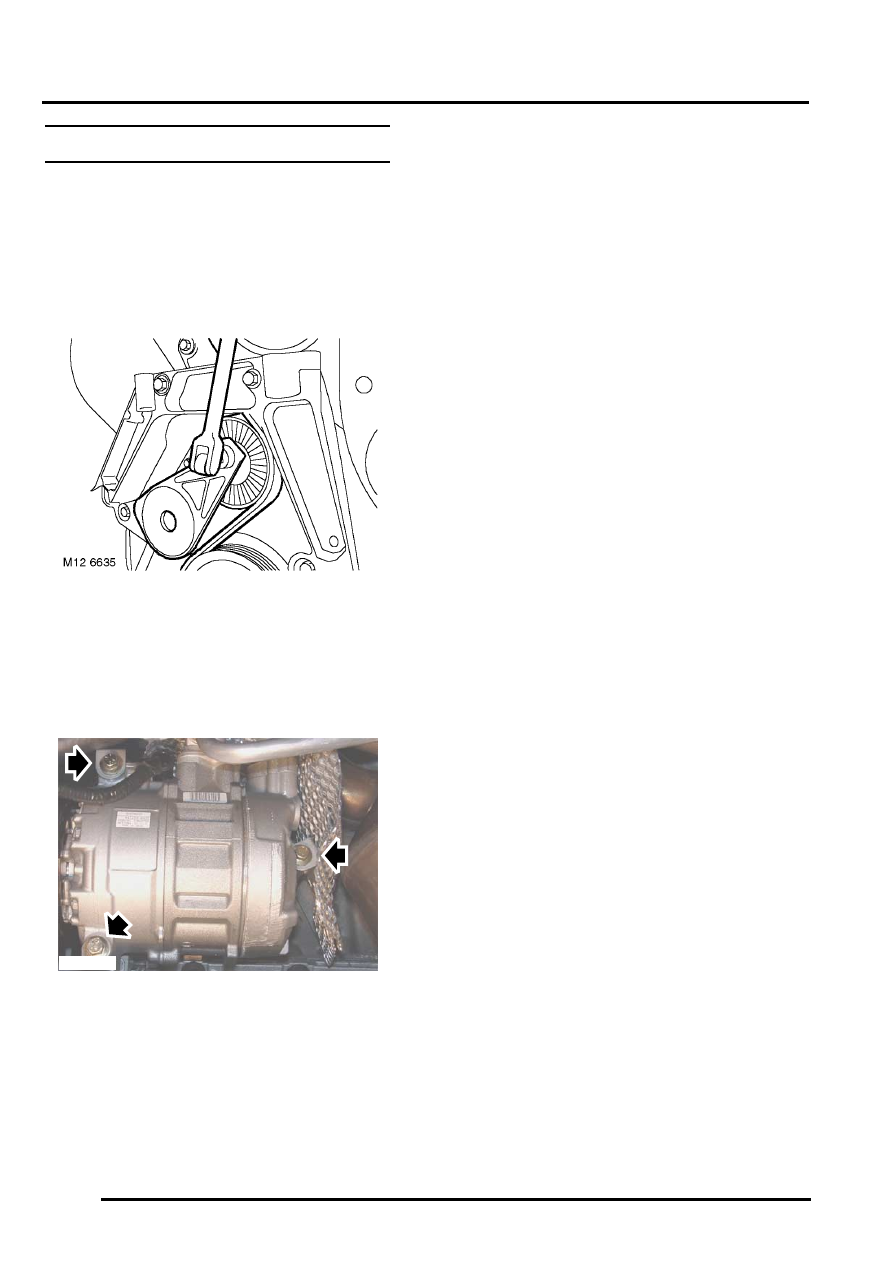

Heat shield - A/C compressor - KV6 - NAS

$% 30.10.32

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and release drive
belt from alternator pulley.

4. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

5. Remove 3 bolts securing A/C compressor to

fixing brackets and position compressor aside.

6. Remove compressor heat shield.

Refit

1. Clean compressor and mounting bracket

mating faces.

2. Fit compressor heat shield.
3. Position compressor to mounting and align

heat shield. Fit and tighten bolts to 25 Nm (18
lbf.ft).

4. Using a 3/8" square drive socket bar, raise

ancillary drive belt tensioner and fit drive belt to
pulleys.

5. Fit underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

6. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

7. Connect battery earth lead.

M30 1142

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

REPAIRS

30-3-7

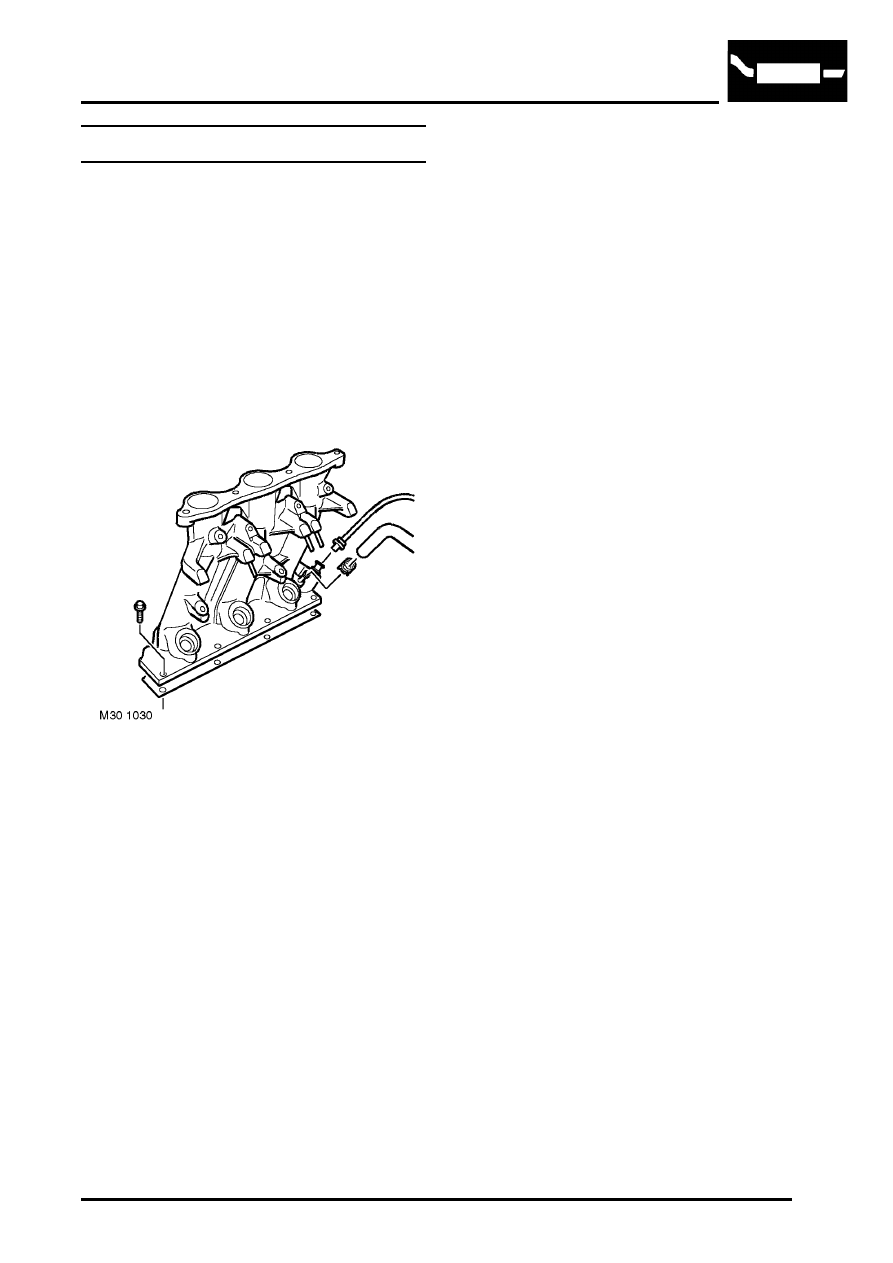

Gasket - inlet manifold - LH

$% 30.15.08

Remove

1. Disconnect battery earth lead.
2. Drain cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

3. Remove fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

4. Depress locking collar and release breather

hose from LH inlet manifold.

5. Release clip and disconnect coolant hose from

LH inlet manifold.

6. Progressively loosen and remove 7 bolts

securing LH inlet manifold to cylinder head.

7. Remove inlet manifold and discard gasket.

Refit

1. Clean inlet manifold and cylinder head mating

faces.

2. Fit new inlet manifold gasket to cylinder head,

position inlet manifold, fit and tighten bolts to 25
Nm (18 lbf.ft).

3. Connect breather hose to LH inlet manifold.

4. Connect coolant hose to inlet manifold and

secure clip.

5. Fit fuel rail.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - Non
NAS.


 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Fuel rail - KV6 - NAS.

6. Fill cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

7. Connect battery earth lead.

MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6

30-3-8

REPAIRS

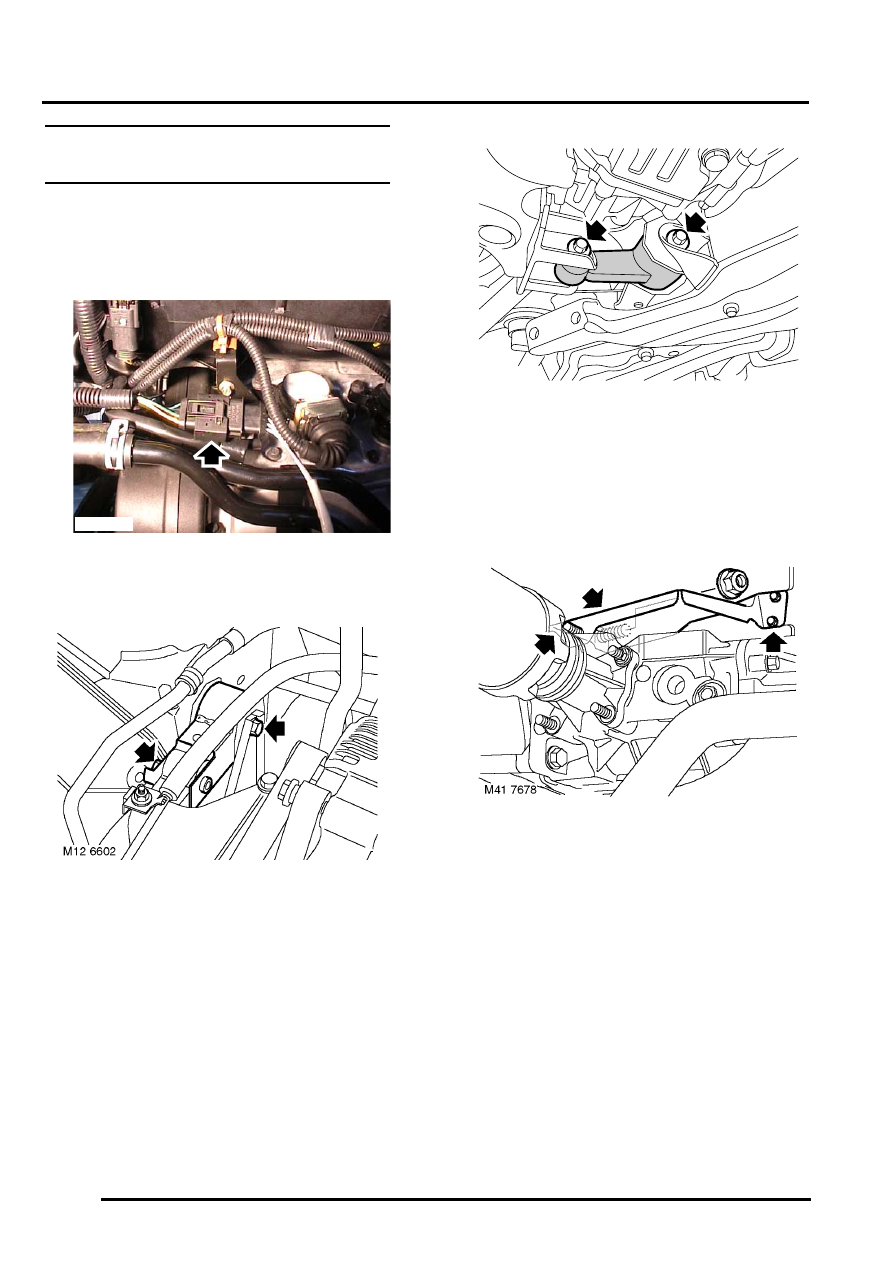

Gasket - exhaust manifold - RH - Non
NAS

$% 30.15.16

Remove

1. Disconnect battery earth lead.

2. Release RH HO2S multiplug from coolant rail

bracket and disconnect multiplug.

3. Remove bolt securing upper RH engine steady

to top arm.

4. Loosen bolt securing upper RH engine steady

to body, pivot engine steady away from top
arm.

5. Raise vehicle on a ramp.
6. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

7. Remove exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Front pipe - Non
NAS.

8. Remove bolt securing lower engine steady to

sump mounting bracket.

9. Loosen bolt securing lower engine steady to

subframe, pivot steady away from sump
mounting bracket.

10. Remove cable tie and release gear selector

cable from clip on body.

11. Remove 2 bolts securing IRD heat shield to

lower engine steady mounting bracket.

12. Remove nut securing heat shield to IRD pinion

housing.

13. Remove nut securing heat shield to IRD

housing and remove heat shield.

M30 0996

M12 6597
