ENGINE - K SERIES 1.8

REPAIRS 12-2-17

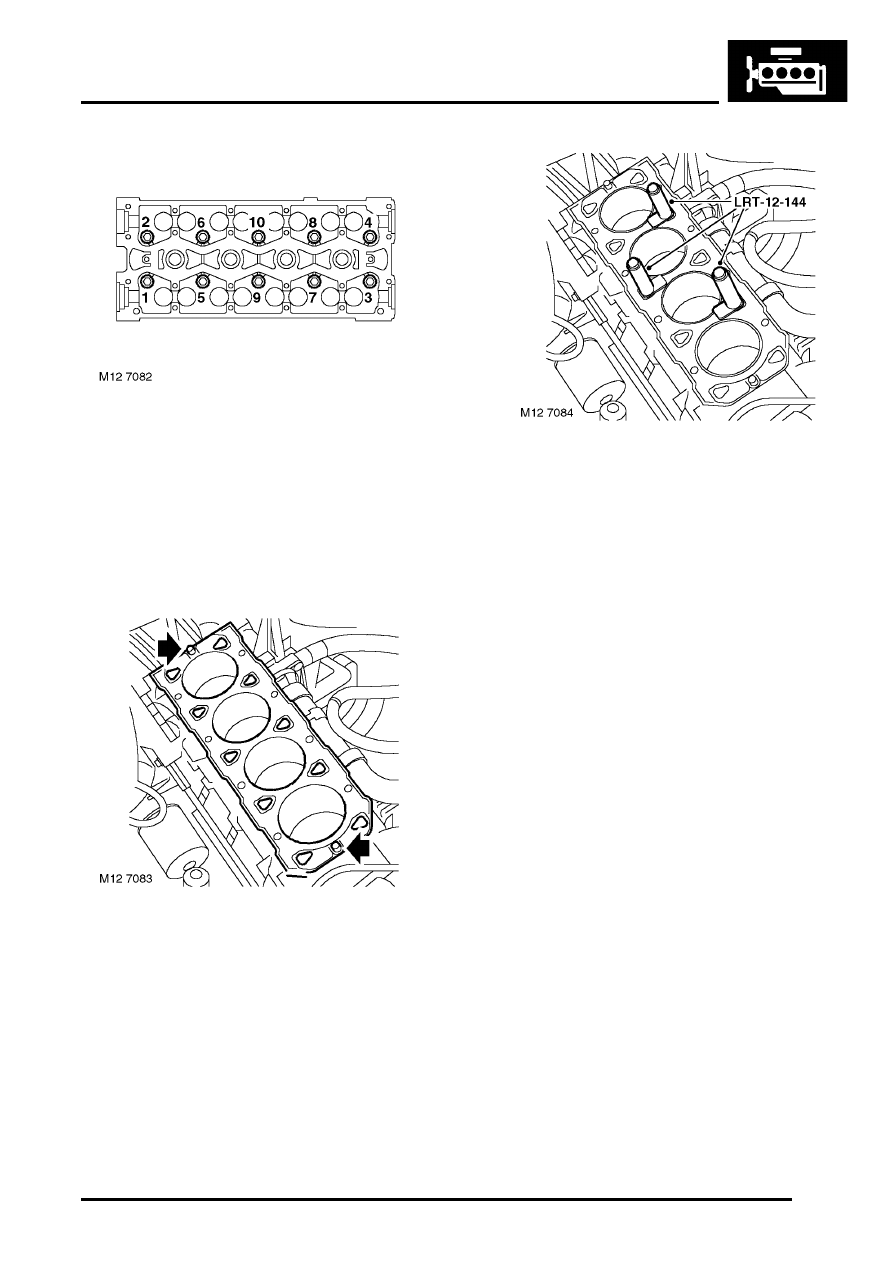

29. Working in the sequence shown, progressively

loosen cylinder head bolts.

30. Remove cylinder head bolts and store in fitted

order.

31. With assistance, remove cylinder head

assembly.

CAUTION: Take care not to damage HO2S
when removing cylinder head.

32. Remove and discard cylinder head gasket.

CAUTION: Removal of cylinder head bolts
will result in a 'tightening up' of the
crankshaft. Rotation of the crankshaft must,
therefore, be kept to a minimum. Do not
rotate crankshaft until cylinder liner clamps
LRT-12-144 are fitted.

33. Identify type of location dowels fitted, nylon

dowels must be removed and replaced with
steel dowels. Steel dowels need not be
removed.

34. Fit cylinder liner clamps, LRT-12-144 to

cylinder block and secure with cylinder head
bolts. Ensure that feet of clamps do not
protrude over cylinder liner bores.

CAUTION: Ensure that bolts used are those
originally fitted in that location.

Refit

1. Remove bolts securing cylinder liner clamps

LRT-12-144 to cylinder block and remove
clamps.

CAUTION: Keep cylinder head bolts in their
original fitted order. Do not rotate
crankshaft with clamps removed. Take
great care that, with clamps removed,
cylinder liners are not disturbed.

2. Clean mating faces of cylinder head and

cylinder block.

3. Ensure coolant and oil passages are clean.
4. Check cylinder head and mating face of

cylinder block for damage, pay particular
attention to gasket face of cylinder head.

ENGINE - K SERIES 1.8

12-2-18 REPAIRS

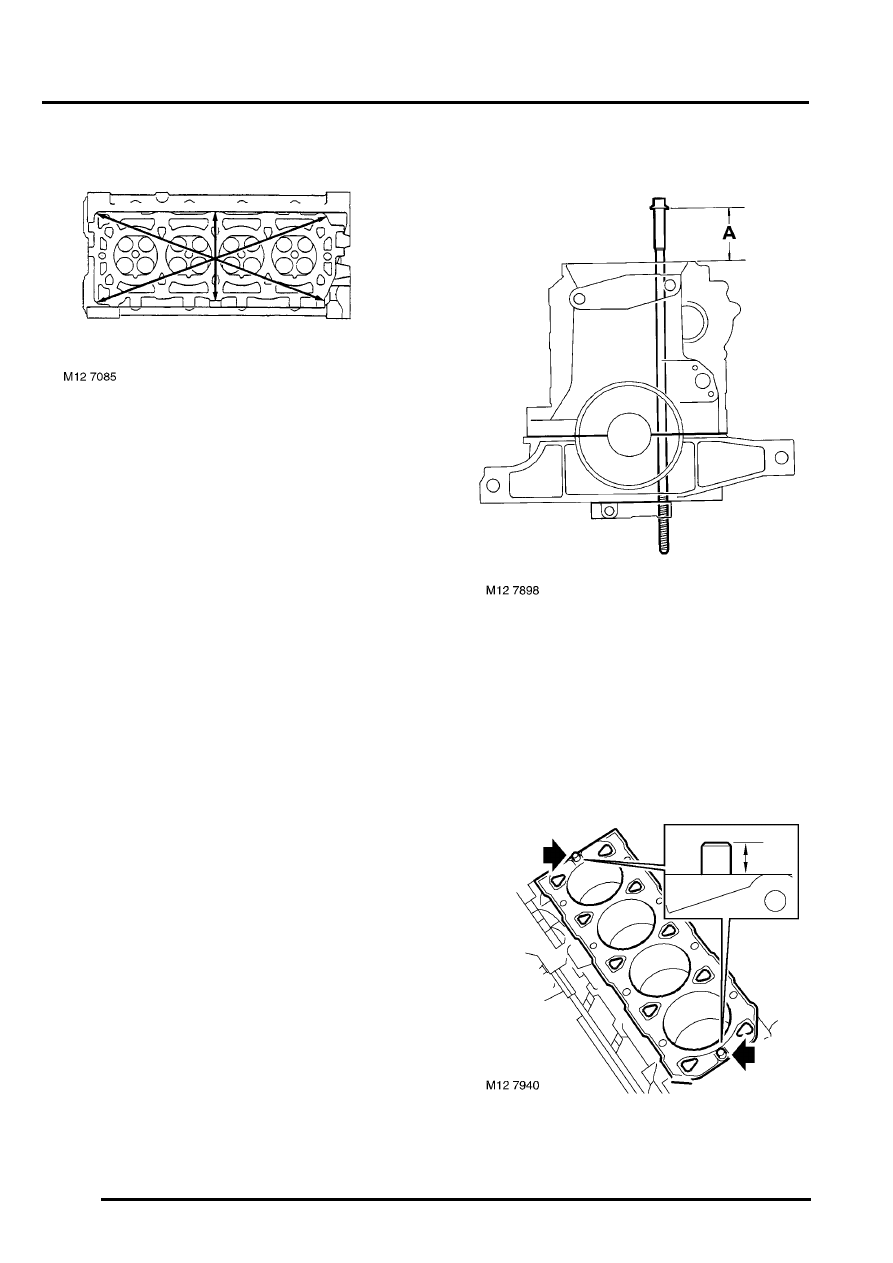

5. Check cylinder head face for warping, across

centre and from corner to corner as shown.


 +

 GENERAL DATA, Engine – K1.8

Petrol.

Note: Cylinder heads may be refaced provided
that head height is kept within specified limits.

6. Thoroughly clean cylinder head bolts, wipe dry

then lightly oil bolt threads and underside of
heads.

7. Carefully enter cylinder head bolts in their

original fitted order, DO NOT DROP. Tighten
each bolt BY HAND into oil rail.

8. Measure distance from the cylinder block top

face to underside of bolt head 'A' in illustration:

l

97 mm (3.8 in) - Bolt may be re-used

l

Over 97 mm (3.8 in) - New bolt must be fitted

9. If nylon locating dowels were removed, clean

dowel holes and fit new steel dowels.

10. Check that fitted height of dowels is between 10

to 11 mm (0.40 to 0.43 in).

ENGINE - K SERIES 1.8

REPAIRS 12-2-19

11. Temporarily fit camshaft gears to their

respective camshafts, fit and lightly tighten
bolts.

12. Fit new cylinder head gasket onto cylinder

block with the word 'TOP' uppermost.

CAUTION: Gasket must be fitted dry.

13. Using assistance, fit cylinder head and locate

onto dowels.

14. Using tool LRT-12-182, rotate camshafts to

gain access to cylinder head bolts beneath
camshaft reluctor rings.

15. Carefully enter cylinder head bolts in their

original fitted order, DO NOT DROP. Tighten
bolts into place by hand.

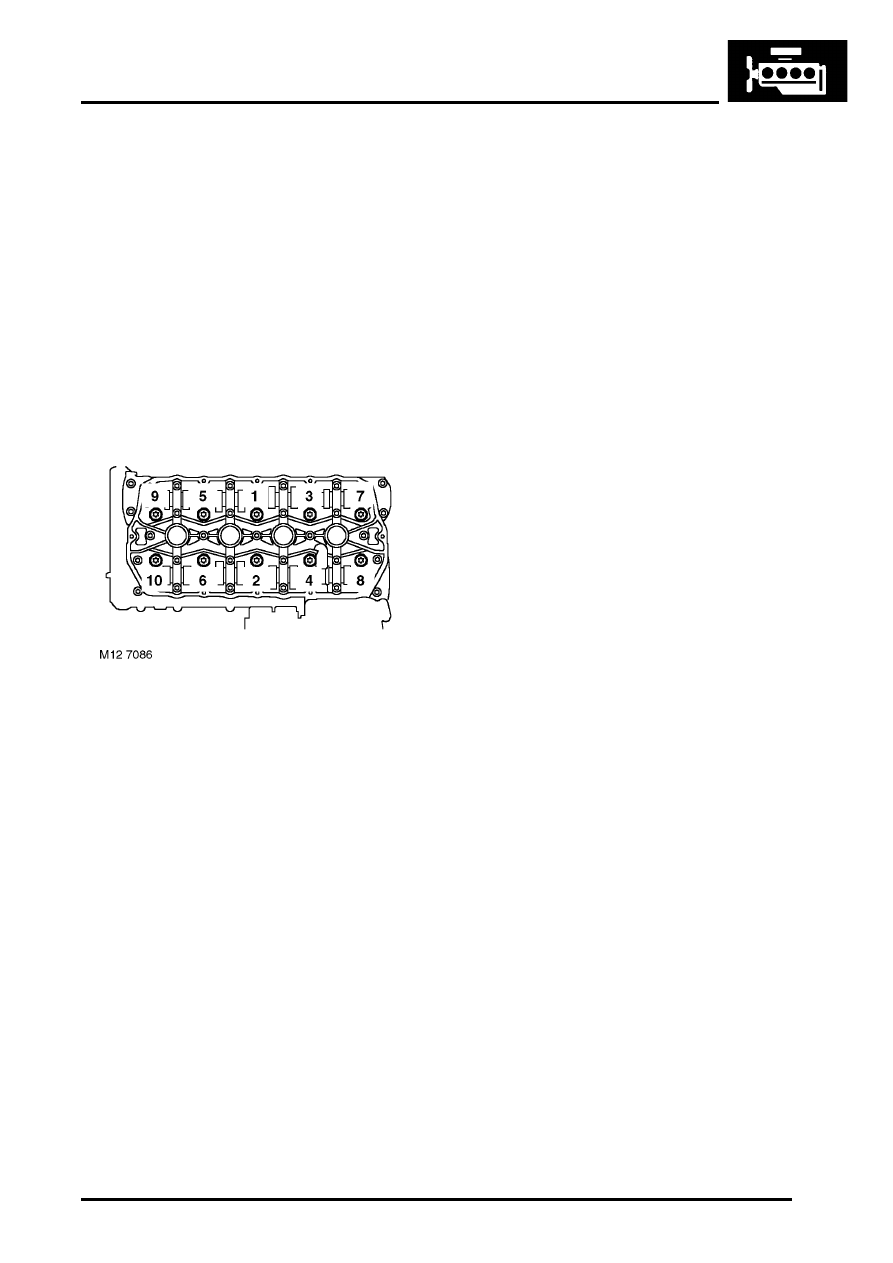

16. Working in the sequence shown, progressively

tighten the cylinder head bolts to:

l

Stage 1 - 20 Nm (15 lbf.ft)

l

Further 180

°

l

Further 180

°

CAUTION: Do not tighten bolts 360

°

 in one

operation.

Note: Use tool LRT-12-182 and rotate gears as
necessary to gain access to cylinder head
bolts.

17. On completion of bolt tightening sequence,

position camshafts with inlet camshaft gear
drive pin at 4 o'clock and exhaust camshaft
gear drive pin at 8 o'clock.

18. Restrain gears using tool LRT-12-182 and

remove bolts and washers securing gears to
camshafts.

19. Remove camshaft gears.
20. Connect expansion tank hose and secure with

clip.

21. Connect brake servo vacuum hose to inlet

manifold.

22. Connect throttle inner cable to throttle cam and

secure outer cable in abutment bracket.

23. Connect purge hose to inlet manifold and

secure with clip.

24. Connect fuel feed hose to fuel rail.
25. Connect multiplug to IACV and secure harness

clip.

26. Fit air bypass hose to IACV and connect to

throttle body.

27. Connect multiplug to ECT sensor.
28. Connect multiplug to TP sensor.
29. Connect multiplug to injector harness.
30. Connect HO2S multiplug and secure to support

bracket.

31. Fit camshaft cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Gasket - camshaft cover.

32. Connect coolant hoses to elbow and secure

with clips.

33. Models with A/C: Fit exhaust manifold heat

shield.

34. Models with A/C: Align alternator to bracket

and fit bolt. Tighten both  alternator bolts to 45
Nm (33 lbf.ft).

35. Models with A/C: Locate heat shield to

alternator bracket stud, fit nut and bolts.
Tighten nut to 25 Nm (18 lbf.ft) and bolts to 10
Nm (7.5 lbf.ft).

36. Clean exhaust front pipe and exhaust manifold

mating faces.

37. Using new gasket, connect front pipe to

manifold, fit nuts and tighten to 60 Nm (44
lbf.ft).

38. Fit camshaft timing belt rear cover.



 +

 ENGINE - K SERIES 1.8, REPAIRS,

Cover - timing belt - rear.

39. Adjust throttle cable.



 +

 FUEL DELIVERY SYSTEM -

PETROL, ADJUSTMENTS, Throttle cable -
check and adjust - K1.8.

40. Connect battery earth lead.
41. Refill cooling system.



 +

 COOLING SYSTEM - K SERIES 1.8,

ADJUSTMENTS, Coolant - drain & refill.

42. Top-up engine oil.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – K1.8.

ENGINE - K SERIES 1.8

12-2-20 REPAIRS

Gasket - camshaft cover

$% 12.29.40

Remove

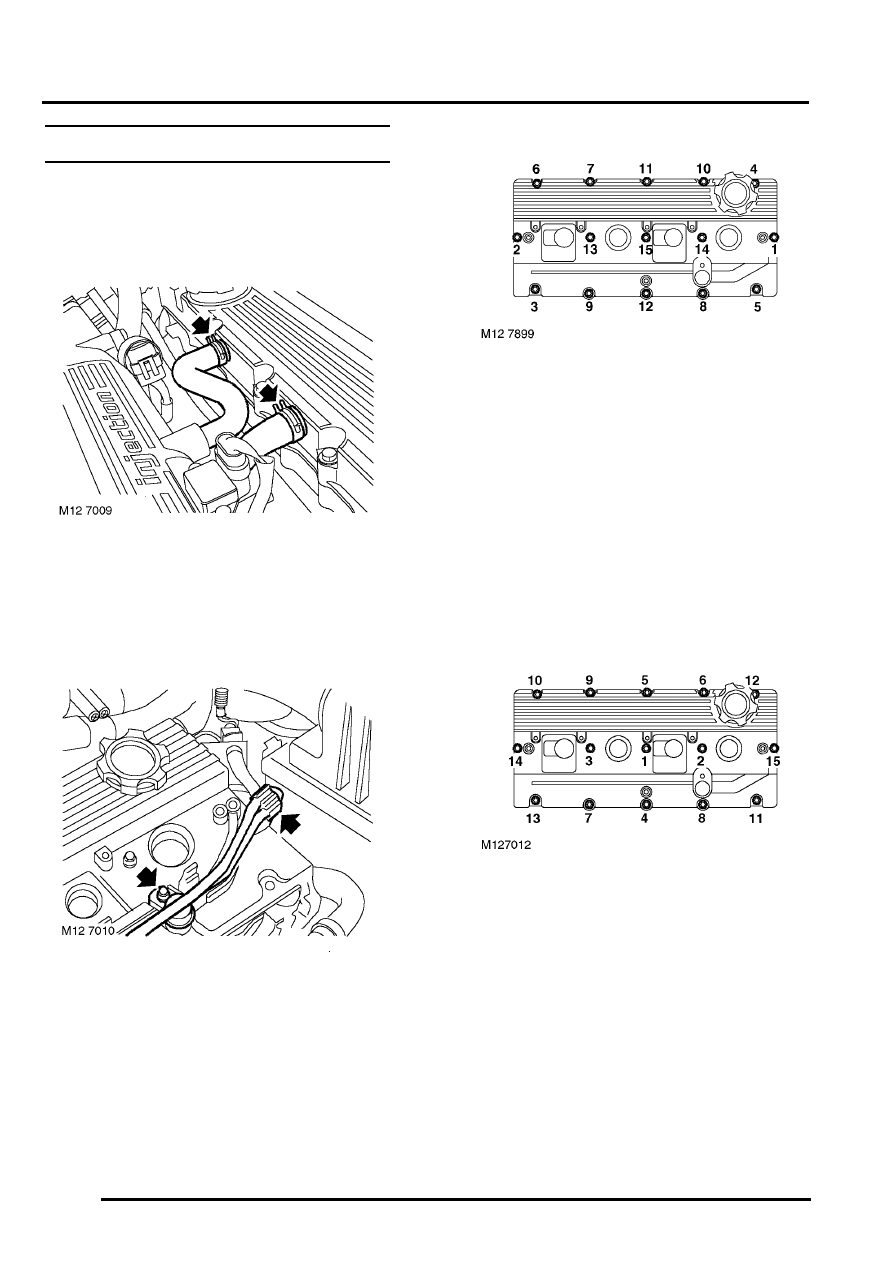

1. Disconnect battery earth lead.

2. Release 2 clips and disconnect breather hoses

from camshaft cover.

3. Remove ignition coils.



 +

 ENGINE MANAGEMENT SYSTEM -

MEMS, REPAIRS, Ignition coil.

4. Remove any debris from spark plug recesses.

5. Release coil and CMP sensor harness clip from

camshaft cover.

6. Remove bolt securing CMP sensor to cover,

release sensor and position aside.

7. Using sequence shown, progressively loosen

and remove 15 bolts securing camshaft cover.

8. Remove camshaft cover and discard gasket.

Refit

1. Clean mating surfaces of camshaft cover and

carrier.

2. Clean inside of camshaft cover. If necessary,

wash oil separator elements in solvent and
blow dry.

3. Fit camshaft cover gasket.

Note: Modified gasket having a 'crimped' edge
should be fitted.

4. Position camshaft cover, fit and tighten bolts

progressively in the sequence shown to 8 Nm
(6 lbf.ft).

5. Clean CMP sensor and mating face. Fit sensor,

fit bolt and tighten to 8 Nm (6 lbf.ft).

6. Secure harness clip to cover.
7. Fit ignition coils.



 +

 ENGINE MANAGEMENT SYSTEM -

MEMS, REPAIRS, Ignition coil.

8. Connect breather hoses and secure with clips.
9. Connect battery earth lead.
