Ancillary Drive Belt – K1.8

Check

1. Check ancillary drive belts for tension, signs of

fraying, damage and for any oil contamination.

Replace

1. Replace ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - K1.8 without
A/C.


 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - K1.8 with A/
C.

Ancillary Drive Belt – KV6

Check

1. Check ancillary drive belts for tension, signs of

fraying, damage and for any oil contamination.

Replace

1. Replace ancillary drive belt.



 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - KV6.

MAINTENANCE

10-16

MAINTENANCE

Camshaft Timing Belt – K1.8

Check

1. Check camshaft drive belt and renew if

necessary.


 +

 ENGINE - K SERIES 1.8, REPAIRS,

Camshaft timing belt.

Camshaft Timing Belt – KV6

Check

1. Check camshaft drive belt and renew if

necessary.


 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt.

MAINTENANCE

MAINTENANCE

10-17

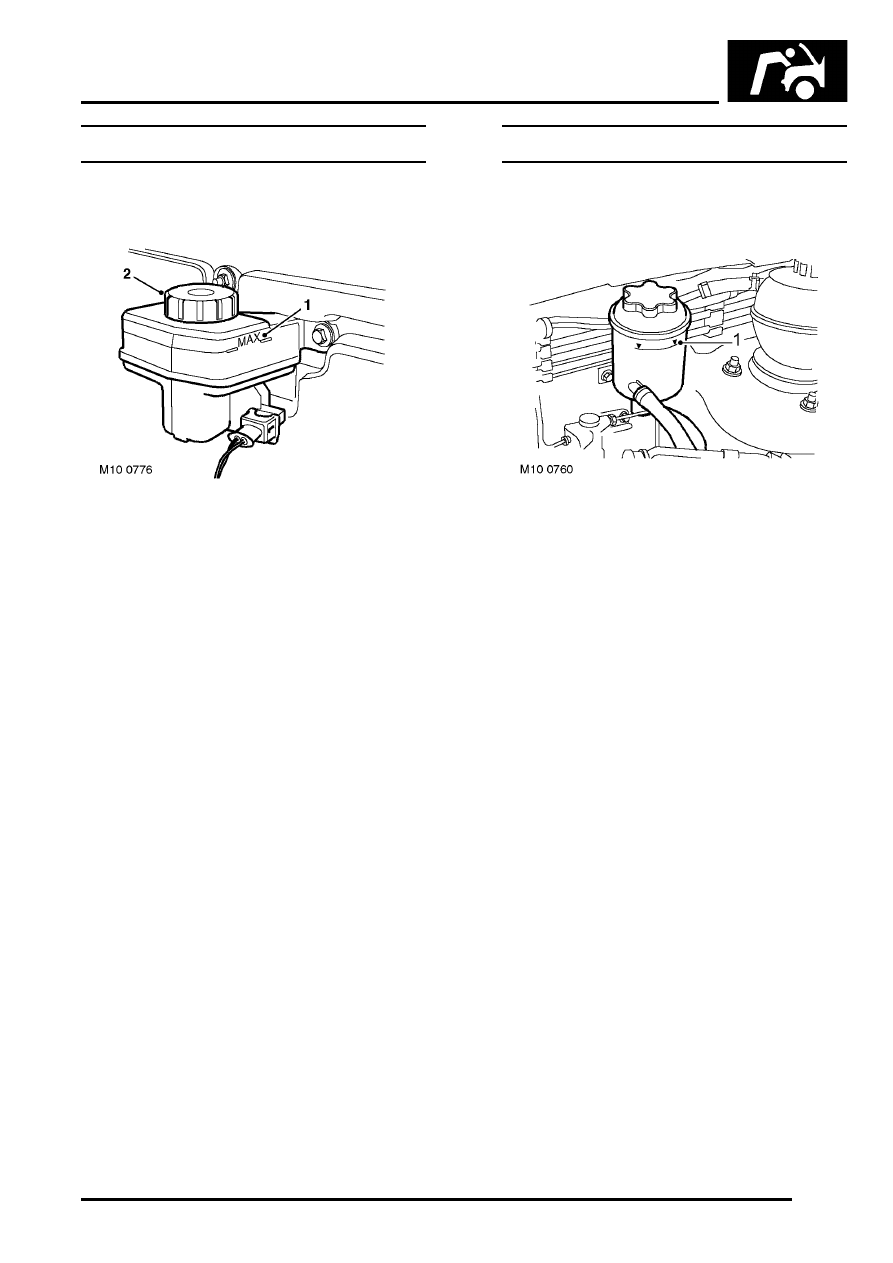

Brake/Clutch Reservoir

Check/Top-up

RHD shown, LHD similar

1. Check fluid level in brake/clutch fluid reservoir.
2. Clean area around filter cap, remove cap.
3. Top-up if necessary to correct level on reservoir

using recommended fluid.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Fluids.

4. Fit filler cap.

PAS Fluid Level

Check/Top-up

1. Check Power Assisted Steering (PAS) fluid

level. Before topping up PAS fluid level, ensure
there are no leaks from the pump, hoses,
unions or steering rack.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Fluids.

MAINTENANCE

10-18

MAINTENANCE

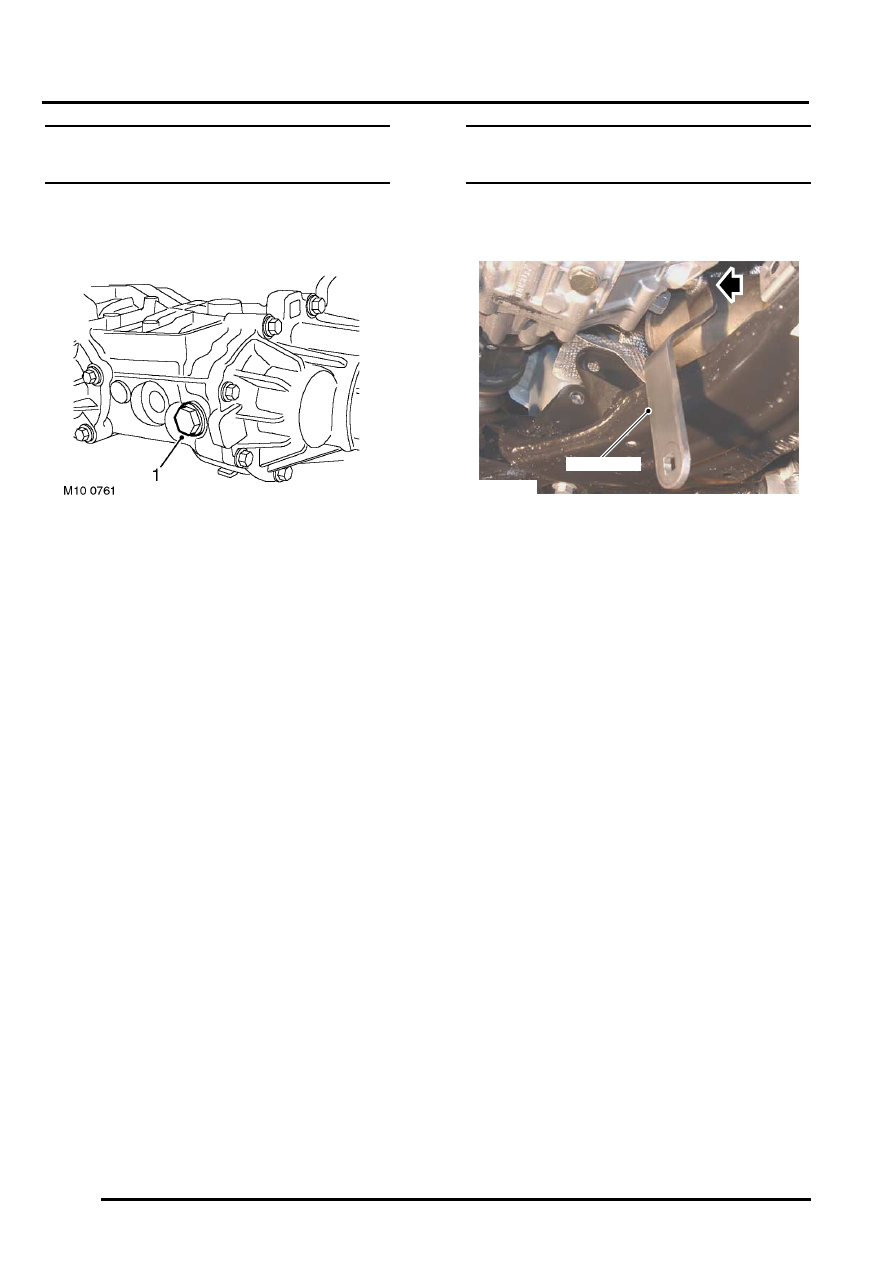

Intermediate Reduction Drive - Non NAS
models

Check and Top-up Fluid

1. With vehicle on a ramp at a convenient working

height, carefully remove IRD level plug and
collect sealing washer.

2. Check oil level. Before topping up oil level,

check for visible signs of  leakage. Pay
particular attention to drive shaft and prop shaft
oil seals.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Lubrication.

3. Refit level plug to IRD unit using a new sealing

washer.

Intermediate Reduction Drive - NAS
models

Check and Top-up Fluid

1. With vehicle on a ramp at a convenient working

height, using LRT-41-021, carefully remove
IRD level plug and collect sealing washer.

2. Top-up, if required, until fluid just runs from

hole. Allow sufficient time for oil to flow until it
reaches a common level in unit.


 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Fluids.

3. Refit level plug to IRD unit using a new sealing

washer.

M417853

LRT-41-021
