Discovery 2. Manual - part 350





HARNESSES

REPAIRS 86-7-23

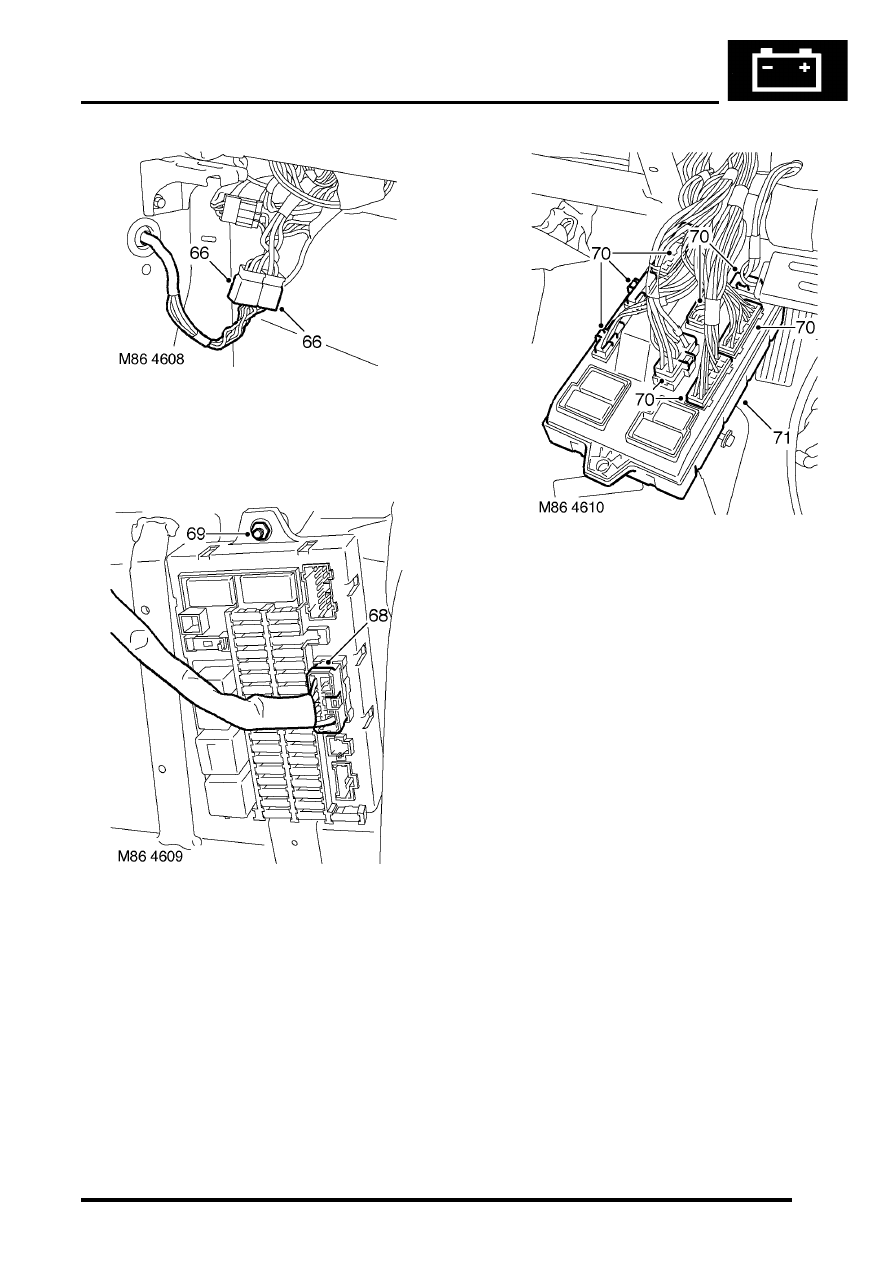

66. Disconnect 2 multiplugs from front door

harness.

67. With assistance withdraw LH side harness  into

interior.

68. Disconnect ignition harness multiplug from

passenger compartment fusebox.

69. Remove nut securing passenger  compartment

fusebox to steering support  bracket.

70. Release fusebox and disconnect 8  multiplugs.
71. Remove fusebox.

HARNESSES

86-7-24 REPAIRS

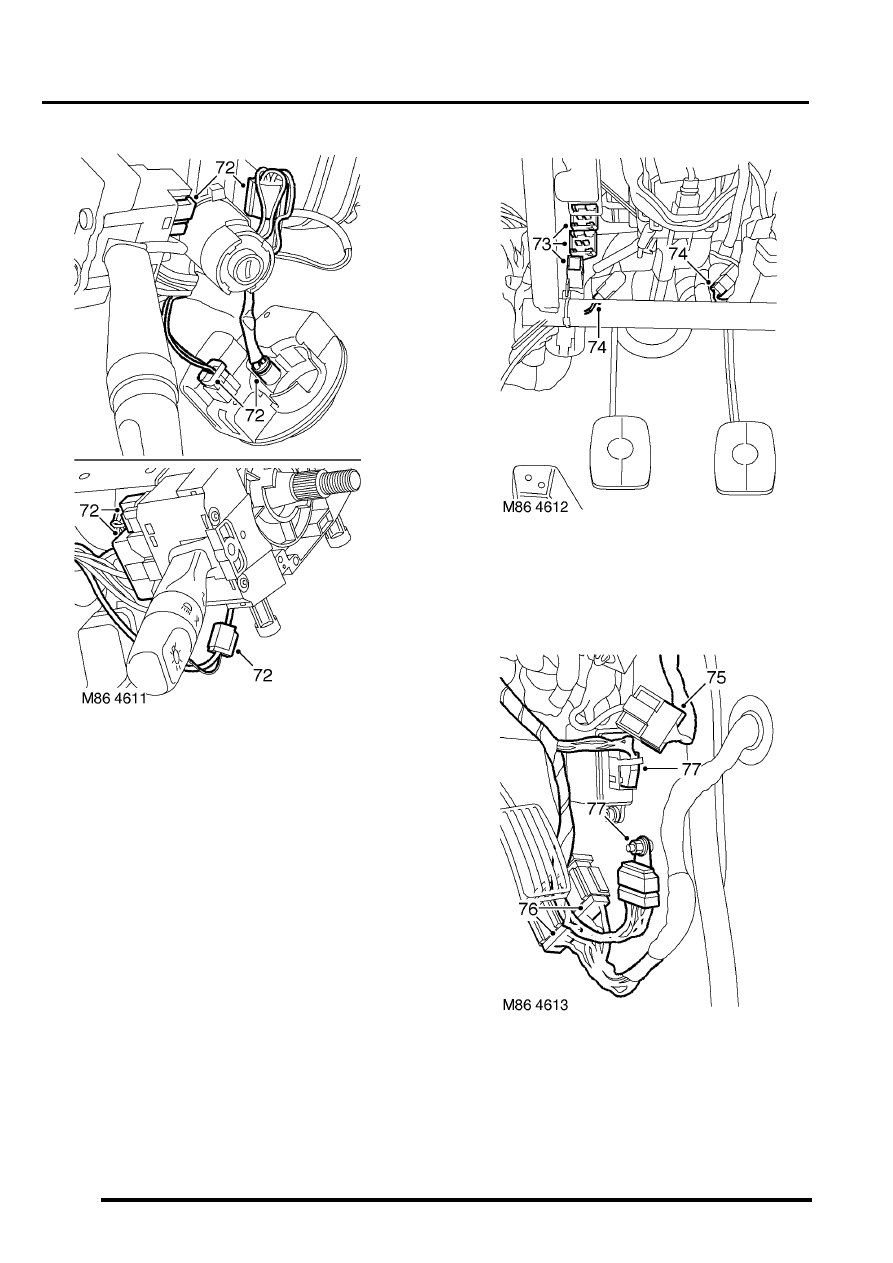

72. Disconnect 7 multiplugs from ignition passive

coil and steering column switch assembly.

73. Release 3 multiplugs from steering  column

support.

74. Disconnect multiplugs from brake and clutch

pedal.

75. Disconnect multiplug from RH side body

harness.

76. Disconnect 2 multiplugs from RH door

harness.

77. Disconnect multiplugs from cruise control

ECU, remove nut securing earth header to
body and remove earth header.

HARNESSES

REPAIRS 86-7-25

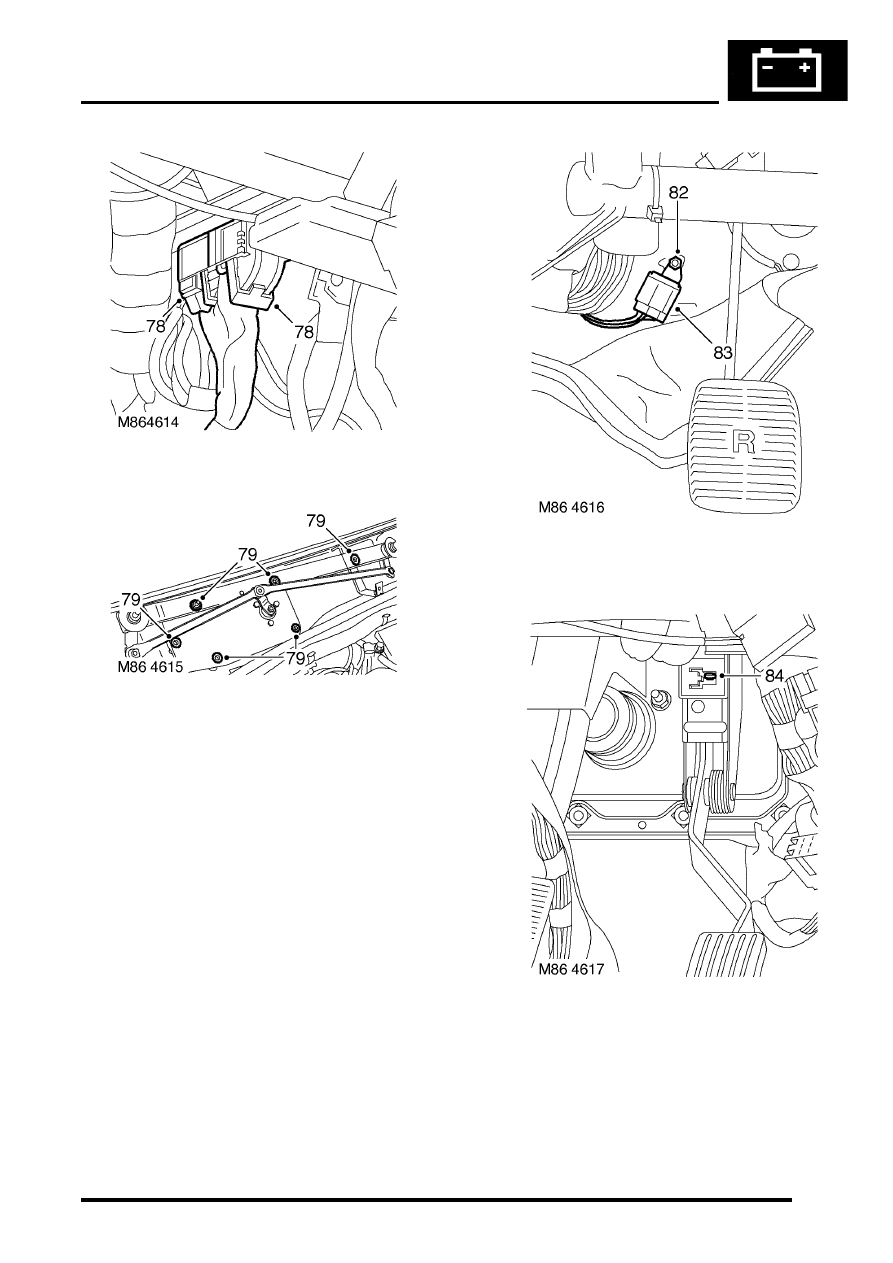

78. Disconnect 2 multiplugs from ECM.

79. Remove 6 nuts and bolts securing wiper

mechanism, release mechanism and
disconnect multiplug.

80. With assistance withdraw RH side harness into

interior.

81. Release RH side front carpet.

82. Remove nut securing earth header to  footwell.
83. Remove earth header.

84. Remove clip securing harness to pedal  box.

HARNESSES

86-7-26 REPAIRS

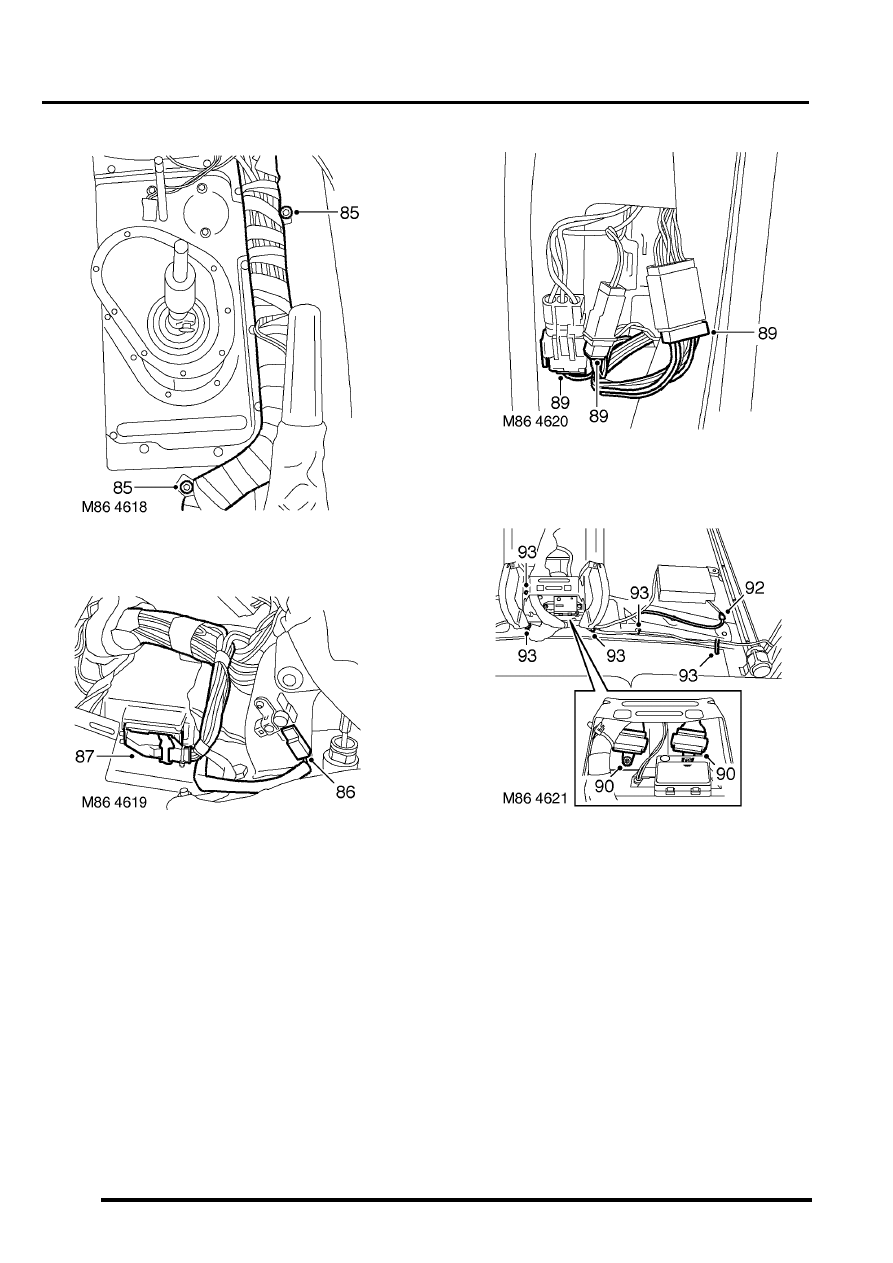

85. Remove 2 nuts securing harness to  tunnel.

86. Disconnect Lucar from handbrake switch.
87. Disconnect multiplug from DCU.
88. Remove rear carpet.



 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Carpet - rear.

89. Disconnect 3 multiplugs from RH rear  door

harness.

90. Remove 2 nuts securing 2 earth headers to

rear centre console tunnel.

91. Remove earth headers from centre  console.
92. Disconnect multiplug from CD player.
93. Remove 5 clips and 2 retainers securing

harness to floor.
