CHASSIS AND BODY DIMENSIONS

BODY DIMENSIONS

77-1-9

Point to point dimensional information
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

All dimensions are to hole/slot centres.

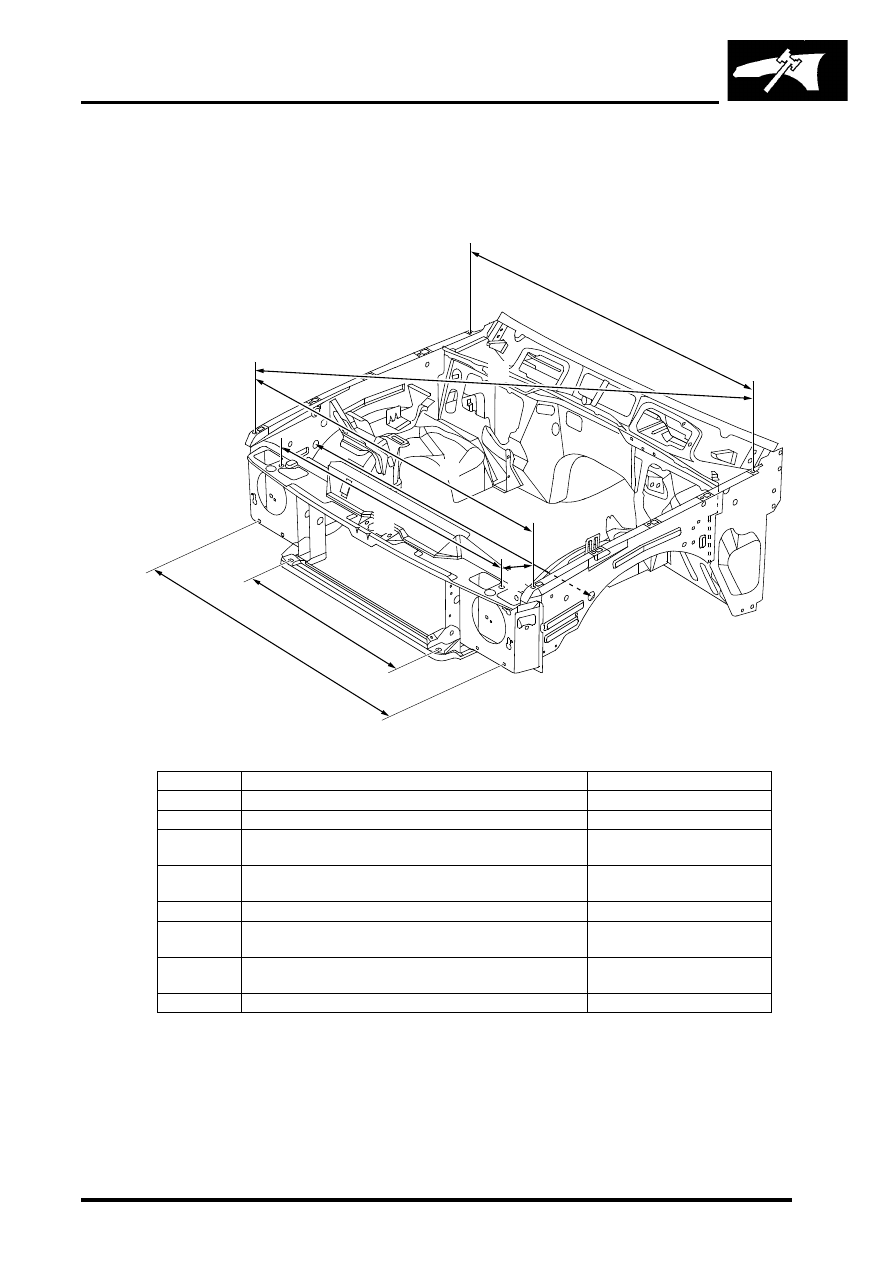

Front end information

I.D

Description

Length

A

Distance between headlamp mounting panel slots

1373.2 (54.062)

B

Distance between grille locating slots

827.8 (32.590)

C

Distance between bonnet locking platform jig location
holes

1222 (48.110)

D

Distance between valance upper assembly jig location
holes

1541 (60.669)

E

Distance between wing, front fixing holes

1536 (60.472)

F

Distance between bonnet locking platform jig location
hole and wing, front fixing hole

170.2 (6.700)

G

Distance between wing, front fixing hole and wing, rear
fixing hole

1894.7 (74.594)

H

Distance between wing, rear fixing holes

1586 (62.440)

M77 1752

A

B

 C

D

 E

 F

 G

H

CHASSIS AND BODY DIMENSIONS

77-1-10 BODY DIMENSIONS

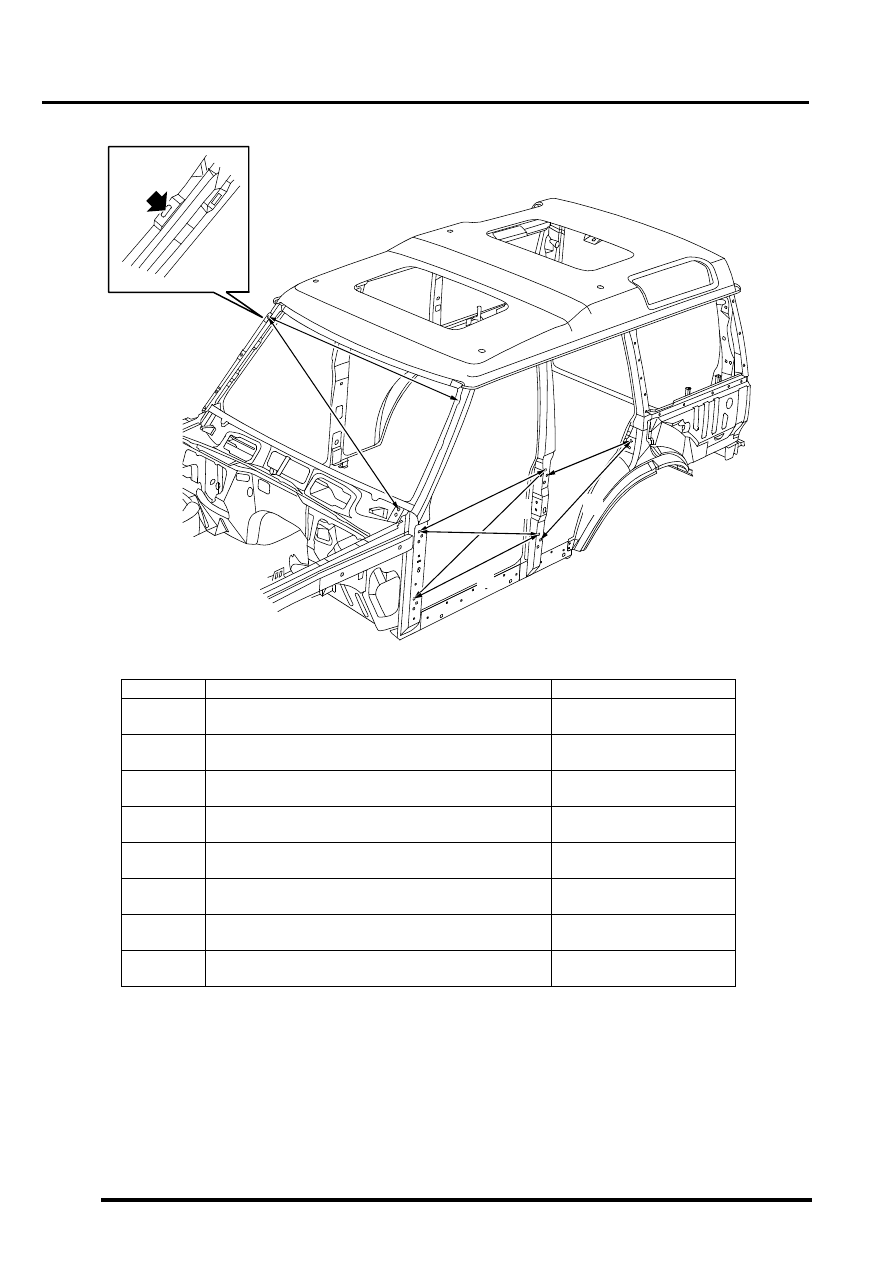

Front end/side information

I.D

Description

Length

A

Distance between bonnet hinge fixing top hole and
windscreen side finisher top fixing slot

1553.5 (61.161)

B

Distance between windscreen side finisher top fixing
slots

1430  (56.299)

C

Distance between front door top hinge fixing hole and
rear door top hinge fixing hole

998.5 (39.311)

D

Distance between front door top hinge fixing hole and
rear door bottom hinge fixing hole

1067.7 (42.035)

E

Distance between front door bottom hinge fixing hole
and rear door top hinge fixing hole

1072.5 (42.224)

F

Distance between front door bottom hinge fixing hole
and rear door bottom hinge fixing hole

998.5 (39.311)

G

Distance between 'B/C' post top jig location hole and 'D'
post top door striker fixing hole

767 (30.196)

H

Distance between 'B/C' post bottom jig location hole and
'D' post top door striker fixing hole

849.1 (33.429)

M77 1754

A

B

C

D

G

E

 F

 H

CHASSIS AND BODY DIMENSIONS

BODY DIMENSIONS 77-1-11

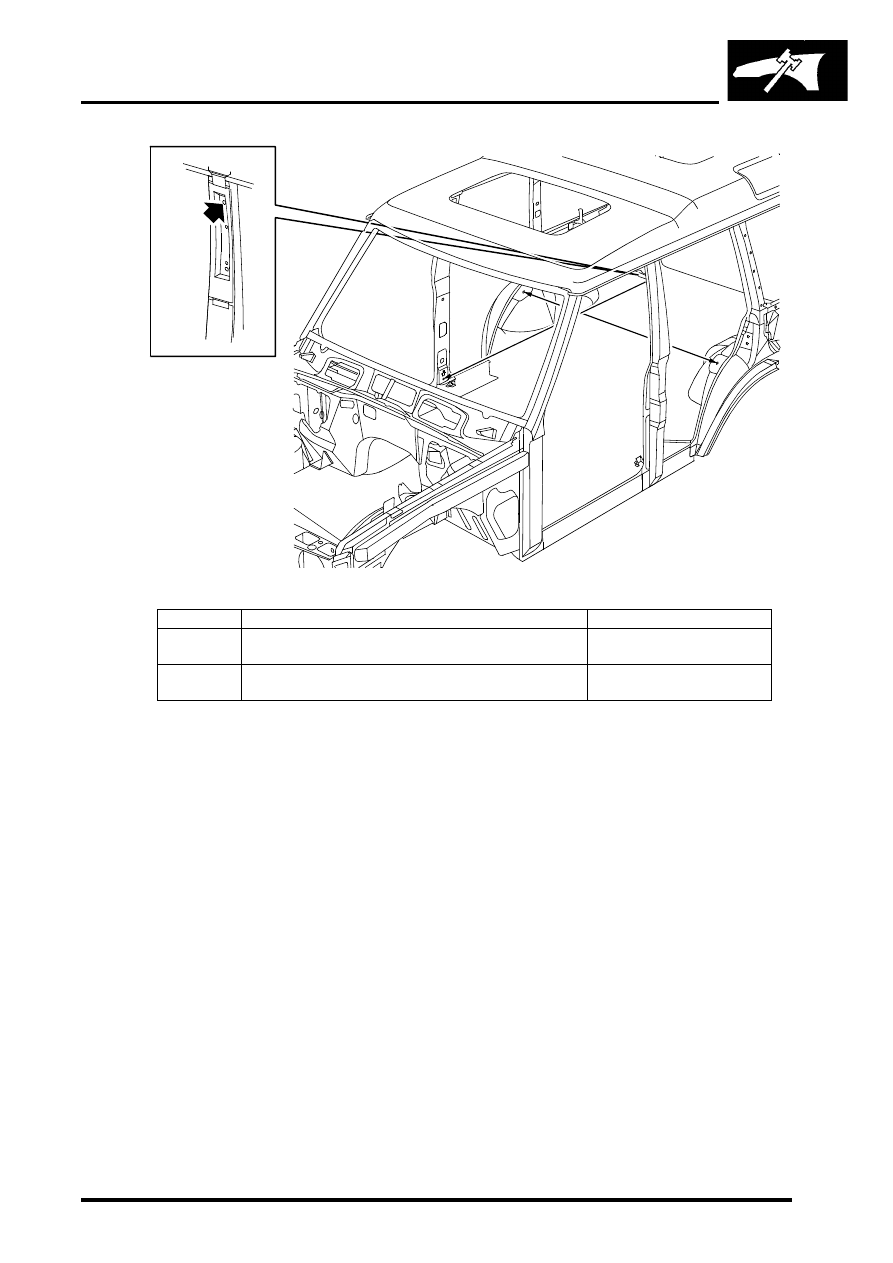

Internal information

I.D

Description

Length

A

Distance between seat belt anchorage top fixing and
seat belt reel lower fixing

1814.5 (71.437)

B

Distance between seat belt anchorage lower fixings on
wheel arch inner

1430.2  (56.307)

M77 1760

A

B

CHASSIS AND BODY DIMENSIONS

77-1-12 BODY DIMENSIONS

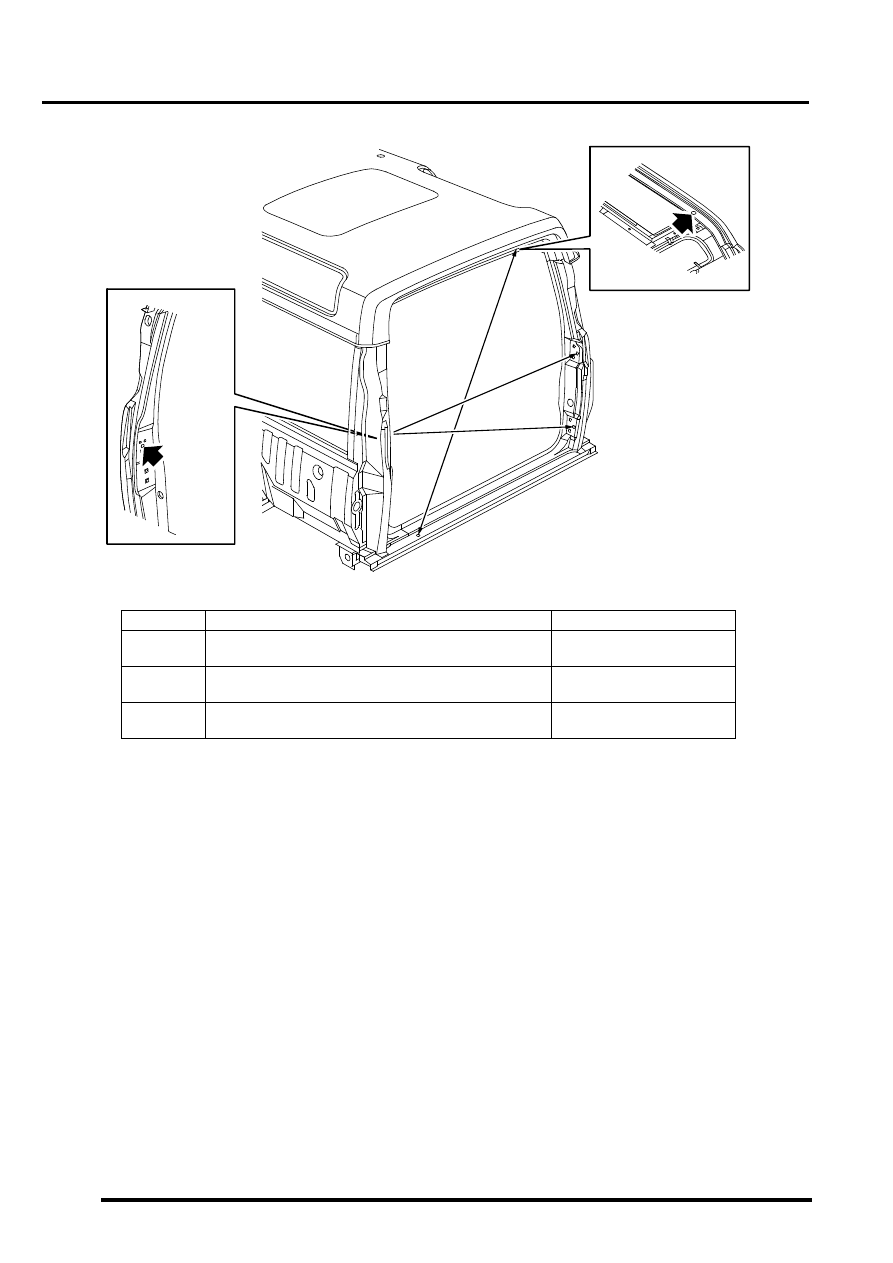

Rear end information

I.D

Description

Length

A

Distance between taildoor setting block, jig location hole
and taildoor bottom hinge, middle fixing hole

1364.4 (53.716)

B

Distance between taildoor setting block, jig location hole
and taildoor top hinge, middle fixing hole

1319.8  (51.960)

C

Distance between crossmember outer rear panel, jig
location hole and rear headrest fixing hole

1413 (55.629)

M77 1758A

A

B

C
