Land Rover Discovery. Manual - part 237





ENGINE

52

OVERHAUL

Inspecting components

1. Check starter ring gear teeth for chipping or

wear, replace ring gear if necessary.

2. Check drive plate for visible signs of damage

or distortion, replace drive plate if necessary.

Drive plate - refit

1. Check that bolt holes in crankshaft are clean

and dry.

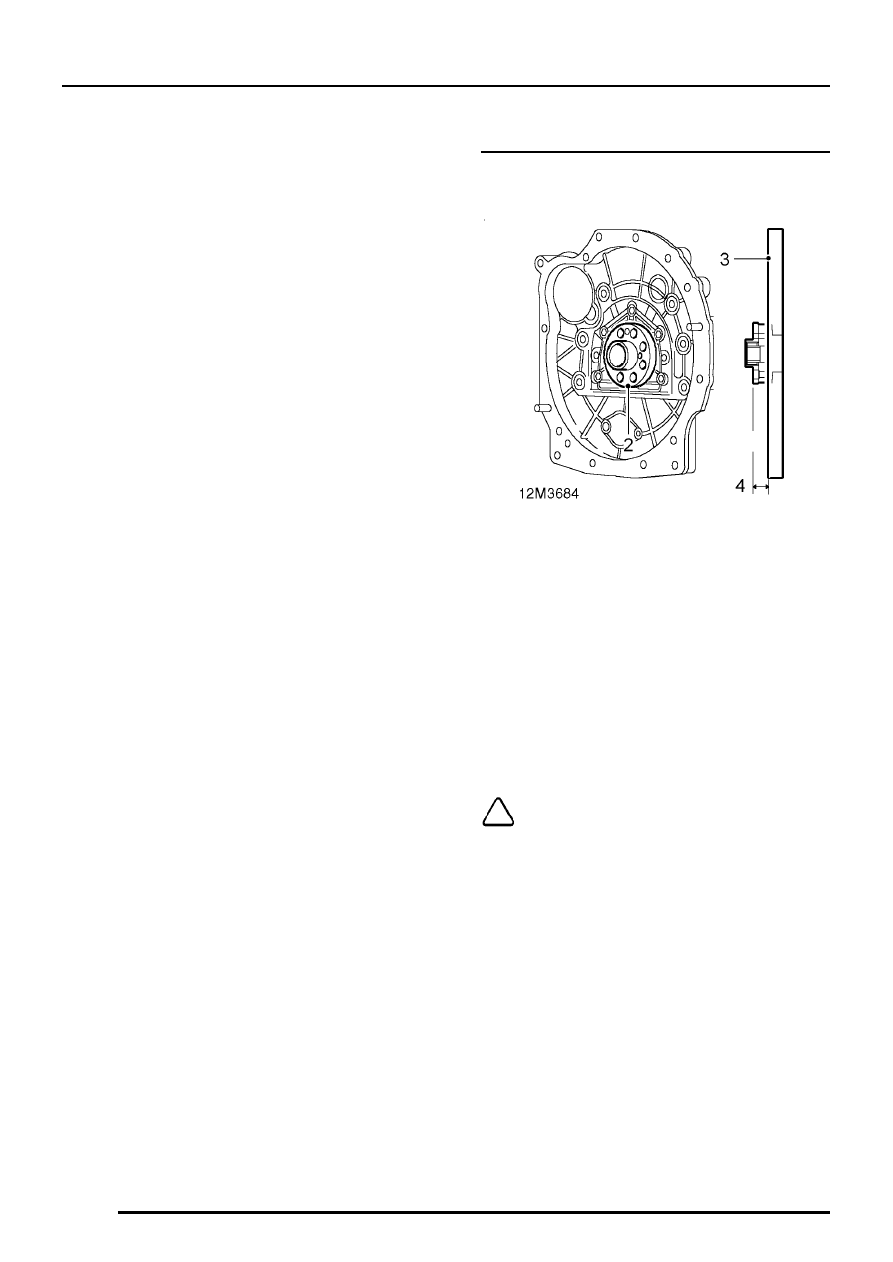

2. Position spacer, less original shims to

crankshaft.

3. Position a straight edge across spacer.
4. Measure and record distance between gearbox

mating flange of drive plate housing and
straight edge.

5. Repeat procedure on opposite side of spacer.
6. Add the 2 measurements obtained together

and calculate the average.

7. Calculate the difference between the average

figure obtained and 12.4 mm.

8. Select shims from the range available which

equal the final figure obtained.

NOTE: Shims are available rising in
increments of 0.1 mm from 1.0 mm to 2.1
mm in thickness.

ENGINE

OVERHAUL

53

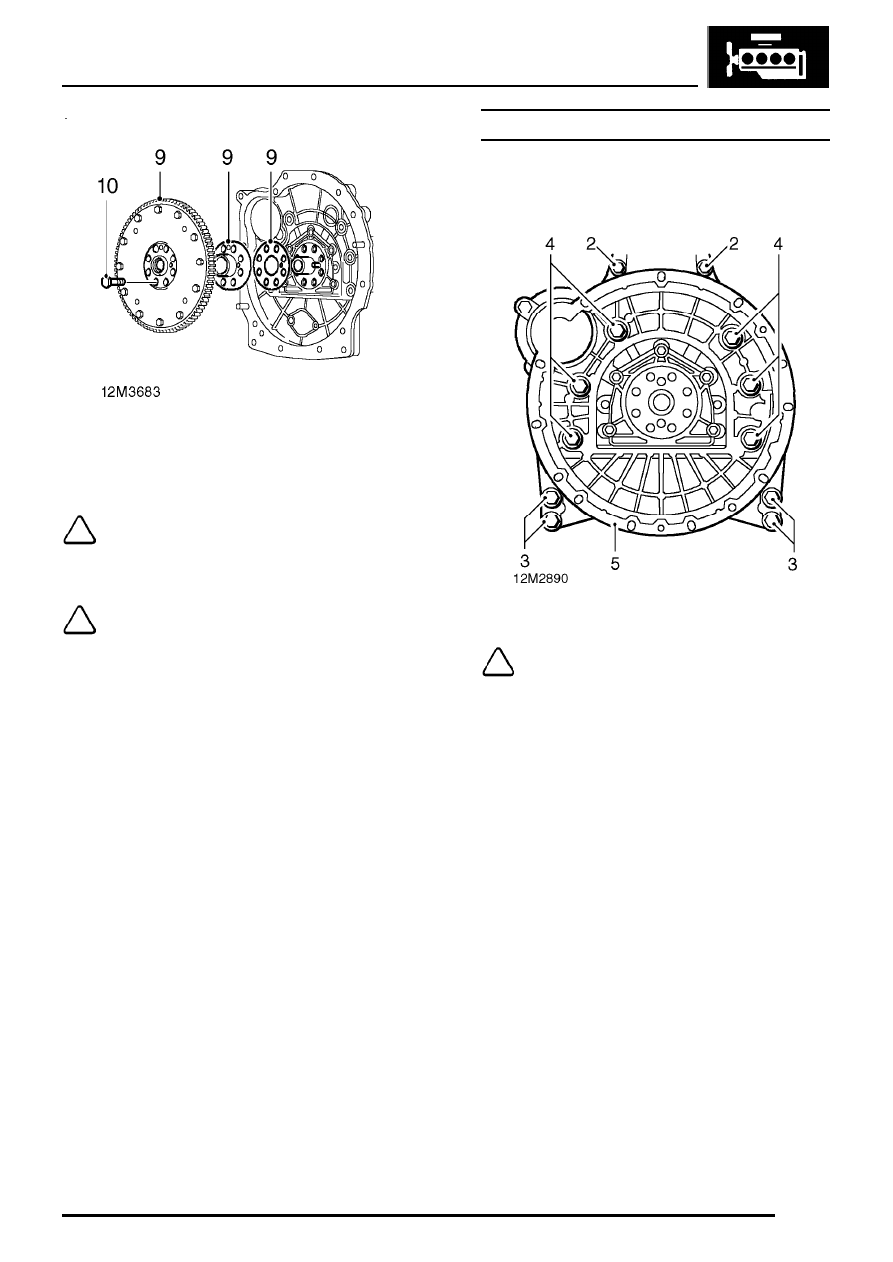

9. Position selected shims, spacer and drive plate

to crankshaft.

NOTE: Dowel located.

10. Fit and finger tighten 8 bolts.

NOTE: Locking plate is no longer required.

11. Restrain crankshaft using tool LRT-12-080

and tighten drive plate bolts to 146 Nm.

12. Remove tool LRT-12-080 and crankshaft

pulley.

FLYWHEEL/DRIVE PLATE HOUSING

Remove

1. Remove flywheel/drive plate.

NOTE: Flywheel housing illustrated.

2. Remove 2 bolts securing top of housing to

cylinder block.

3. Remove 4 bolts securing housing to engine

mountings.

4. Progressively slacken then remove 6 bolts

securing housing to cylinder block.

5. Remove housing.

ENGINE

54

OVERHAUL

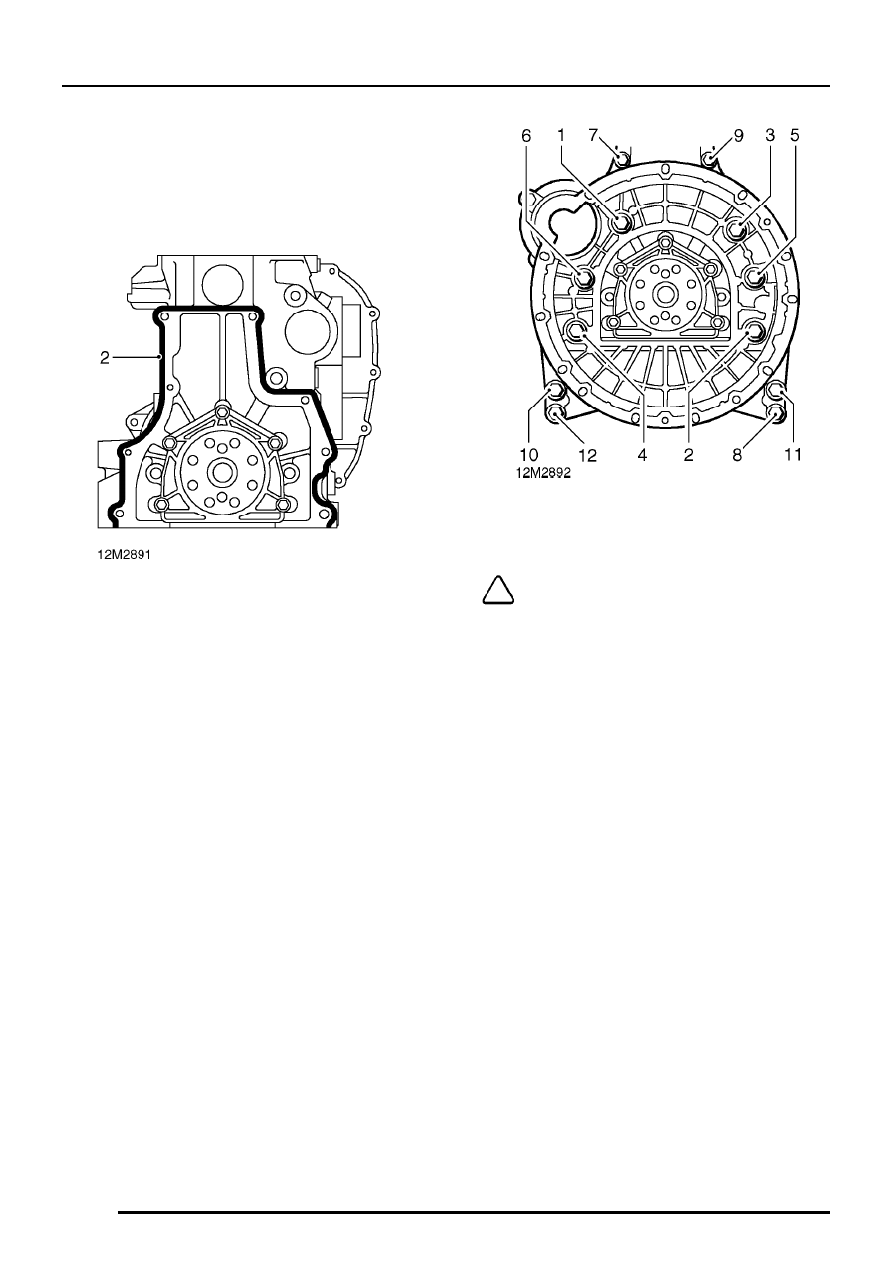

Refit

1. Remove all traces of sealant from mating faces

of housing and cylinder block using solvent
from kit GUG 705548GM.

2. Apply a bead of sealant from kit to cylinder

block.

3. Position housing to cylinder block.
4. Fit and finger tighten bolts.

5. Using sequence shown, tighten bolts to 45 Nm.

NOTE: If engine mounting bolts were not
fitted, omit bolts 8, 10, 11 and 12 from
tightening sequence and re-number

accordingly.

6. Fit flywheel/drive plate.

ENGINE

OVERHAUL

55

CRANKSHAFT, CAMSHAFT, PISTONS AND
CYLINDER BLOCK

1. Remove timing belt rear cover.
2. Remove flywheel/drive plate housing.
3. Remove fuel lift pump.
4. Remove cylinder head.
5. Remove sump, oil pick-up and drain pipes.
6. Remove oil filter head.
7. Remove brake servo vacuum pump.

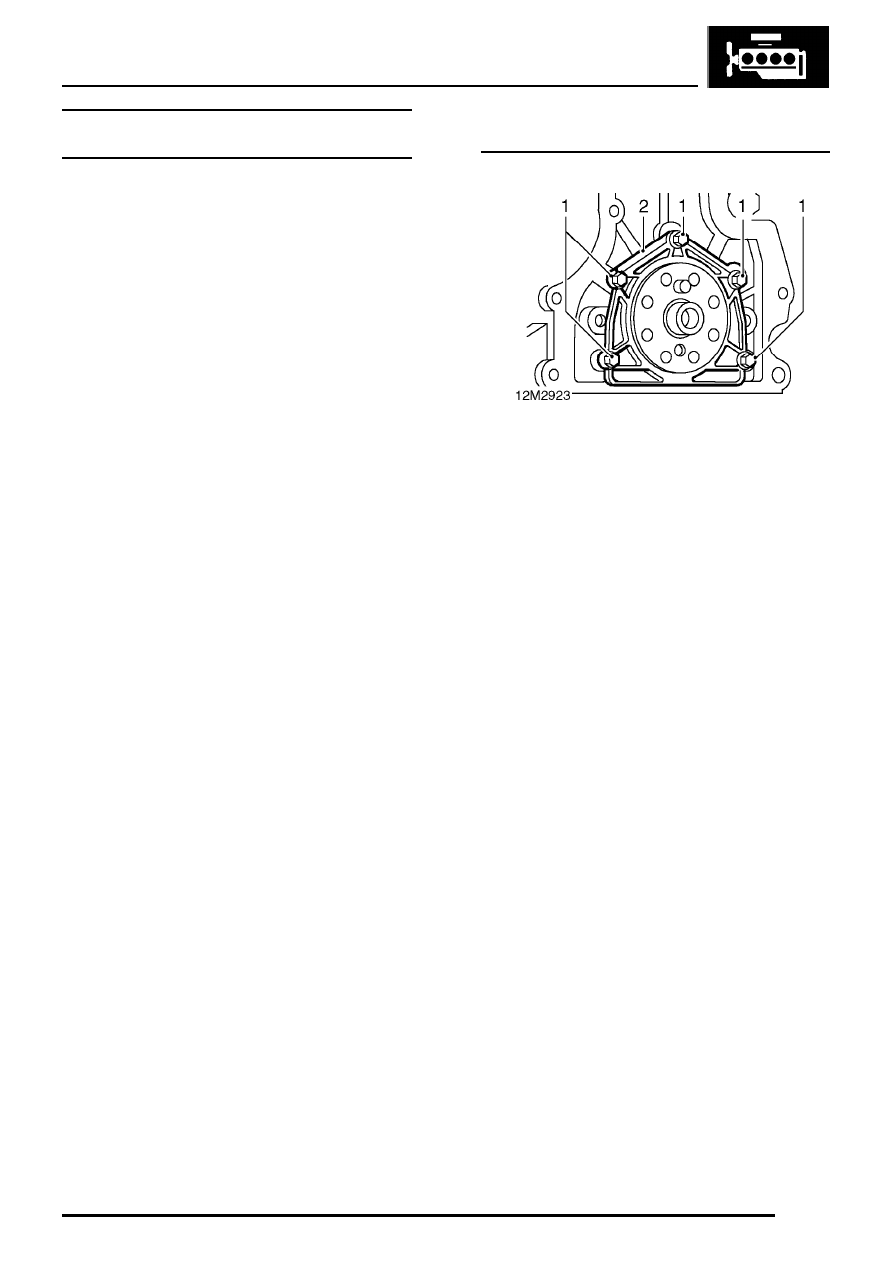

Crankshaft rear oil seal - remove

1. Remove 5 bolts securing rear oil seal housing

to cylinder block.

2. Remove and discard oil seal and housing.
3.

Early engines: Remove and discard ’O’ ring.

4. Remove and discard gasket.
