Land Rover Discovery. Manual - part 185





80

HEATING AND VENTILATION

2

DESCRIPTION AND OPERATION

Through-flow ventilation

Through-flow ventilation is achieved by means of
one-way air extraction vents incorporated in both rear
quarter body panels. The vents open and close
automatically dependent upon the heating and
ventilation unit control settings and the volume of air
entering the vehicle.

Heating and ventilation unit, controls

The Heating and Ventilation Unit is centrally located
and concealed by the dash assembly. When air
conditioning is fitted, an evaporator is mounted in the
heater unit forward of the heater matrix.

The dash mounted central controls are used to
operate both systems. A single switch controls the air
conditioning unit when fitted.

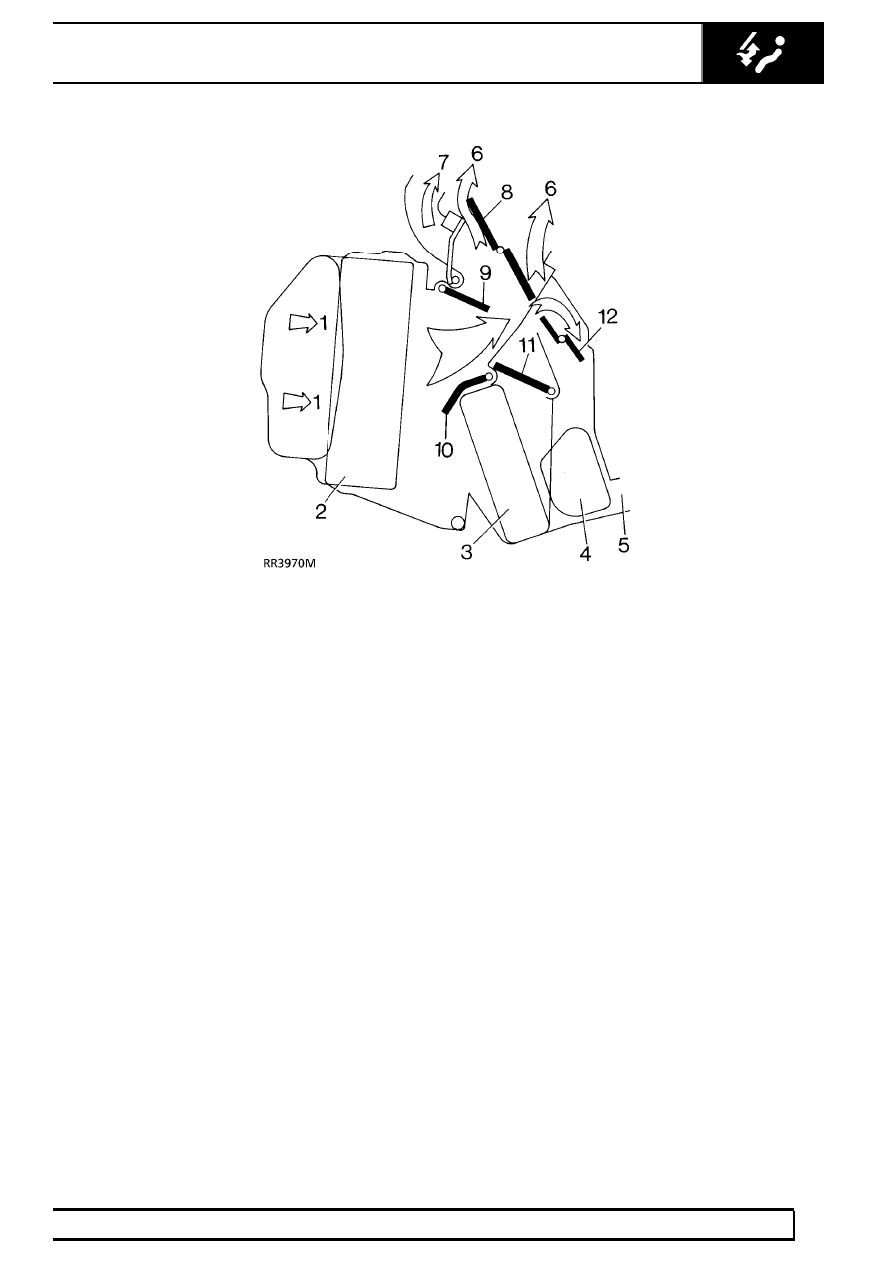

Controls set for maximum heat to footwells and face level vents

Heating and ventilation flaps and air flow key

1. Fresh or recirculated air from blower unit
2. Evaporator matrix - air conditioning (when fitted)
3. Heater matrix
4. Air outlet front footwells
5. Air outlet to rear footwells
6. Air outlet face level vents

7. Air outlets screen de-mist
8. Control flap - face level vents
9. Control flap - demist vents

10. Control flap - air direction
11. Control flap - air temperature
12. Control flap - air direction

HEATING AND VENTILATION

3

DESCRIPTION AND OPERATION

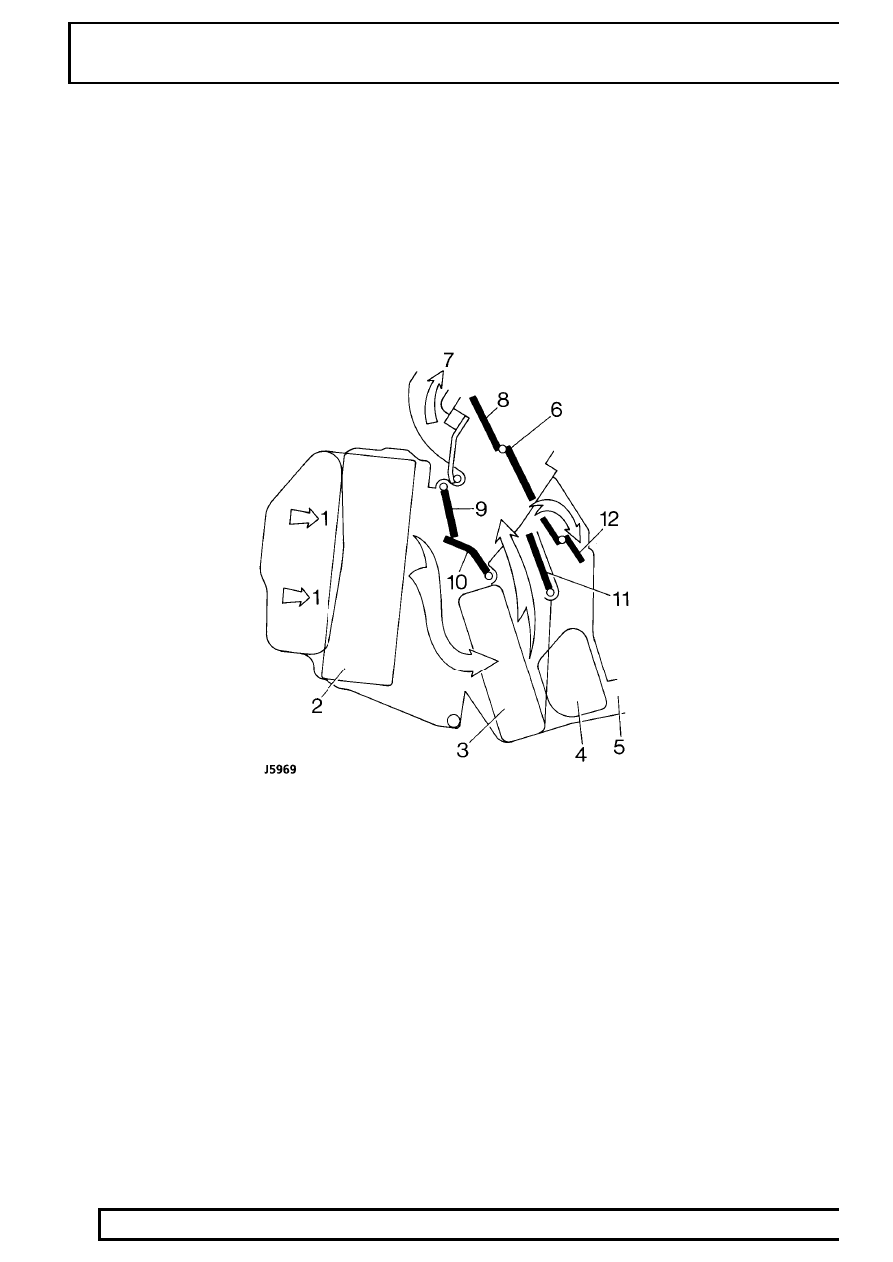

Controls set for unheated air to footwells and face level vents

Heater and ventilation operation

The heating and ventilation system contains a heater
matrix, which is connected to the engine cooling
system, and a 4 speed fan for air distribution. Engine
coolant is circulated through the heater matrix
continuously, except when the temperature controls
are set to COLD.

Recirculated air

When the recirculation switch is pressed, an electrical
servo operates and fully closes the fresh air intake
flap.

Fresh air

When the recirculation switch is returned to the OFF
position, the electrical servo returns and fully opens
the fresh air intake flap.

Heated air

Temperature output is controlled by the temperature
controls which move the air direction and temperature
flaps independently to increase or decrease the
volume of air flow through the heater matrix.
V8 Engine: When both controls are in the cold
position, the coolant valve is turned off.

Face level vent flap

Control at face level, flap fully open. All other vents
closed.
Control at face and foot level, flaps half open.

Unless an air conditioning unit is fitted, only fresh or
re-circulated air is available from the face level vents.

Demist vent flap

Control at demist, flap fully open. All other vents
closed.
Control at demist and foot level, flaps half open.

80

HEATING AND VENTILATION

4

DESCRIPTION AND OPERATION

Air direction flap

Flap moves across mixing chamber to direct the air
flow away from the heater matrix.

Air temperature flap

Control at HOT, flaps fully closed. All air flow passes
through heater matrix. As control is moved towards
COLD the flaps progressively open directing air flow
away from the heater matrix.
Control at COLD, flaps fully open.
V8 Engine: When both controls are at COLD, 2
micro-switches are closed and operate a vacuum
valve which closes the coolant valve.

Air conditioning

When an air conditioning unit is fitted, the mechanical
operation of the heater controls remains unaltered.
However the air conditioning evaporator is positioned
in front of the mixing chamber through which all air
flow passes.

HEATING AND VENTILATION

1

FAULT DIAGNOSIS

HEATER OUTPUT

Symptom:-

Heater emits cold air.

1. Engine running: Check coolant valve opens as a

temperature control is moved from COLD.

2. Check for engine running cold.

See COOLING

SYSTEM, Fault diagnosis, Engine Runs Cold

3. Check heater pipes and hoses for blockage or

restriction.

4. Check heater matrix for blockage or restriction,

flush system.

Heater emits warm air.

5. Engine running: Check coolant valve closes

when both temperature controls are moved to
COLD.
