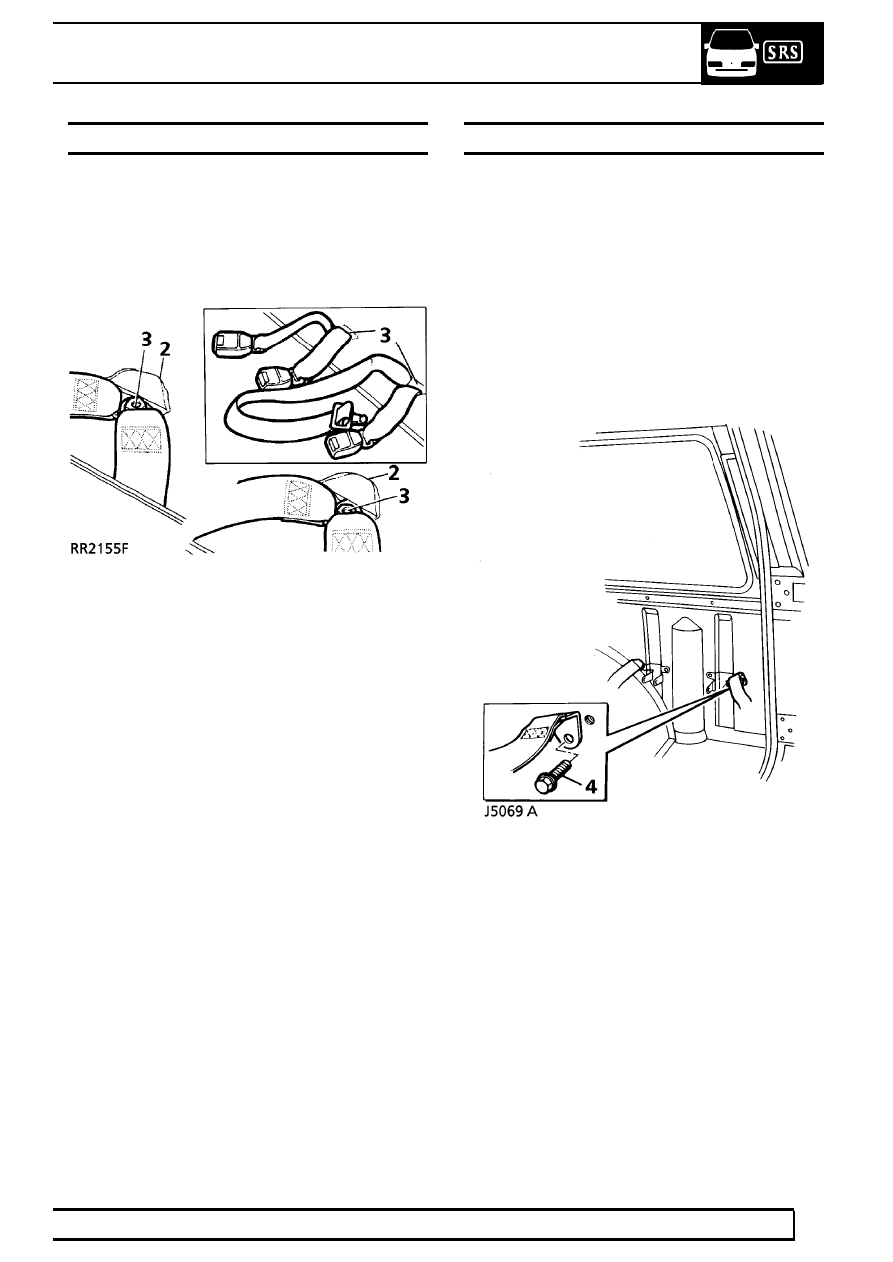

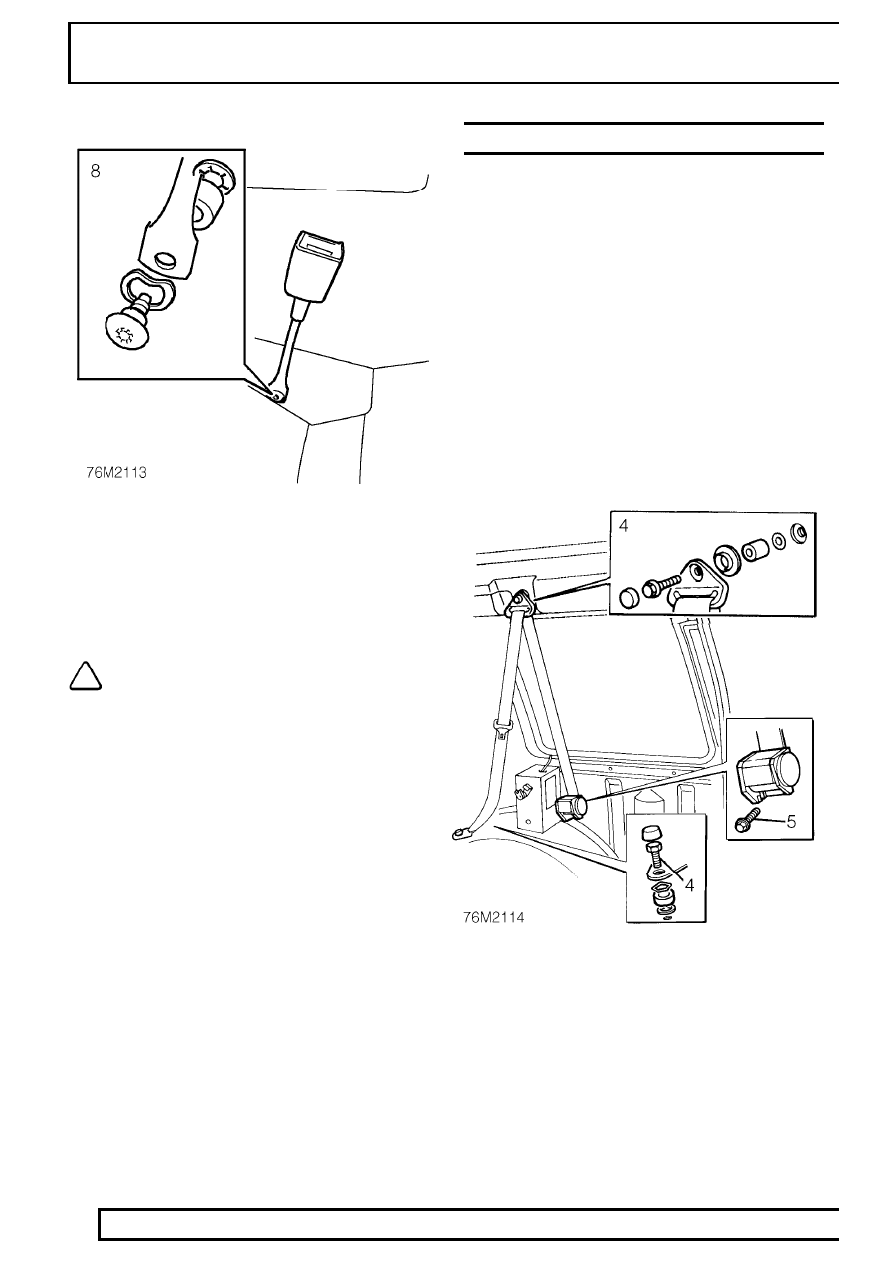

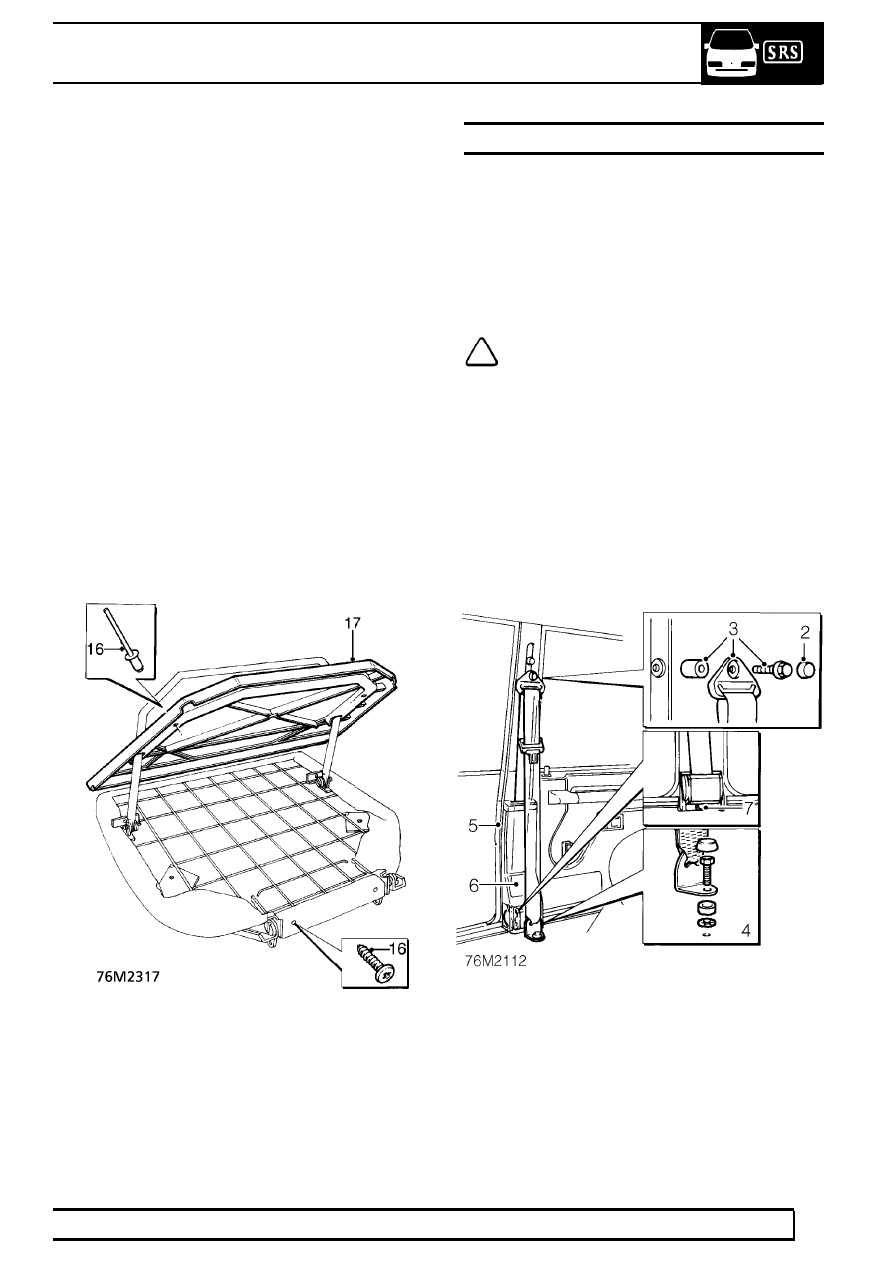

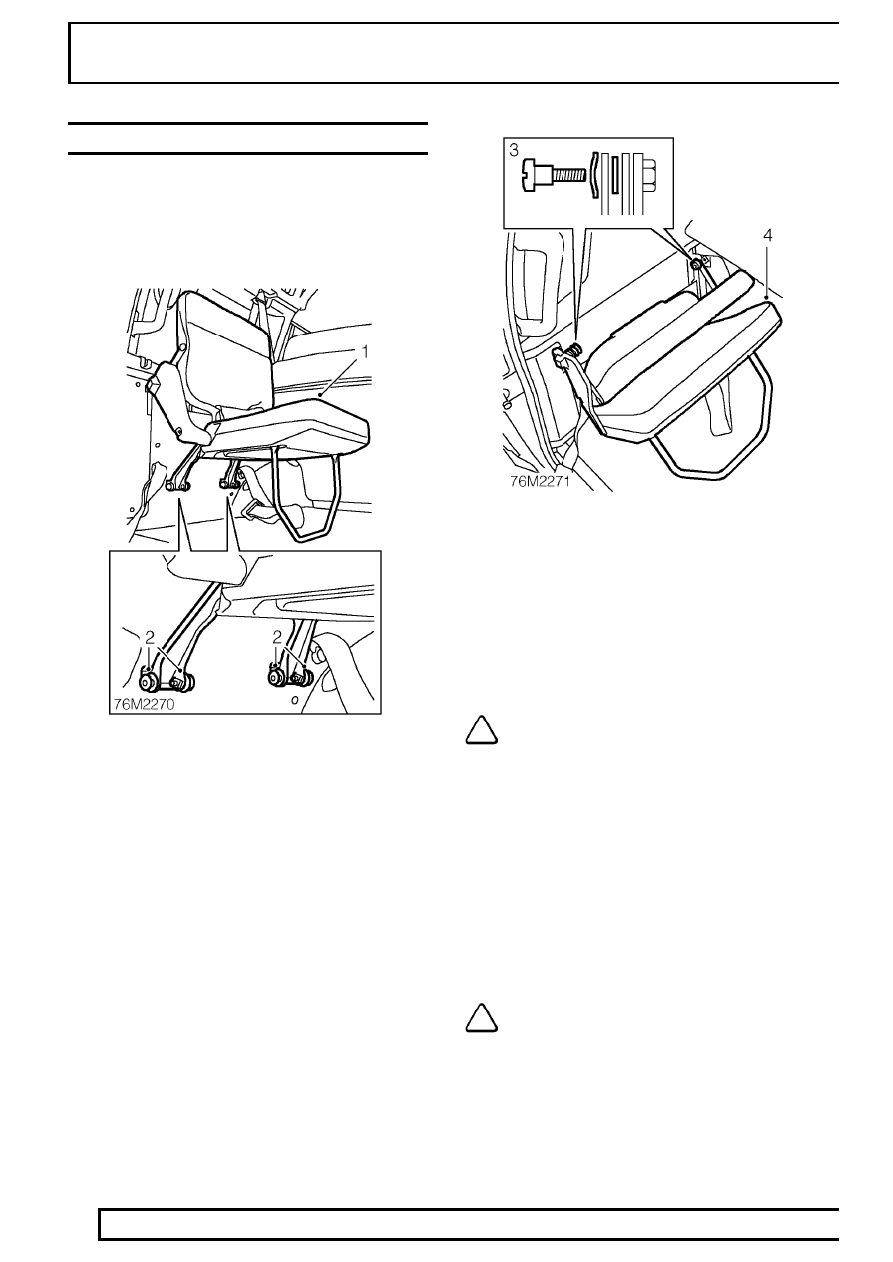

76 CHASSIS AND BODY 28 REPAIR REAR FOLD DOWN SEATS Service repair no - 76.71.23 Seat and squab Remove 1. Locate the seat in the down position, release the seat belt strap and buckle from their stowed 2. Remove 4 Torx screws from the lower brackets. 3. Fold the seat up and remove the 2 Torx screws from the upper brackets. Collect 4 washers. 4. Remove seat assembly. Refit 5. Position seat assembly, align upper brackets, and secure with Torx screws tightened to 13 Nm (10 lbf ft) . NOTE: Ensure washers are fitted in their 6. Align lower brackets, fit Torx screws and tighten to 13 Nm (10 lbf ft) . 7. Secure the seat belt strap and buckle to their stowed positions. Seat squab Remove 8. Remove the seat assembly from the vehicle. the seat squab to the frame. NOTE: The pivot bolts, securing the seat between the link or bracket. Ensure that these |
