Land Rover Discovery. Manual - part 172





76

CHASSIS AND BODY

20

REPAIR

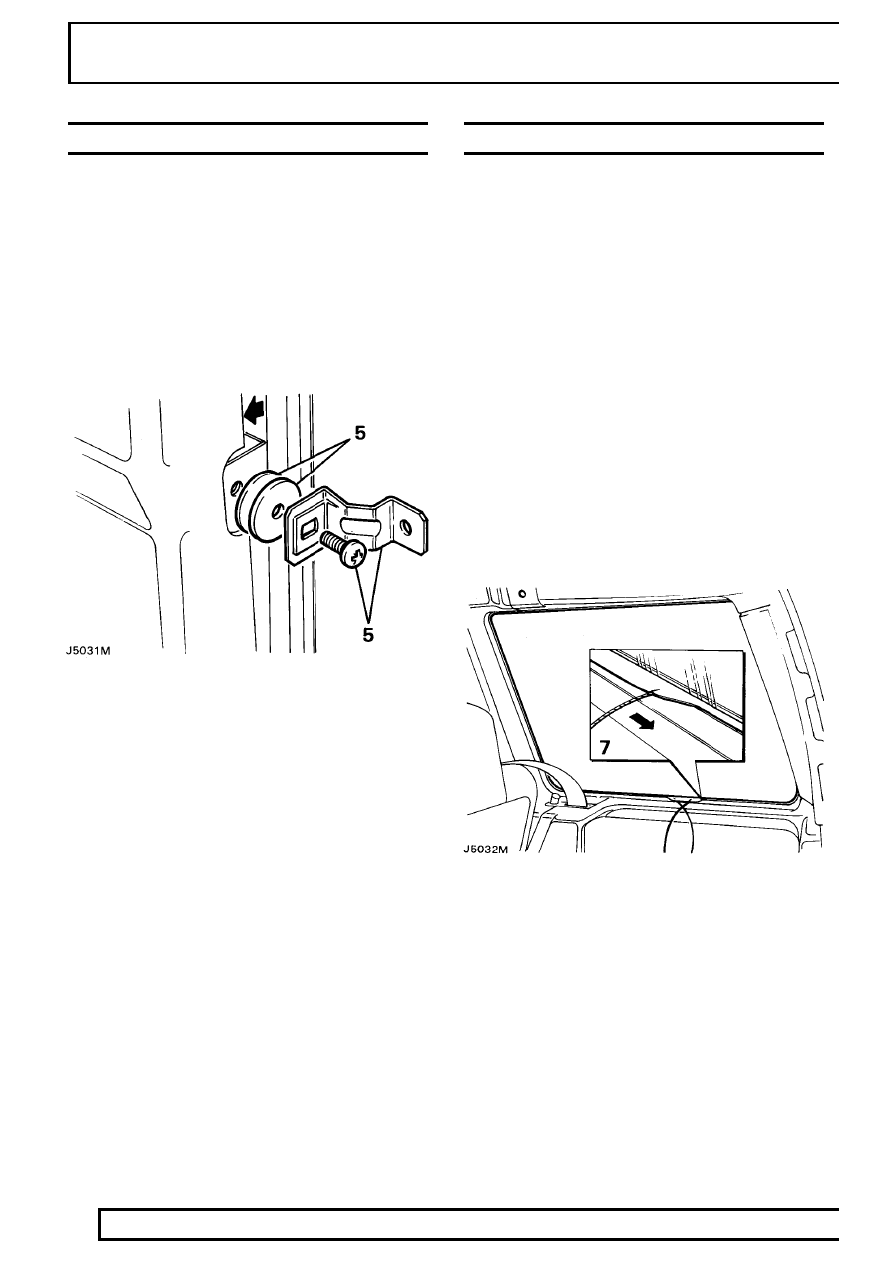

BODY SIDE WINDOW HINGES

Service repair no - 76.81.47

Remove

1. Remove the window.

See body side opening

windows.

2. Remove the passenger grab handle.
3. Detach the front seat belt top mounting from the

door post.

4. Ease the trim panel away from the door post to

gain access to the window hinges.

5. Remove the screws securing the window hinges,

taking care not to lose the the packing washers
where fitted. Note the thickness and location of
any packing washers fitted.

Refit

6. Fit the hinges with packing washers fitted to the

locations and thickness noted during removal.
Do not fully tighten the screws at this stage.

7. Refit the glass to the hinges.
8. Locate the window catch trim and secure the

catch to the body.

9. Close the window and secure with the catch.

10. Check the alignment and squareness of the

glass, adjust as necessary by adding or deleting
washers and using the elongated slots in the
hinges for adjustment, finally tighten the screws.

11. Reposition the trim panel and refit the hinge

finishers.

12. Refit the top seat belt bracket and the grab

handle.

REAR SIDE FIXED WINDOWS

Service repair no - 76.81.18

Remove

1. If fitted push out the glass and remove the

mounting rubber.

2. Remove the rear seat belt top fixing.

Refit

3. Thoroughly clean the opening to be glazed.
4. Clean the glass and fit the mounting rubber,

ensuring that the glass sits correctly in the
groove.

5. Fit a draw cord around the exterior of the

mounting rubber.

6. To aid assembly, coat the flange in the bodyside

with liquid soap.

7. Position the assembled glass and rubber

mounting to the opening in the body, with the
tails of the draw cord fed into the interior of the
vehicle.

8. With assistance from a second operator, pushing

the glass and mounting rubber into the opening,
pull the draw cord from the mounting rubber
enabling the seal to ride up over the retaining
flange.

9. Ease the inner section of the mounting rubber

over the interior trim panel.

CHASSIS AND BODY

21

REPAIR

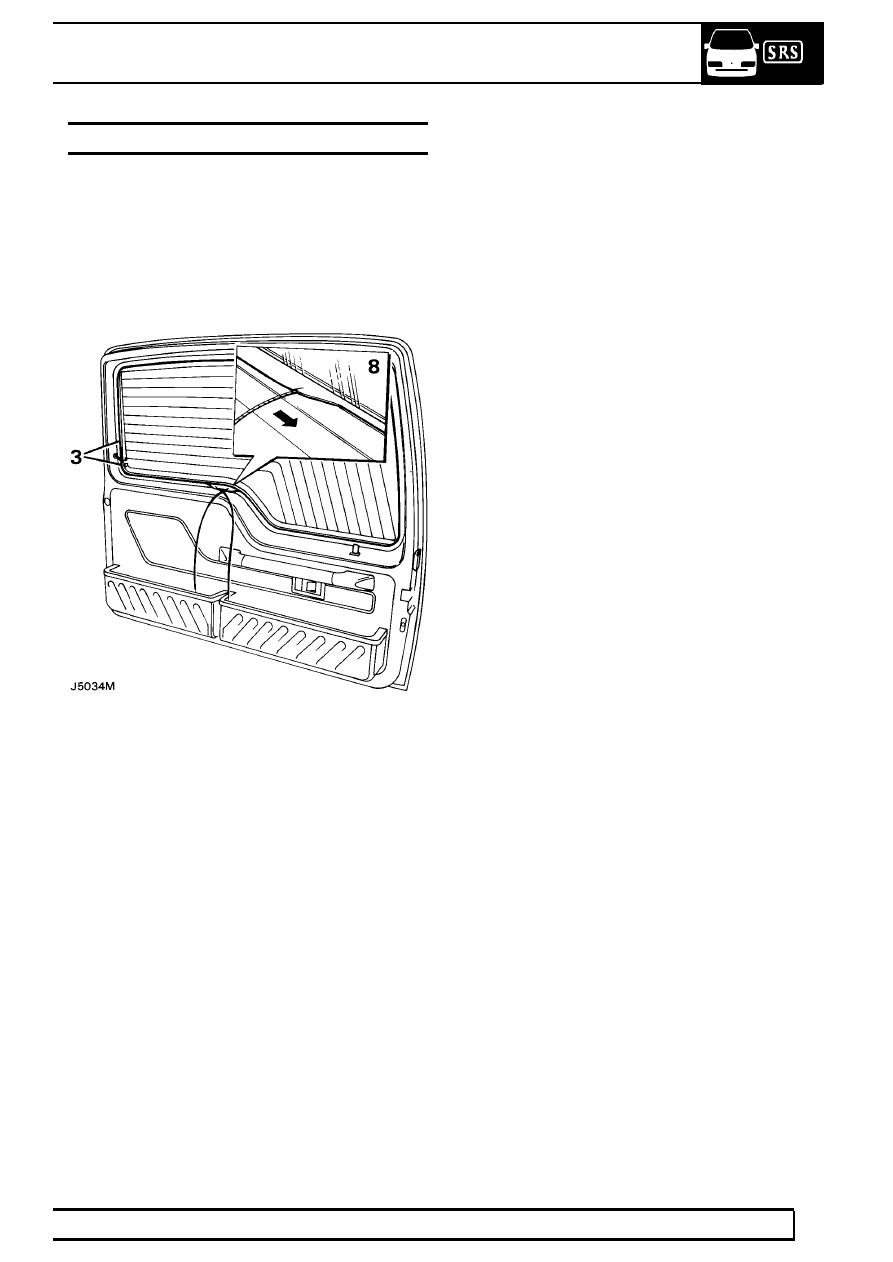

REAR DOOR GLASS

Service repair no - 76.31.21

Remove

1. Remove the spare wheel from the rear door.
2. Remove the rear door wiper arm.

See WIPERS

AND WASHERS, Repair, wiper arm - rear
window.

3. If the glass is fitted, disconnect the heater leads

from the terminals, push out the glass and
remove the mounting rubber.

Refit

4. Thoroughly clean the opening to be glazed.
5. Clean the glass and fit the mounting rubber,

ensuring that the glass sits correctly in the
groove.

6. Fit a draw cord around the exterior of the

mounting rubber with the tails of the cord
situated on the top corner of the bend at the
bottom of the glass.

7. To aid assembly, coat the glass opening in the

door with liquid soap.

8. Position the assembled glass and rubber

mounting to the opening, with the tails of the
draw cord fed into the interior of the vehicle.

9. With assistance from a second operator, pushing

the glass and mounting rubber into the opening,
pull the draw cord from the mounting rubber
enabling the seal to ride up over the retaining
flange.

10. Connect the heater leads to the terminals on the

glass.

76

CHASSIS AND BODY

22

REPAIR

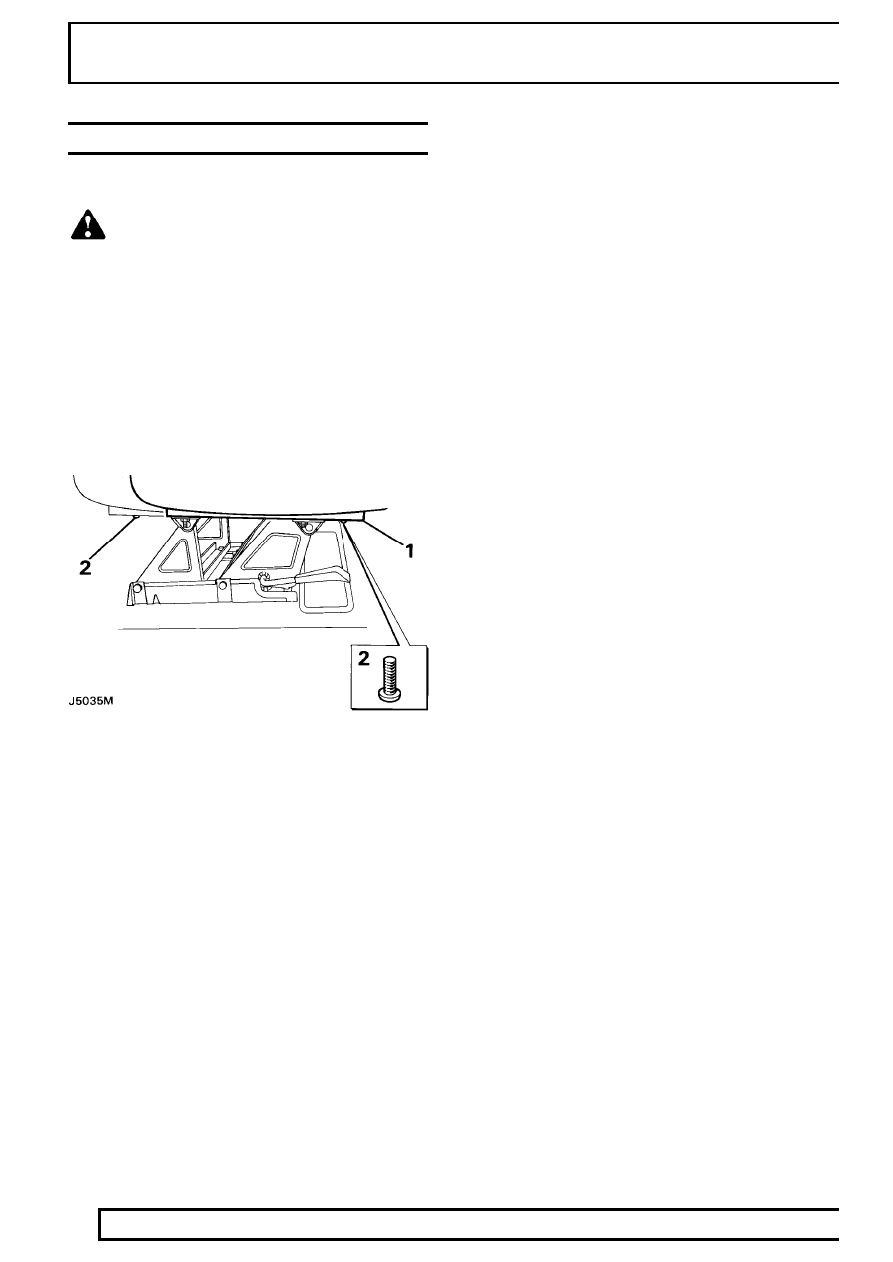

FRONT FOLDING SEATS 3 DOOR VEHICLES

Service repair no - 76.70.01

WARNING: Care must be taken if the seat
lifting mechanism is operated when the
seat is removed from the base otherwise

personal injury could occur.

Remove

1. Slide the seat to the full extent rearwards and

remove the rear seat to base securing bolts.

2. Slide the seat forward and remove the front seat

to base securing bolts.

3. Lift the seat from the base and withdraw from the

vehicle.

Refit

4. Reverse removal procedure.
5. Tighten all securing bolts to

22 Nm (16 lbf ft) .

CHASSIS AND BODY

23

REPAIR

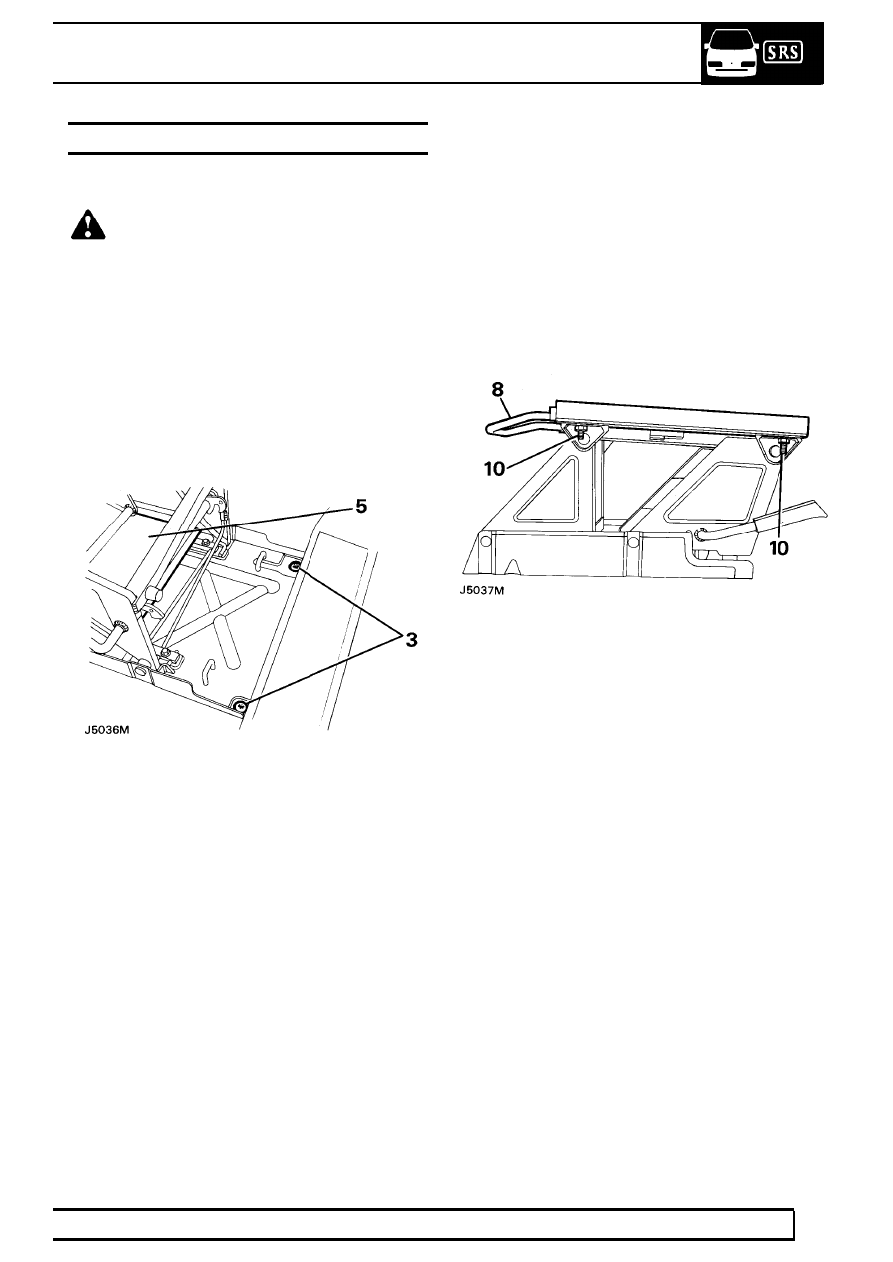

SEAT BASE

Service repair no - 76.70.06/25

WARNING: Care must be taken if the seat
lifting mechanism is operated when the
seat is removed from the base otherwise

personal injury could occur.

Remove

1. Remove the seat from the base.
2. Carefully operate the seat mechanism to raise it

to the tilt position.

3. Remove the two bolts securing the rear of the

base to the floor.

4. Return the seat mechanism to the upright

position.

5. Pull the carpet flap forward to expose the front

securing bolts, remove the bolts and lift out the
seat base.

Refit

6. Reverse removal procedure.

SEAT BASE RUNNERS

Remove

7. Remove the seat from the base.
8. Spring the release handle off its locations on the

runners.

9. Slide the runners forward sufficient to gain

access to the rear securing bolts and rearward
for the front bolts.

10. Remove the bolts and withdraw the runners.

Refit

11. Fit the runners and release handle.
12. Reverse removal procedure.
13. Refit the seat to the base.
