SUPPLEMENTARY RESTRAINT SYSTEM

6

REPAIR

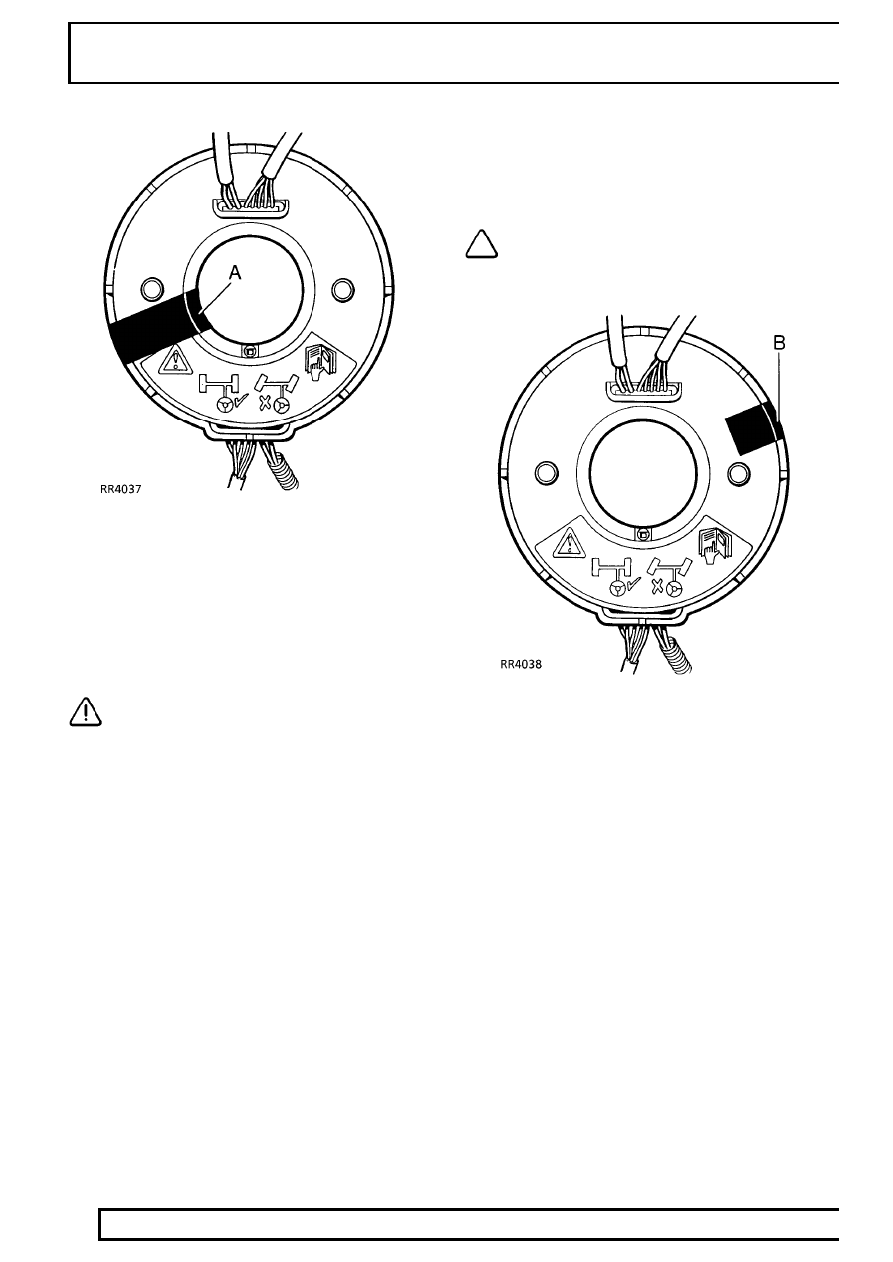

11. If rotary coupler is being re-used, place a piece

of adhesive tape around moulding in position A
to prevent rotation.

Refit

12. Reverse removal procedure.

CAUTION: Ensure indicator cancellation
pegs correctly engage into back of
steering wheel.

13. Align direction indicator cancellation bush. If

original rotary coupler is being fitted remove
adhesive tape and then fit rotary coupler to
column switch assembly.

NOTE: If original rotary coupler is to be
fitted and there is evidence of tampering, it
is imperative that the coupler is

centralised.

See rotary coupler centralise.

14. If a new rotary coupler is being fitted and the

sealing tape at position is broken it MUST
NOT be used.

15. Refit steering wheel.

See steering wheel.

16. Turn steering wheel to both LH and RH lock 5

times. If adverse noises can be heard, check
alignment of indicator cancellation pegs.

17. Refit driver’s airbag module.

See driver’s

airbag module.

SUPPLEMENTARY RESTRAINT SYSTEM

7

REPAIR

ROTARY COUPLER CENTRALISE

Fitting a rotary coupler which has not been centralised
could result in tape breakage. If the tape is broken, a
new rotary coupler must be fitted.

Providing the removal procedure has been correctly
followed this operation should not be necessary. If
however there is evidence of tampering, it is
imperative that the coupler is centralised.

CAUTION: Ensure wheels are positioned
straight ahead before fitting the rotary
coupler.

1. Correctly fit rotary coupler to column switch

assembly but do not fit steering wheel or make
any electrical connections.

See rotary coupler.

2. Depress rotary coupler locking peg and without

using undue force, rotate coupler anti-clockwise
as far as inner tape will allow. Releasing peg will
lock coupler in its current position.

NOTE: Do not apply excessive force when
limit is reached as this may result in tape
breakage. If no limit can be found, tape

has already broken and rotary coupler must be
replaced.

3. Having turned rotary coupler fully anti-clockwise

to limit position, proceed to turn coupler 2.5 turns
clockwise to obtain central position. (Coupler will
normally rotate a full five turns from
anti-clockwise limit to clockwise limit).

4. Make necessary electrical connections and refit

steering wheel.

See steering wheel.

5. Refit driver’s airbag module.

See driver’s

airbag module.

COLUMN SWITCH ASSEMBLY

Service repair no - Indicator/lighting - 86.65.55
Service repair no - Wash/wipe - 84.15.34

Remove

1. Remove steering wheel.

See steering wheel.

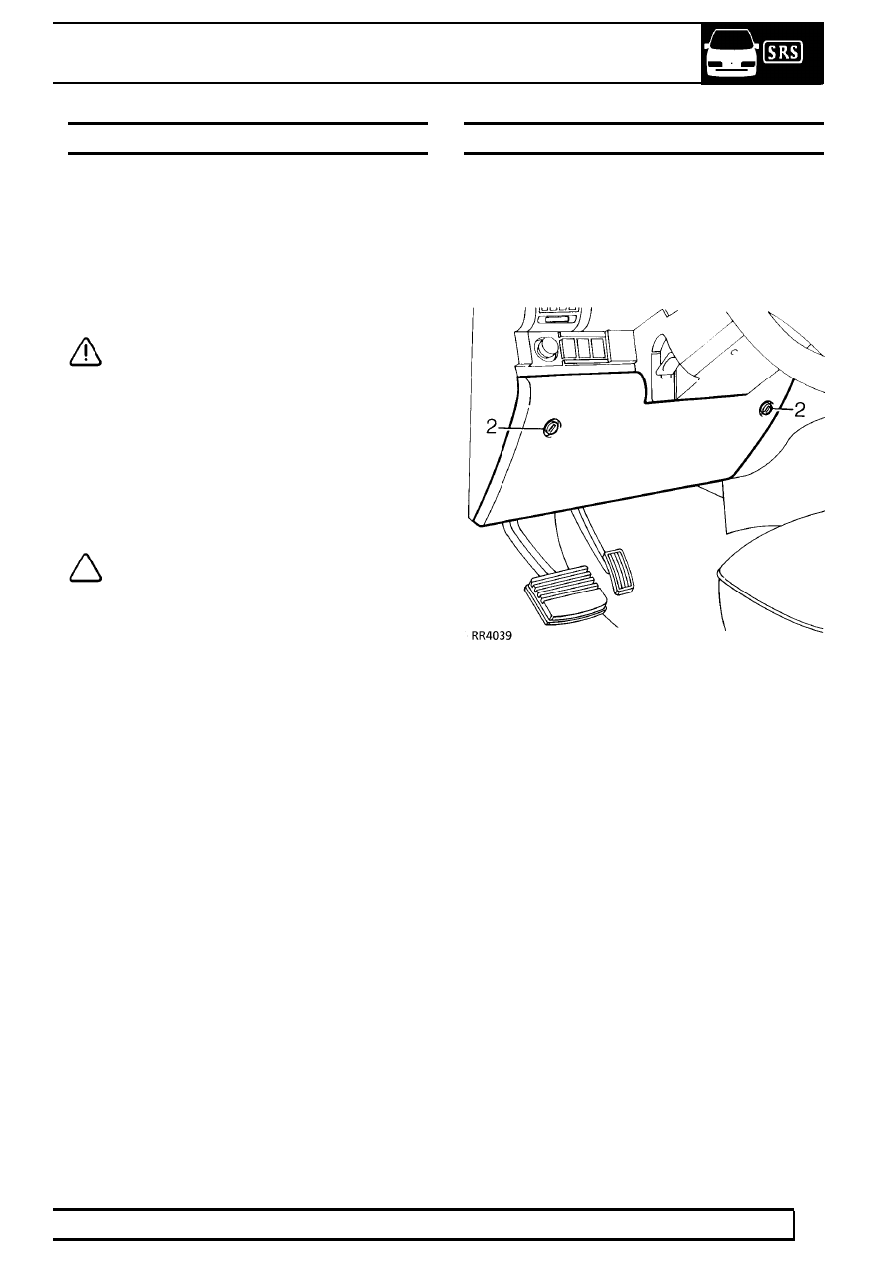

2. Release 2 turnbuckles and remove lower dash

panel.

75

SUPPLEMENTARY RESTRAINT SYSTEM

8

REPAIR

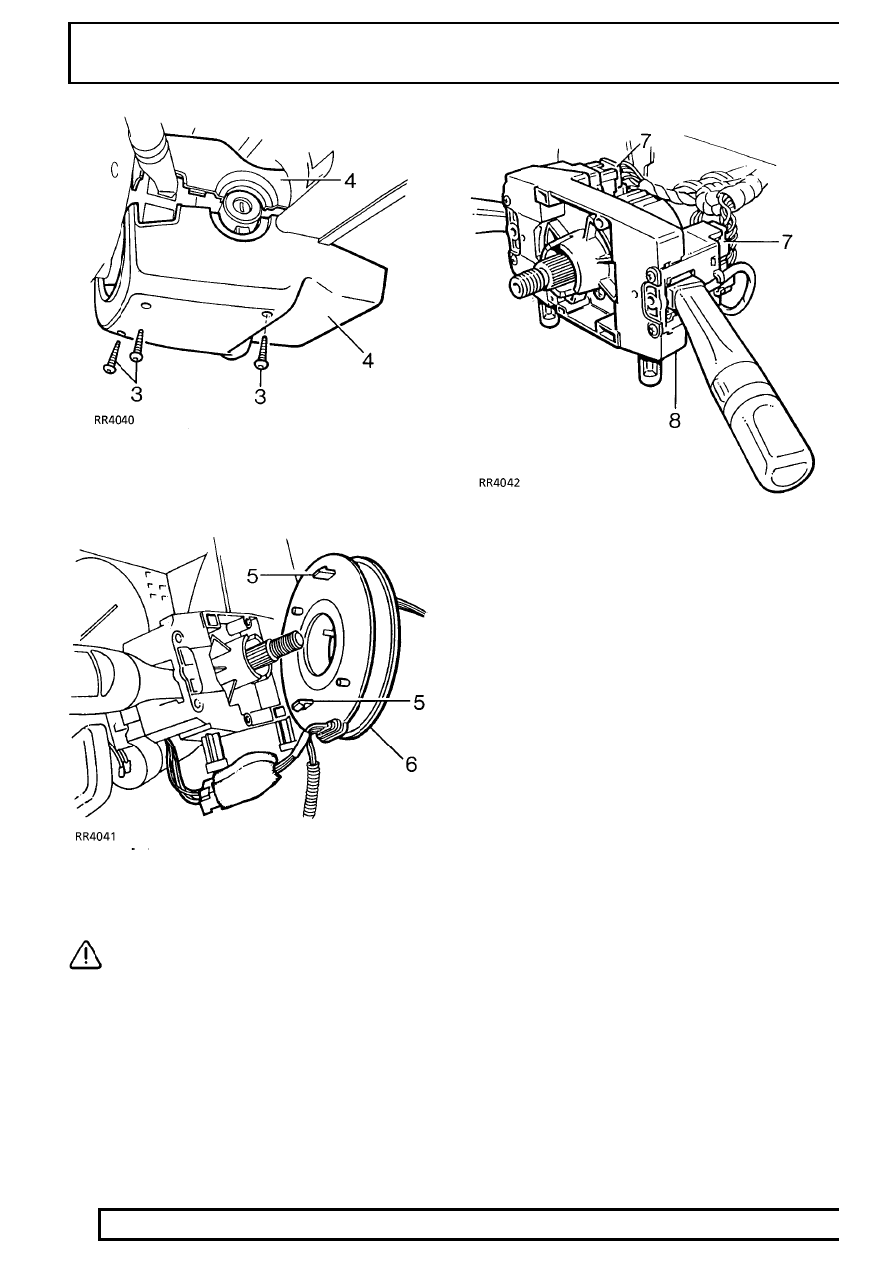

3. Remove 3 screws securing lower half of nacelle

to steering column.

4. Separate the halves of the nacelle and remove

from steering column.

5. Release 2 clips securing rotary coupler to

column switch assembly.

6. Release rotary coupler.

CAUTION: Do not allow rotary coupler to
hang on its harness.

7. Disconnect 4 connectors from column switch

assembly.

8. Remove column switch assembly from steering

column.

Refit

9. Reverse removal procedure.

SUPPLEMENTARY RESTRAINT SYSTEM

9

REPAIR

PASSENGER’S AIRBAG MODULE

Service repair no - 76.74.02

WARNING: All the airbag system
components, including the wiring harness,
MUST be renewed after the airbags have

deployed.

Remove

1. Switch off ignition.
2. Disconnect battery negative lead and then

positive lead.

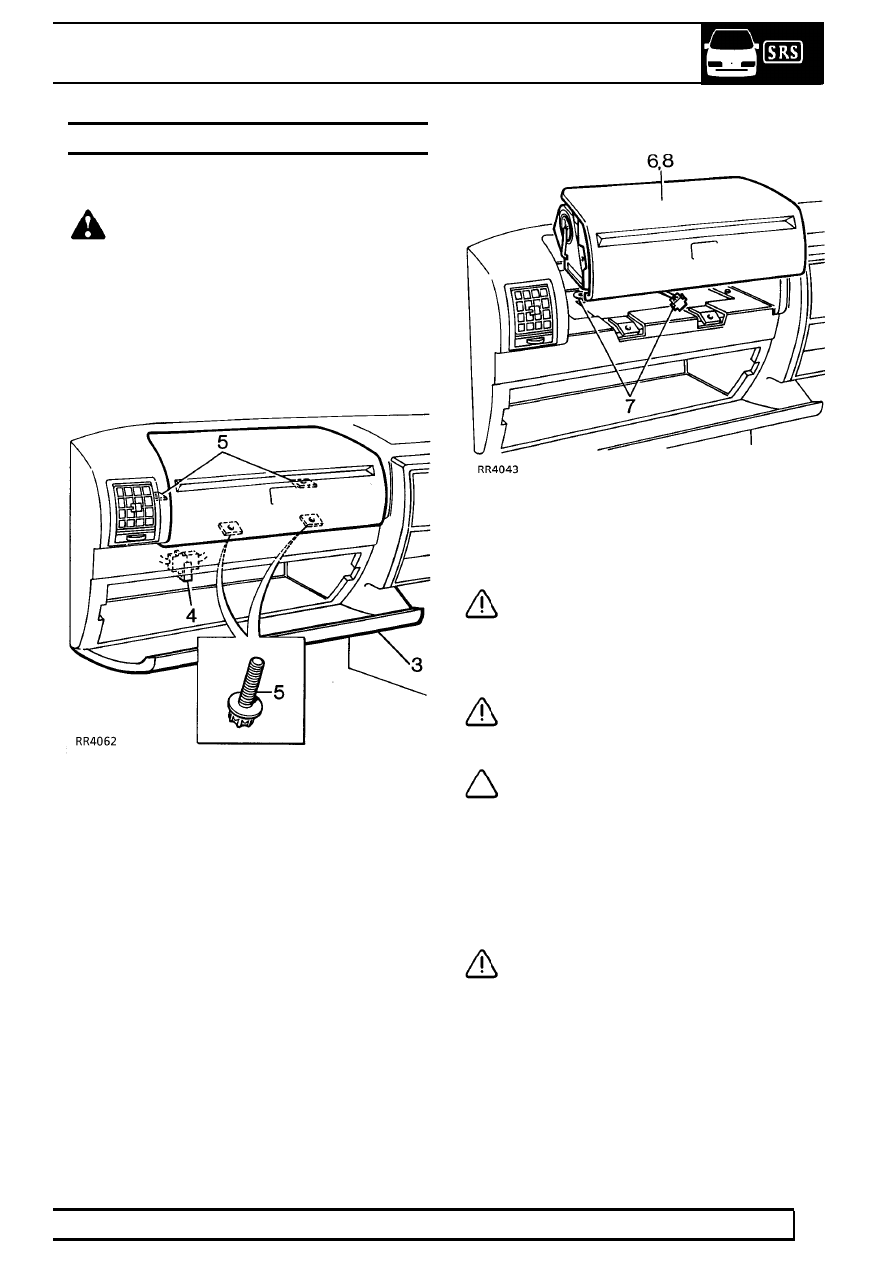

3. Open glovebox and disconnect harness

connector from airbag module.

4. Use special socket and long extension, remove

2 torx head screws securing front of airbag
module to fascia panel.

5. Use special socket, remove 2 torx head screws

securing rear of airbag module to fascia panel.

6. Release airbag module from fascia panel.

CAUTION: Do not allow the airbag module
to hang by the airbag harness.

7. Carefully and without pulling on connector

remove airbag module.

CAUTION: Store the airbag module in
accordance with the storage procedures
described in Description and Operation.

NOTE: If airbag module is to be replaced
the serial number must be recorded in the
vehicle service record.

Refit

8. Reverse removal procedure.
9. Tighten airbag module securing screws to

8 Nm

(6 lbf ft).

CAUTION: Take care not to cross thread
screws.

10. Check Supplementary Restraint System using

Testbook.
