Land Rover Discovery. Manual - part 162





75

SUPPLEMENTARY RESTRAINT SYSTEM

2

REPAIR

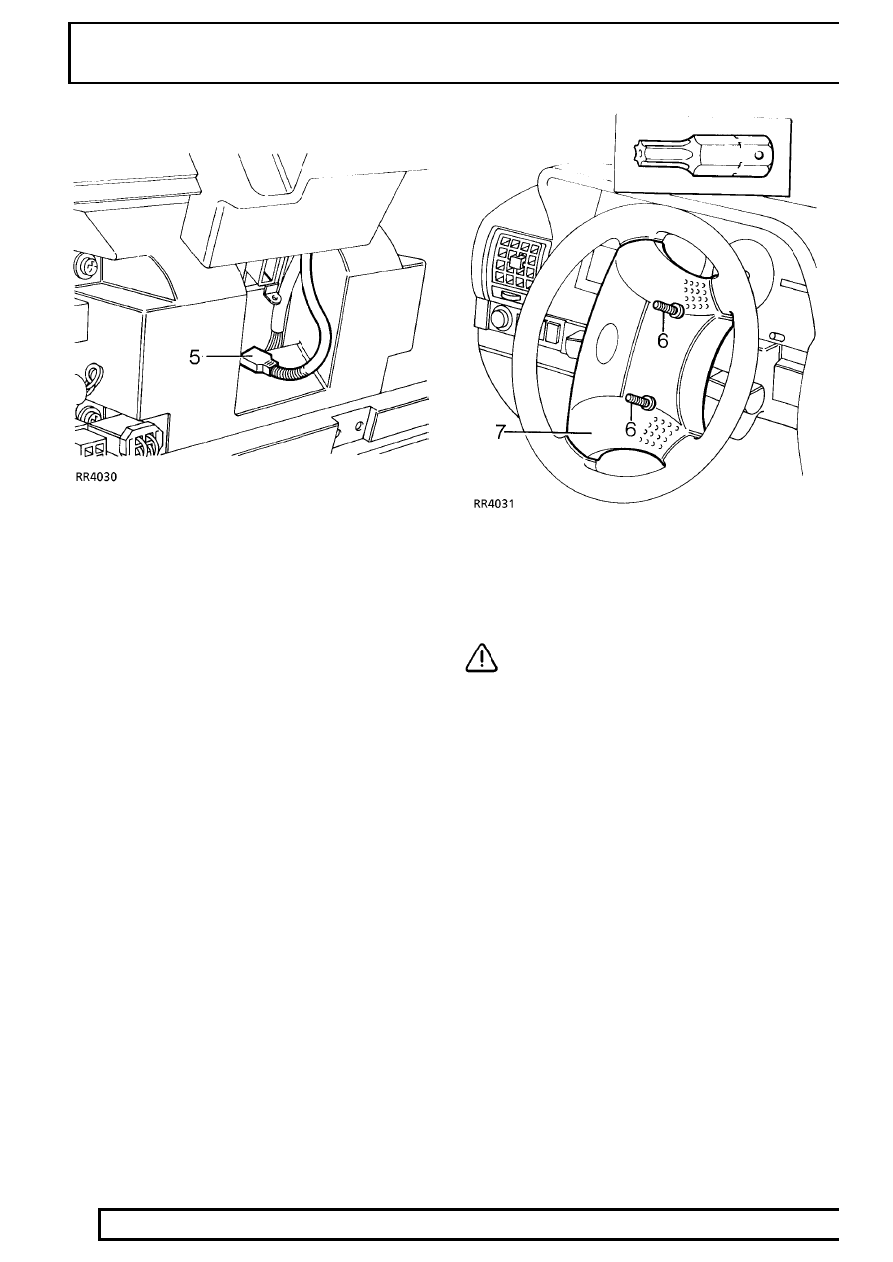

5. Disconnect airbag harness connector from

yellow airbag column harness.

6. Use special socket, unscrew 2 tamper-proof

Resistorx screws securing airbag module to
steering wheel.

7. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module
to hang by the airbag harness.

SUPPLEMENTARY RESTRAINT SYSTEM

3

REPAIR

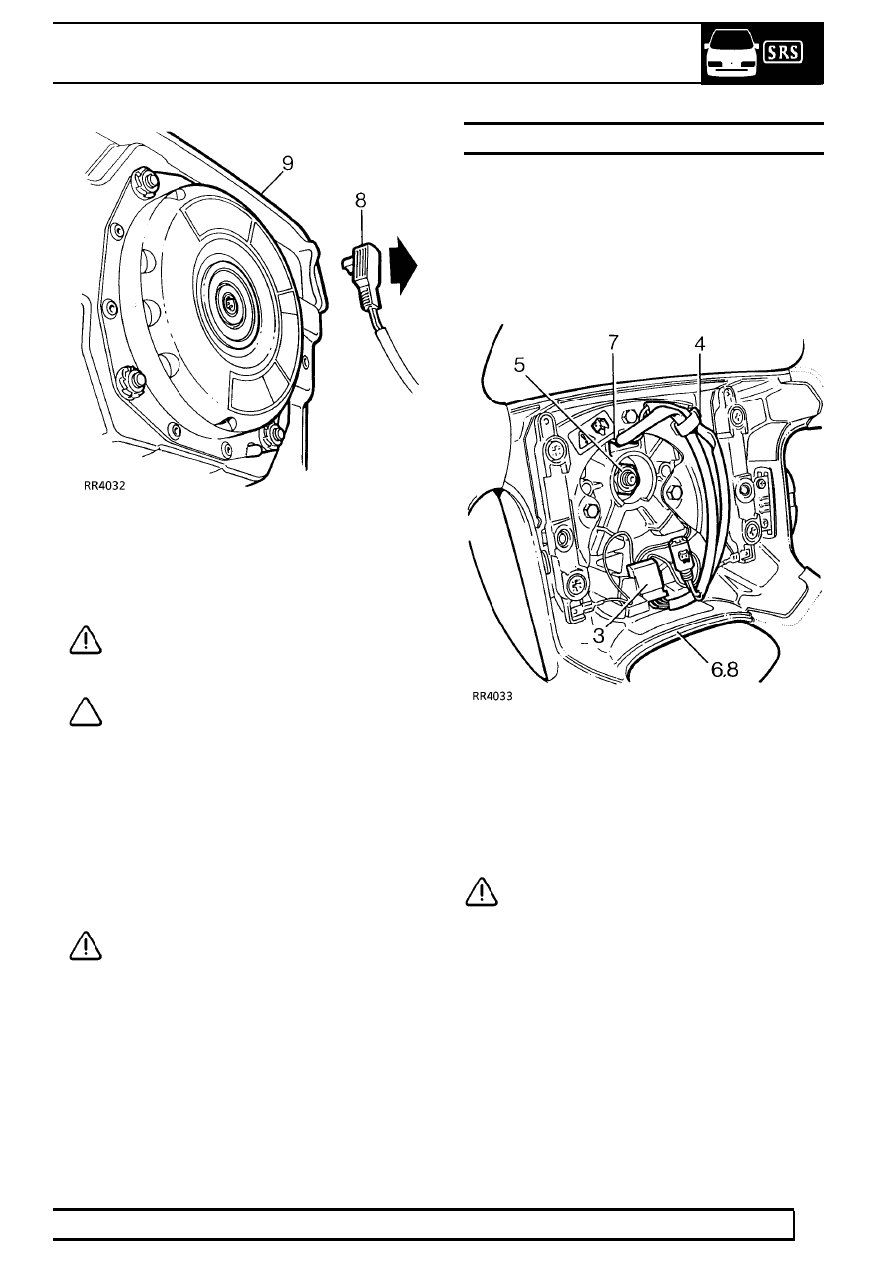

8. Disconnect harness connector from airbag

module.

9. Remove airbag module.

CAUTION: Store the airbag module in
accordance with the storage procedures
outlined in Description and Operation.

NOTE: If airbag module is to be replaced
the serial numbers must be recorded in
the vehicle service record.

Refit

10. Reverse removal procedure.
11. Connect harness connector to airbag module

with harness downwards (as shown at 8).

12. Position airbag module on steering wheel and

engage retained screws. Use special socket to
tighten screws to

8Nm (6 lbf ft).

CAUTION: Take care not to cross thread
screws.

13. Check Supplementary Restraint System using

Testbook .

STEERING WHEEL

Service repair no - 57.60.01

Remove

1. Remove driver’s airbag module.

See driver’s

airbag module.

2. Position steering wheel so the road wheels are

in the straight ahead position.

3. Disconnect cruise control switch connector

(where fitted) from rotary coupler harness.

4. Release harnesses from clip on steering wheel.
5. Remove steering wheel nut.
6. Release steering wheel from column.
7. Feed harnesses through hole in steering wheel.
8. Remove steering wheel.

CAUTION: Prevent rotation of rotary
coupler once steering wheel is removed.
Secure in position with adhesive tape.

75

SUPPLEMENTARY RESTRAINT SYSTEM

4

REPAIR

Refit

9. Reverse removal procedure.

CAUTION: Ensure road wheels are straight
ahead before fitting steering wheel.

10. Fit steering wheel ensuring the rotary coupler

lugs are correctly engaged.

11. Fit steering wheel nut. Tighten to

50 Nm (37 lbf

ft).

12. Refit driver’s airbag module.

See driver’s

airbag module.

ROTARY COUPLER

Service repair no - 76.74.07

CAUTION: Ensure wheels are straight
ahead before removal and refitting. Store
in plastic bag. DO NOT rotate mechanism

whilst removing.

Remove

1. Remove driver’s airbag module.

See driver’s

airbag module.

2. Remove steering wheel.

See steering wheel.

3. Release lever and lower steering column.

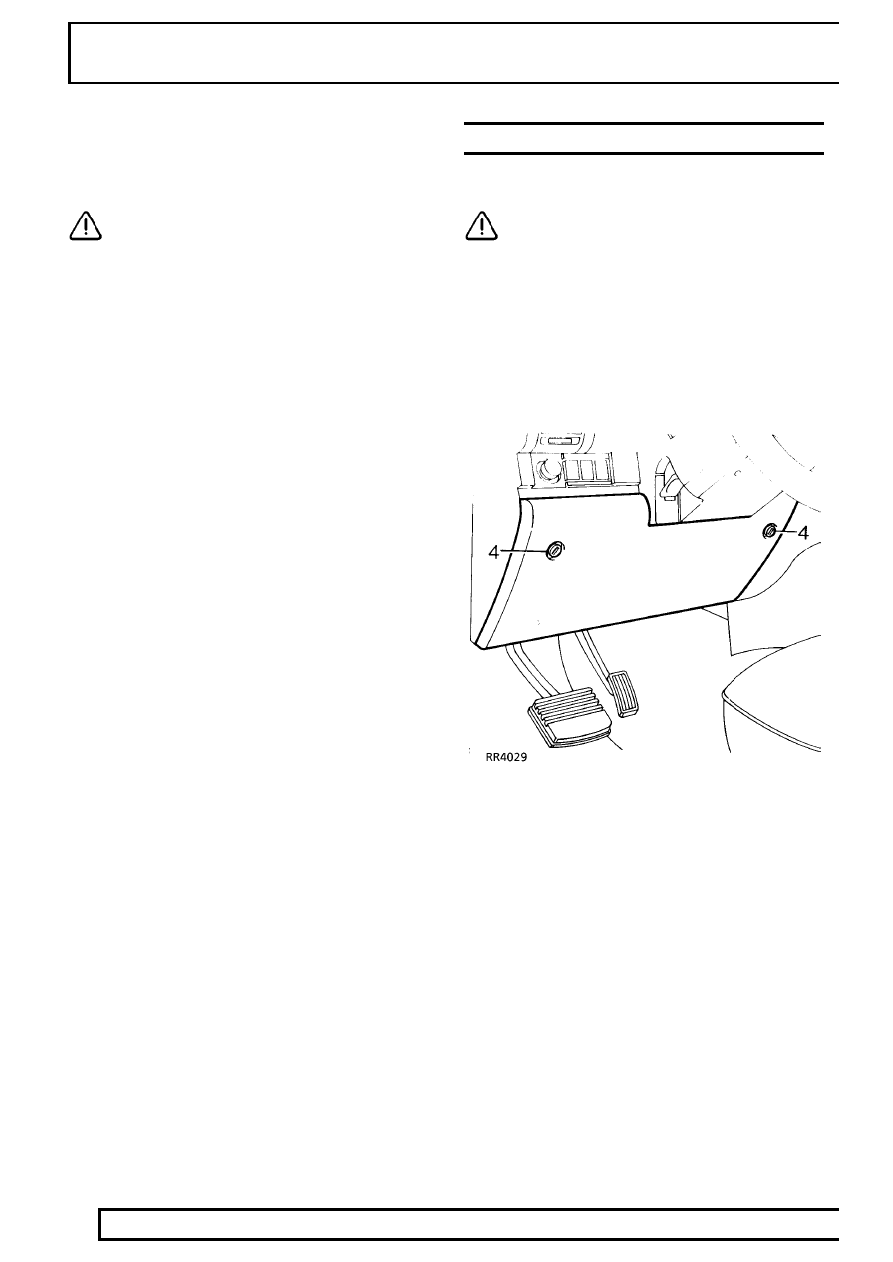

4. Release 2 turnbuckles and remove lower dash

panel.

SUPPLEMENTARY RESTRAINT SYSTEM

5

REPAIR

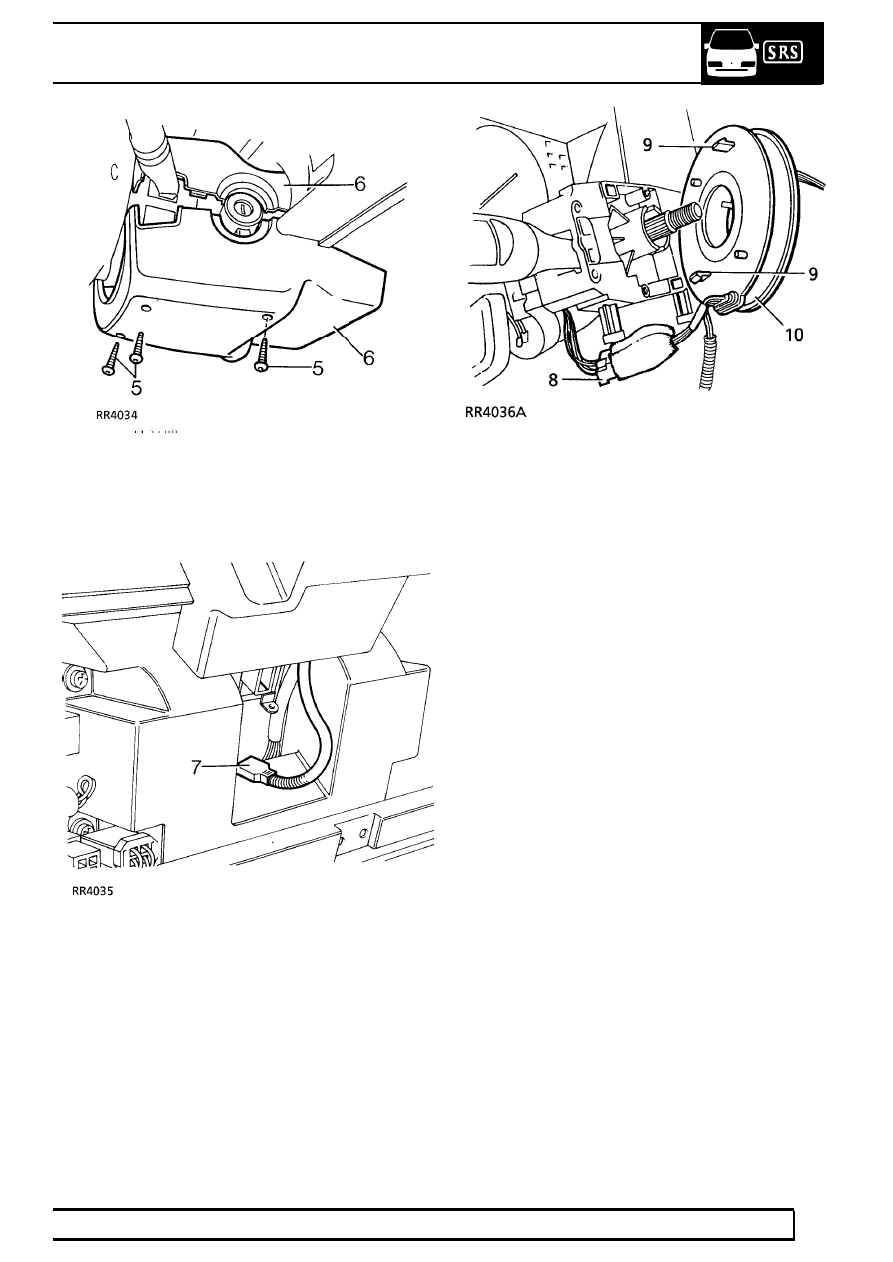

5. Remove 3 screws securing lower half of nacelle

to steering column.

6. Separate the 2 halves of the nacelle and remove

from steering column.

7. Release airbag harness connector from bracket

and disconnect.

8. Disconnect rotary coupler connector from

steering column harness.

9. Release 2 clips securing rotary coupler to

column switch assembly.

10. Remove rotary coupler from column switch

assembly.
