Land Rover Discovery. Manual - part 146





60

FRONT SUSPENSION

6

REPAIR

ANTI-ROLL[SWAY] BAR BALL JOINT LINKS

Service repair no - 60.10.04.

Remove

1. Remove two nuts, bolts, washers and rubber

bushes from ball joint links.

2. Remove cotter pin and loosen castellated nut a

few turns.

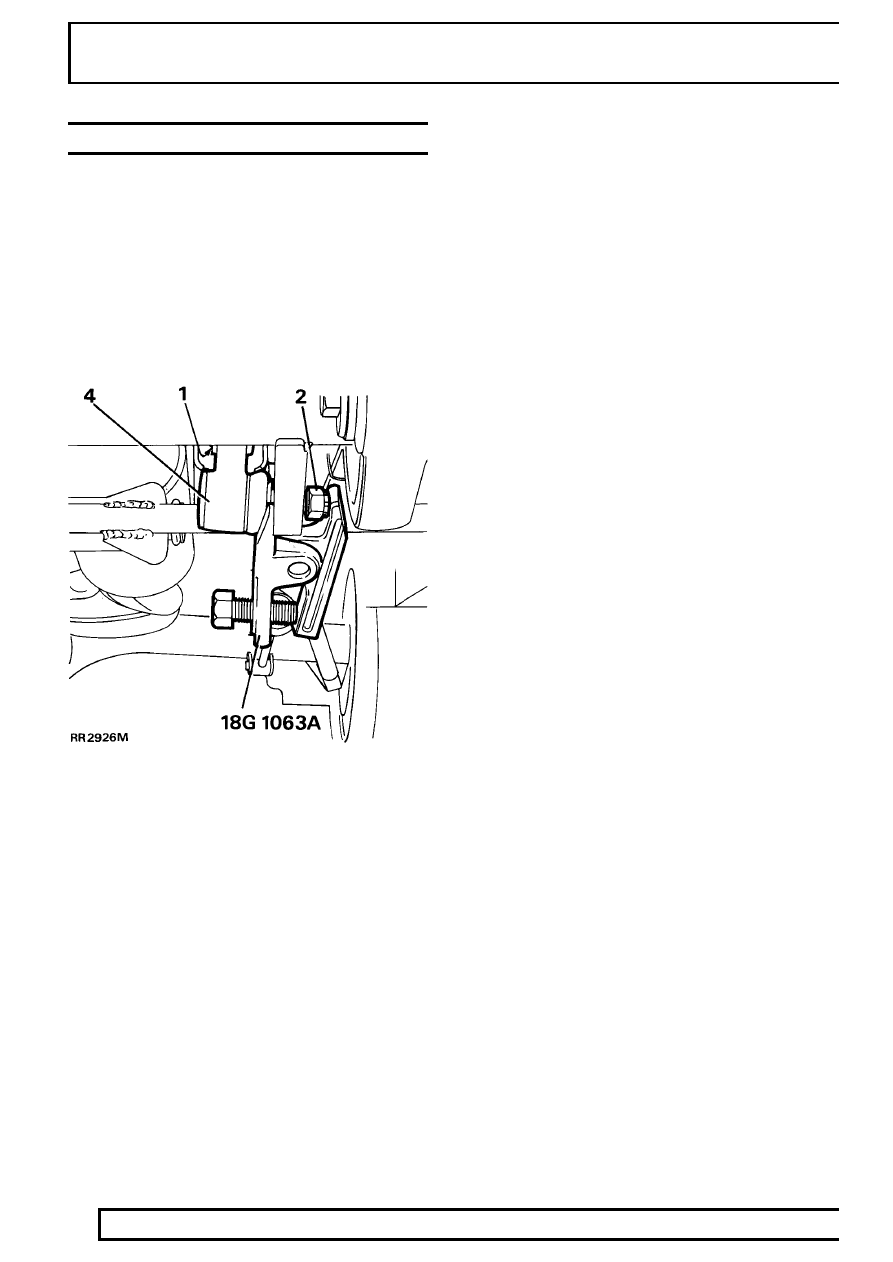

3. Release ball joint using special tool 18G 1063A

as shown.

4. Remove castellated nut and ball joint link.

Refit

5. Fit ball joint link and castellated nut. Ensure ball

joint link arm points up. Tighten to

40Nm and fit

new cotter pin.

6. Align anti-roll bar to ball joint links.
7. Fit bolts, washers and rubber bushes using new

self locking nuts secure anti-roll[sway] bar to ball
joint links. Tighten to

68Nm.

FRONT SUSPENSION

1

SPECIFICATIONS, TORQUE

TORQUE VALUES

NOTE: Torque wrenches should be regularly checked for accuracy to ensure that all fixings are
tightened to the correct torque.

Nm

Anti-roll[sway] bar front

- Strap nyloc nuts

30

..............................................................................

- Ball link self lock nut

68

........................................................................

- Castellated nut

40

................................................................................

Drag link to axle

40

.........................................................................................

Securing ring for mounting turret

14

...............................................................

Radius arm to chassis

176

...............................................................................

Panhard rod mounting arm to chassis

88

.......................................................

Panhard rod to axle

88

....................................................................................

Panhard rod to mounting bracket

88

...............................................................

Tie bar to Panhard rod

110

..............................................................................

Radius arm to axle (front only)

197

..................................................................

Torque values below are for all screws and bolts used except for those that are specified otherwise.

METRIC

Nm

M5

6

...........................................................................

M6

9

...........................................................................

M8

25

...........................................................................

M10

45

.........................................................................

M12

90

.........................................................................

M14

105

.........................................................................

M16

180

.........................................................................

UNC / UNF

1/4

9

...........................................................................

5/16

24

.........................................................................

3/8

39

...........................................................................

7/16

78

.........................................................................

1/2

90

...........................................................................

5/8

136

...........................................................................

REAR SUSPENSION

1

DESCRIPTION AND OPERATION

AXLE LOCATION

Longitudinal location of the rear axle is by solid round section steel link arms and a forged "A" frame, upper link
assembly, which is secured to a chassis cross member and provides transverse control. Long travel coil springs
and hydraulic shock absorbers provide the springing for each wheel.

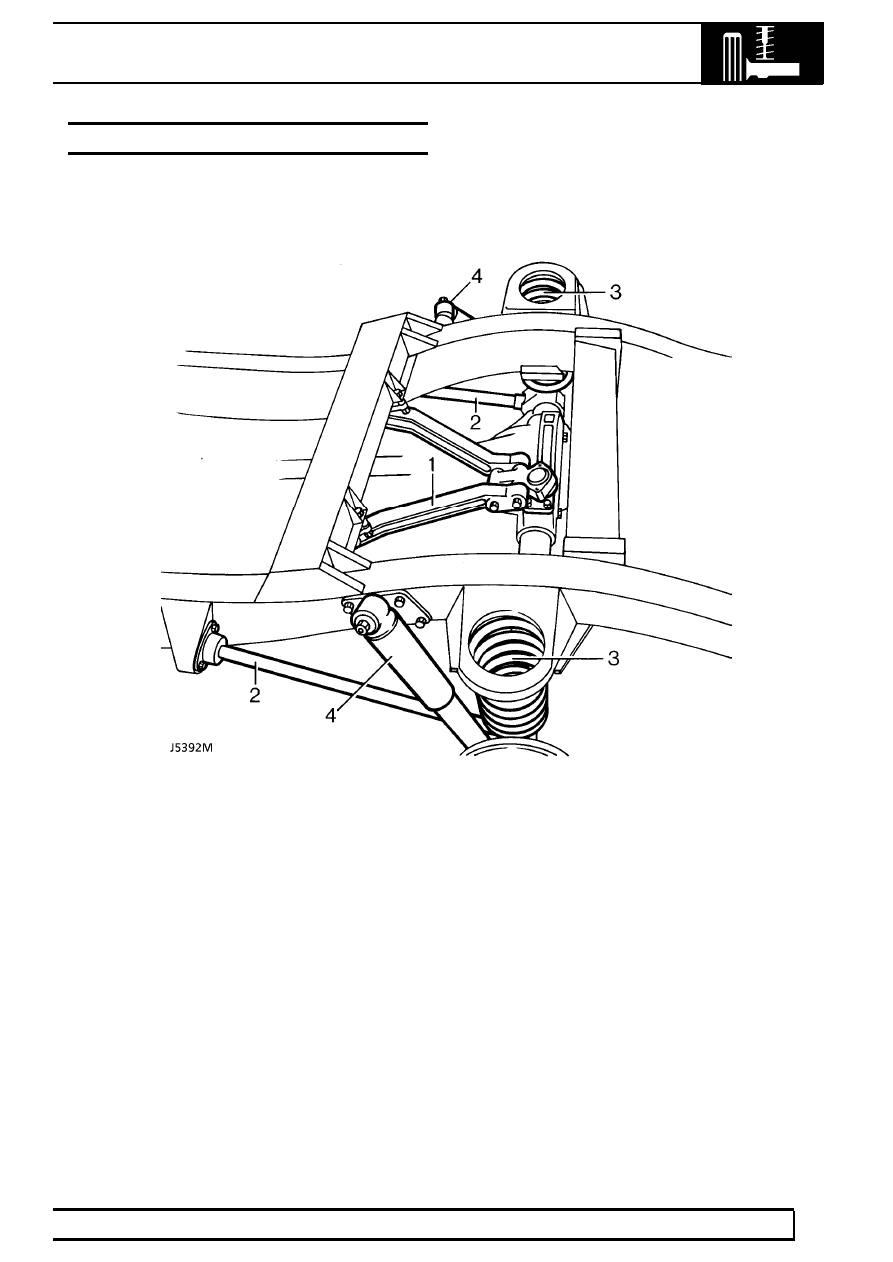

Rear axle suspension

1. "A" frame, upper link assembly - transverse location
2. Lower link assembly - longitudinal location
3. Coil springs
4. Shock absorber

REAR SUSPENSION

1

REPAIR

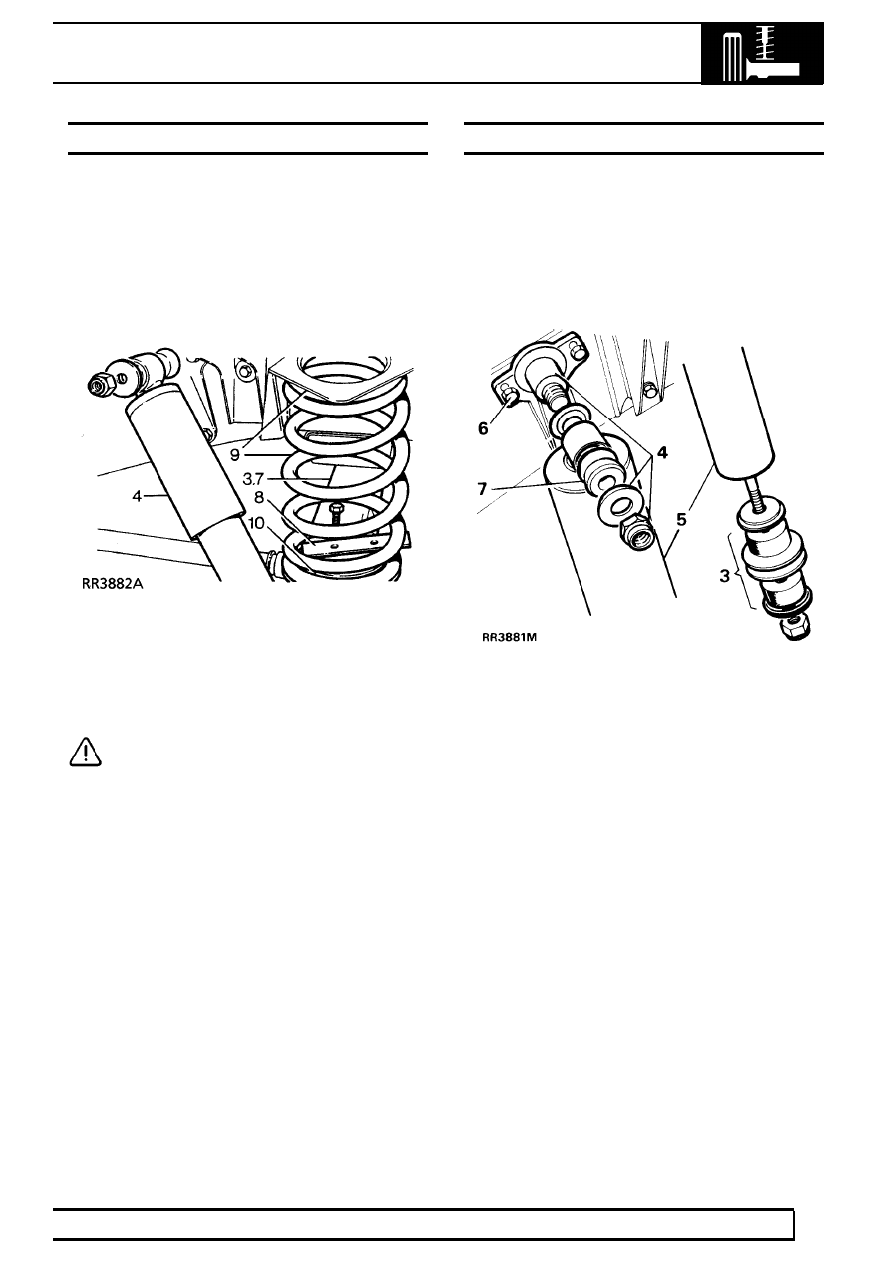

REAR ROAD SPRING

Service repair no - 64.20.01

Remove

1. Loosen rear road wheel retaining nuts.
2. Support chassis on stands and remove wheels.
3. Support rear axle weight with jack.
4. Disconnect shock absorbers at one end.

5. Position coil spring compressor correctly on road

spring.

6. Compress spring evenly to facilitate removal.
7. Lower axle to free road spring from upper seat.

CAUTION: Avoid lowering axle further than
rear brake flexible hose will allow.

8. Remove spring retainer plate.
9. Withdraw road spring, and spring isolator.

10. Lift off spring seat.

Refit

11. Reverse removal procedure.

REAR SHOCK ABSORBER

Service repair no - 64.30.02.

Remove

1. Loosen road wheel retaining nuts.
2. Support chassis on stands. Remove road wheel

and support rear axle weight with jack.

3. Remove fixings and withdraw shock absorber

from axle bracket.

4. Remove upper fixings.
5. Withdraw shock absorber.
6. If required remove mounting bracket
7. If required remove mounting rubbers.

Refit

8. Reverse removal procedure.
