STEERING

1

SPECIFICATIONS, TORQUE

STEERING PUMP

Make/type - V8i

ZF ’Unicorn’

................................................................

Make/type - Tdi

Hobourn Eaton 500 series

................................................................

Operating pressure - straight ahead position - at idle

7 bar, 100 lbf/in

2

maximum

......

Full lock (left or right) at idle

28 bar, 400 lbf/in

2

minimum

.............................................

Full lock (left or right) 1000 rev/min

70-77 bar, 1000-1100 lbf/in

2

..................................

57

STEERING

2

SPECIFICATIONS, TORQUE

TORQUE VALUES

NOTE: Torque wrenches should be regularly checked for accuracy to ensure that all fixings are
tightened to the correct torque.

Nm

Ball joint nuts

40

..............................................................................................

Clamp bolt nuts

14

..........................................................................................

Steering column bracket nuts

22

....................................................................

Steering wheel nut

50

.....................................................................................

Tie bar to mounting nut

110

.............................................................................

Universal joint pinch bolt

25

............................................................................

PAS box

Adjuster locknut

60

.................................................................................

Drop arm nut

176

....................................................................................

Sector shaft cover to steering box

75

.....................................................

Steering box to chassis

81

.....................................................................

Steering box fluid pipes 14mm thread

15

...............................................

Steering box fluid pipes 16mm thread

20

...............................................

Tie bar

81

...............................................................................................

PAS pump

High pressure fluid pipe

20

.....................................................................

Power steering pump mounting

35

.........................................................

Pulley bolts, power steering pump

10

....................................................

Hose clamp

3

........................................................................................

Front mounting plate bolts

9

..................................................................

PAS reservoir

Hose clamp

3

........................................................................................

* Torque values below are for all screws and bolts used except for those that are specified otherwise.

METRIC

Nm

M5

6

......................................................................................................

M6

9

......................................................................................................

M8

25

.....................................................................................................

M10

45

...................................................................................................

M12

90

...................................................................................................

M14

105

..................................................................................................

M16

180

..................................................................................................

UNC / UNF

1/4

9

......................................................................................................

5/16

24

...................................................................................................

3/8

39

.....................................................................................................

7/16

78

...................................................................................................

1/2

90

.....................................................................................................

5/8

136

....................................................................................................

STEERING

1

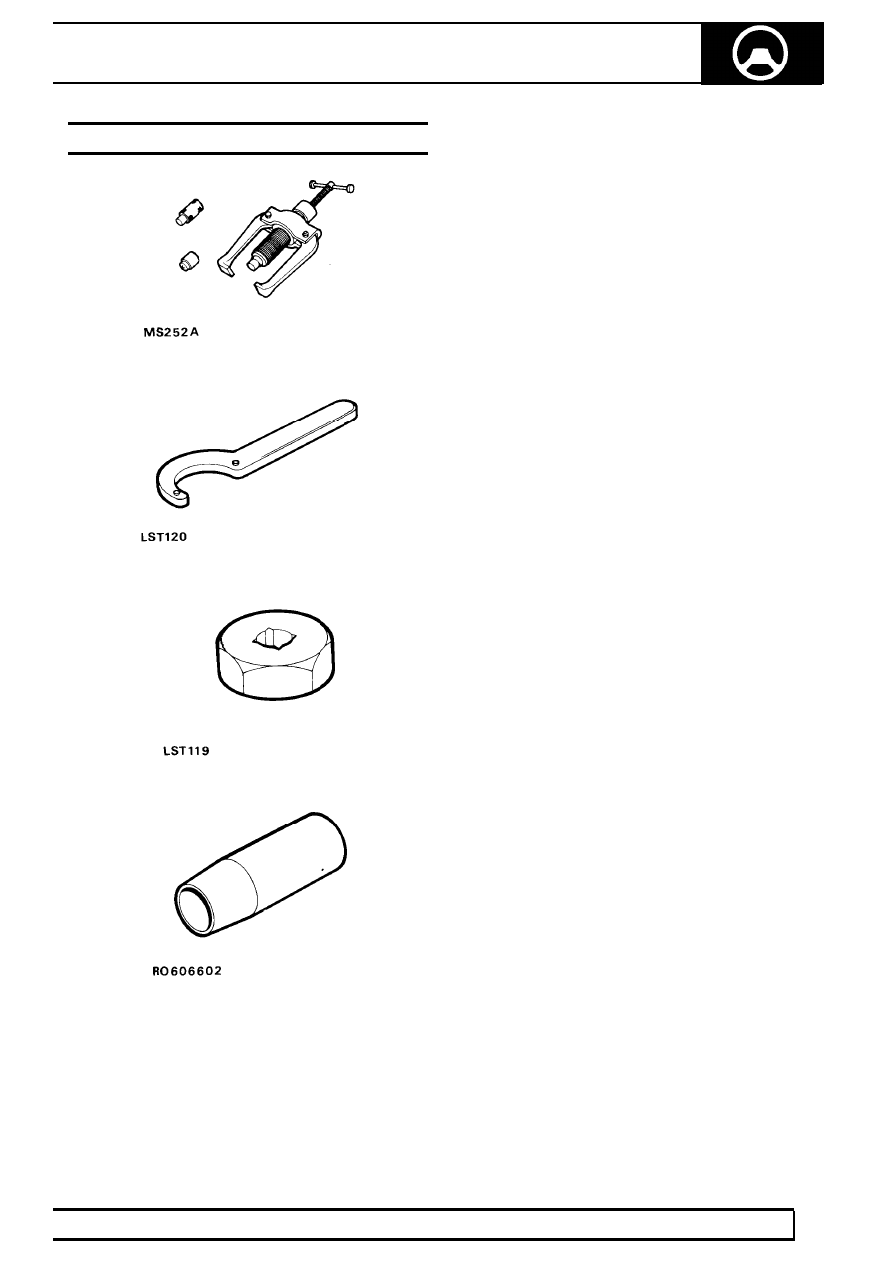

SERVICE TOOLS

POWER STEERING BOX

LRT-57-012

Drop arm extractor

LRT-57-007

’C’ Wrench

LRT-57-006

Worm adjusting wrench

LRT-57-019

Ring expander

57

STEERING

2

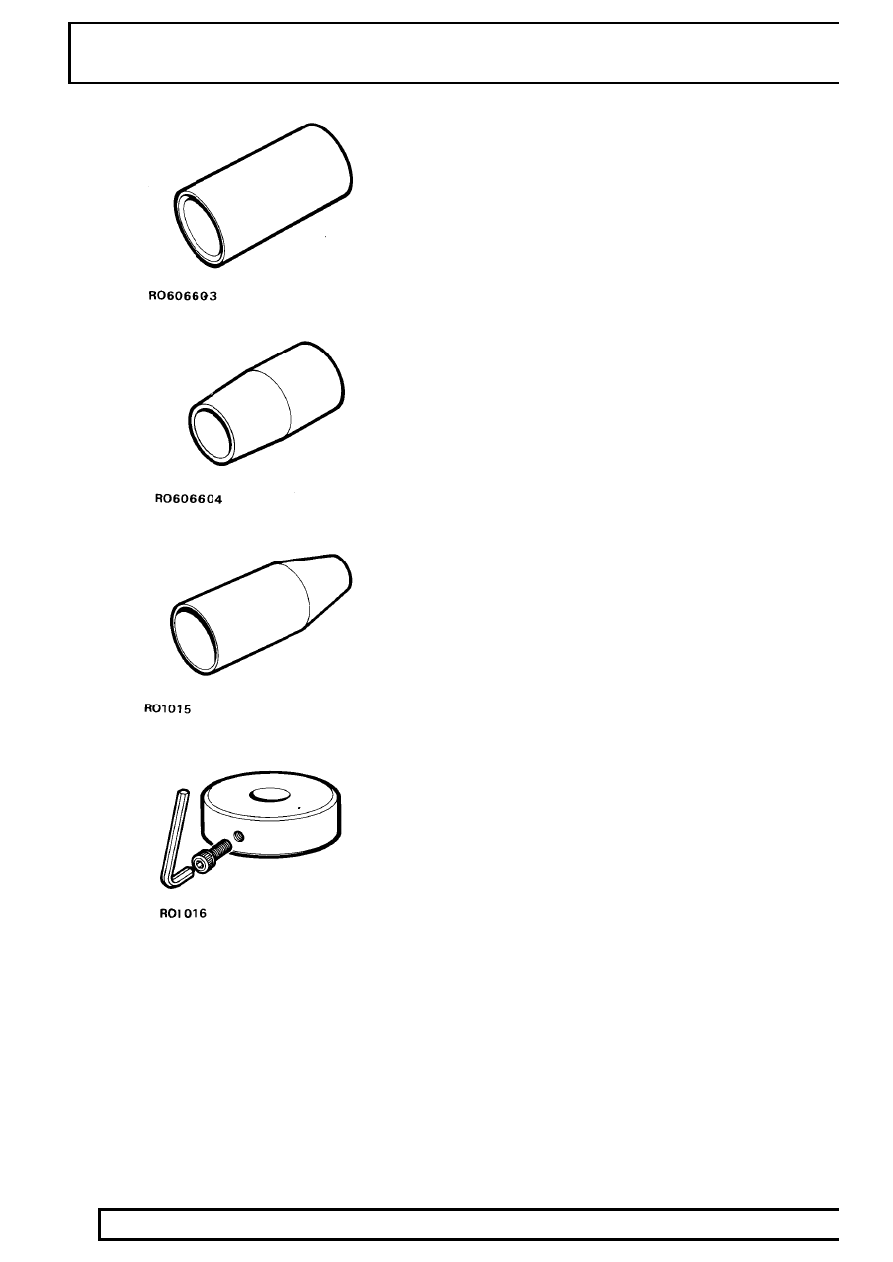

SERVICE TOOLS

LRT-57-020

Ring compressor

LRT-57-021

Seal saver, sector shaft

LRT-57-016

Seal saver, valve and worm

LRT-57-017

Torque setting tool
