19

FUEL SYSTEM

8

REPAIR

Refit

17. Clean fuel rail, temperature sensor and pressure

regulator mating surfaces.

18. Fit fuel temperature sensor. Tighten to

7 Nm

19. Clean injectors and injector recesses in fuel rail

and inlet manifold.

20. Fit new ’O’ ring(s) to inlet end of injector(s).
21. Fit injector(s) to fuel rail, fit and secure clip(s).
22. Fit new ’O’ rings to outlet ends of injectors.
23. Align injectors to inlet manifold and push fuel rail

into position.

24. Fit fuel rail securing bolts. Tighten to

10 Nm

25. Connect injector multiplugs.
26. Remove plugs from fuel feed hose and fuel rail.
27. Fit new ’O’ ring to fuel feed hose.
28. Connect fuel feed hose to fuel rail.
29. Fit stiffening bracket.
30. Tighten stiffening bracket and feed hose bolts.
31. Fit pressure regulator.
32. Fit inlet manifold chamber.

THROTTLE HOUSING

Service repair no - 19.22.45

Remove

1. Loosen clip, disconnect hose from throttle

housing.

2. Disconnect multiplug from stepper motor.
3. Disconnect multiplug from throttle potentiometer.
4. Disconnect breather hose from throttle housing.

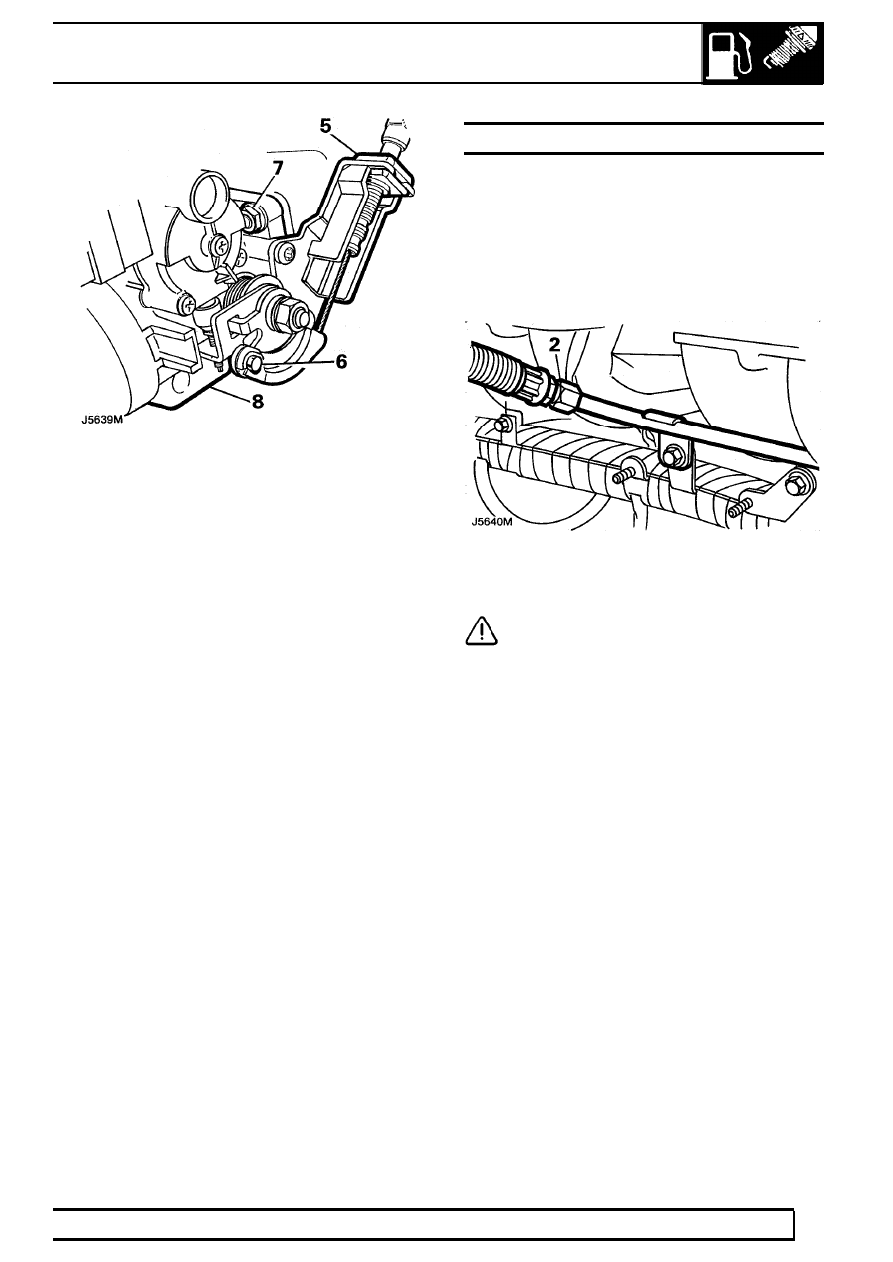

5. Loosen 2 nuts securing throttle cable to

abutment bracket and release cable.

6. Release throttle cable from cam.
7. Remove 4 nuts securing throttle housing to

flexible mounting.

8. Release throttle housing from studs.

Mpi

9

REPAIR

Refit

9. Examine flexible mounting for splits or damage;

renew as necessary.

10. Thoroughly clean throttle housing and mating

face of flexible mounting.

11. Connect breather hose to throttle housing.
12. Position throttle housing to mounting studs, fit

nuts. Tighten to

7 Nm.

13. Connect throttle cable to cam.
14. Adjust throttle cable.
15. Connect multiplug to stepper motor.
16. Connect multiplug to throttle potentiometer.
17. Connect hose to throttle housing, tighten clip.

FUEL PRESSURE REGULATOR

Service repair no - 19.45.06

Remove

1. Disconnect battery negative lead.
2. Position absorbant cloth around fuel pipe to fuel

rail union. Loosen bolt to relieve pressure.
Re-tighten bolt.

3. Release clip and disconnect fuel hose from

pressure regulator.

CAUTION: Plug the connectors.

4. Disconnect intake air temperature sensor

multiplug.

5. Remove 4 bolts securing pressure regulator

steady bracket to fuel rail and manifold, remove
steady bracket.

6. Disconnect vacuum hose from pressure

regulator.

7. Manoeuvre pressure regulator from fuel rail.
8. Discard ’O’ ring.

19

FUEL SYSTEM

10

REPAIR

Refit

9. Clean pressure regulator and mating surfaces.

10. Fit new ’O’ ring to pressure regulator.
11. Fit vacuum hose to pressure regulator.
12. Position pressure regulator.
13. Fit steady bracket.
14. Fit bolts and tighten.
15. Connect multiplug to air temperature sensor.
16. Remove plugs, fit fuel hose to regulator and

secure with clip.

17. Reconnect battery negative lead.

OXYGEN SENSOR

Service repair no - 18.30.41 - L.H
Service repair no - 18.30.42 - R.H

Remove

1. Disconnect oxygen sensor multiplug.
2. Release multiplug from bracket.
3. Release harness lead from cable tie.

4. Remove oxygen sensor; recover sealing washer.

Refit

5. Fit sealing washer to oxygen sensor.
6. Fit oxygen sensor. Tighten to

55 Nm.

7. Secure multiplug to bracket, connect multiplug.
8. Secure harness lead with cable tie.

Mpi

11

REPAIR

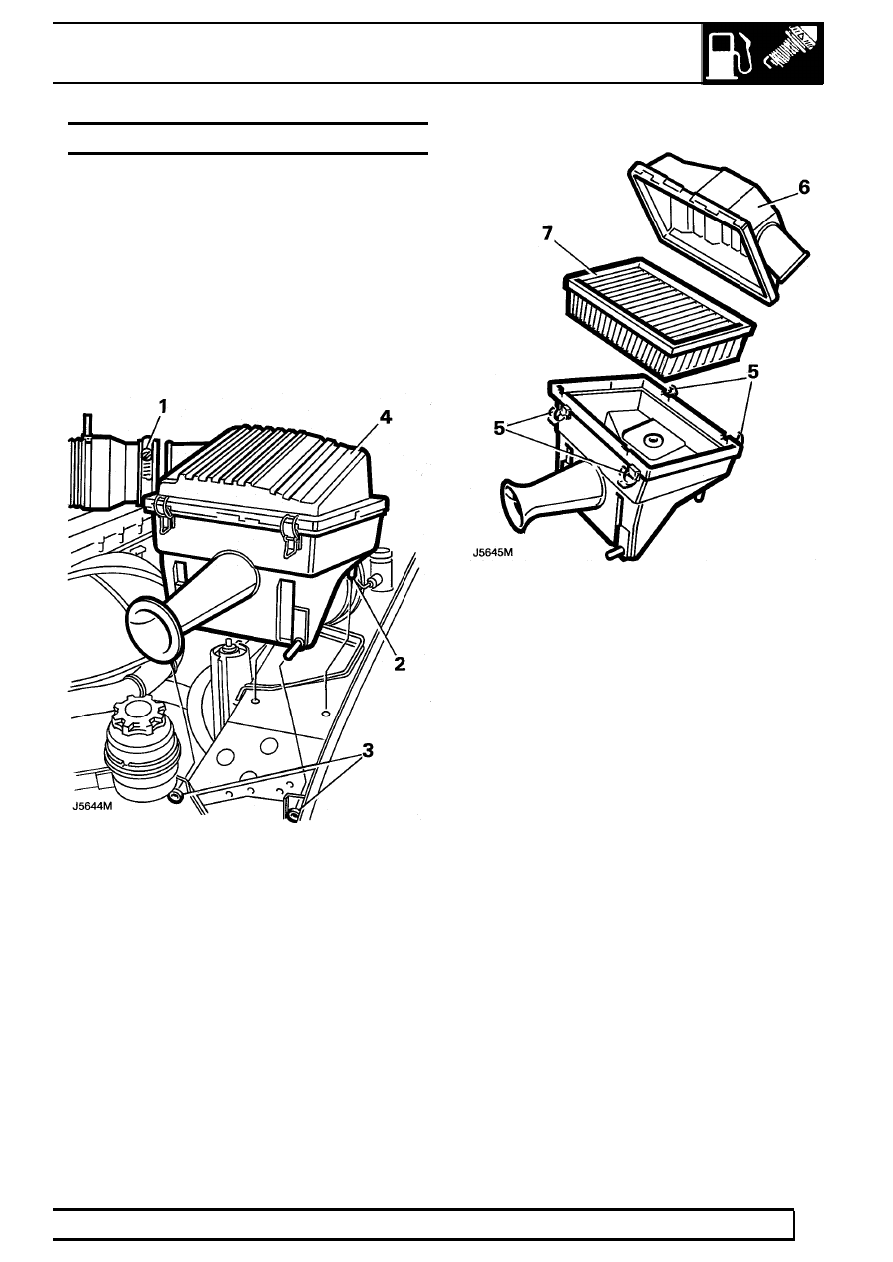

AIR CLEANER

Service repair no - 19.10.01

Remove

1. Release clip and remove intake hose from air

cleaner.

2. Ease air cleaner assembly bottom mounting

rubbers from body.

3. Ease air cleaner from inner wing [fender]

mounting rubber

4. Remove air cleaner.

Do not carry out further dismantling if component
is removed for access only.

5. Release 4 clips securing top cover.
6. Raise top cover.
7. Remove air cleaner element.

Refit

8. Clean assembly body and top cover.
9. Fit air cleaner element.

10. Position top cover and secure with clips.
11. Position air cleaner assembly to body ensuring

front spigots locate securely in wing [fender]
mounting rubbers and bottom mounting rubbers
are located in the body.

12. Fit intake hose and secure with clip.
