Land Rover Discovery. Manual - part 74





19

FUEL SYSTEM

12

REPAIR

Refit

15. Ensure locations on fuel pressure regulator and

fuel rail are clean.

16. Fit new spacer ring and ’O’ ring to fuel pressure

regulator. Lubricate ’O’ ring with silicone grease.

17. Fit pressure regulator assembly to fuel rail.
18. Secure regulator connecting pipe in clip.
19. Secure with bolts. Tighten to

10 Nm.

20. Align ignition coil bracket to inlet manifold studs.
21. Secure ignition coil bracket and fuel rail to inlet

manifold with nuts. Tighten to

8 Nm.

22. Remove plugs.
23. Connect return pipe to regulator connecting pipe.

Secure with clip.

24. Connect vacuum hose to fuel pressure regulator.
25. Remove cloth.
26. Reconnect battery negative lead.
27. Start engine. Check for leaks around fuel

pressure regulator, fuel feed and fuel return
unions.

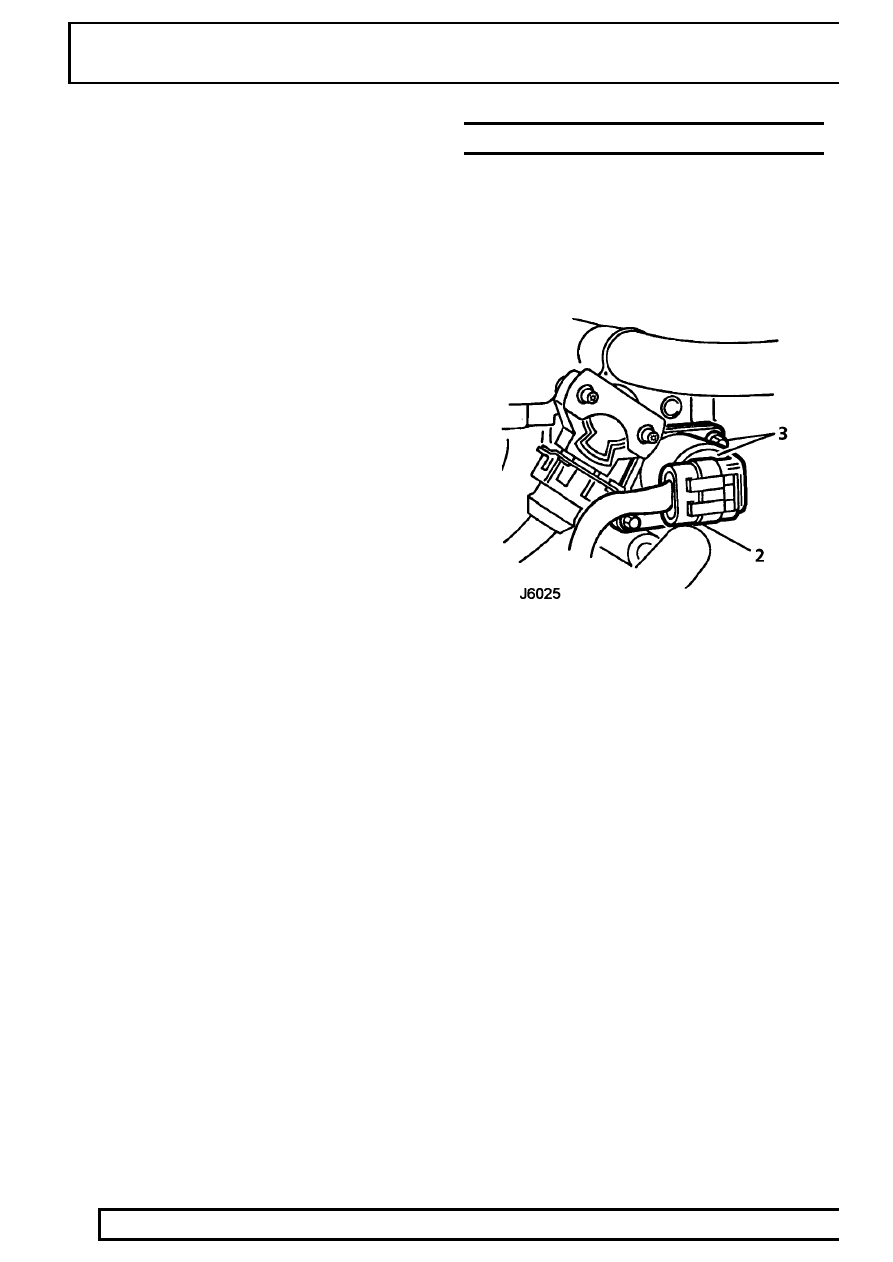

IDLE AIR CONTROL (IAC)

Service repair no - 19.22.54

Remove

1. Disconnect battery negative lead.

2. Disconnect IAC multiplug.
3. Remove 2 bolts securing IAC to plenum.
4. Remove IAC.
5. Remove gasket and discard.

Refit

6. Ensure all mating faces are clean.
7. Using a new gasket, fit IAC to plenum. Secure

with bolts. Tighten to

2.3 Nm.

8. Connect multiplug.
9. Reconnect battery negative lead.

SFI

13

REPAIR

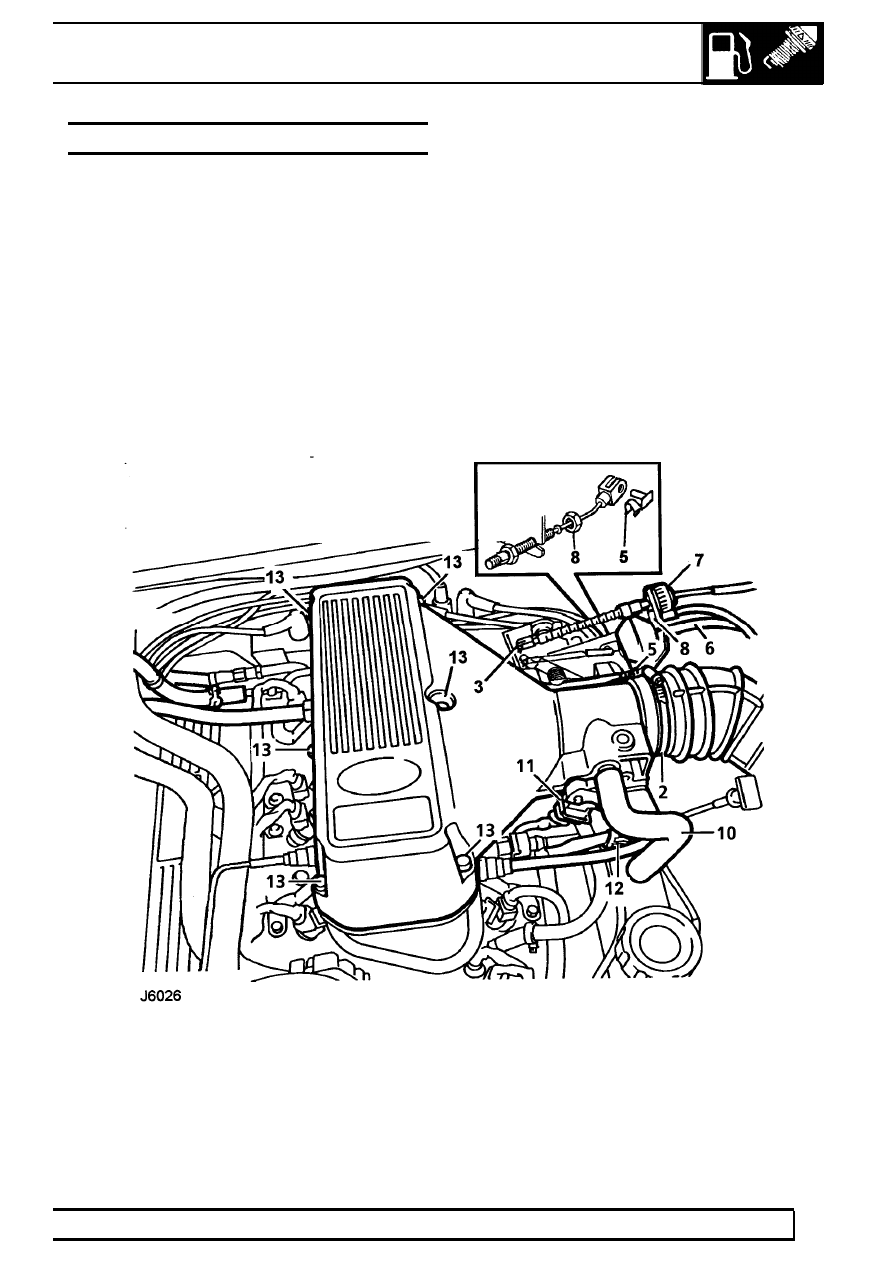

PLENUM CHAMBER

Service repair no - 19.22.46

Remove

1. Disconnect battery negative lead.
2. Slacken clip securing intake hose to plenum

chamber and release hose.

3. Remove split pin from throttle cable clevis pin.
4. Remove clevis pin.
5. Release and remove kick down cable clevis pin.
6. Disconnect vacuum hose from cruise actuator.
7. Release throttle cable from abutment bracket.
8. Remove front locknut from kick down cable.

9. Release cable from bracket.

10. Disconnect breather hose from plenum.
11. Release clip and disconnect multiplug from

throttle position sensor (TP Sensor).

12. Disconnect multiplug from idle air control (IAC).
13. Remove 6 bolts securing plenum chamber.
14. Release plenum chamber from ram pipe

housing.

15. Fit approved hose clamp to water jacket coolant

hoses.

16. Tighten clamp.
17. Position cloth to absorb coolant spillage.

Do not carry out further dismantling if
component is removed for access only.

18. Slacken clips securing coolant hoses to plenum.

19

FUEL SYSTEM

14

REPAIR

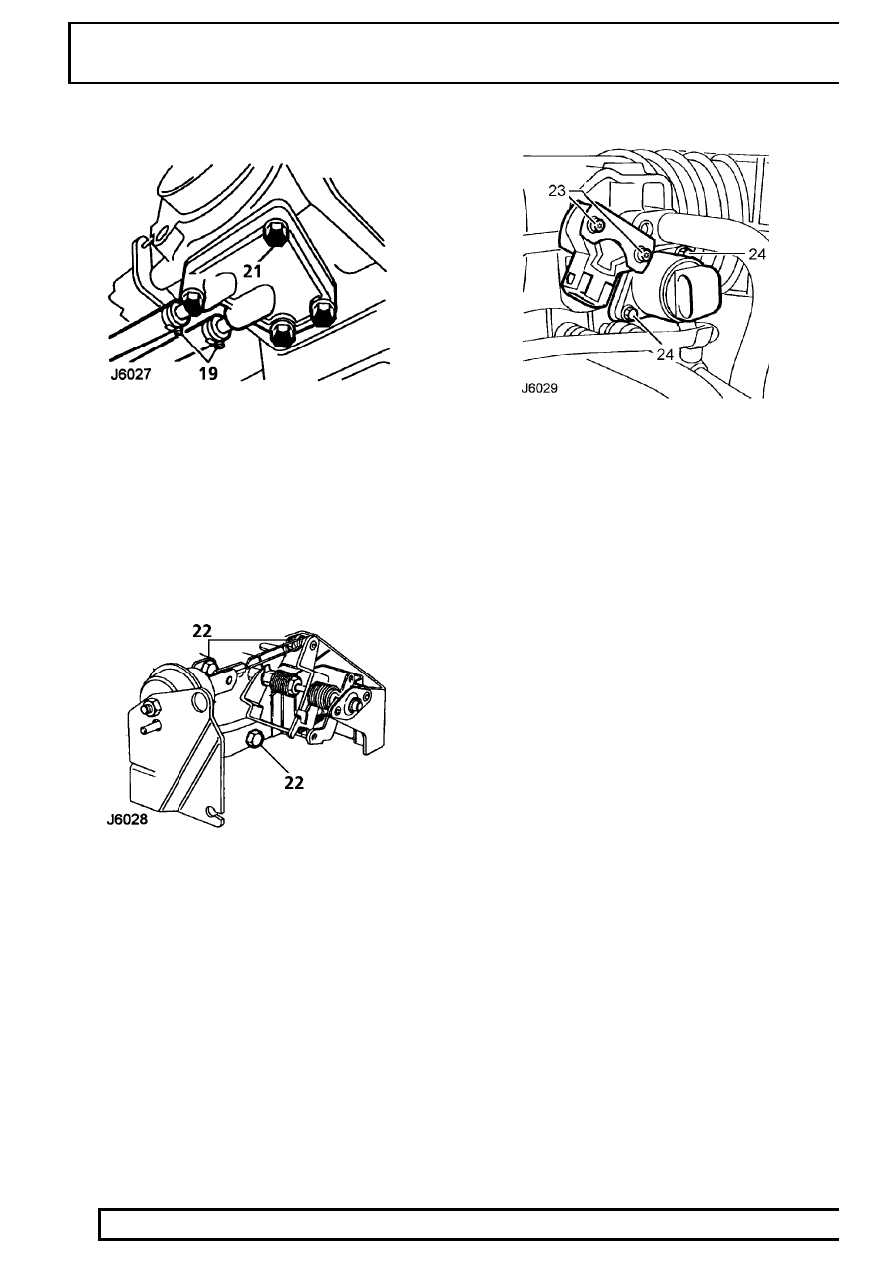

19. Disconnect hoses and remove plenum chamber.
20. Place cloth over ram pipes to prevent ingress of

foreign matter.

21. Remove 4 bolts securing water jacket to plenum

chamber. Remove water jacket. Remove gasket
and discard.

22. Remove 3 bolts securing throttle linkage bracket

to plenum chamber. Remove bracket. Collect
return spring.

23. Remove 2 Torx bolts securing TP sensor.

Collect clamp plate. Remove TP sensor.

24. Remove 2 bolts securing IAC. Remove motor.

Remove gasket and discard.

SFI

15

REPAIR

REV: 09/95

Refit

25. Ensure all mating surfaces are clean.
26. Fit TP sensor. Ensure drive engages correctly

with throttle spindle.

27. Position clamp plate. Secure TP sensor with

bolts. Tighten to

2 Nm.

28. Using a new gasket, fit IAC. Secure with bolts.

Tighten to

2.3 Nm.

29. Ensure mating faces of water jacket and plenum

chamber are clean.

30. Using a new gasket, fit water jacket. Secure with

bolts. Tighten to

13 Nm.

31. Position throttle linkage bracket, fit and engage

return spring.

32. Secure linkage bracket to plenum chamber with

bolts. Tighten to

8 Nm.

33. Remove cloth from ram housing.
34. Ensure mating faces of plenum chamber and

ram pipe housing are clean.

35. Position plenum chamber. Connect coolant

hoses to water jacket. Secure with clips.

36. Remove clamp from coolant pipes. Remove

cloth.

37. Apply a thin, uniform coating of Loctite 577

sealant to sealing face of plenum chamber.

38. Fit plenum chamber.
39. Fit plenum chamber bolts. Tighten to

24 Nm.

40. Connect multiplugs to TP sensor and IAC.
41. Connect breather hose to plenum chamber.
42. Fit kick down cable to abutment bracket and fit

locknut.

43. Connect throttle cable to abutment bracket.
44. Connect vacuum hose to actuator.
45. Align throttle cable to lever. Fit clevis pin. Secure

clevis pin with split pin.

46. Align kick down cable to lever.
47. Fit clevis pin and secure clip.
48. Connect intake hose and secure with clip.
49. Reconnect battery negative lead.
50. Top up cooling system.

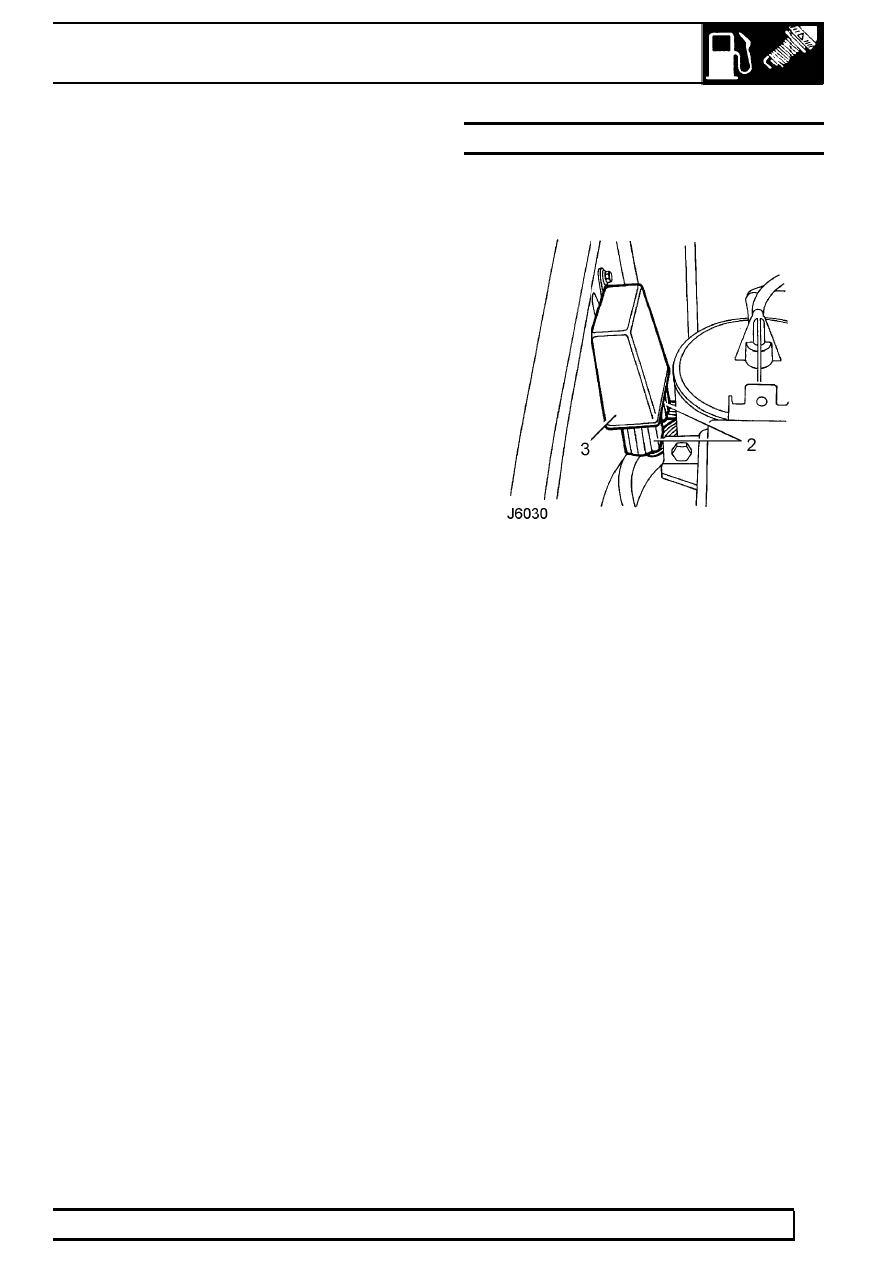

RELAY MODULE - PRE ADVANCED EVAPS

Service repair no - 18.30.71

Remove

1. Release module from bracket.
2. Disconnect 2 multiplugs.
3. Remove module.

Refit

4. Reverse removal procedure.
