Defender 300Tdi (1996+). Manual - part 95





AIR CONDITIONING

3

REPAIR

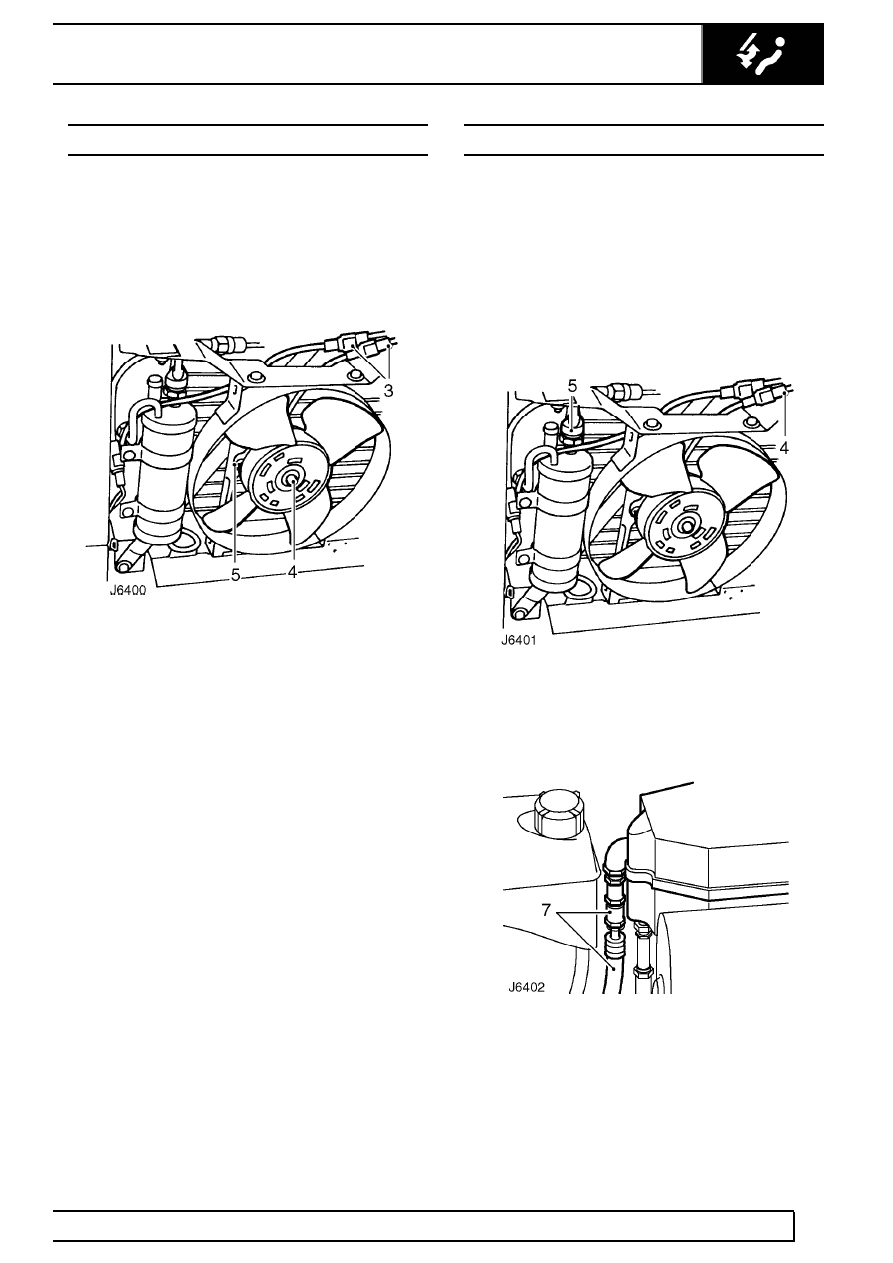

CONDENSER FAN AND MOTORS

Service repair no - 82.15.08

Remove

1. Disconnect battery.
2. Remove 6 screws and lift grille panel from

vehicle.

3. Disconnect fan motor multi-plugs and release

harness retaining clips.

4. Remove nut and washers and withdraw fan

blade from motor drive shaft.

5. Remove 2 retaining screws, release motor fan

from shroud support brackets and feed motor
multi-plug lead through appropriate aperture.

Refit

6. Feed motor lead through fan shroud.
7. Fit motor to fan shroud support brackets.
8. Reconnect fan lead multi-plug and secure with

retaining clips.

9. Fit fan blade to motor drive shaft.

10. Fit grille panel.
11. Reconnect battery.

CONDENSER

Service repair no - 82.15.07

Remove

1. Disconnect battery.
2. Recover refrigerant from air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

3. Remove 6 screws and lift grille panel from

vehicle .

4. Disconnect condenser fan motor lead

multi-plugs.

5. Disconnect receiver/drier dual pressure switch

multi-plug.

6. Disconnect condenser low pressure pipe at

compressor.

7. Disconnect high pressure hose/pipe at

evaporator.

82

AIR CONDITIONING

4

REPAIR

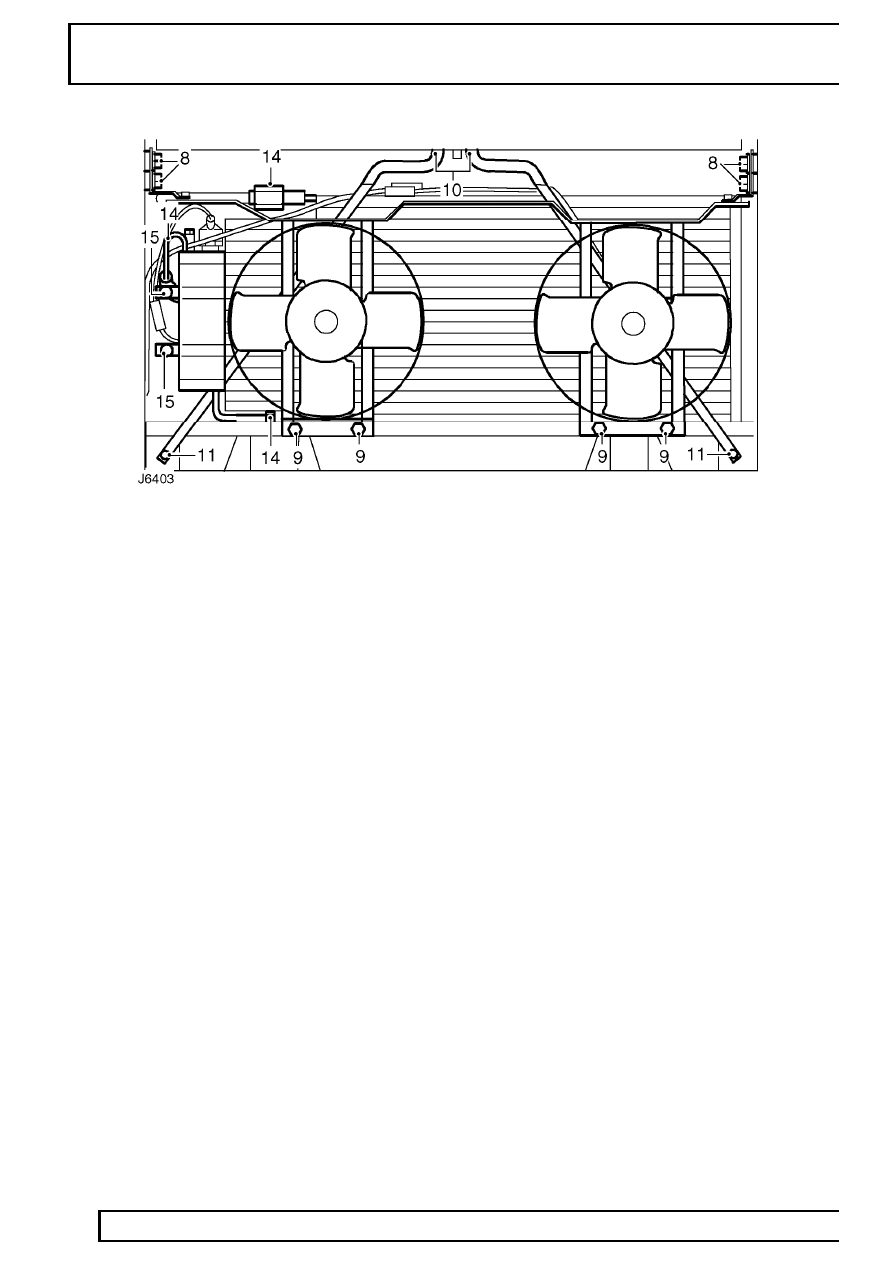

8. Remove 4 bolts and large packing washers

securing fan cowling brackets to wing sides.

9. Remove 4 nuts securing fan cowling to lower

mounting bracket and lift complete assembly
from condenser.

10. Remove 2 bolts securing bonnet striker support

plate and cross braces to grille top panel.

11. Remove 2 bolts securing cross braces to front

wings.

12. Lift condenser, from bottom mounting lugs and

carefully ease forwards to clear top grille panel.

13. Lift condenser, complete with receiver/drier, from

vehicle taking care to clear high and low
pressure hose/pipes at side of radiator.

14. Disconnect condenser and receiver/drier pipes.
15. Remove clamp bolts and release receiver/drier if

a new condenser is to be fitted.

16. Discard all pipe connection ’O’ rings. Cap or plug

all connections to prevent ingress of dirt and
moisture.

Refit

17. Coat unions, threads and new ’O’ rings with

refrigerant oil prior to reassembly.

18. Secure receiver/drier to mounting clamps.
19. Fit condenser and receiver/drier pipes.
20. Lower condenser into position ensuring high and

low pressure pipes are located between radiator
and front wing.

21. Secure cross braces and bonnet striker support

plate to top grille.

22. Secure cross braces to front wings.
23. Secure fan cowl assembly to lower mounting

bracket and front wings.

24. Fit high pressure pipe at evaporator.
25. Fit condenser low pressure pipe at compressor.
26. Connect multi-plug at receiver/drier dual

pressure switch.

27. Connect fan motor lead multi-plug.
28. Evacuate and recharge air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

29. Reconnect battery.
30. Fit grille panel.

AIR CONDITIONING

5

REPAIR

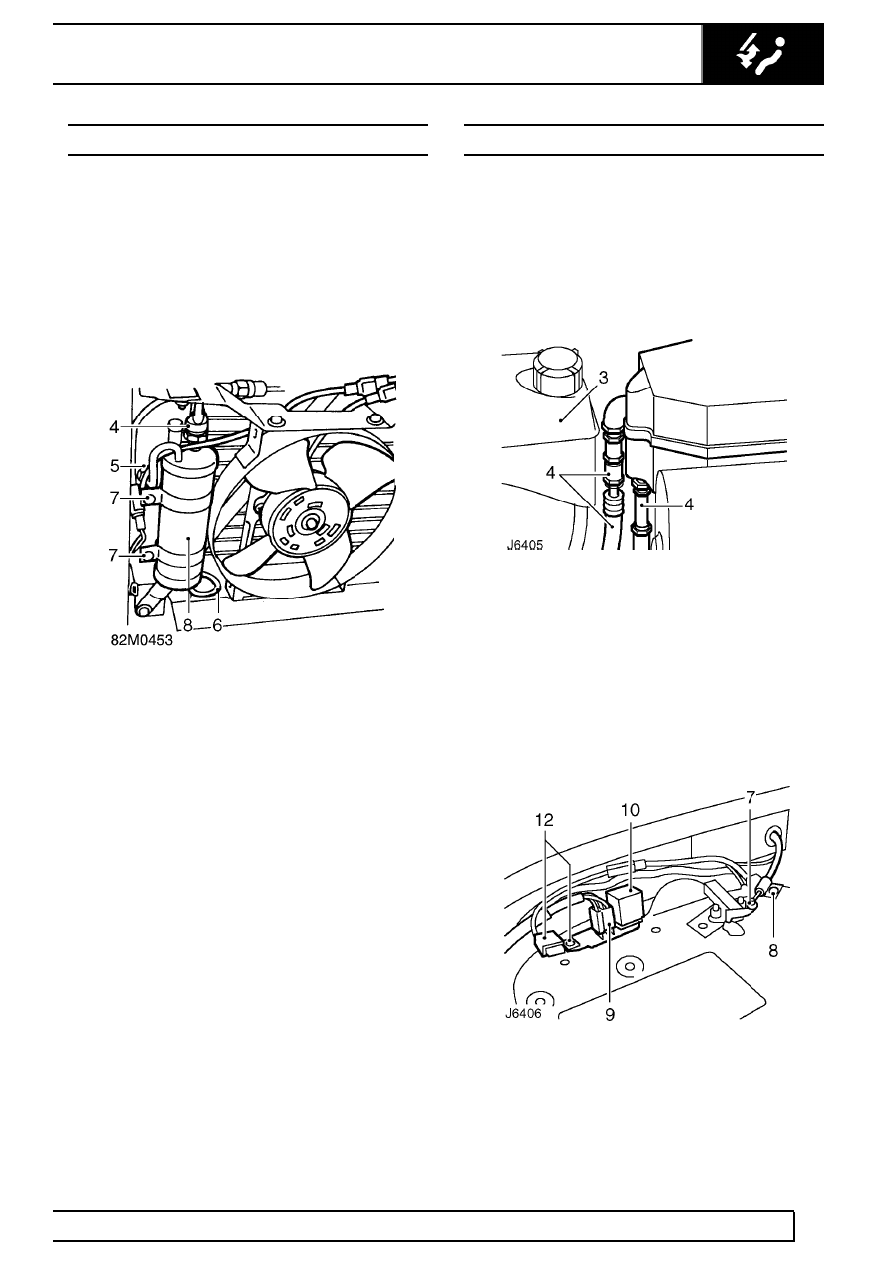

RECEIVER/DRIER

Service repair no - 82.17.01

Remove

1. Disconnect battery.
2. Recover refrigerant from air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

3. Remove 6 screws and lift grille panel from

vehicle.

4. Disconnect receiver/drier dual pressure switch

multi-plug.

5. Disconnect high pressure pipe at receiver/drier.
6. Disconnect bottom union at condenser.
7. Remove retaining bolts and open clamps.
8. Release receiver/drier from condenser and

discard. It is NOT recommended to refit old unit.

9. Discard all pipe connection ’O’ rings. Cap or plug

all connections to prevent ingress of dirt and
moisture.

Refit

10. Coat unions, threads and new ’O’ rings with

refrigerant oil prior to reassembly.

11. Secure new receiver/drier in retaining clamp.
12. Fit receiver/drier bottom union connector at

condenser.

13. Fit high pressure pipe to receiver/drier.
14. Fit pressure switch multi-plug.
15. Evacuate and recharge air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

16. Reconnect battery.
17. Fit grille panel assembly.

HEATER/COOLER UNIT - LH DRIVE

Service repair no - 82.25.21

Remove

1. Disconnect battery.
2. Recover refrigerant from air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

3. Remove expansion tank

See COOLING

SYSTEM, Repair, Expansion tank to gain
access to air conditioning high and low pressure
pipes.

4. Disconnect high and low pressure pipes. Discard

pipe connection ’O’ rings. Cap or plug
connections to prevent ingress of dirt and
moisture.

5. Disconnect compressor clutch switch multi-plug.
6. Remove pipe connector from vacuum switch.

7. Remove retaining clip and disconnect control

cable from evaporator flap operating rod.

8. Remove screw and release outer cable retaining

bracket.

82

AIR CONDITIONING

6

REPAIR

9. Remove plug connector from resistor.

10. Remove relay from connecting block to gain

access to fixing screw.

11. Remove screw and release relay connector

block. Retain relay in connector block.

12. Remove screw and detach air conditioning 30

amp fuse bracket from resistor. Refit both
resistor retaining screws.

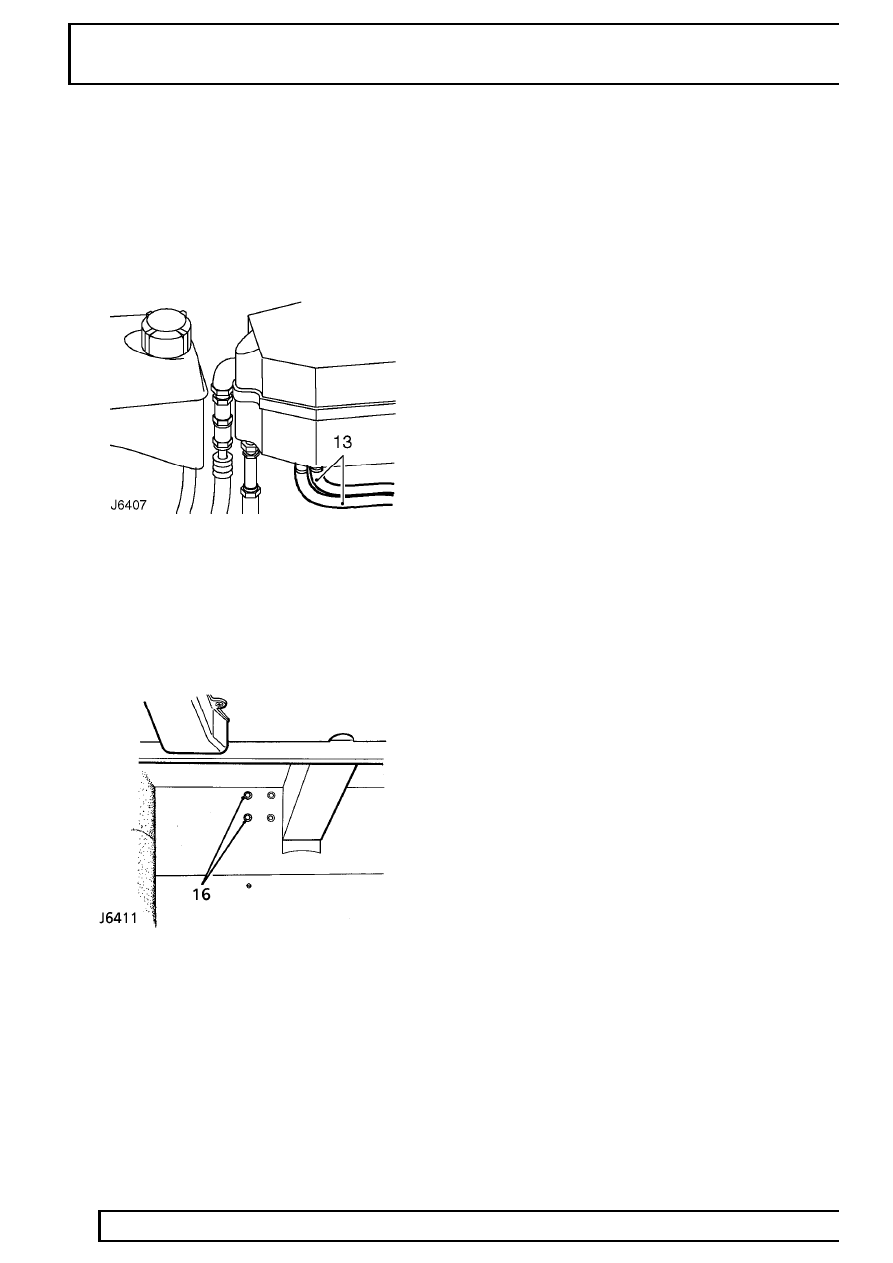

13. Using suitable pipe clamps, clamp heater matrix

feed and return hoses at base of heater/cooler
unit. Release retaining clips and remove hoses.

14. From inside vehicle remove front passenger

carpet, if fitted.

15. Remove retaining screws and fold back footwell

insulation.

16. Remove 2 bolts securing heater/cooler unit lower

mounting bracket to bulkhead.

17. From inside engine compartment remove 2 bolts

securing top heater/cooler unit mounting bracket
to engine bulkhead. This also releases earthing
leads.

18. Remove bolt securing support bracket to front of

heater/cooler casing.

19. Lift heater/cooler unit clear of air duct seal and

remove from vehicle.

20. Discard all pipe connection ’O’ rings.

Refit

21. Coat unions, threads and new ’O’ rings with

refrigerant oil prior to reassembly.

22. Position heater/cooler unit in engine

compartment and locate with air duct seal.

23. Secure unit top and bottom mounting brackets to

bulkhead and support bracket to front of unit
casing. Fully tighten fixing bolts when unit is
correctly positioned.

24. Fit footwell insulation.
25. Reconnect heater matrix hoses.
26. Fit air conditioning fuse bracket, relay connector

block, relay and resistor plug connector.

27. Fit control cable to evaporator air flap operating

rod, using a new clip.

28. Fit pipe connector to vacuum switch.
29. Connect compressor clutch switch multi-plug.
30. Connect high and low pressure pipes to

evaporator.

31. Fit expansion tank

See COOLING SYSTEM,

Repair, Expansion tank.

32. Evacuate and recharge air conditioning system

See Adjustment, Refrigerant recovery,
recycling, recharging.

33. Reconnect battery.
