Defender 300Tdi (1996+). Manual - part 90





80

HEATING AND VENTILATION

2

REPAIR

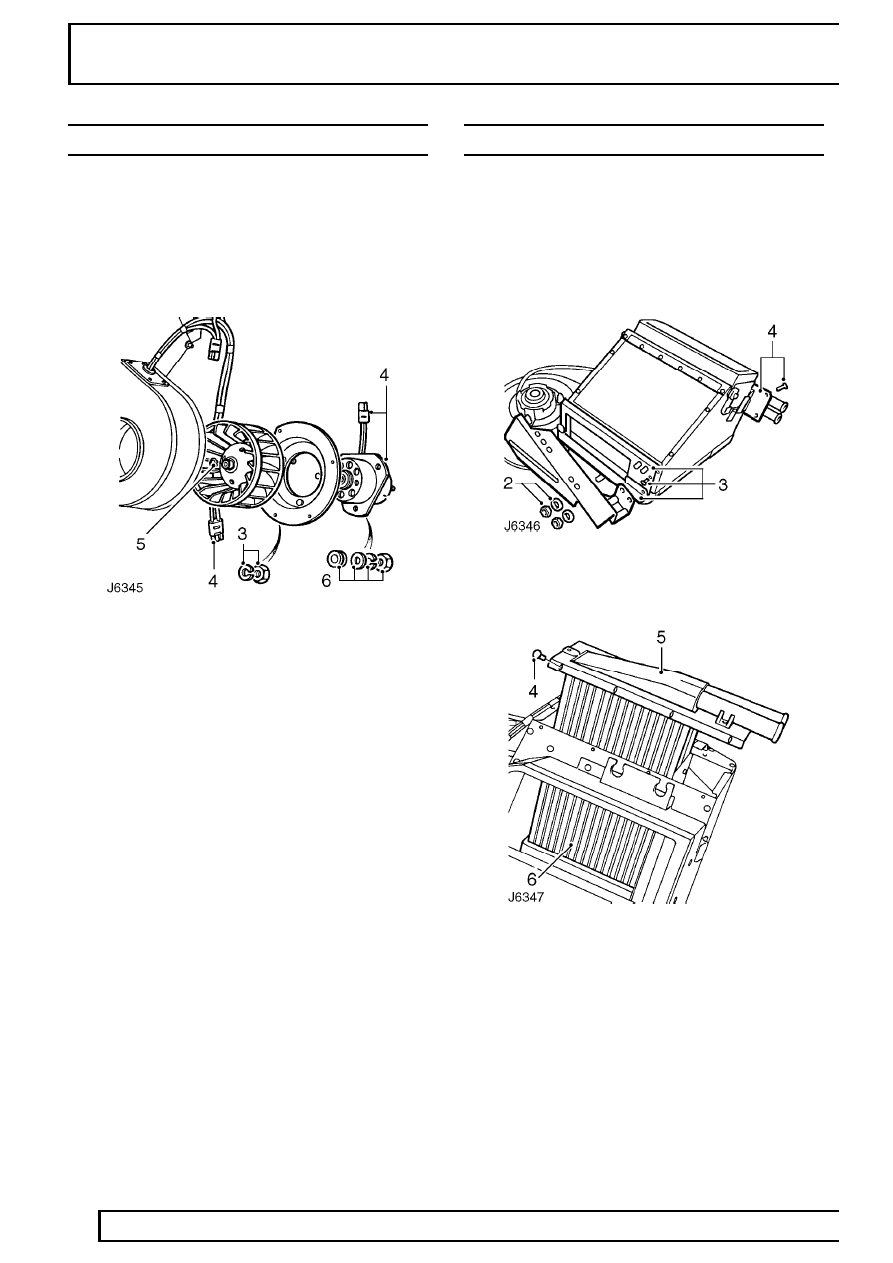

BLOWER MOTOR

Service repair no - 80.20.15

Remove

1. Remove heater unit

See Heater unit .

2. Remove 3 nuts securing angled bracket to

heater unit. Pivot bracket to remove from studs.

3. Remove 5 nuts securing blower motor assembly

to volute housing.

4. Disconnect harness connector and remove

blower motor from volute housing.

5. Release circlip and withdraw impeller from motor

shaft.

6. Remove 3 nuts securing blower motor to

mounting plate.

7. Remove blower motor.
8. Examine components for signs of wear and

renew as necessary.

Refit

9. Apply Bostik 1261 adhesive to mating faces of

mounting plate and blower motor.

10. Fit blower motor to mounting plate and secure

with 3 nuts. Ensure rubber mountings are
correctly fitted.

11. Fit impeller to motor shaft and secure with circlip.
12. Position blower motor assembly in volute

housing and secure with 5 nuts. Fit angled
bracket to lower fixing.

13. Reconnect harness plug to resistor harness and

fit angled bracket to heater unit.

14. Fit heater unit

See Heater unit .

HEATER MATRIX

Service repair no - 80.20.29

Remove

1. Remove heater unit

See Heater unit .

2. Remove 2 nuts securing angled bracket to

heater unit. Pivot bracket to remove from studs.

3. Remove 14 screws and detach two matrix

retaining plates from heater unit base.

4. Remove 9 screws securing matrix top retaining

plate.

5. Withdraw heater matrix through top of heater

unit casing.

HEATING AND VENTILATION

3

REPAIR

Refit

6. Fit foam rubber to heater matrix casing.
7. Position matrix in heater unit casing.
8. Check that both vent flaps operate correctly

without sticking.

9. Secure matrix top retaining plate.

10. Secure matrix bottom retaining plates.
11. Fit heater unit

See Heater unit .

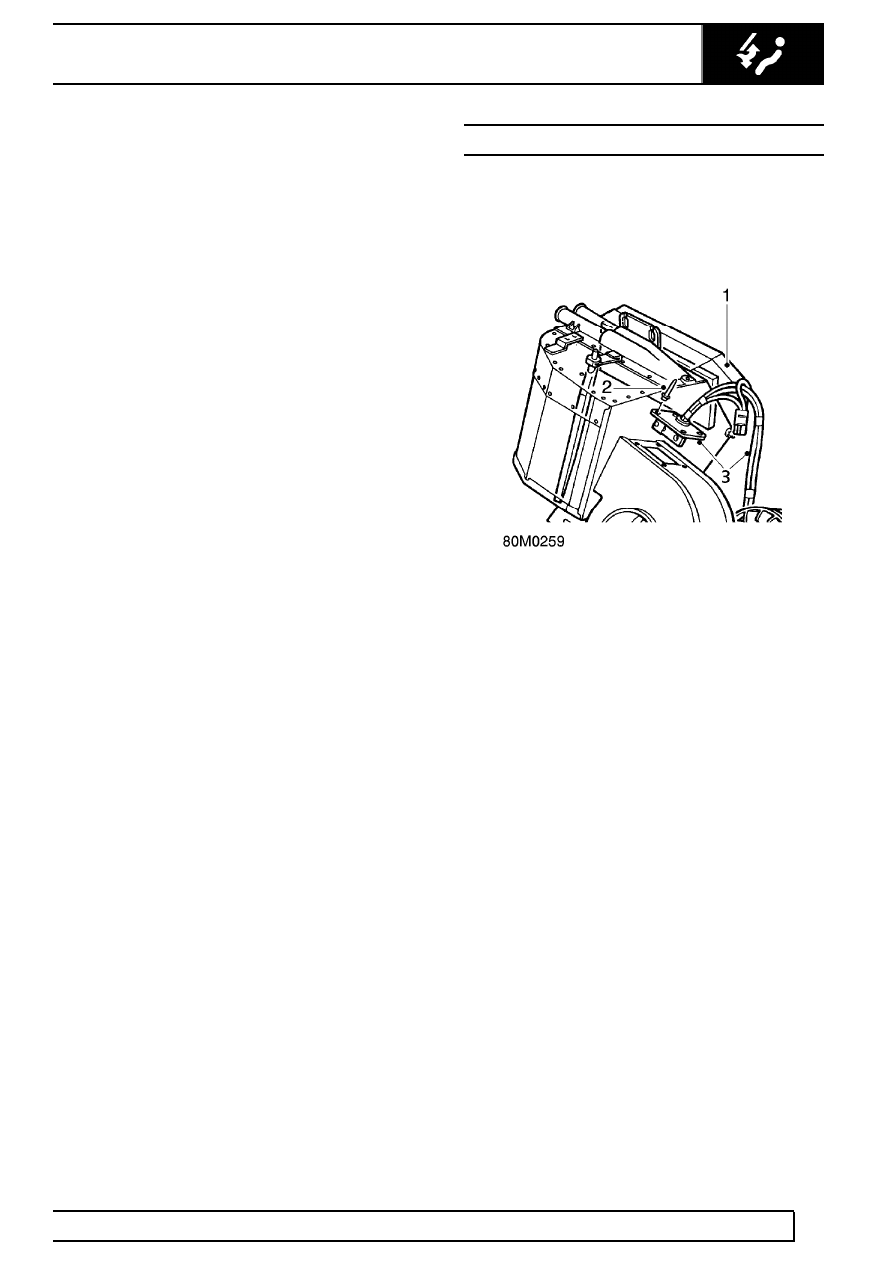

RESISTOR UNIT

Service repair no - 80.20.17

Remove

1. Remove heater unit

See Heater unit .

2. Drill out 4 rivets securing resistor mounting plate

to top of volute housing.

3. Remove resistor and disconnect blower motor

plug from harness.

Refit

4. Apply Bostik adhesive to resistor mounting plate

and rivet to volute housing.

5. Reconnect blower harness motor plug.
6. Fit heater unit

See Heater unit .

80

HEATING AND VENTILATION

4

REPAIR

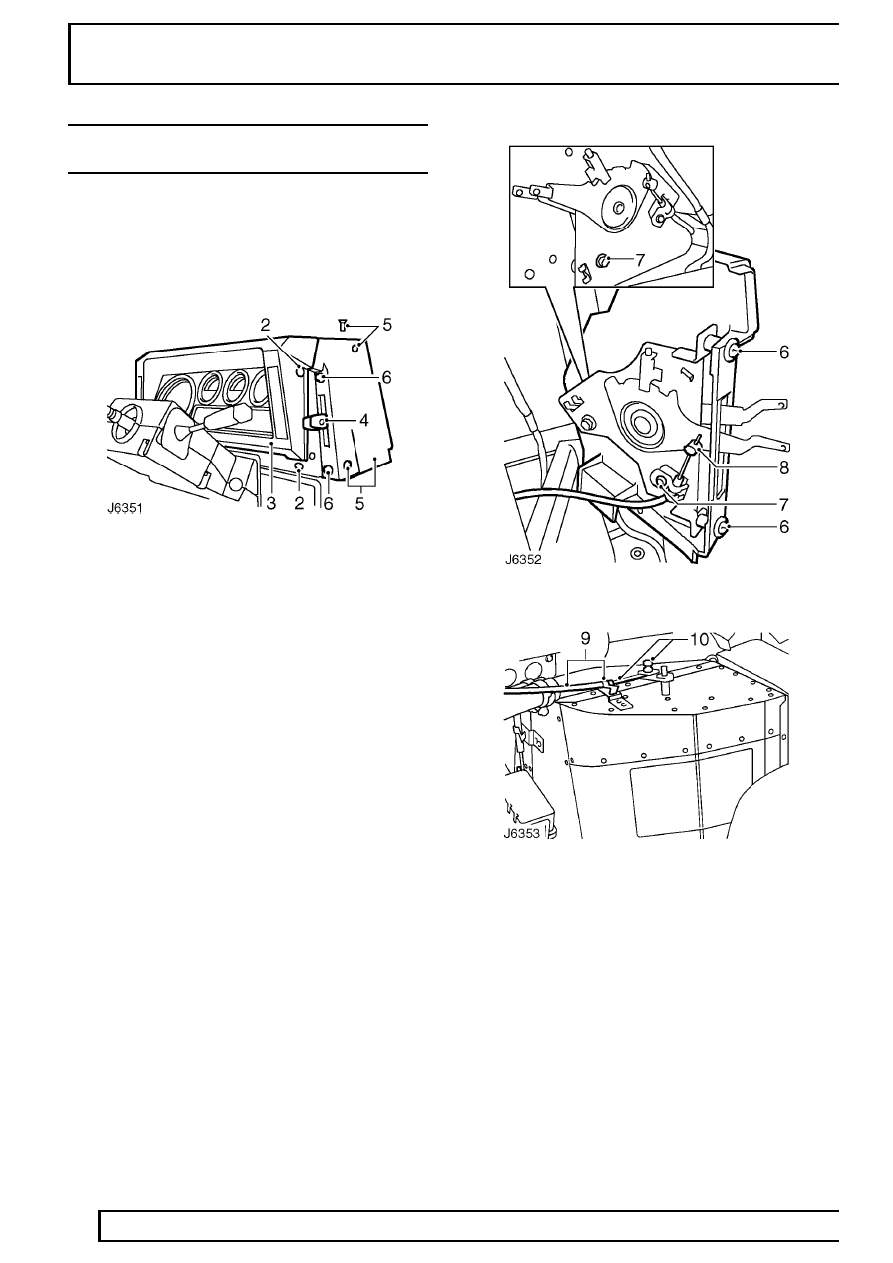

HEATER CONTROL CABLE - TEMPERATURE
CONTROL

Service repair no - 80.10.05

Remove

1. Disconnect battery.

2. Remove 4 screws securing instrument panel to

fascia cowl.

3. Pull instrument panel away from fascia and

disconnect speedometer cable to give easier
access to control cable at bulkhead.

4. Remove retaining screws and pull off air

distribution and temperature control lever knobs.

5. Remove 3 screws and detach side cover,

complete with control lever assembly.

6. Remove 2 screws securing control lever

assembly to side cover and remove cover. Note
plastic screw spacers fitted between cover and
control lever assembly and retain.

7. Remove small bolt and release outer cable

retaining clip.

8. Slacken grub screw and release inner cable from

clevis.

9. From inside engine compartment, release outer

cable retaining clip at heater unit.

10. Slacken trunnion fixing and release inner cable

from heater unit flap lever.

11. Release 2 retaining clips securing control cables

to engine bulkhead and heater hoses.

12. Pull control cable through bulkhead grommet

and remove from vehicle.

Refit

13. Fit new control cable to heater flap lever trunnion

with approximately 10 mm of inner cable
protruding from trunnion. Fully tighten trunnion.

14. Secure outer cable with retaining clip.
15. Route control cable through sealing grommet

and along inside of engine bulkhead to fascia
panel.

HEATING AND VENTILATION

5

REPAIR

16. Secure control cables to engine bulkhead and

heater hoses with retaining clips.

17. With control lever in closed position, fit inner

cable to lever clevis and fully tighten clevis grub
screw.

18. Fit outer cable retaining clip and fully tighten

securing bolt.

19. Fit side cover to control lever assembly. Ensure

fixing screw spacers are positioned between
cover and lever assembly.

20. Fit side cover to fascia.
21. Fit control lever knobs.
22. Reconnect speedometer cable and fit instrument

panel.

23. Reconnect battery.
