REPAIR

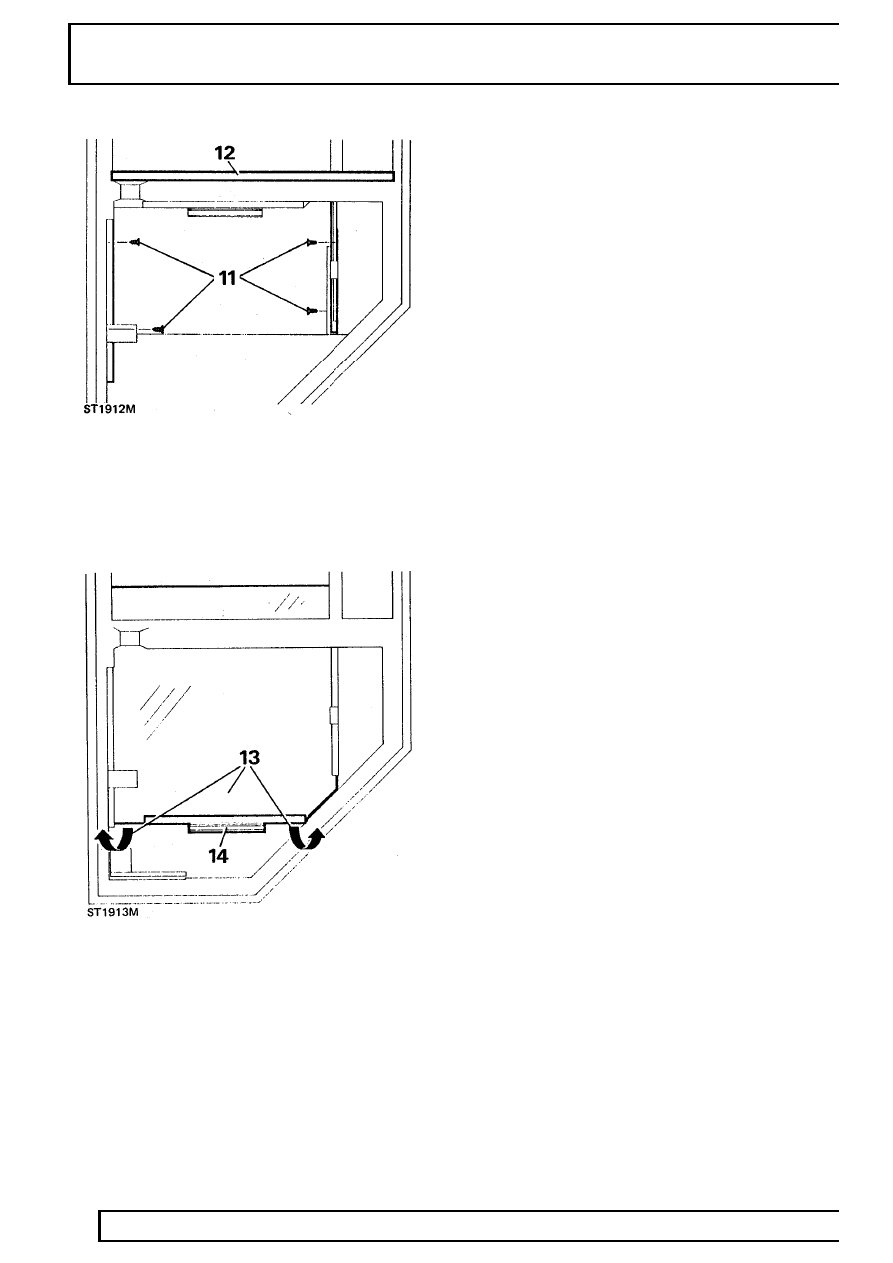

11. Remove 2 self-tapping screws from each side

and remove glass lower channels.

12. Remove inner and outer weather strips from

door sill.

13. Lower glass down to bottom of door, lift glass

over lower edge and withdraw from door.

14. Remove lift channel from glass, if necessary.

Refit

15. Fit lift channel to new glass, if necessary.
16. Insert glass into lower channels and carefully

push glass up to top of frame.

17. Secure lower channels with 4 self-tapping

screws. Ensure that screw heads are screwed
down firmly below bottom of channels to prevent
damage to glass.

18. Fit door check rod and bend end stop back to

closed position.

19. Fit check stop torsion bar and secure with 2 nuts

and bolts.

20. Fit water channel and secure with single

self-tapping screw.

21. Fit mounting panel complete with rods and

remote control lever.

22. Connect control rods to latch and door outer

handle mechanism.

23. Fit door sill locking button and connect control

rod

See Sill locking button .

24. Fit window regulator

See Window regulator .

25. Fit door inner and outer sill wear strips.
26. Fit and re-seal plastic sheet.
27. Fit door trim casing

See Door trim casing .

28. Connect door check rod to door post.

CHASSIS AND BODY

9

REPAIR

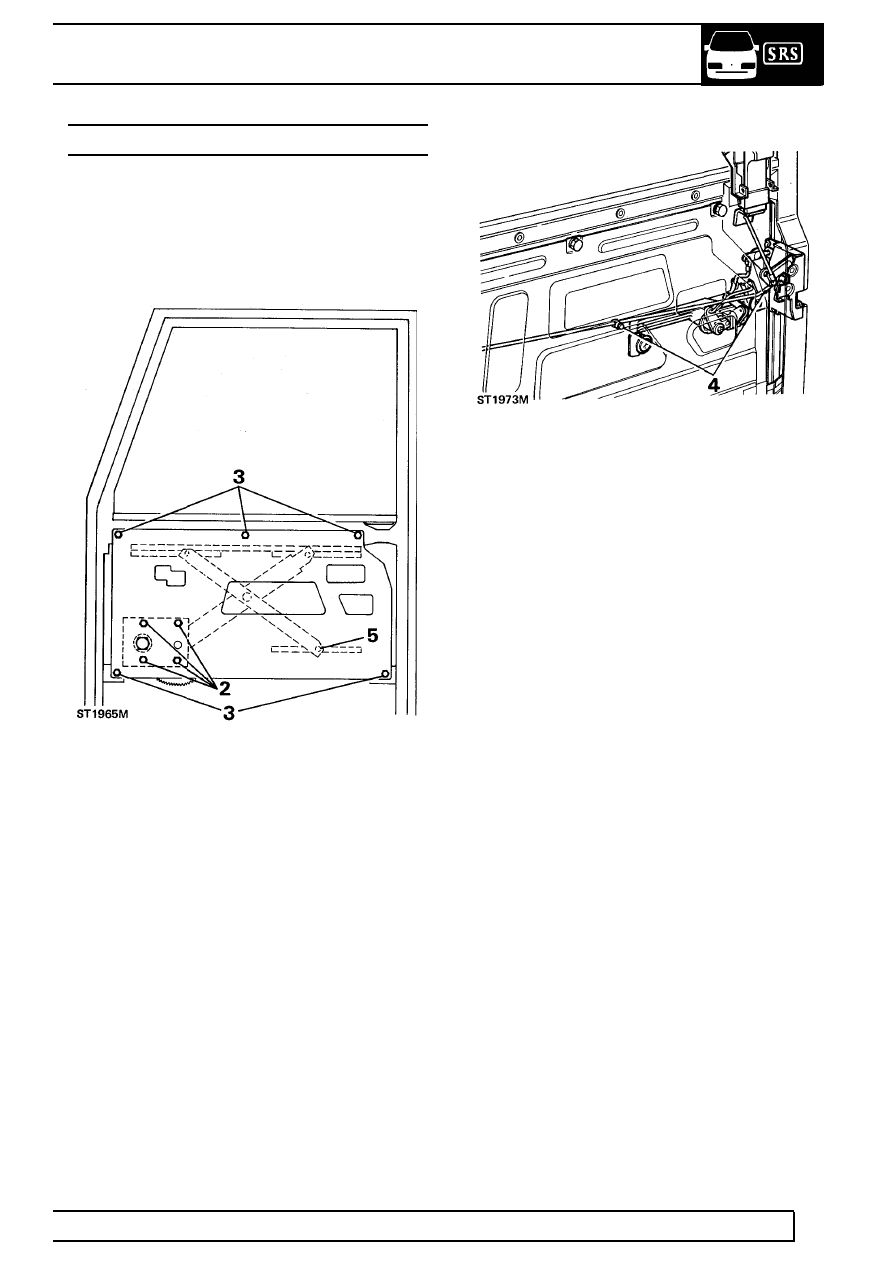

MOUNTING PANEL - FRONT DOOR

Service repair no - 76.11.28

Remove

1. Remove door trim casing

See Door trim

casing and plastic sheet.

2. Remove 4 screws securing window regulator to

mounting panel.

3. Remove 5 screws securing mounting panel to

door frame.

4. Release remote control lever rod from latch

mechanism and from plastic clip in mounting
panel.

5. Slide window regulator arm from mounting panel

channel and remove panel with remote control
lever and rod.

Refit

6. Engage window regulator arm in mounting panel

channel.

7. Connect remote control rod to latch mechanism

and secure with clip.

8. Fit mounting panel and retain with 5 screws.
9. Secure window regulator to mounting panel with

4 screws.

10. Raise and lower window to check for free

movement.

11. Fit plastic sheet, and door trim casing

See

Door trim casing .

76

CHASSIS AND BODY

10

REPAIR

SILL LOCKING BUTTON - FRONT DOOR

Service repair no - 76.37.29

Remove

1. Remove door trim casing

See Door trim

casing .

2. Peel back sufficient of plastic sheet to expose

mechanism.

3. Release spring clip and disconnect operating rod

from latch mechanism.

4. Remove 2 screws and withdraw locking button

assembly.

Refit

5. Secure locking button assembly to door with 2

screws.

6. Connect operating rod to latch mechanism and

secure with spring clip.

7. Re-seal plastic sheet and fit door trim casing

See Door trim casing .

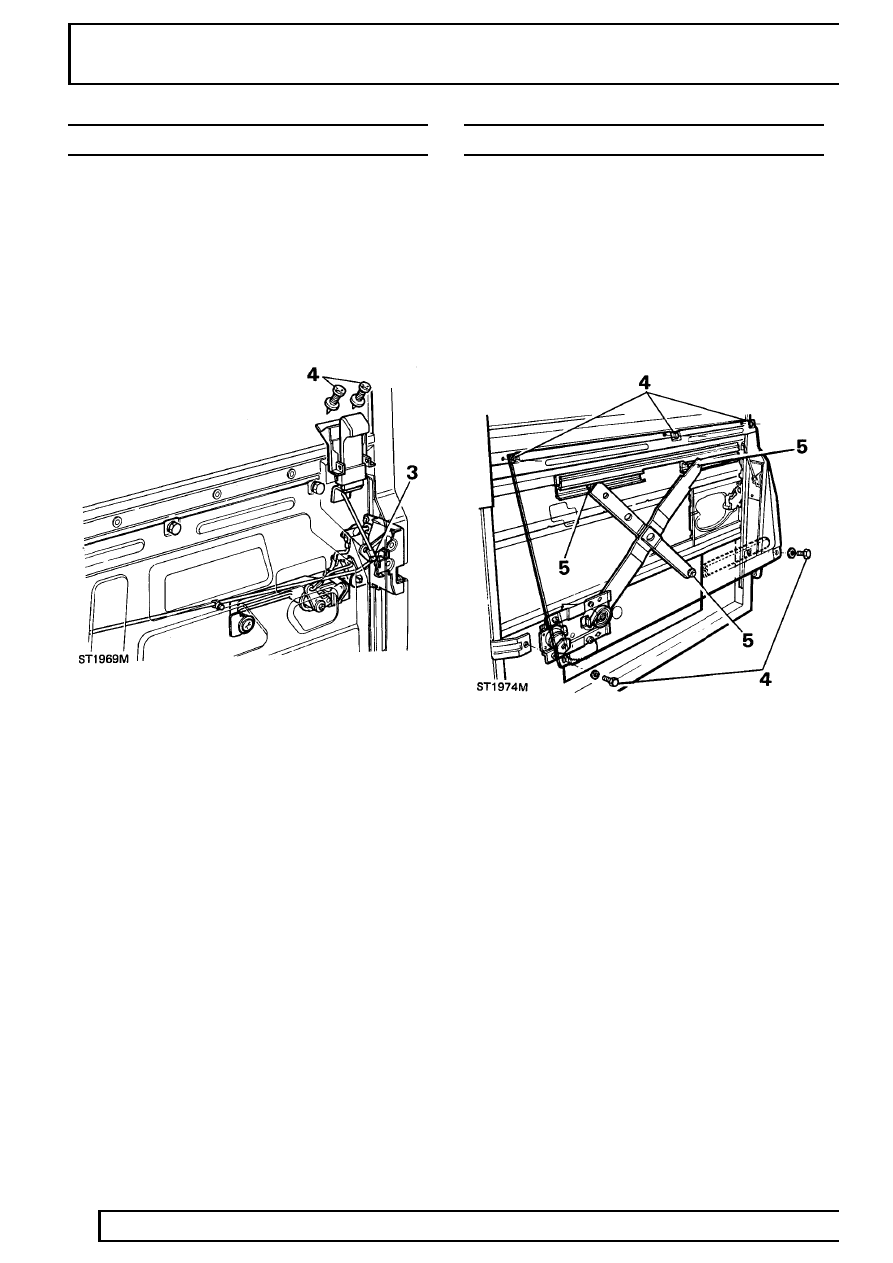

WINDOW REGULATOR - FRONT DOOR

Service repair no - 76.31.45

Remove

1. Remove door trim casing

See Door trim casing

.

2. Remove plastic sheet.
3. Temporarily fit handle, position window half open

and support with a length of timber.

4. Remove 2 lower screws securing mounting

panel to door and slacken 3 upper screws.

5. Remove 4 screws retaining window regulator to

mounting panel and slide operating arms from
channels attached to glass and mounting panel
and remove regulator.

Refit

6. Insert regulator operating arms into channels.
7. Fit and tighten mounting panel lower screws and

tighten upper screws.

8. Position holes in regulator to line-up with holes in

mounting panel and secure with 4 screws.

9. Temporarily fit regulator handle and check that

glass can be raised and lowered without tight
spots.

10. Secure plastic sheet.
11. Fit door trim casing

See Door trim casing .

CHASSIS AND BODY

11

REPAIR

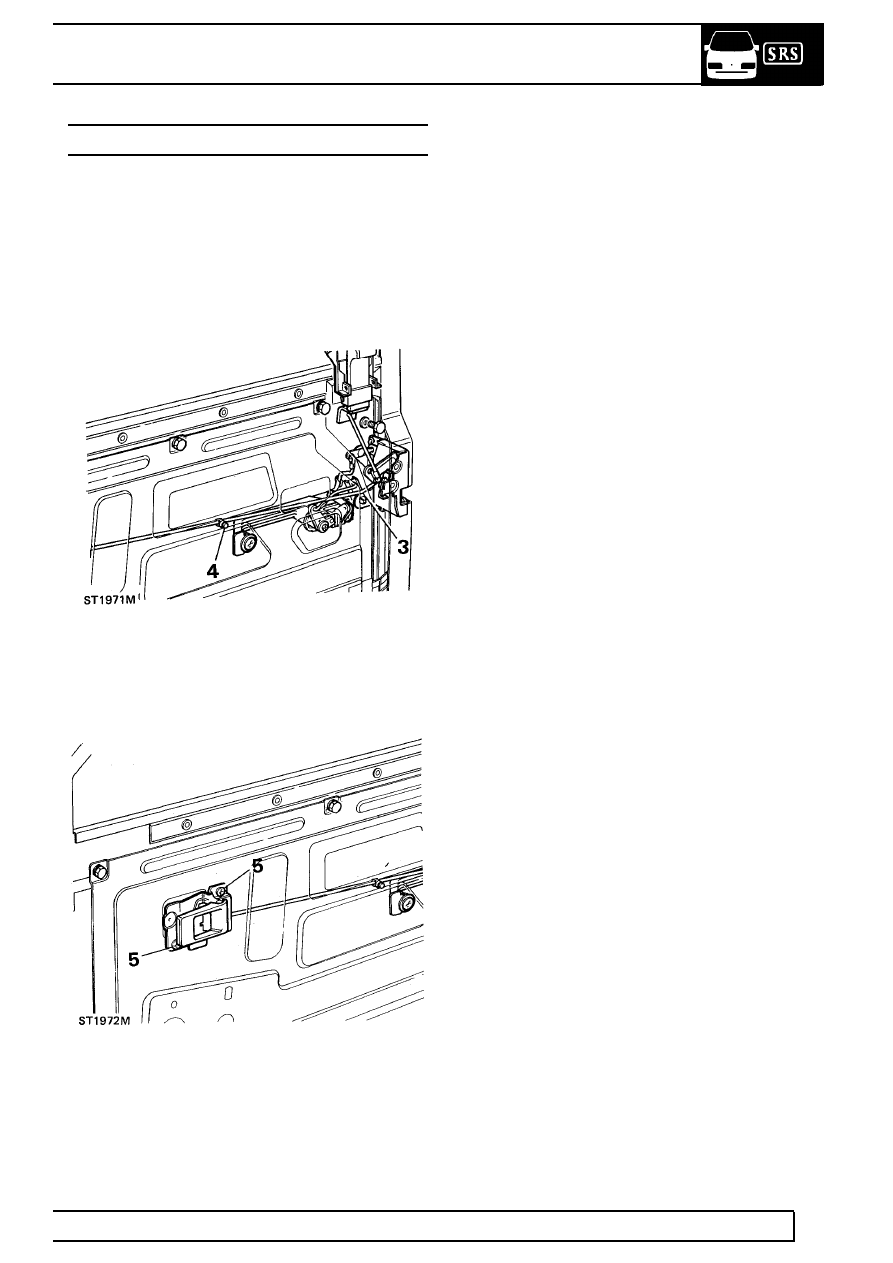

REMOTE CONTROL LEVER - FRONT DOOR

Service repair no - 76.37.31

Remove

1. Remove door trim casing

See Door trim

casing .

2. Peel back sufficient of plastic sheet to gain

access to remote lever.

3. Release spring clip and disconnect control rod

from latch mechanism.

4. Release control rod from plastic clip in mounting

panel.

5. Remove 2 screws securing remote control lever

to mounting panel and withdraw lever and
control rod.

Refit

6. Feed control rod into position and loosely secure

lever to mounting panel with 2 screws.

7. Connect control rod to latch mechanism and

secure with spring clip.

8. Tighten control lever retaining screws.
9. Secure control rod to plastic clip in mounting

panel.

10. Secure plastic sheet.
11. Fit door trim casing

See Door trim casing .
