Defender 300Tdi (1996+). Manual - part 79





76

CHASSIS AND BODY

8

DESCRIPTION AND OPERATION

CHASSIS FRAME ALIGNMENT

With the vehicle assembled, a check for chassis
squareness can be made as follows:

1. Place the vehicle on a level floor.

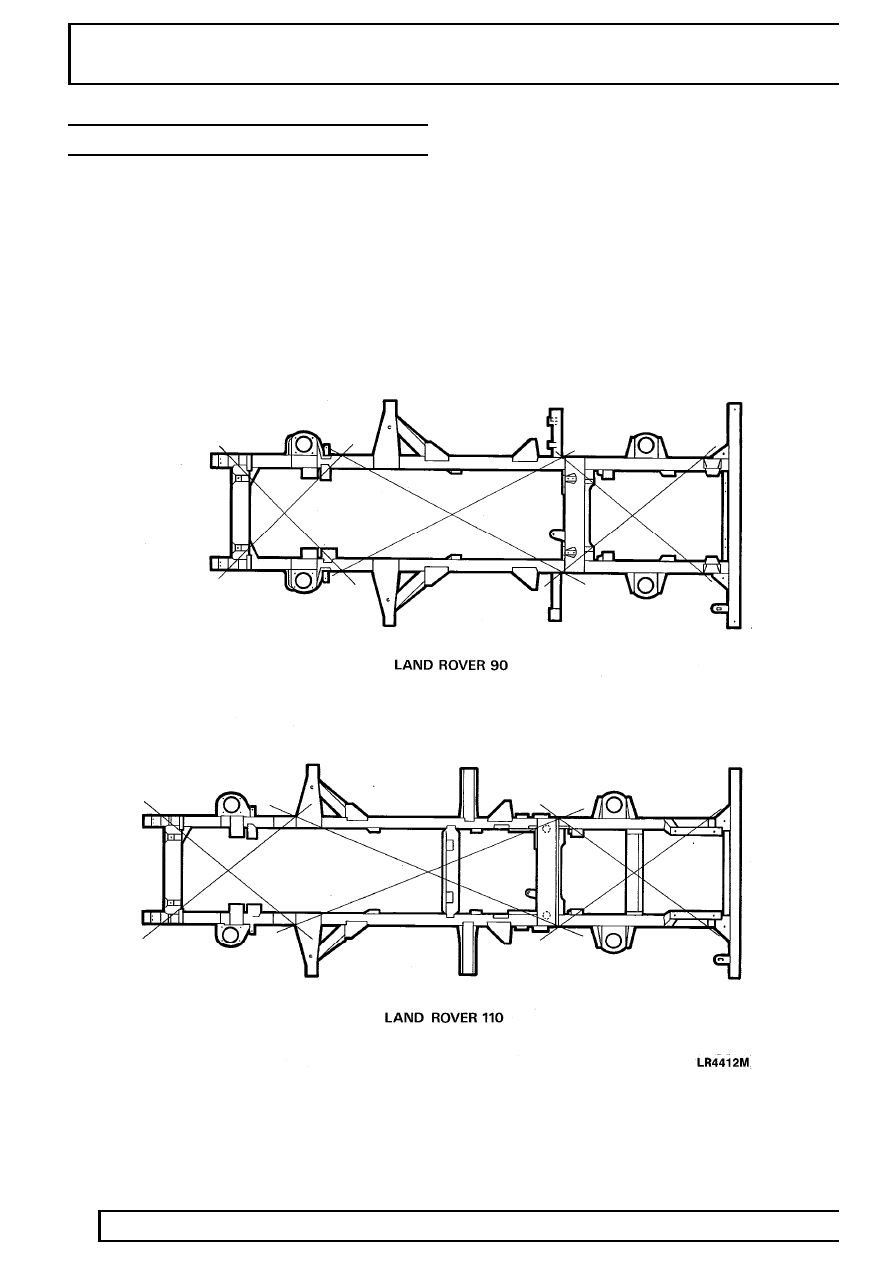

2. Mark measuring points at approximately the

locations shown in LR4412M ensuring that the
marks are exactly opposite on each side of the
chassis frame.

3. Hold a plumb line against each of the measuring

points in turn and mark the floor directly beneath
the plumb-bob.

4. Move the vehicle and measure diagonally

between the marks made on the floor, if the
chassis is square the diagonals between the
related measuring points should agree within
9,50 mm.

5. Chassis frame dimensional checks can be

made, with the vehicle upper structure removed,
referring to the applicable illustration and
associated key.

CHASSIS AND BODY

1

REPAIR

DOORS

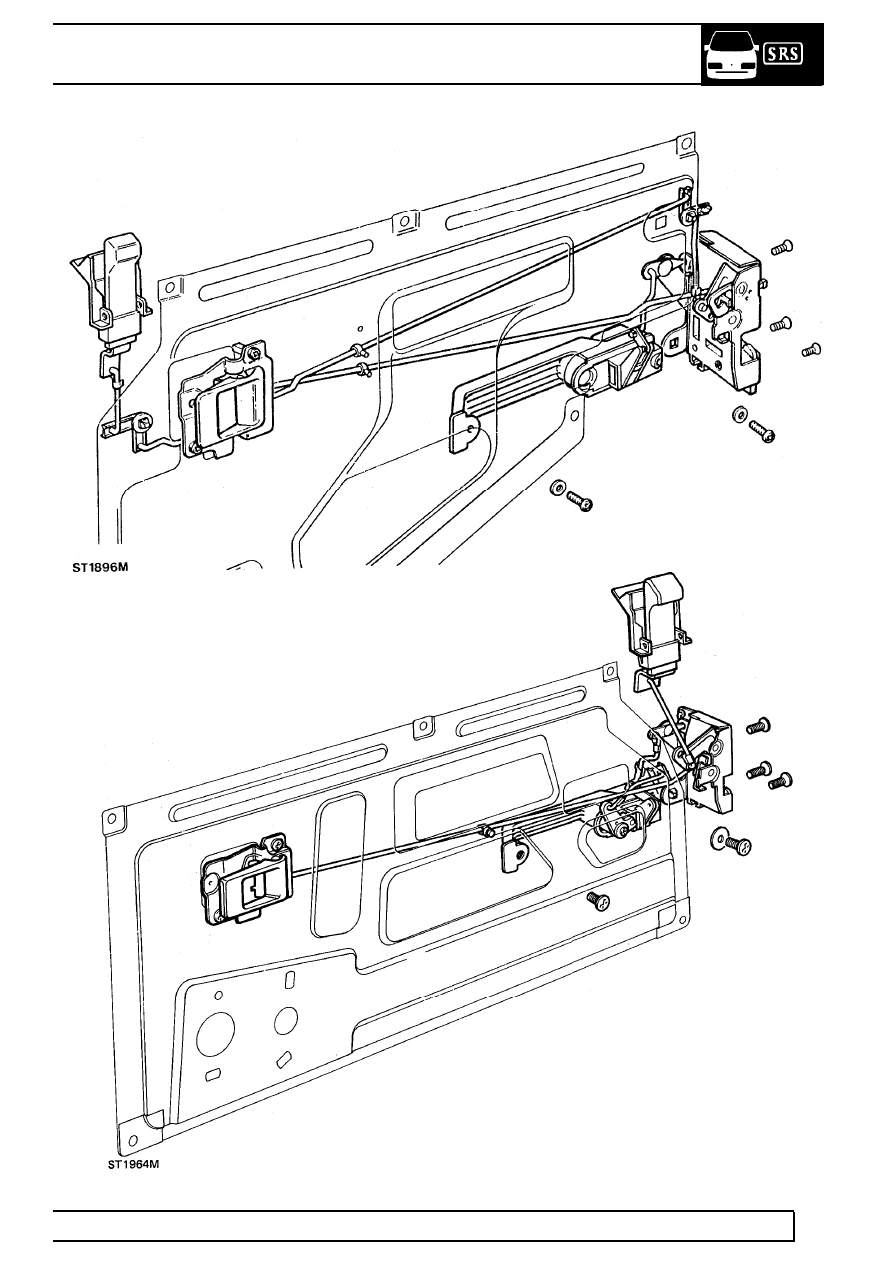

RH rear door lock mechanism

RH front door lock mechanism

76

CHASSIS AND BODY

2

REPAIR

DOOR TRIM CASING

Service repair no - 76.34.01 - Front doors
Service repair no - 76.34.04 - Rear doors

Remove

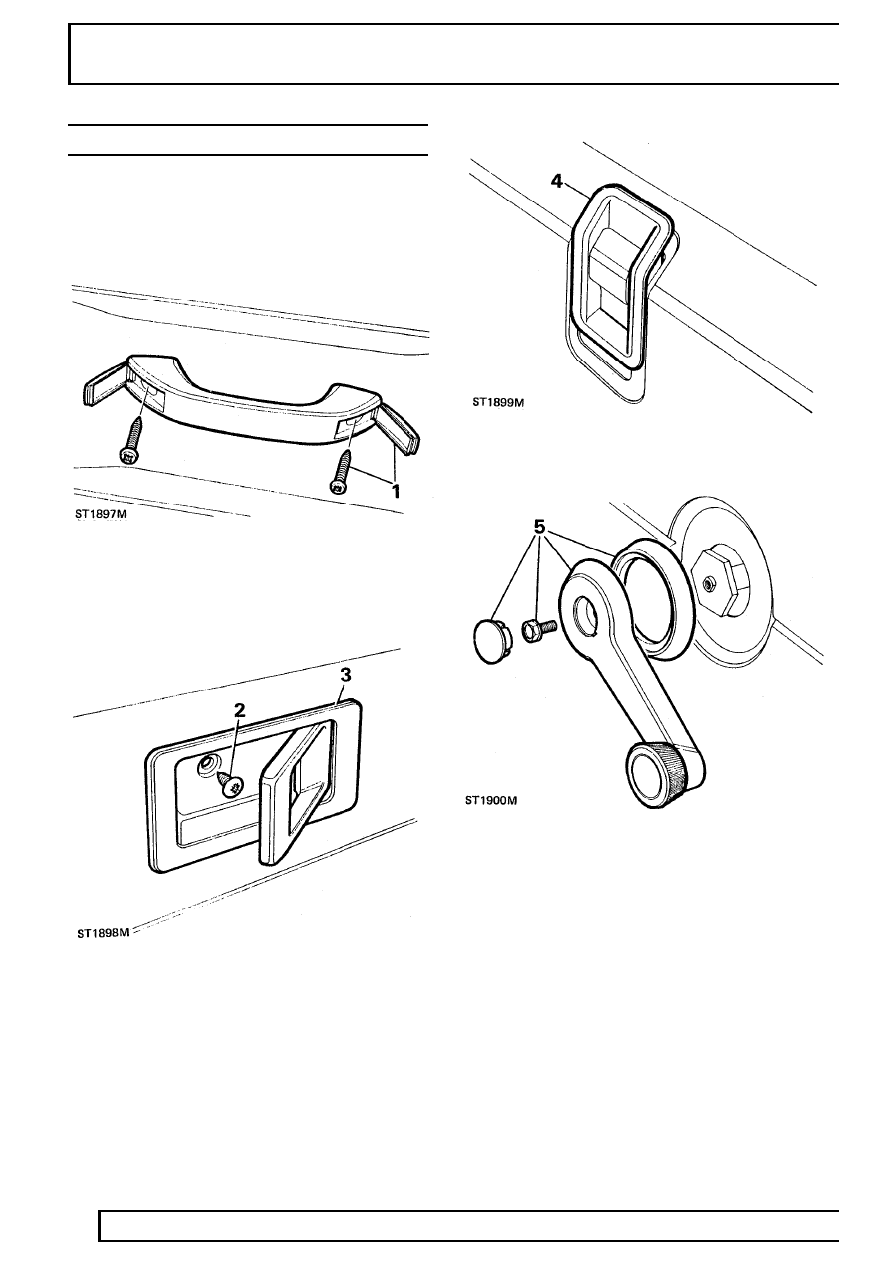

1. Prise open finisher caps, remove 2 screws, and

detach door pull.

2. Remove single screw behind remote control

lever.

3. Prise off remote control lever bezel.
4. Prise off door locking button bezel.

5. Prise out window regulator handle centre

finisher, remove retaining screw, and withdraw
handle and bezel.

6. Using a screwdriver to release trim fasteners,

carefully ease trim casing from door.

CHASSIS AND BODY

3

REPAIR

Refit

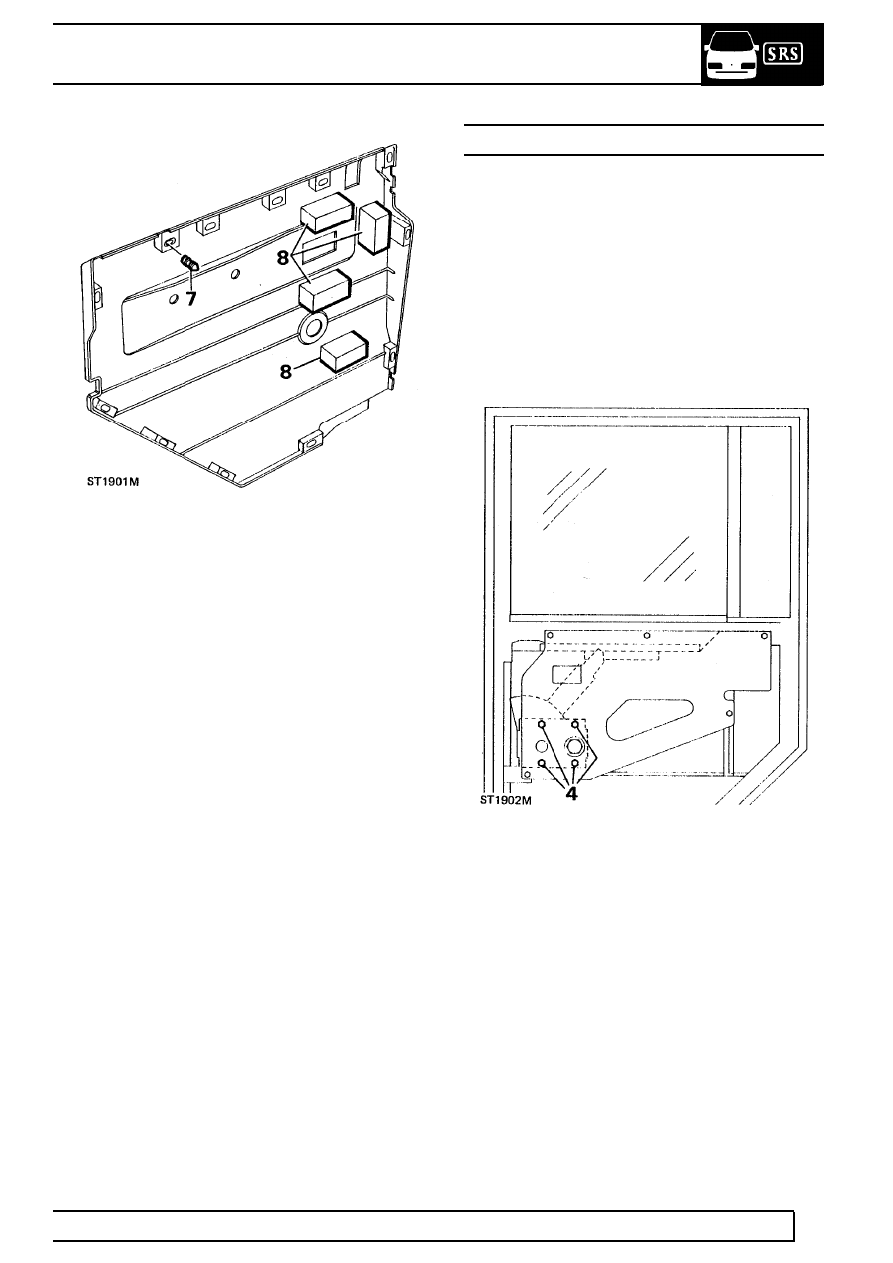

7. Remove any trim fasteners held in door panel.

Refit or insert new clips to trim panel.

8. Ensure that anti-vibration pads are in position

and offer-up trim casing to door. Align fasteners
with holes in door and firmly push trim into
position.

9. Fit bezels to locking button and remote control

lever.

10. Fit single screw behind remote control lever.
11. Fit door pull and secure with 2 screws and

finisher caps.

12. Fit window regulator handle and retain with

single screw and finisher.

WINDOW REGULATOR - REAR SIDE DOOR

Service repair no - 76.31.45

Remove

1. Remove door trim casing

See Door trim casing

.

2. Remove plastic sheet.
3. Temporarily fit handle, wind window up to its

fullest extent and support glass with a length of
timber, to prevent it falling when removing
regulator.

4. Remove 4 screws retaining regulator to

mounting panel and withdraw regulator whilst
sliding lifting arm button from lifting channel. To
assist this operation, remove timber and lower
glass.
