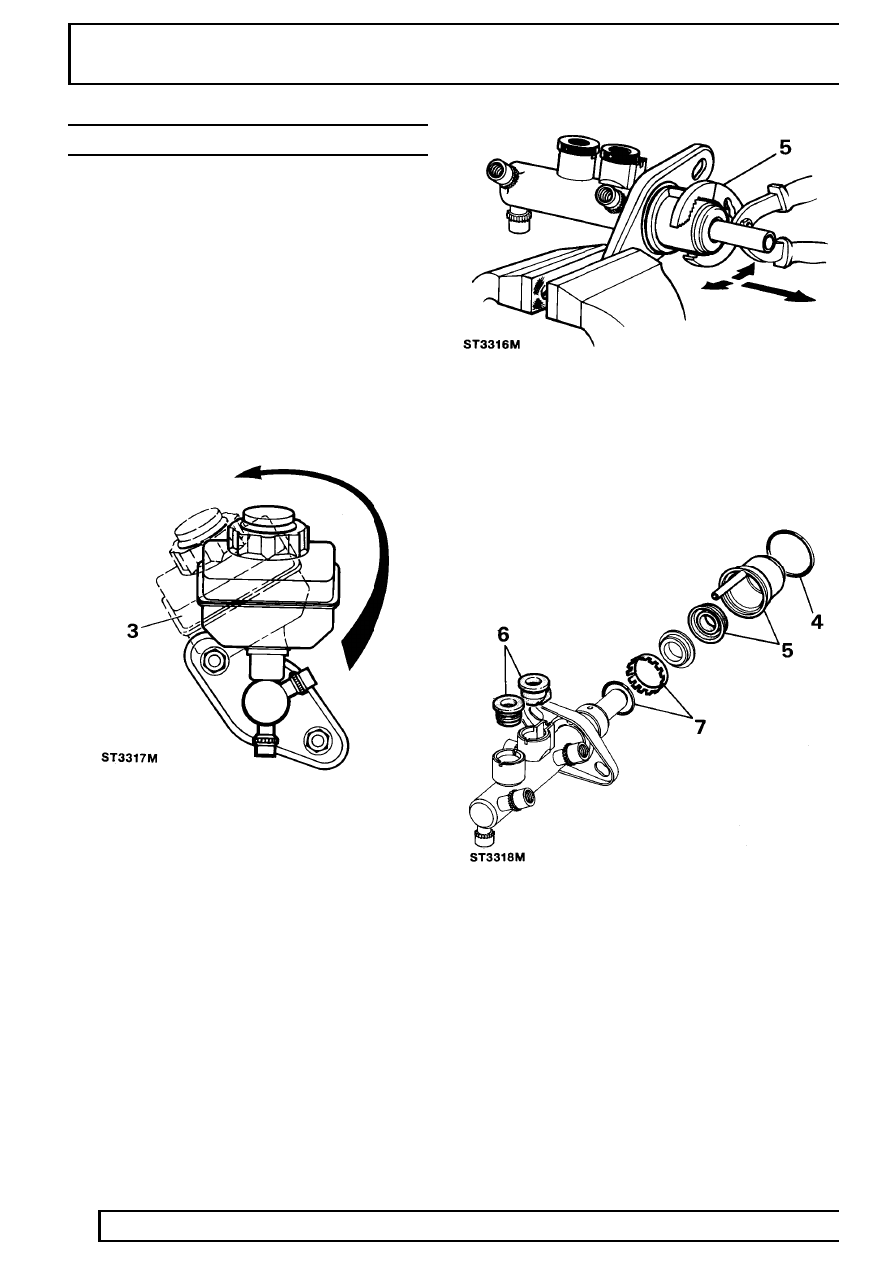

70 BRAKES 2 OVERHAUL MASTER CYLINDER Service repair no - 70.30.09 Before starting overhaul procedure refer to general See Repair, General brake service practice . Dismantling master cylinder 1. Disconnect battery and remove master cylinder from servo See Repair, Master cylinder . 2. Before commencing overhaul procedure thoroughly clean master cylinder and inspect 3. The reservoir is a push fit in master cylinder and secured by seals. Carefully ease reservoir from 4. Using soft jaws, one either side of master cylinder flange and clamp flange in a suitable 5. Hold outside of transfer housing with a suitable pair of grips, carefully pull, while working pliers in 6. Withdraw 2 reservoir seals from master cylinder and note their positions in inlet ports for 7. Remove retaining ring and ’O’ ring seal from machined outer surface of master cylinder, |
