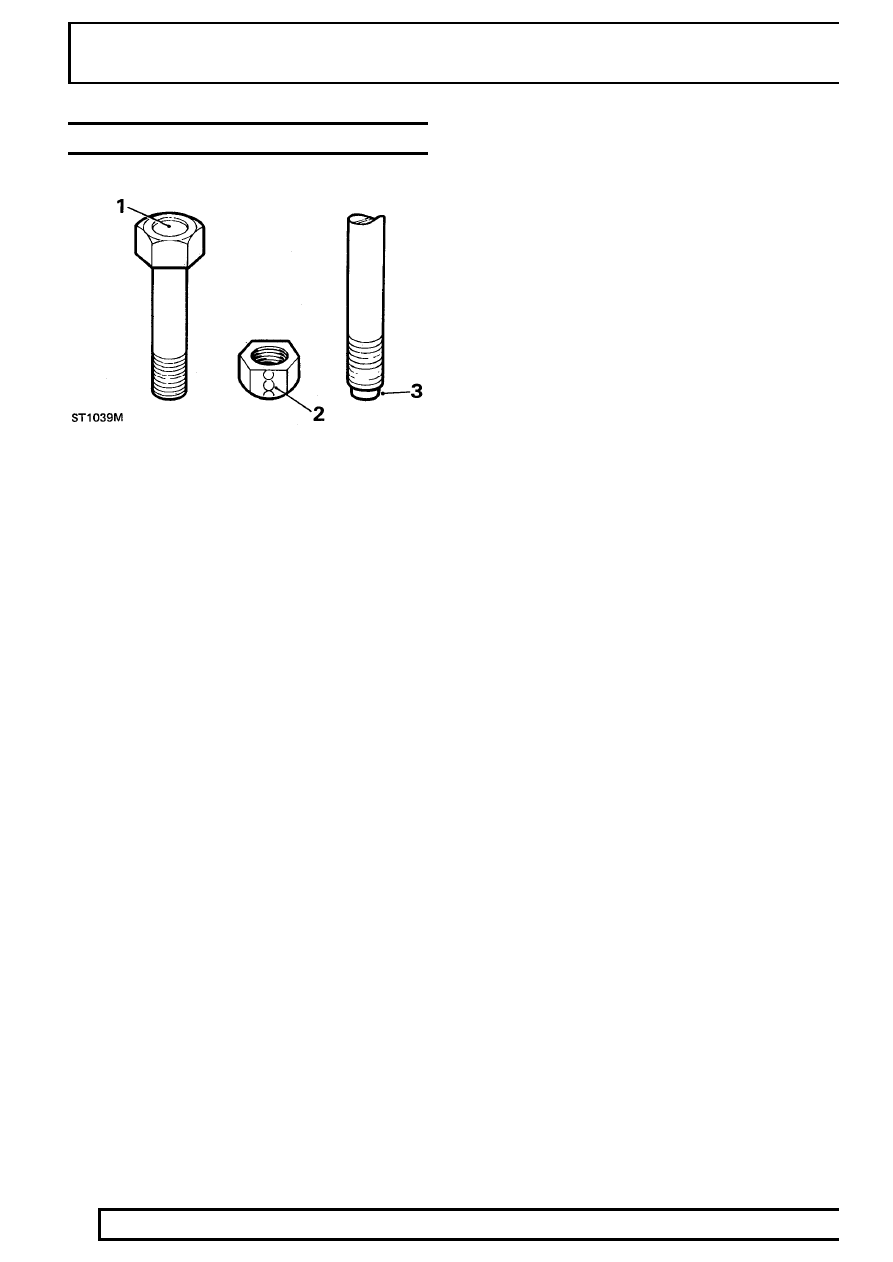

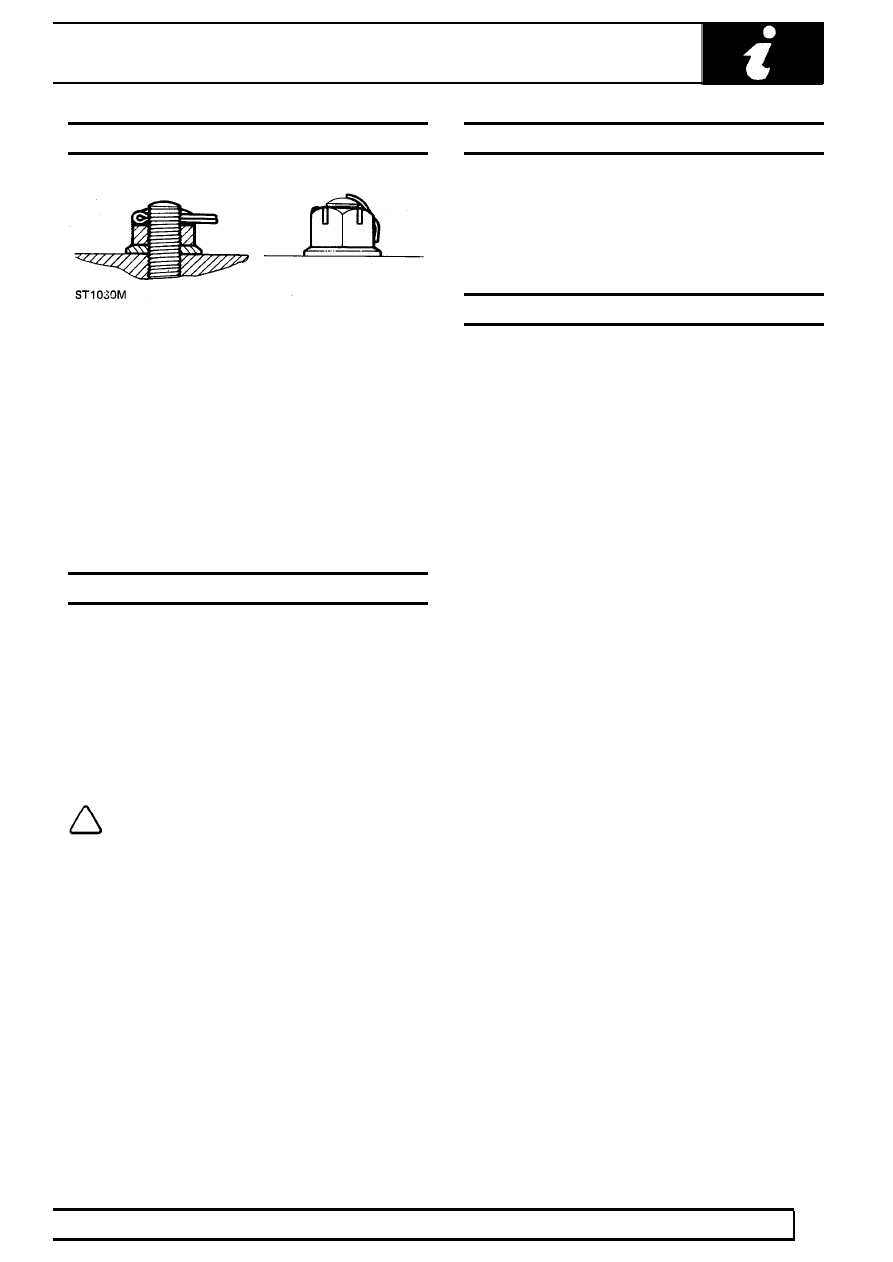

GENERAL FITTING REMINDERS 7 INFORMATION COTTER PINS 1. Fit new cotter pins throughout when replacing any unit. 2. Always fit cotter pins where cotter pins were originally used. Do not substitute spring 3. All cotter pins should be fitted as shown unless otherwise stated. NUTS 1. When tightening a slotted or castellated nut never loosen it to insert cotter pin or locking wire 2. Where self-locking nuts have been removed it is advisable to replace them with new ones of the NOTE: Where bearing pre-load is involved LOCKING WIRE 1. Fit new locking wire of the correct type for all assemblies incorporating it. 2. Arrange wire so that its tension tends to tighten the bolt heads, or nuts, to which it is fitted. SCREW THREADS 1. Both UNF and Metric threads to ISO standards are used. See below for thread identification. 2. Damaged threads must always be discarded. Cleaning up threads with a die or tap impairs the 3. Always ensure that replacement bolts are at least equal in strength to those replaced. 4. Do not allow oil, grease or jointing compound to enter blind threaded holes. The hydraulic action 5. Always tighten a nut or bolt to the recommended torque value. Damaged or corroded threads can 6. To check or re-tighten a bolt or screw to a specified torque value first loosen a quarter of a 7. Oil thread lightly before tightening to ensure a free running thread, except in the case of |
