Defender 90 / 110 / 130. Manual - part 33





2.5

LITRE PETROL ENGINE

FITTING

SUMP

Clean t h e

sump and cylinder block mating faces.

2.  Apply  a  bead  of

RTV

HYLOSILL  102  black

approximately 7

to

the cylinder  block  or

sump mating face.

3.  Fit  the sump within  30 minutes of  applying sealant

and  secure with  the  bolts  and  tighten  evenly

to the

correct torque.

NOTE: RTV  Liquid Sealant

is available under part

number  RTC  3254  from  Land  Rover  Parts  and
Equipment Ltd.

SKEW

To  renew  t h e   bush,  hold

gear  firmly

i n

a  vice

without  damaging  the  teeth.

If  possibie  insert  a

scrap  drive  shaft

in

the  gear  internal  splines  and

grip the shaft.

2.  Turn  the  locknut

thread)  to

remove and withdraw the thrust

and bush.

3.

Fit a new

bush

removing any burrs before hand and

ensure  that  the  location

hole

is  towards

t h e

lower

end

the gear.

4.

Fit

a  new  thrust  washer,  if  the  original  is  worn  or

scored. Apply  Loctite

601  to  the  thread  and

f i t

the

locknut  turning  anti-clockwise  and  tighten  to

27

34

(20

25

-4

5.

The gear  should

freely

in  the  bush  with  a

clearance of  0,051

to 0,203

(0,001

to 0,007

in)

between  thrust washer and bush.

51

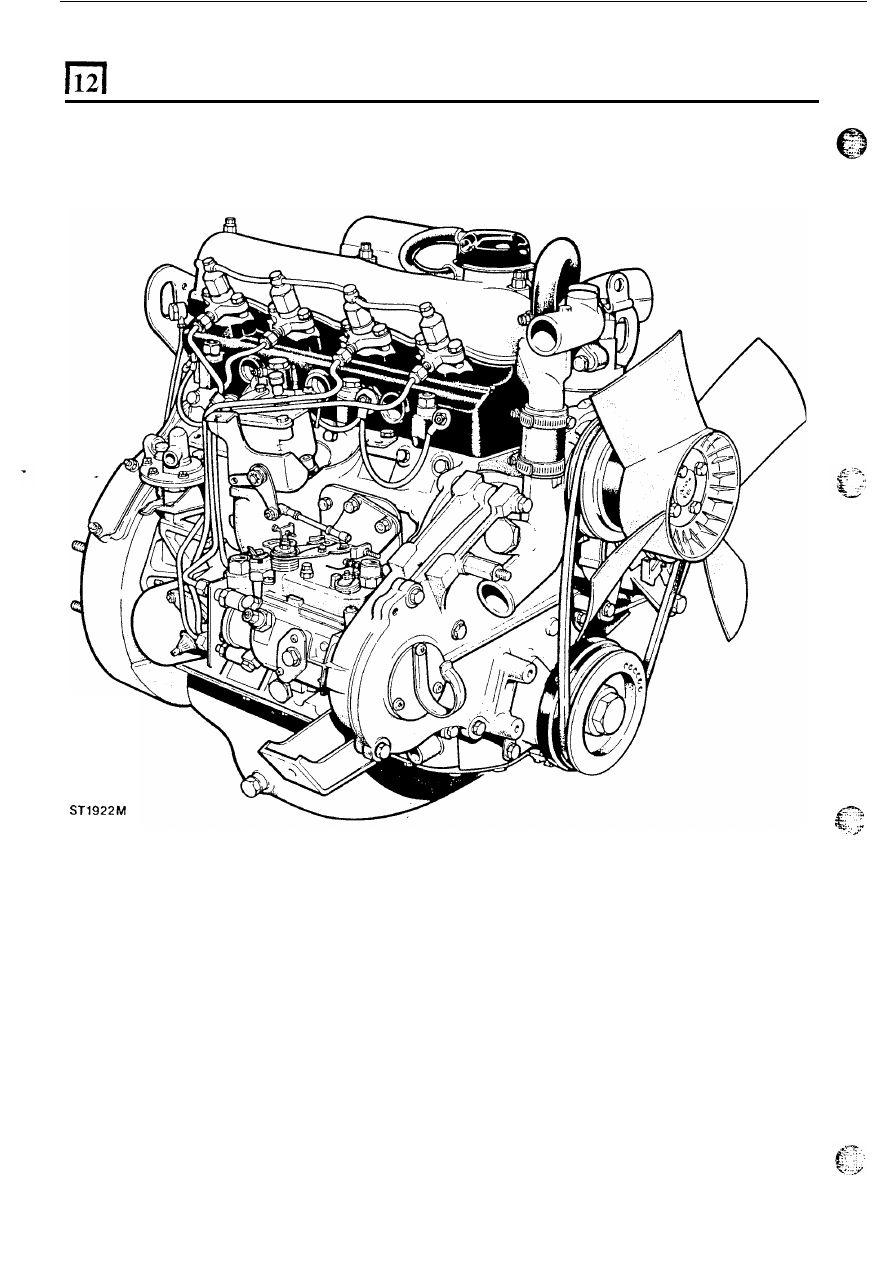

2.5 LITRE DIESEL ENGINE

2.5

LITRE DIESEL ENGINE

.....

52

LITRE

DIESEL ENGINE

DISMANTLE AND OVERHAUL

Special tools:
274400

Drift inlet valve guides

274401 - Drift exhaust valve guides
600959

exhaust valve guide

601508

Drift inlet valve guide

- Seal cutter

530625

Insert replacer

Clutch centralising

tool

270304

Cork-seal guide

1344

guide

rear main bearing

134-11

replacer rear main oil seal

Crankshaft nut spanner

Dist. pump remover

18G

Crankshaft pulley remover

1456 -Crankshaft oil seal replacer

18G 1482 - Camshaft oil seal replacer
18G 1458

Dist. pump timing tool

MS47

Press

Collets

Flywheel timing pin

REMOVE

EQUIPMENT

Remove the engine from the vehicle. Clean the exterior

and  in  the  interests  of  safety  and  efficient  working,
secure the engine to a recognised engine stand.
Before  commencing,  make

a  careful  note  of

t h e

position  of  brackets,  clips,  harnesses,  pipes,  hoses,
filters  and  other  miscellaneous  items  to  facilitate  re-
assembly

Removal  of  the  following components  is  a  reversal

of

the fitting procedure described

in

engine assembly.

Remove the alternator and mounting brackets.

2.  Remove t h e  power steering pump and bracket.
3.

the fan and pulley.

4.  Remove the inlet and exhaust manifolds.

5.

Disconnect  and remove  the fuel  supply pipes  from

the injectors and D.P.S. pump and cover the ports.

6.  Disconnect  coolant  by-pass  hose  from  the  water

pump,  release  the  seven  bolts  and  remove  t h e
water pump.

7.  Drain the sump and remove the dipstick.

8.

Remove the starter motor.

9.  Restrain  the  flywheel,  remove  the  crankshaft

pulley bolt and withdraw

pulley.

10.  Evenly  slacken  and  remove  the  clutch  retaining

bolts and withdraw

clutch  assembly  and centre

plate.

11.

Remove  the  two  bolts  and  remove  the  oil  filter

assembly complete from the cylinder block.
Unscrew

t h e

filter element and discard.

12.

Remove  the  six  bolts  and  withdraw  the  rear  side

plate complete with fuel pump.

REMOVE AND OVERHAUL CYLINDER HEAD

Remove the cylinder head

Remove injectors complete with spill

rail.

2.  Disconnect the heater plug electrical connections.

3 .

Remove the engine lifting brackets.

4.  Disconnect oil gallery pipe at rear of  engine.

5.

Remove  three  bolts  and  lift-off  the  thermostat

housing, elbow and thermostat.

6.

Remove  the  rocker  cover  and  slacken  the  tappet

screw  lock  nuts.  Turn  the  adjusting  screws  to
release them from t h e  push rods.

7.  Remove the rocker shaft retaining bolts, lift-off the

rocker shaft  assembly, invert

it

and secure

it

to

rocker  cover  studs  to  prevent  the  assembly  from
falling apart, see instruction 25,  page  34 2.25 litre
Petrol and Diesel engine.
Withdraw  the  push  rods  and  retain  them

in

numbered sequence.

9.  Evenly  slacken  the  remaining  cylinder  head

retaining bolts and lift-off t h e  cylinder head.

10.  Remove the engine lifting eyes.
11.  Using valve  spring compressor 276102 or a suitable

alternative, remove the valve and spring assemblies
keeping  them  identified  with  their  original
locations for possible  refitting.
Discard  the  valve  spring and valve  guide oil

seals.

Remove  carbon  deposits  from  the  valves  and
combustion  chambers and degrease

all

parts  ready

for examination.

Examine components

13.

Examine  the  cylinder  head  for  cracks  and

14.  Burnt, pitted  and pocketed seats must be repaired.

15.  In

addition, worn

or damaged valve seats should be

distortion.

renewed,

as described later.

Hot plugs and injector shrouds

and

renew

When  carrying  out  normal  top  overhaul  work  on  the

cylinder  head

i t

is  not  necessary  to  remove  either  the

injector shrouds

or the hot plugs.

Small

surface cracks in the hot plug, extending from the

opening to  approximately

(0.312  in)

in

length

can  be  ignored. However,  if  any severe cracks  appear
on  the  face

of  the  hot

plugs  before  attempting  to

remove it, closely inspect the cylinder  head

for signs of

cracks, particularly between the inlet and exhaust valve
seats.  Such  cracking  indicates  that  the  engine  has
overheated,  usually  through  lack  of  coolant,  and  the
cylinder head should be scrapped.

53

2.50

LITRE DIESEL

ENGINE

16.

To

remove  a  hot  plug  support  the  cylinder  head,

face downwards

on

two pieces

of  timber and insert

thin  soft  metal  drift  through  the  injector shroud

throat  and  tap  the  hot  plug

the  inside.  Once

removed, a faulty  hot  plug cannot be  restored  and
must be scrapped.

A -

Hot

17.

If

injector  shroud  is  damaged  using

a  13

(1.05 in)

bearing and drift, drift the shroud

o u t

towards the injector bore.

Fitting hot plugs

20.

Fit  the  hot  plugs  by  tapping  with  a  hide-faced
mallet,  and  locate  with  a  new

roll  pin.  If  the  hot

plugs  are  loose  in  t h e   cylinder  head  they  may  be

retained with

a little grease.

21.  When  fitted, the hot  plugs must  be  checked with

dial  test  indicator  to  ensure  that  they  do  not
protrude  above the  level

of  the cylinder  head  face

more than

(0.003

in)

and are not recessed

below  the level of  the cylinder head face more than
0.025

(0.001 in).

22

17

429M

Fitting shrouds

18.  Thoroughly  clean  out  the  combustion  chamber.

hole  in  the  side

of

injector  shroud  is

for

manufacturing  purposes  only

at

the  same time

can be used as a guide when

the shroud.

19.  Turn the cylinder head  lace down. Smear a little

oil

on the shroud and insert into the cylinder head

with

the hole pointing  towards the centre

of the cylinder

and drift

into

position.

22.  Check  the valve guides

lor wcar by  inserting  a  new

valve  in  the  appropriate  guide

above

the

seat.  If  movement  across  the  head  exceeds

(0.006 in) renew the guide.

23.  Inspect  the  valves  and  discard  any  that  arc burnt,

bent

or  distorted.  Check  the  stems  for  wear  by

the valve.  Valve  faces that  are pitted  or ridged  but
otherwise serviceable may be refaced.

24.  Renew  push  rods  that  are  bent

or

worn  or

scored ball o r  socket ends.

54
