Defender (1999-2002). Manual - part 100





CHASSIS AND BODY

29

REPAIR

25. Position console and connect Lucar and

multiplug to cigar lighter.

26. Connect multiplugs to remaining switches.
27. Fit console and secure with screws.
28. Fit crash pad and secure with screws.
29. Fit demister vents and secure with screws.
30. Fit grab handle, secure with screws and fit Land

Rover decal.

31. Fit heater control to fascia and secure with

screws.

32. Position instrument pack and connect multiplugs.
33. Fit instrument pack to fascia and secure with

screws.

34. Fit radio. See ELECTRICAL, Repair.
35. Connect battery earth lead. See ELECTRICAL,

Repair.

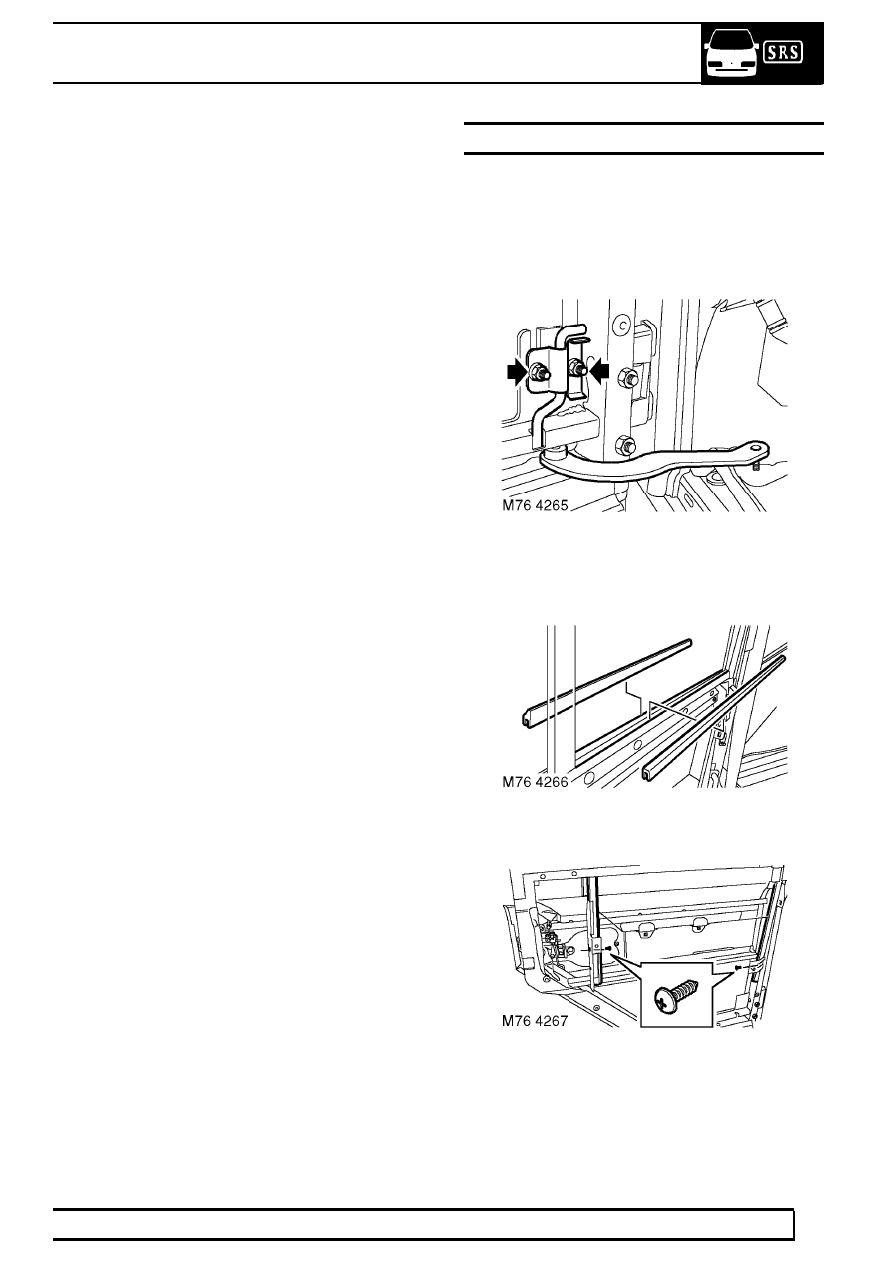

GLASS - REAR DOOR - FROM 02MY

Service repair no - 76.31.02

Remove

1. Remove rear door mounting panel. See this

Section.

2. Loosen 2 nuts and remove door check strap

torsion bar and plate.

3. Remove check strap.

4. Remove inner and outer waist seal.

5. Remove screw from each glass channel.
6. Lower glass to bottom of door, lift over lower

edge and withdraw from door.

76

CHASSIS AND BODY

30

REPAIR

Refit

7. Insert glass into channels and carefully push to

top of frame.

8. Secure glass channels with screws. Ensure

screw heads are down below bottom of channels
to prevent damage to glass.

9. Fit inner and outer waist seal to door.

10. Fit check strap.
11. Fit check strap torsion bar and tighten nuts to 10

Nm (7 lbf.ft) .

12. Fit rear door mounting panel. See this Section.

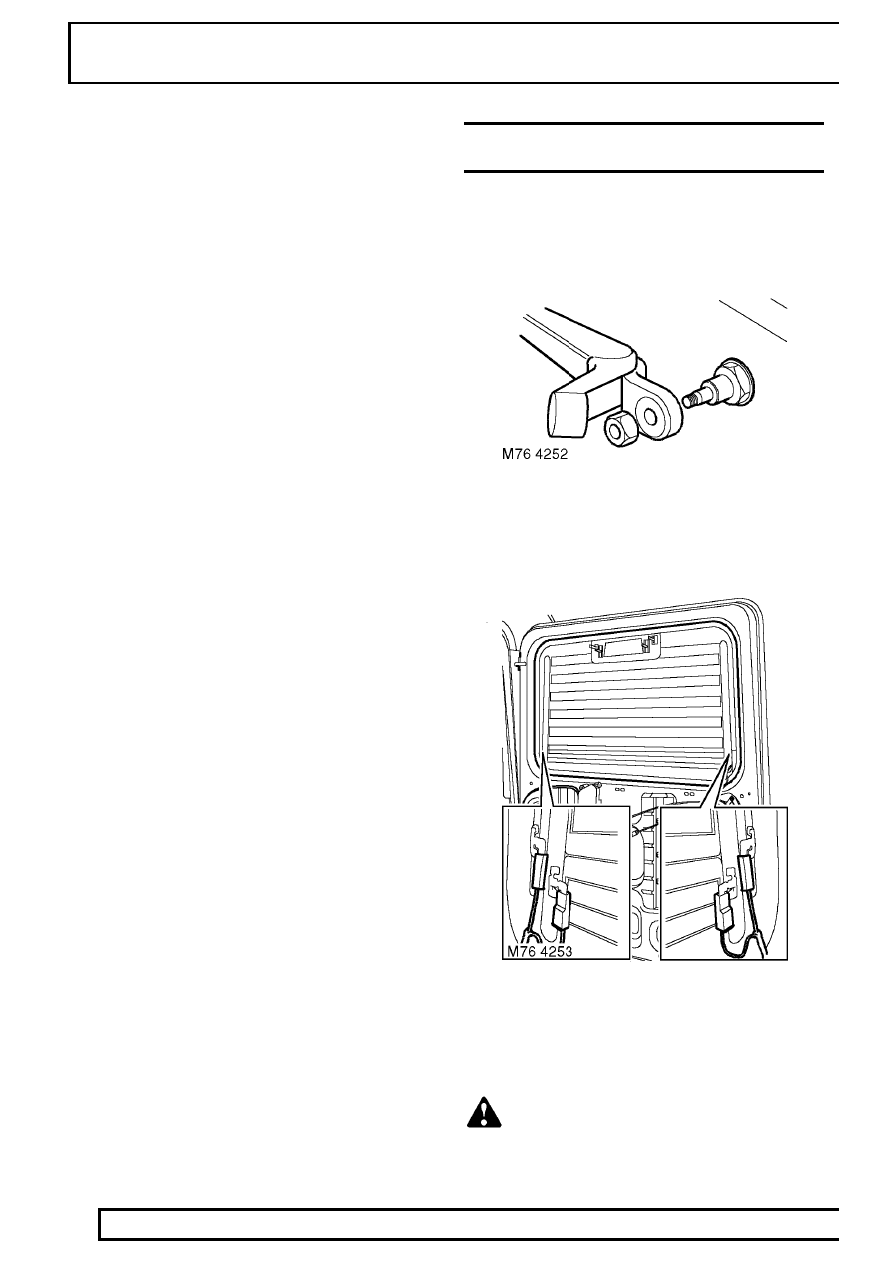

GLASS/SEALING RUBBER - TAIL DOOR - FROM
02MY

Service repair no - 76.31.22

Remove

1. Remove spare wheel from tail door.

2. Raise nut cover, remove nut and release wiper

arm.

3. Open rear door.
4. Remove CHMSL assembly. See

ELECTRICAL, Repair.

5. Disconnect 4 Lucar connections.
6. With assistance, from inside of vehicle apply

pressure to glass, relieve seal lip and carefully
remove glass.

WARNING: Wear suitable eye protection
when removing and refitting glass.

CHASSIS AND BODY

31

REPAIR

7. Remove seal from glass.

CAUTION: Lay glass on felt covered
supports and be careful not to damage the
obscuration band. Do not stand on edge

as this can cause chips which subsequently
develop into cracks.

Refit

8. Clean glass and fit seal. Ensure seal is fully

located on glass.

9. Thoroughly clean the tail door glass mounting

flange.

10. Fit drawstring to seal.
11. Lubricate seal.
12. With assistance, position glass and seal to

aperture, locate lower edge and fit seal using
drawstring.

13. Clean glass and check seal fit.
14. Connect Lucars to heated rear screen.
15. Fit CHMSL assembly. See ELECTRICAL,

Repair.

16. Fit wiper arm to spindle, align blade to glass and

tighten nut to 18 Nm (13 lbf.ft).

17. Fit spare wheel and tighten nuts to 45 Nm (33

lbf.ft).

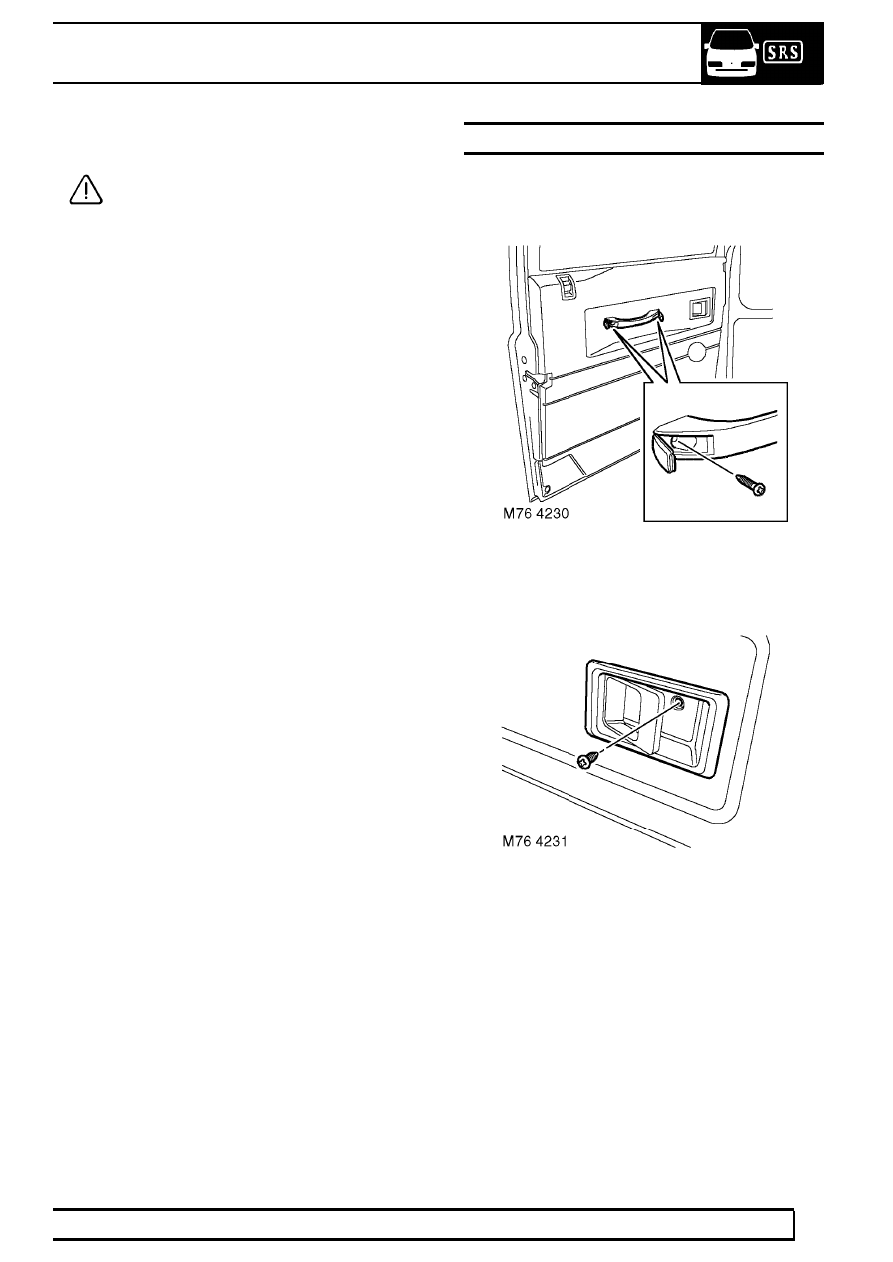

TRIM CASING - FRONT DOOR - FROM 02MY

Service repair no - 76.34.01

Remove

1. Remove 2 screws securing door pull and

remove door pull.

2. Remove screw securing door release

escutcheon and remove escutcheon.

76

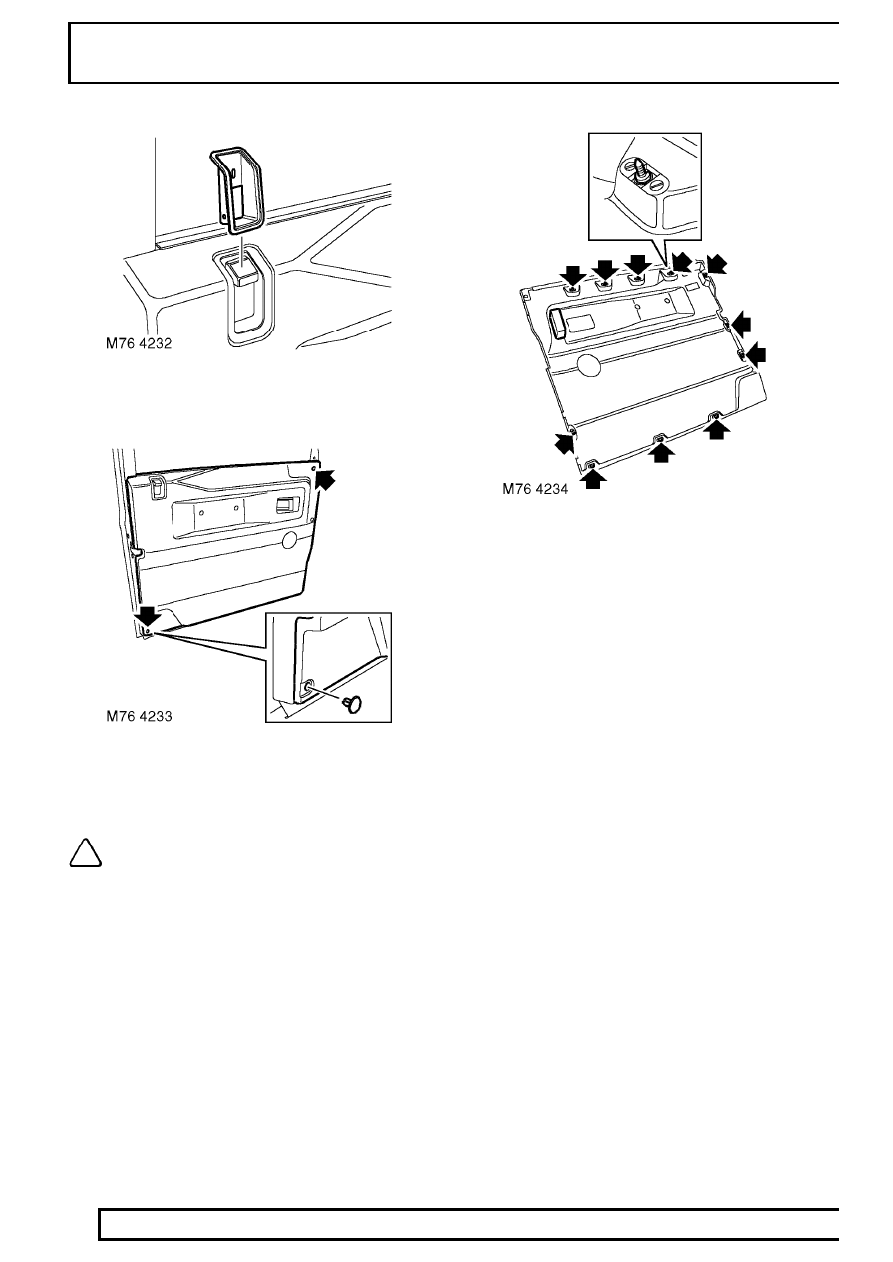

CHASSIS AND BODY

32

REPAIR

3. Remove sill button guide.

4. Remove 2 studs securing trim casing.
5. Using a trim removal tool, release 11 fasteners

and remove trim casing.

NOTE: Do not carry out further
dismantling if component is removed for
access only.

6. Remove fasteners and anti-vibration pad from

trim casing

Refit

7. Fit anti-vibration pad and fasteners to trim

casing.

8. Position trim casing, align fasteners with holes in

door and press firmly into position.

9. Fit trim studs to casing.

10. Fit sill button guide.
11. Fit escutcheon to door handle and secure with

screw.

12. Fit door pull and secure with screws.
