19

FUEL SYSTEM

6

REPAIR

Refit

17. Clean turbocharger and oil drain pipe mating

faces.

18. Using a NEW gasket, fit turbocharger drain pipe

and tighten bolts to 10 Nm (7 lbf.ft).

19. Using a new gasket fit turbocharger to exhaust

manifold and tighten nuts to 30 Nm (22 lbf. ft) .

20. Position oil drain pipe to cylinder block and

tighten union.

21. Using new gasket, align exhaust front pipe and

tighten nuts to 30 Nm (22 lbf.ft)

22. Fit banjo bolt to oil feed pipe using new sealing

washers and tighten to 25 Nm (18 lbf.ft) .

23. Position air outlet hose to turbocharger and

tighten clip screw.

24. Position and secure vacuum hose to

turbocharger wastegate.

25. Position exhaust manifold heat shield and

tighten M6 bolts to 9 Nm (7 lbf.ft) and M8 bolt to
25 Nm (18 lbf.ft) .

26. Position air inlet hose to turbocharger and

tighten clip screw.

27. Connect air flow meter to air filter and secure

clips.

28. Connect air flow meter multiplug.
29. Connect breather hose and secure clip.
30. Fit engine acoustic cover and secure with bolts.
31. Reconnect battery negative lead.
32. Fit battery cover.

FILTER ASSEMBLY - AIR

Service repair no - 19.10.01

Remove

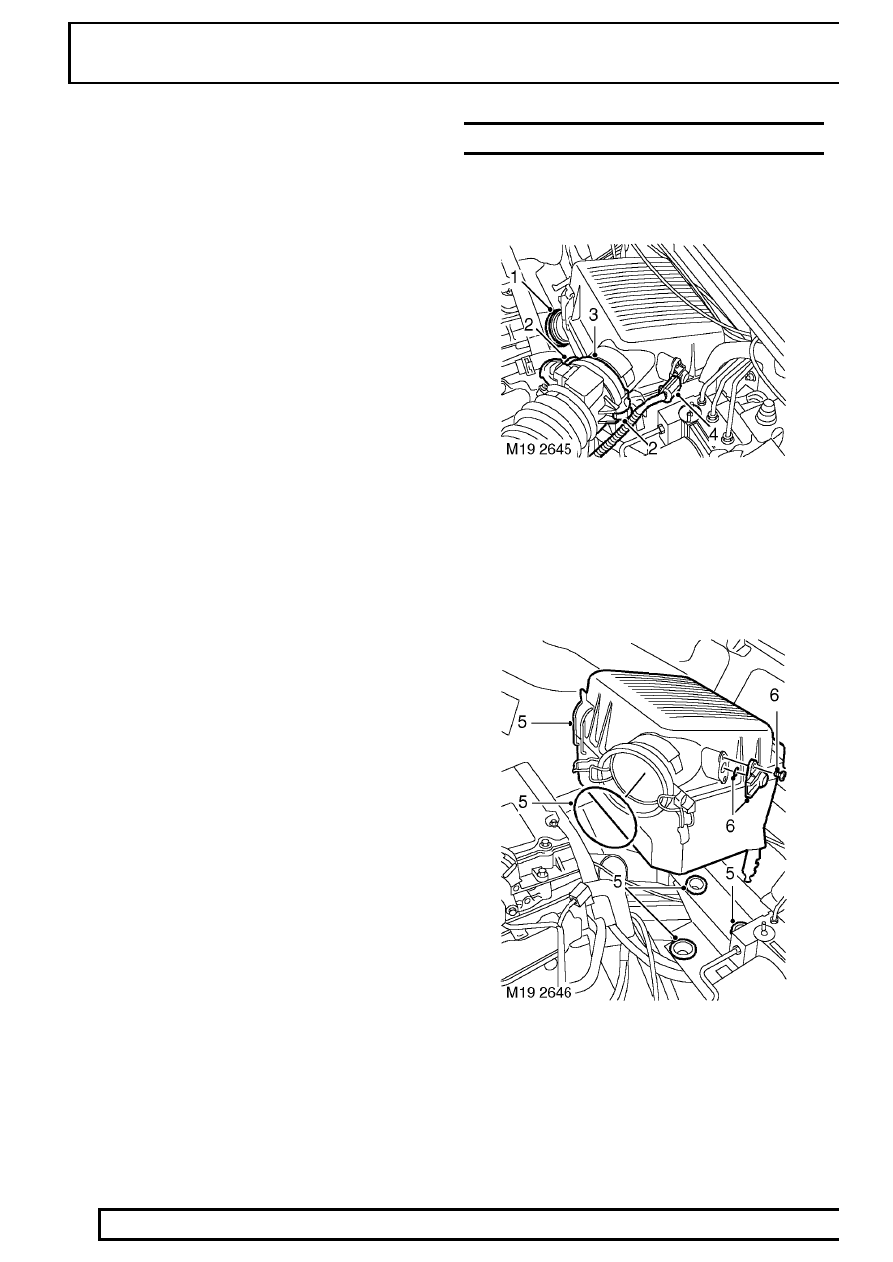

1. Loosen clip screw and release intake hose from

air filter.

2. Release 2 clips securing air flow meter.
3. Release air flow meter from air filter cover and

position aside.

4. Disconnect multiplug from AAP sensor.

5. Release air filter from 3 grommets, remove

assembly and discard ’O’ ring.

6. Remove 2 screws, remove AAP sensor and

discard ’O’ ring.

FUEL SYSTEM

7

REPAIR

Refit

7. Clean air flow meter faces.
8. Fit new ’O’ ring to air filter.
9. Clean AAP sensor.

10. Using new ’O’ ring, fit AAP sensor and tighten

screws.

11. Position air filter assembly and secure in

grommets.

12. Position air flow meter and secure clips.
13. Position intake hose to air filter and tighten clip

screw.

INJECTOR - SET

Service repair no - 19.60.12

Remove

1. Remove cooling fan. See COOLING SYSTEM,

Repair.

2. Remove rocker shaft. See ENGINE , Repair.
3. Position container to catch fuel spillage.

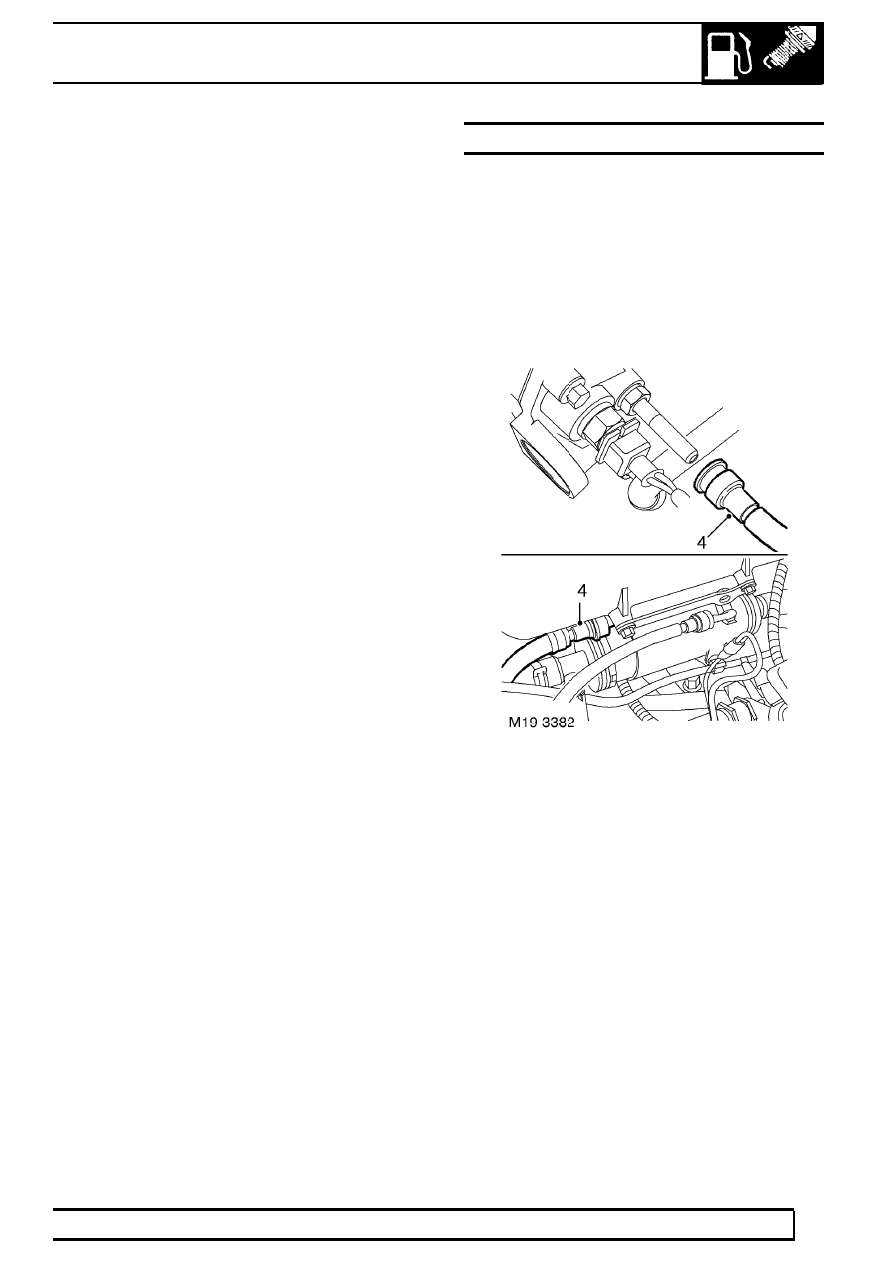

4. Disconnect quick release fuel hose connectors

from fuel connector block on cylinder head and
fuel cooler to drain fuel from cylinder head.

5. Disconnect 5 multiplugs from injectors.
6. Remove Torx bolt securing injector unit to

cylinder head.

19

FUEL SYSTEM

8

REPAIR

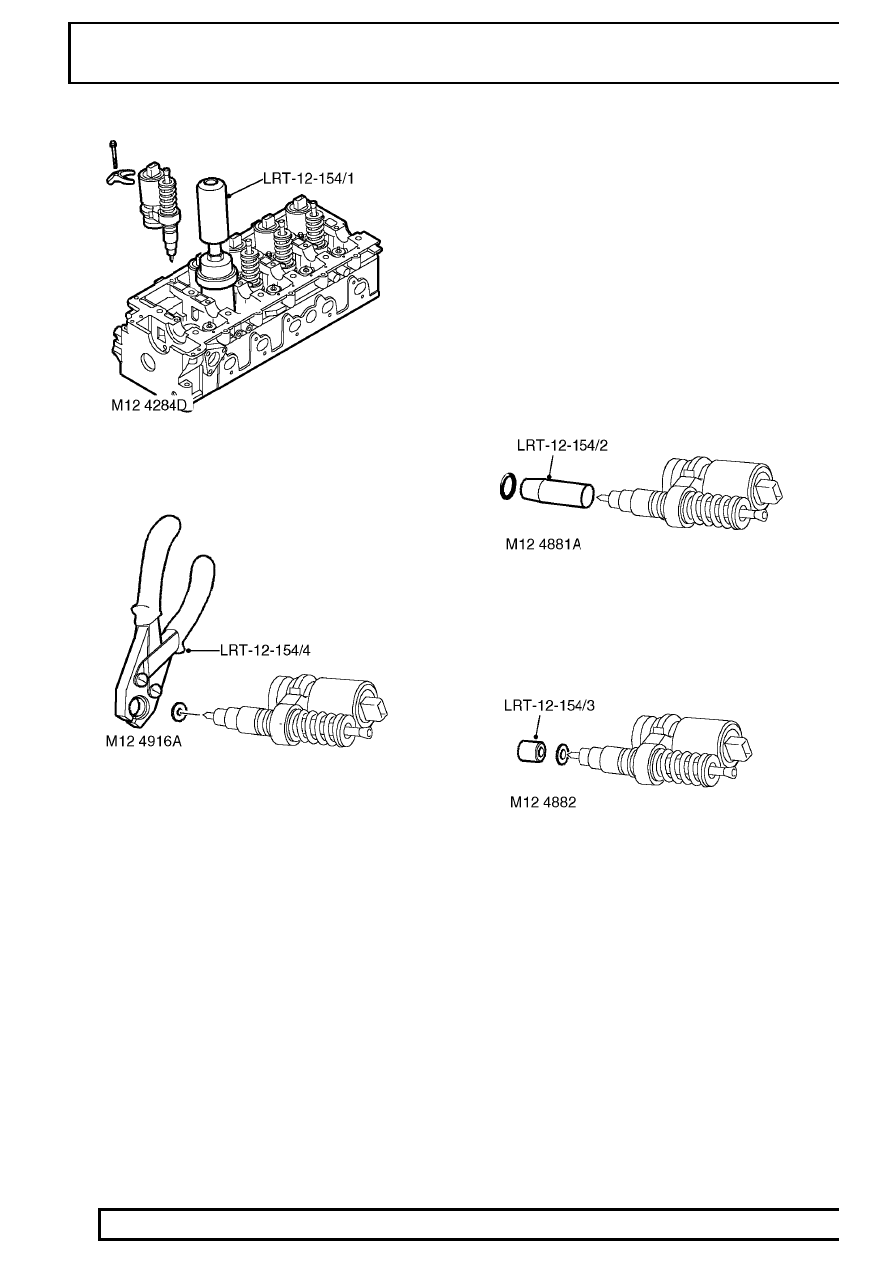

7. Assemble LRT-12-154/1 to injector unit, screw in

slide hammer and remove injector.

8. Using LRT-12-154/4, remove and discard

sealing washer.

9. Remove and discard ’O’ ring seal.

10. Rotate engine to align camshaft lobes for access

of injector removal tool.

11. Carry out above procedure to remove the

remaining 4 injectors.

12. Rotate engine manually until each cylinder being

worked on is at TDC, and remove excess fuel
from piston bowl using a syringe.

Refit

13. Clean injector unit and mating faces in cylinder

head.

14. Position LRT-12-154/2 to injector units and fit

new ’O’ rings.

15. Fit new sealing washers to injector nozzles using

LRT-12-154/3.

16. Fit retainers to injectors, carefully fit injectors

ensuring retainer is located on its dowel and
tighten bolt to 32 Nm (24 lbf.ft)

17. Connect multiplug to injector.
18. Repeat above operation for remaining injectors.
19. Connect fuel hoses.
20. New injectors must be programmed using

TestBook.

21. Fit rocker shaft. See ENGINE , Repair.
22. Fit cooling fan. See COOLING SYSTEM,

Repair.

FUEL SYSTEM

9

REPAIR

HEATER PLUGS - SET

Service repair no - 19.60.31

Remove

1. Remove 3 bolts and remove engine acoustic

cover.

2. Remove battery cover.
3. Disconnect battery negative lead.

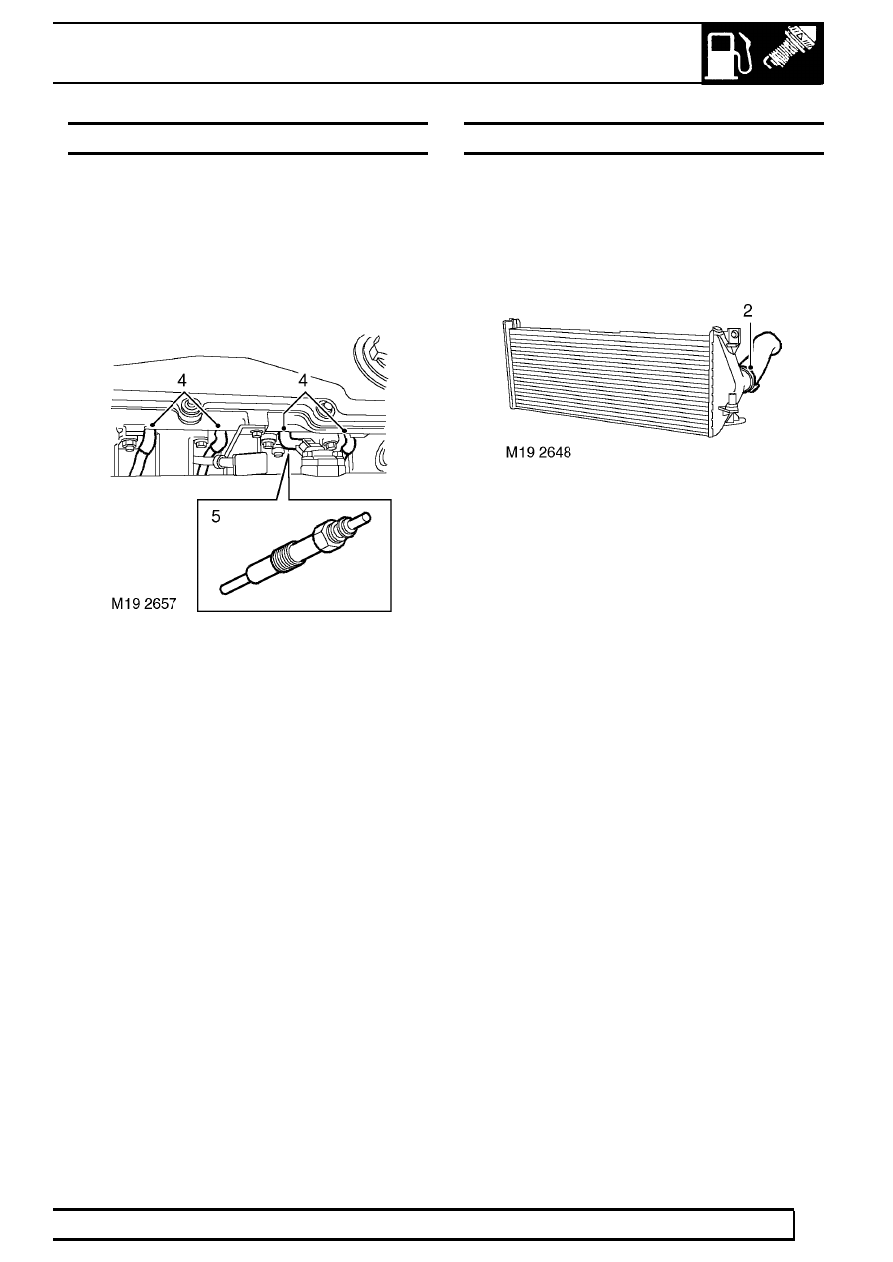

4. Disconnect 4 heater plug leads.
5. Loosen and remove 4 heater plugs.

Refit

6. Throughly clean heater plugs and seating area

in cylinder head.

7. Apply a suitable anti-seize compound to threads

of heater plugs.

8. Fit heater plugs and tighten to 16 Nm (12 lbf. ft)

.

9. Connect heater plug leads.

10. Fit engine acoustic cover.
11. Reconnect battery negative lead.
12. Fit battery cover.

INTERCOOLER

Service repair no - 19.42.15

Remove

1. Remove radiator. See COOLING SYSTEM,

Repair.

2. Release clip and remove air hose from

intercooler.

Refit

3. Position air hose to intercooler and secure with

clip.

4. Fit radiator. See COOLING SYSTEM, Repair.
