ELECTRICAL EQUIPMENT

Illumination dimmer  switch

MFI HARNESS

Colours: red, red/white

This  harness connects  the  engine  mounted  items  of

Interior light

the

fuel  injection  system  with  the  electronic

control

Colours. purple, purple/blue

module and with the  main cable assembly.

Voltage  sensitive switch connector

The  items  making  up  the  harness  and  the  cable

Colours: black/slate

colours are

Lighting connector

Injectors (cyls 2,

4,

6,

8)

Colours: brown, red, blue

Colours: brown/orange, yellow/white

Horn, direction indicators, dip switch

Injectors

(cyls

1,

3, 5, 7)

Colours:  blue,  green/white,  light  green/brown,

Colours: brownl/orange, yellow/blue

green/red, blue/white, blue/red, purple, purple/black

Fuel temperature sensor

Wash wipe switch

Colours: slate/white, red/black

Colours:

blue/light

green,

light

green/black,

white/green, yellow/light green, red/light green, green

Water  temperature sensor

Colours: green/blue, red/black

Warning lamps

Colours:

slate/black,

white/brown,

white,

Heated oxygen Sensors

(2)

brown/yellow,  white/yellow,  green/white,  green/red,

Colours: white/orange, black, core

purple/yellow

Warning lamps

Colours:  light  green/purple.  black,

red,

red/yellow,

blue/brown,

white/slate,

black/blue,

white,

Purge valve

btack/yellow, black/yellow

Colours: slate/yellow,  white/purple

Idle air  conditioning valve,

110 only

Colours: green/white, blue/slate, orange, red/green

Coil connection
Colours: white/black

Mass air flow  sensor connection

Colours:

red/black.

blue/green,

brown/orange,

brown/red

Vehicle

speed

sensor chassis harness connection

Colours:

yellow, yellow

Colours:

white/purple,

black/yellow.

brown,

white/green,  white/red

Fault display unit

Colours.

brom/orange,  black/slate, pink, brown/pink

Fan timer  relay module
Colours:  black,  white/green,  black/green,  black/red,
brown/orange

Fuel pump relay module

Colours: white/purple

x 2, white/orange x 2, white/red

x  2,  white

Main harness connector

Main relay module
Colours: brownlorange x  3. brown x  2, blue  red

Diagnostic plug

Colours: white/light green. white/pink.
black/slate x 2

28

REVISED: OCT 1993

ELECTRICAL EQUIPMENT

RADIO HARNESS

This  harness  interconnects the  radio  equipment  and

the  main  harness.  Two  in-line  fuses  are  provided
within the  harness.

The  items  connected  to  the  harness  and  the  cable
colours are.

Power amplifier connector,  110  only

Colours:

red,

white,

white/black,

black/blue,

black/brown,  black/white,  black/green,  white/orange,
black

Fuse holder (5A),

110

only

Colours: white/orange, white/orange

Rear speaker connector

Colours:

black/white,

black/green,

black/blue,

black/brown

RH  front speaker OUT
Colours: black/green, black/blue

RH  rear speaker OUT

Colours: red, red/black

LH

front speaker  OUT

Colours: black/white, black/brown

LH

rear speaker

OUT

Colours: white,  white/black

Radio connector  1
Colours: black, red

Radio connector

Colours:  purple, red/white

Fuse holder (2A)

Colours:  brown, brown

Main harness connector
Colours:  purple,  red/white,  black/green.  black/white,
black/brown. black/blue, black. white/orange

REVISED:

OCT

1993

29

ELECTRICAL EQUIPMENT

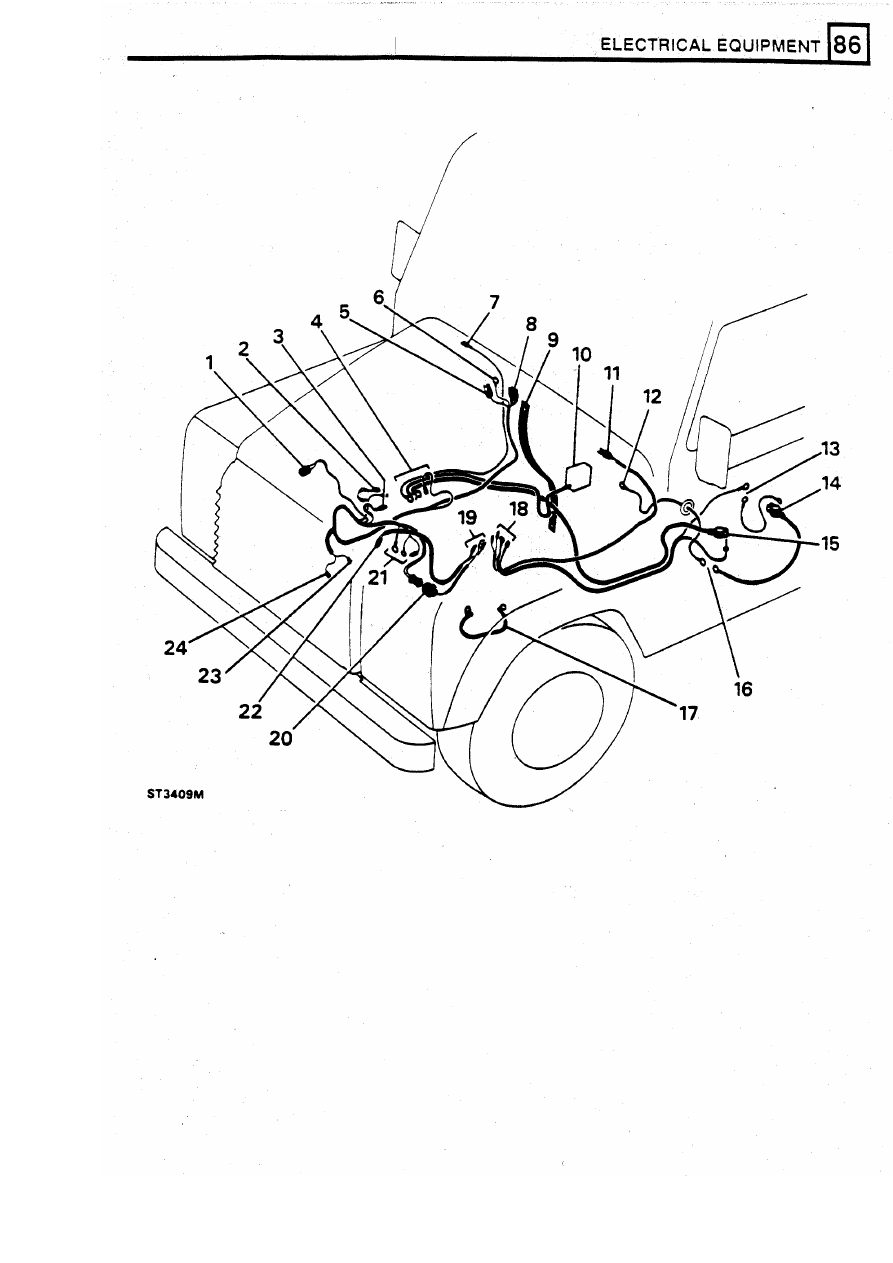

ENGINE HARNESS CONNECTORS ST3409M

1,

Air

conditioning compressor connector,

110

only

2.

Fan temperature transmitter,

110

only

3.

Water temperature sensor

4.

Starter motor connector

5.

Air  conditioning connection,

110

only

6.

Ground

7.

Air  conditioning connection,

110

only

8.  Main cable assembly connection
9.

Ground braid

10.  Main fuse box

11.

Main cable assembly split charge connection,

110

only

12.  Gearbox ground
13.  Split charge terminals,

110

only

14

Battery terminal Ground

15.

Battery terminal Positive

16.

Isolation switch terminals

17.  Engine ground strap
18.  Split charge unit terminals
19.  Coil connections

20.  Low tension connection,

110

only

21.  Alternator connection

22.

Ignition module connection

23.

Oil

temperature sensor connection,

110

only

24.

Oil

pressure switch connections

30
