ELECTRICAL EQUIPMENT

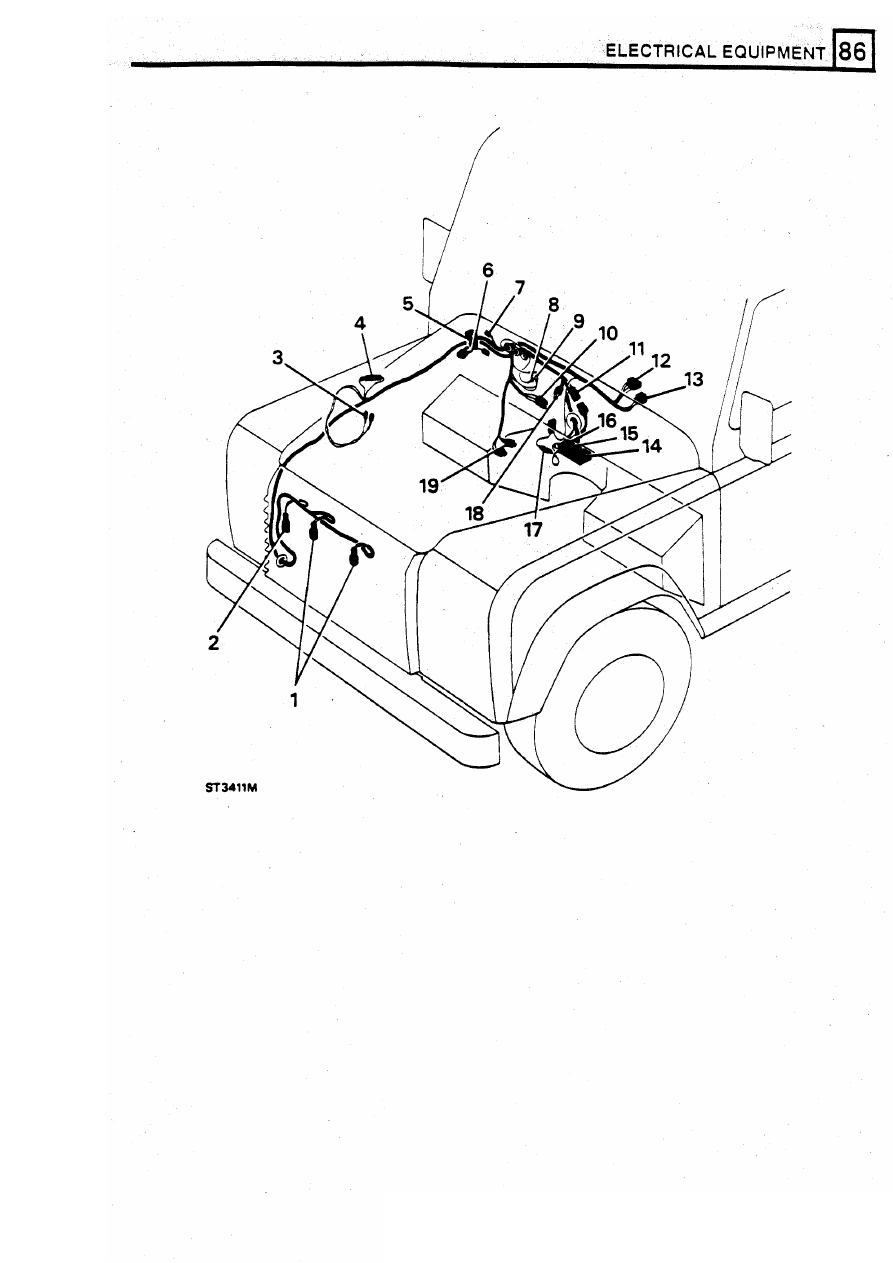

AIR CONDITIONING HARNESS CONNECTORS ST3411M

DEFENDER 110 ONLY

1.  Condenser fan connectors

2.  Fan switch connector
3.  Thermostat connections

4.  Diode connections
5.  Resistor block connections
6.  30 amp fuse in holder
7.  Evaporator connector
8.  Auxiliary connection to main cable assembly
9.  Ground

10.  Engine harness connector
11,  System relay module connector
12.  Fan switch connector
13.  A/C ON/OFF switch connector
14.  Evaporator fan relay module connector
15.  Compressor relay module connector

16.  A/C main relay module
17.  30 amp auxiliary fuse connection
18.  Main cable assembly connection
19.  MFI cable assembly connection

32

REVISED:

OCT

1993

RE-ISSUED: FEB 1993

33

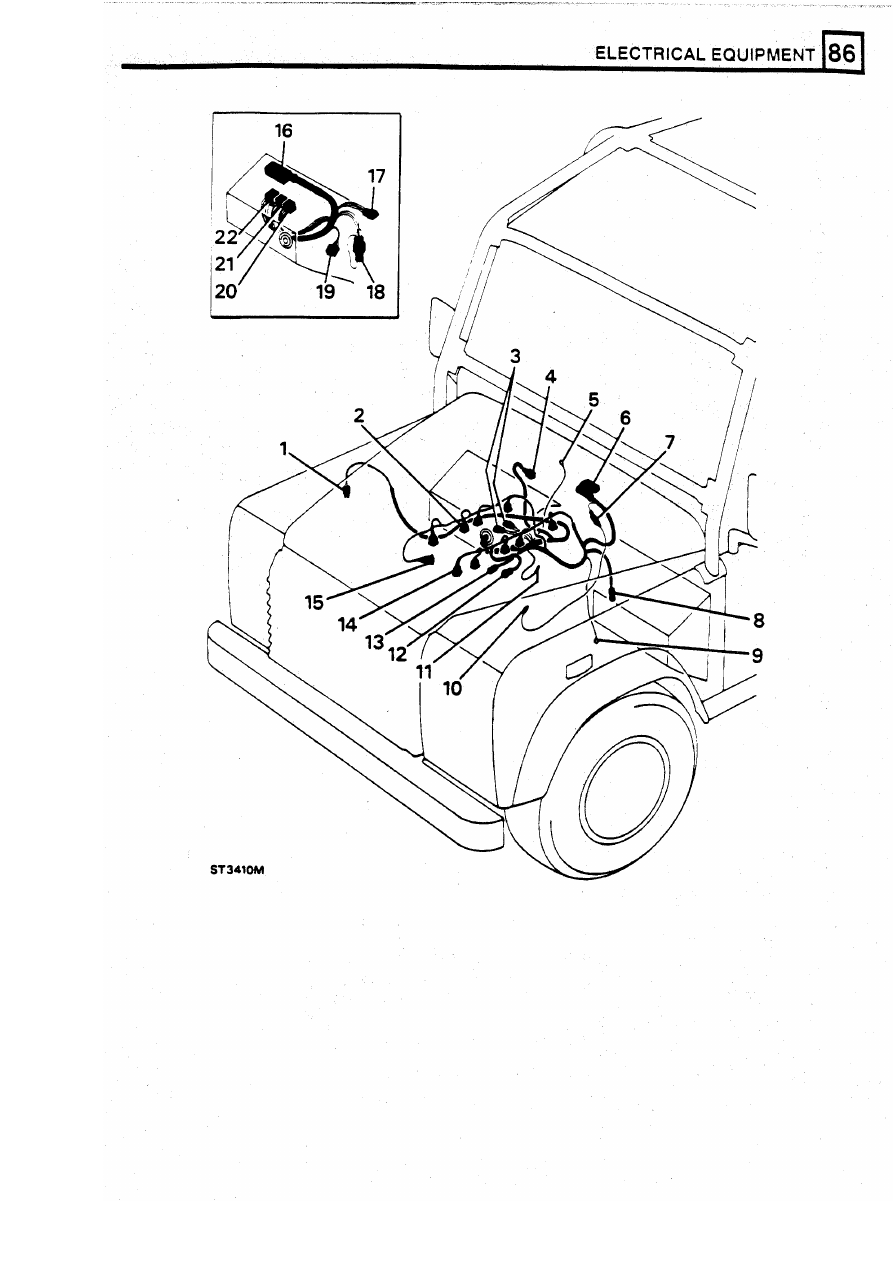

ELECTRICAL EQUIPMENT

MULTIPORT

FUEL

INJECTION HARNESS

CONNECTORS ST3410M

1.  Purge valve connection

2.  Injectors
3.  A/C connection

4.  Idle air control valve connection
5.  Ground
6.  Mass air flow sensor connector
7.  Resistor
8.  LH  HO2S connector
9.  Engine ground

10.  Coil connection
11.  Chassis harness speed sensor connector
12.  Throttle position sensor connector
13.  RH  HO2S connector

14.  Coolant temperature sensor connector
15.  Fuel temperature sensor connector
16.  MFI connection
17.  Main harness connection
18.  Diagnostics plug
19.  Fault display unit connection

20.  Fuel pump relay module
21.  Main relay module
22.

Fan timer relay module. 110 only
