Defender (1993+). Manual - part 100





ELECTRICAL EQUIPMENT

NOTE:

Soak  new  bushes  in  engine  oil  for  thirty

minutes before fitting.

Reassembly

Armature

27.

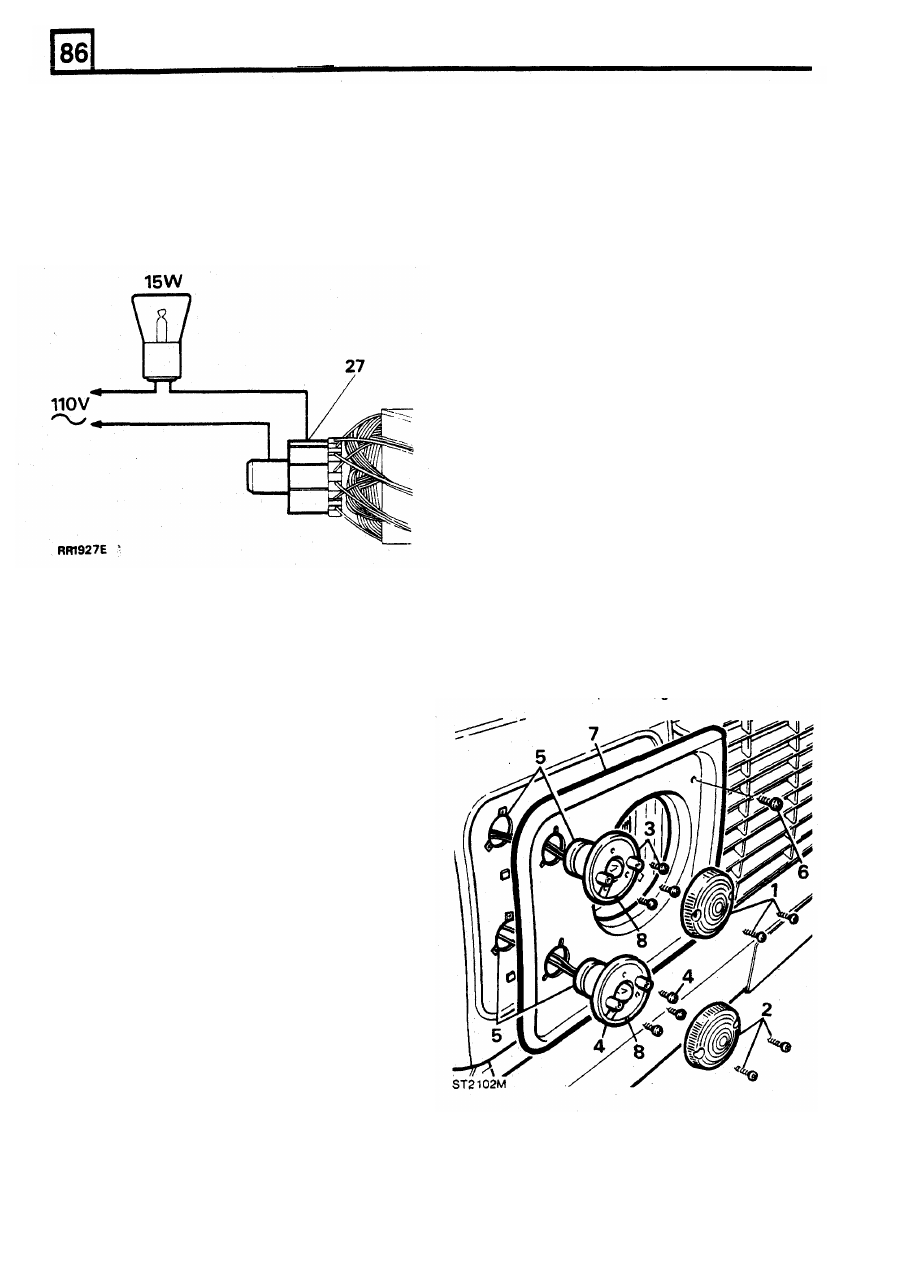

Check  the  armature  insulation  using  suitable
test  equipment.  Connect  the  tester  between
any  one  commutator  segment  and  the  shaft.
The  method  illustrated  uses  a  110 V,  15  W

34.  Reverse  the  instructions  1  to  22.  Smear  the

test  lamp. If  the  lamp illuminates the  armature

teeth  and  operating  collar  of  the  roller  clutch

is

faulty,  and  a  replacement  component

IS

with  Shell  Retinax 'A'  grease.  Smear the  pivot

required.

lever  of  the  drive  assembly  with  Mobil  22
grease.  Smear  the  drive  shaft  sun  and  planet
gears with

Rocol

ERE1200 grease.

35.  Tighten  all  the  fixings

to

the  correct  torque

see Torque Wrench Settings, SECTION 06

HEADLAMPS

To  remove or renew bulb o r  light  unit

1.  Remove  the

two

screws  and  withdraw  the

2.  Remove  the  two  screws  and  withdraw  the

front  flasher lens.

3.  Remove  the  three  screws  retaining  the  side

lamp to the wing.

4.

Remove the three screws securing the  flasher
lamp.

5.

Ease  the  side  and  flasher  lamps  from  their

28.  If  necessary,  the  commutator  may  be

locations in the  wing  and  pull them  out  as  far
as the leads will allow.

6.  Remove the  screws  retaining the  plastic bezel

to

the wing.

7 .

Withdraw  the  bezel sufficiently to  gain  access
to the headlamp retaining screws.

front  side  lamp  lens.

machined, providing a finished  surface can be

obtained  without  reducing the  diameter  below
28.8

mm

otherwise  a  new  commutator  must

be  fitted.  Finish  the  surface  with  fine  emery
cloth.

Do

not undercut the insulation

slots.

Drive  assembly

29.  Test the  roller clutch.  The  pinion should rotate

in  one  direction  only,  independent  of  the
clutch  body. Replace the  unit

if

unsatisfactory

or  if  teeth are damaged or  worn.

Bearings

30.  Renew the bearing bushes

if

there is evidence

of  armature  fouling  magnets  or  if  there  is
perceptible  side  play  between  the  shaft  and

bush.

31.  Drive end/intermediate end bracket:  press out

the  bush using a suitable press and mandrel.

32.

Press  the  new  bush  in,  ensuring  that  on  the

drive  end  bracket,  the  bush

I

flush  with  the

casting.

33.  Commutator  end  bracket:  thread  a  9/16

Whitworth or  suitable similar tap firmly  into the
bush.  Extract  the  bush  with  the  tap  using  a

power press in reverse.

12

REISSUED: FEB 1993

ELECTRICAL

EQUIPMENT

11

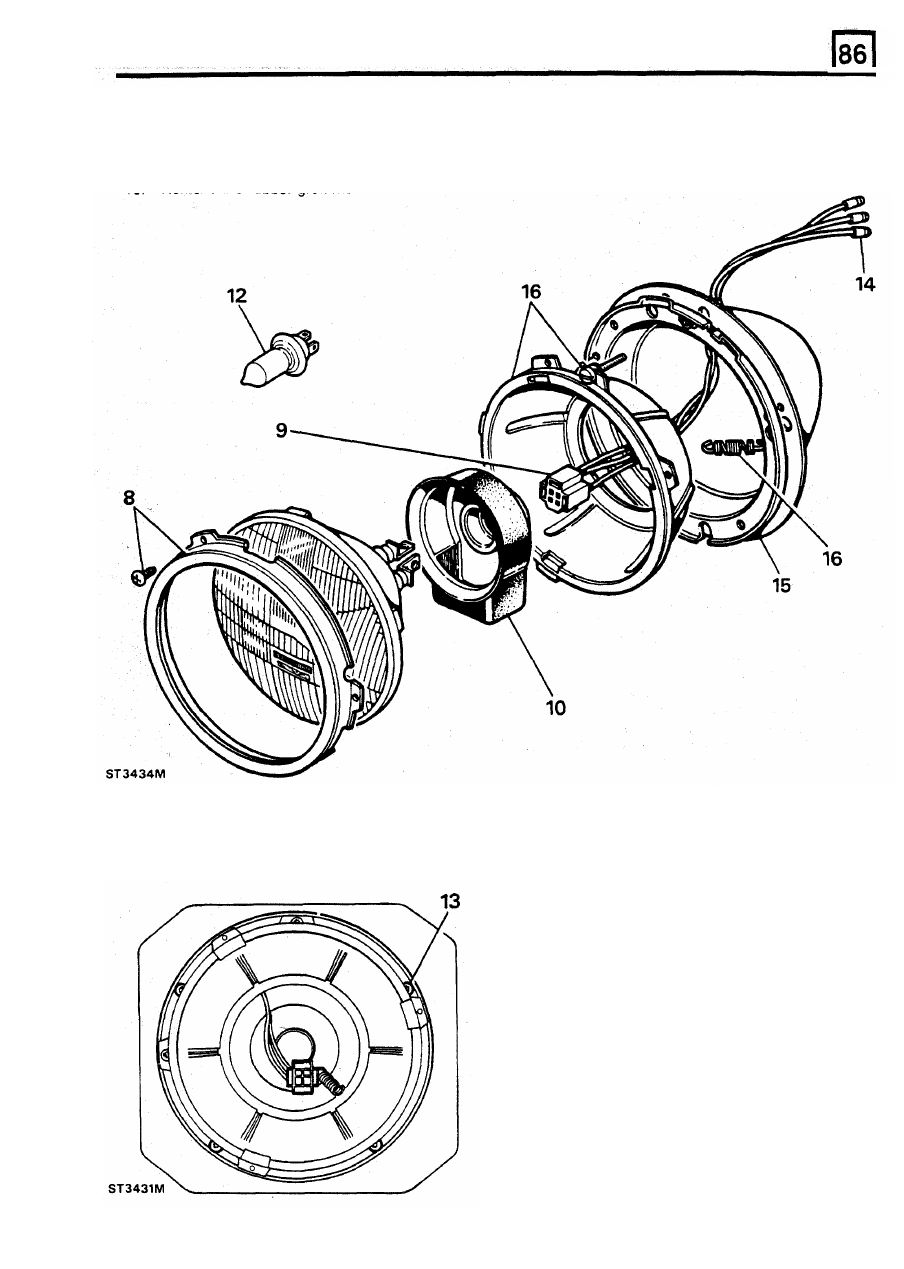

Discard  the  light  unit,  or  release  the  spring

8.

Remove  the  three  screws  retaining  the  rim

clip and discard the  bulb if  faulty.

and  light unit, and remove the  rim.

12.

If  required,  fit  a  new  bulb  of  the  correct

9.

Withdraw  the  light  unit  or  reflector  and

wattage  and  secure  with  the  spring  clip, or

fit

disconnect the electrical connector.

a new light  unit.

10

Remove the  rubber grommet.

14.  Disconnect the  electrical  leads from  the  bullet

connectors and remove the  headlamp shell.

15.  Remove the rubber seal.

To remove or  renew headlamp assembly

13.

Remove  the  four  screws  and  release  the

16.

Release  the  two  trimmer  screws  and  coil
spring  and  detach  the  rim  seating  from  the
headlamp shell.

headlamp shell from  the front wing.

REISSUED: FEB

1993

13

ELECTRICAL EQUIPMENT

Assemble and refit

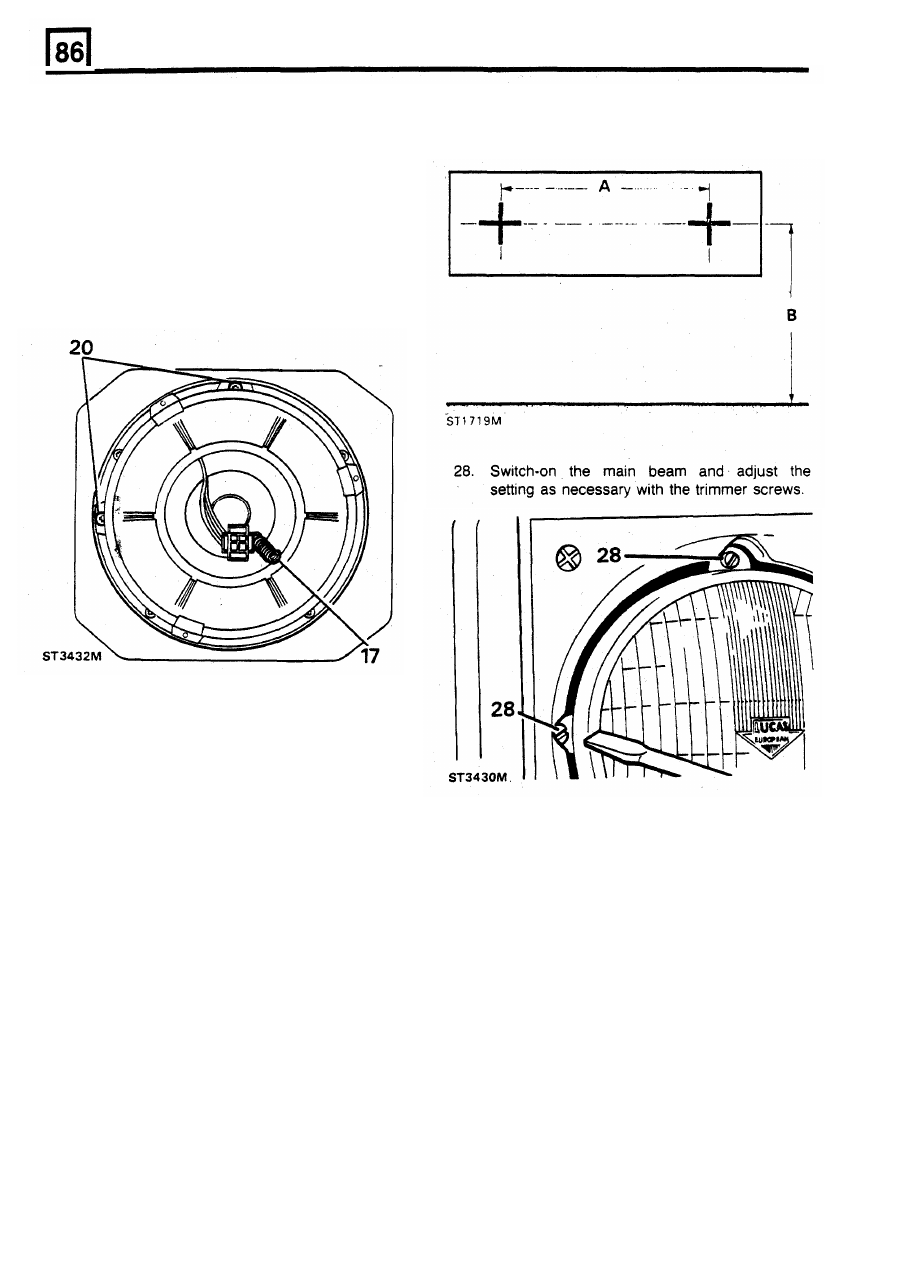

27.  The

beam  centres

'A'

are

measured

horizontally on  the  vehicle  and  the  dimension
'B'  vertically from  the ground.

17.

Fit  the  rim  seating  to  the  headlamp shell  with

the two trimmer  screws and coil spring.

18.  Fit the rubber seal to the headlamp shell.
19.  Connect the  leads to the  bullet connectors.

20.  Fit  the  headlamp  shell  into  the  front  wing

locating the  trimmer  screws  into the

two

holes

in

the  wing.  Ensure  that  the  assembly  is

located, as  illustrated, with  one  trimmer  screw

at  the  12 o'clock  position and the  other  90° to
the left.

21.  Secure  the  shell  assembly  to  the  wing  with

the four  screws.

22.  Offer-up  the  light  or  reflector  unit  to  the  rim

seating and connect the electrical connector.

23.  Secure  the  assembly  with  the  rim  and  three

screws.

24.  Refitting

of

the  plastic  bezel  and  lamps

is

reversal  of  instructions  1  to  7.  Ensure,
however, that when fitting the side and flasher
lamps the  gap  in the  seal  surround is  located
at  the  bottom  to  provide  for  drainage  and
ventilation.

25.  Remember  to  replace  or  renew  the  rubber

sealing  washers  over  the  screws  inside  each
lens. Also  check  that  the fibre washers  are  in
place under the screw  heads on the outside

of

the lens.

25.

Check  the  main  beam  setting  using  beam

setting  equipment.  Should  this  not  be
available  the  beam  can  be  temporarily
checked and adjusted in the following way:-

26.

Position  the  vehicle  on  level  ground  with  the

tyres  correctly  inflated,  approximately  four
meters  from  a  wall  or  screen,  marked  as
illustrated.

14

REISSUED:

FEB

1993

ELECTRICAL EQUIPMENT

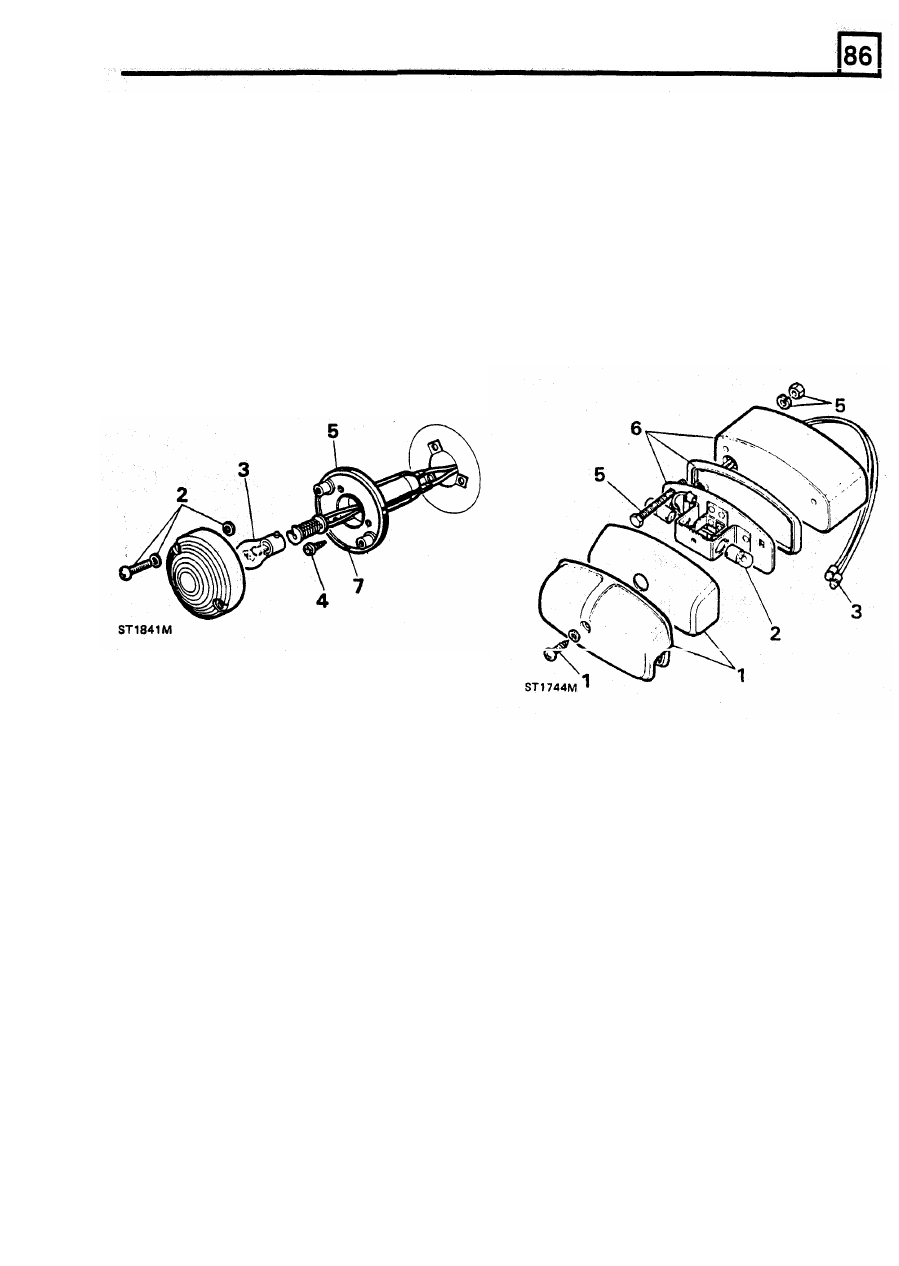

SIDE, TAIL  AND  FLASHER  LAMPS

Renew bulbs and  lamps

REAR

NUMBER

PLATE LAMP

Remove and renew bulbs

1.

Disconnect the battery.

1.

Disconnect the  battery  and  remove the  single

2.  Remove  the  two  screws  and  fibre  washers

and  withdraw  the  lens  and  collect  the  two
rubber washers inside the lens.

3.

Disconnect the electrical leads.

screw  securing the lamp cover and  lens.

2.

At this stage the bulbs only can be renewed.

3.  Push the  bulb inwards, twist  and withdraw.

4.

Remove  the  cover  from  inside  the  vehicle

4.

Remove  the  three  screws  and  withdraw  the

body.

lamp

holder

complete.

Disconnect  the

5.

Remove  the  two  nuts  and  washers  securing

electrical  leads  from  the  bullet  connectors

the lamp to the vehicle body.

inside the vehicle wing for  the front lamps. For

6.

Remove the  bulb  holder  complete with  rubber

rear  lamps  remove the  cover  inside the  body

seal and mounting block.

for  access to the connectors.

5.  If

necessary  remove  the  rubber  bulb  holder

cover.

Refitting lamp and bulbs

6.  Fit the rubber cover to the  lamp holder.
7.

Ensure  that  the  drain  gap  in  the  cover  is  at

the bottom.

8.

Connect  the  electrical  leads  to  the  bullet

7 .

Assemble  the  bulb  holder  and  rubber  seal  to

connectors.

9.

Fit  the  lamp  to  the  vehicle,  observing

the  mounting block,  connect  the  leads  and  fit
to  the  vehicle  body  with  the  two  screws  and

instruction  7 ,   and  secure  with  the  three

nuts.

screws.

10.

Fit the bulb of the same wattage, if renewed.

8.  Fit the bulbs.
9.  Fit  the  lens  and  lamp  cover  and  secure  with

11.

Fit  the  lens  ensuring  that  the  rubber and  fibre
washers  are  correctly  positioned.  Evenly

the single screw.  Connect the battery and test

tighten  the

two

screws.  Overtightening  could

the lamp.

crack the  lens.

Refitting lamp and bulbs

REISSUED:

FEB

1993

15
